Opinions please!
- Thread starter 9chesh
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
vilguy
Do'er of stuff and the like
- Posts
- 9,915
- Location
- Dumfrieshire

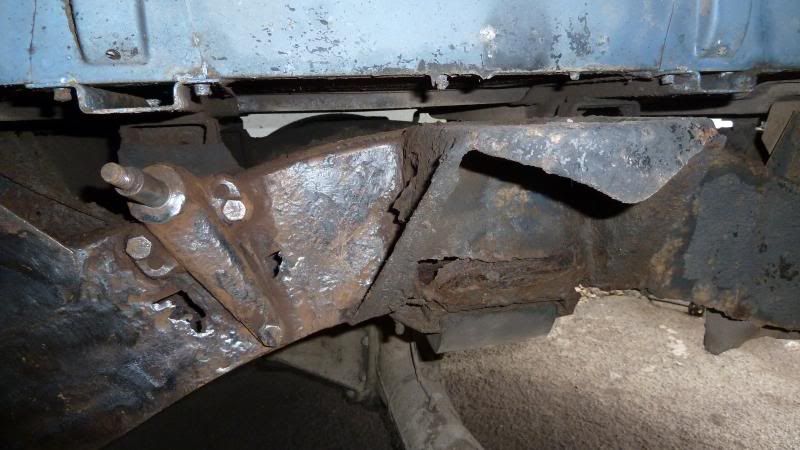

looks perfectly fine
whats your concern?
whats your concern?
tottot
Well-Known Member
- Posts
- 8,030
- Location
- west wales coast
Tap around with small hammer,you will soon tel the difference between good metal and real crud. Then decide if its worth keeping. Looks like mostly surface rust but chassis can be badly corroded inside and that's where the hammer comes in.
Pikey
Dummy Ejection Facilitator..
- Posts
- 47,185
- Location
- in Baron Wet Bum's Slave pit..
Get a wire cup brush and get it cleaned up. Then see what needs welding. Starting from the back trouble spots are:
Rear Crossmember
chassis legs.
Chassis side walls inside Spring hangers
Chassis bottoms under the Bumpstop mountings.
Aframe cross member where it sits on top of the chassis.
forwards of this they're usually covered in oil from gearbox & engine so tend not to rot as much.
Don't ask me how I know :doh:
Rear Crossmember
chassis legs.
Chassis side walls inside Spring hangers
Chassis bottoms under the Bumpstop mountings.
Aframe cross member where it sits on top of the chassis.
forwards of this they're usually covered in oil from gearbox & engine so tend not to rot as much.
Don't ask me how I know :doh:
Marmaduke
Well-Known Member
- Posts
- 9,773
- Location
- Near the land of 'Me Duck'

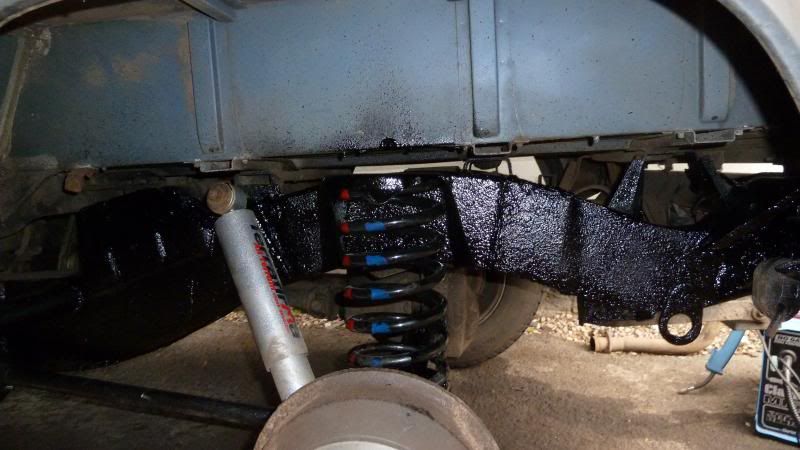

+1, I can't see owt wrong that a good wire brushing a paint wouldn't put right. To give you an idea this was mine and I fixed it up OK
defender11069
AKA Mr cool...
- Posts
- 8,616
- Location
- up sh*t creek with out a paddle
that needs a wire brush and wax oil....
aaronmorris
Head's a shed
- Posts
- 6,369
- Location
- Doncaster
As said it doesn't look too bad. But a good wack around with a hammer should expose any rot.
What is your concern with fitting a new chassis? You seem to have come a fair ways already. The rest is easy.
What is your concern with fitting a new chassis? You seem to have come a fair ways already. The rest is easy.

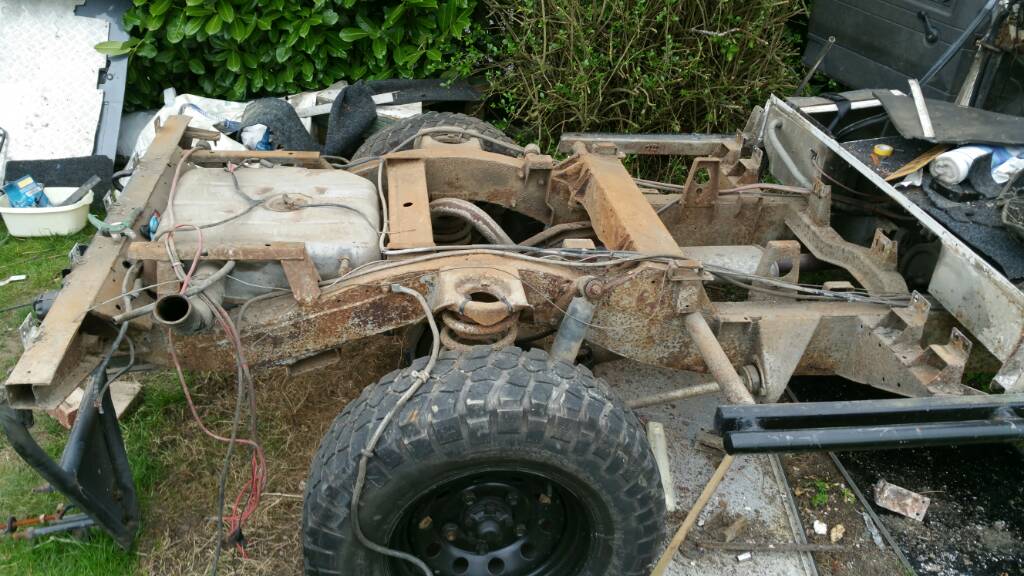

Thanks for the opinions guys. I have never attempted anything like this before and don't really fancy going any further with the strip down. Marmaduke that's pretty impressive! If mine looks half that good I'll be pleased.
Best thing to treat with once repaired?? Red oxide?
Best thing to treat with once repaired?? Red oxide?
Marmaduke
Well-Known Member
- Posts
- 9,773
- Location
- Near the land of 'Me Duck'
I don't think there's much more to strip off it
Red oxide or POR15 is pretty good to, then Dinitrol over the top and it should last for ever
Marmaduke
Well-Known Member
- Posts
- 9,773
- Location
- Near the land of 'Me Duck'
Did you buy it stripped down like that or have you done it yourself?
Marmaduke
Well-Known Member
- Posts
- 9,773
- Location
- Near the land of 'Me Duck'
Hope you've labelled everything thoroughly then bud otherwise you'll be getting to know your voltage tester
Marmaduke
Well-Known Member
- Posts
- 9,773
- Location
- Near the land of 'Me Duck'
uh-oh I thought it was only me who looses there rag and gets busy with the wire cutters. Not only will you need a multimeter but a wiring diagram and a load of connectors to
Marmaduke
Well-Known Member
- Posts
- 9,773
- Location
- Near the land of 'Me Duck'
Like trying to knit snot, fortunately I think think there's not many wires on a tratter
Ok just been hard at it with wire brush and wire cup thingy that goes in the end of the drill. At best I can get it to come up to similar to your first pic.+1, I can't see owt wrong that a good wire brushing a paint wouldn't put right. To give you an idea this was mine and I fixed it up OK
How the hell do I get it as shiny as yours in the second pic ??
Last edited:
DiscoPol
Well-Known Member
- Posts
- 6,376
- Location
- The Land of Po
Marmaduke
Well-Known Member
- Posts
- 9,773
- Location
- Near the land of 'Me Duck'
http://www.landyzone.co.uk/lz/f7/strange-shaped-hole-chassis-240267-3.html

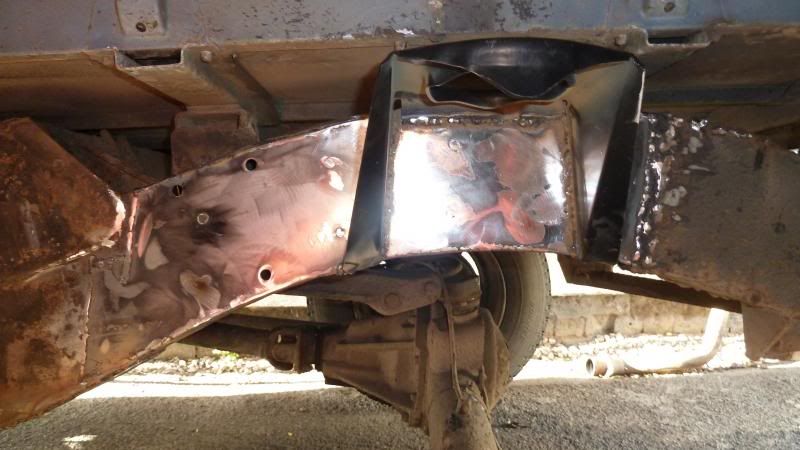

Angle grinder, 1mm cutting disks, wire cup on an angle grinder, welder, cardboard cereal boxes as a template and 2mm cold rolled steel. Oh and 4 new spring seats and Dinitrol to finish it off
