Oil filter parts not mentioned

Greetings lads
There is this oil filter 2250 diesel s3 diagram
https://www.lrworkshop.com/diagrams...diesel/engine-oil-filter-225-litre-diesel_102

But searching how to change the oil I saw in a video that are other parts bot even mentioned on the diagram like a coil inside the filter.


How do you order these? Or do you need to order the whole casing ?

Have you removed the old filter? If so you should have found the washer plate and spring.
They are reused when fitting new filter as in post above.

Interesting problem - you're not supposed to lose them!

Put a wanted in the ad section, I'm sure someone will have a spare.

tottot said:

Have you removed the old filter? If so you should have found the washer plate and spring.
They are reused when fitting new filter as in post above.

Click to expand...

I am about to, hope previous owner had it

boguing said:

Interesting problem - you're not supposed to lose them!

Put a wanted in the ad section, I'm sure someone will have a spare.

Click to expand...

To have them new (if someone's a control maniac) u need to buy yourself a new casing?

Ekenoos said:

I am about to, hope previous owner had it

To have them new (if someone's a control maniac) u need to buy yourself a new casing?

Click to expand...

I honestly have no idea, try calling anyone who has one in stock - although that's going to a challenge I'd guess. If you're hung up on new, consider that anything lurking on a shelf will almost certainly have been made in the same decade as yours, and the steel exactly the same day as the Big Bang.

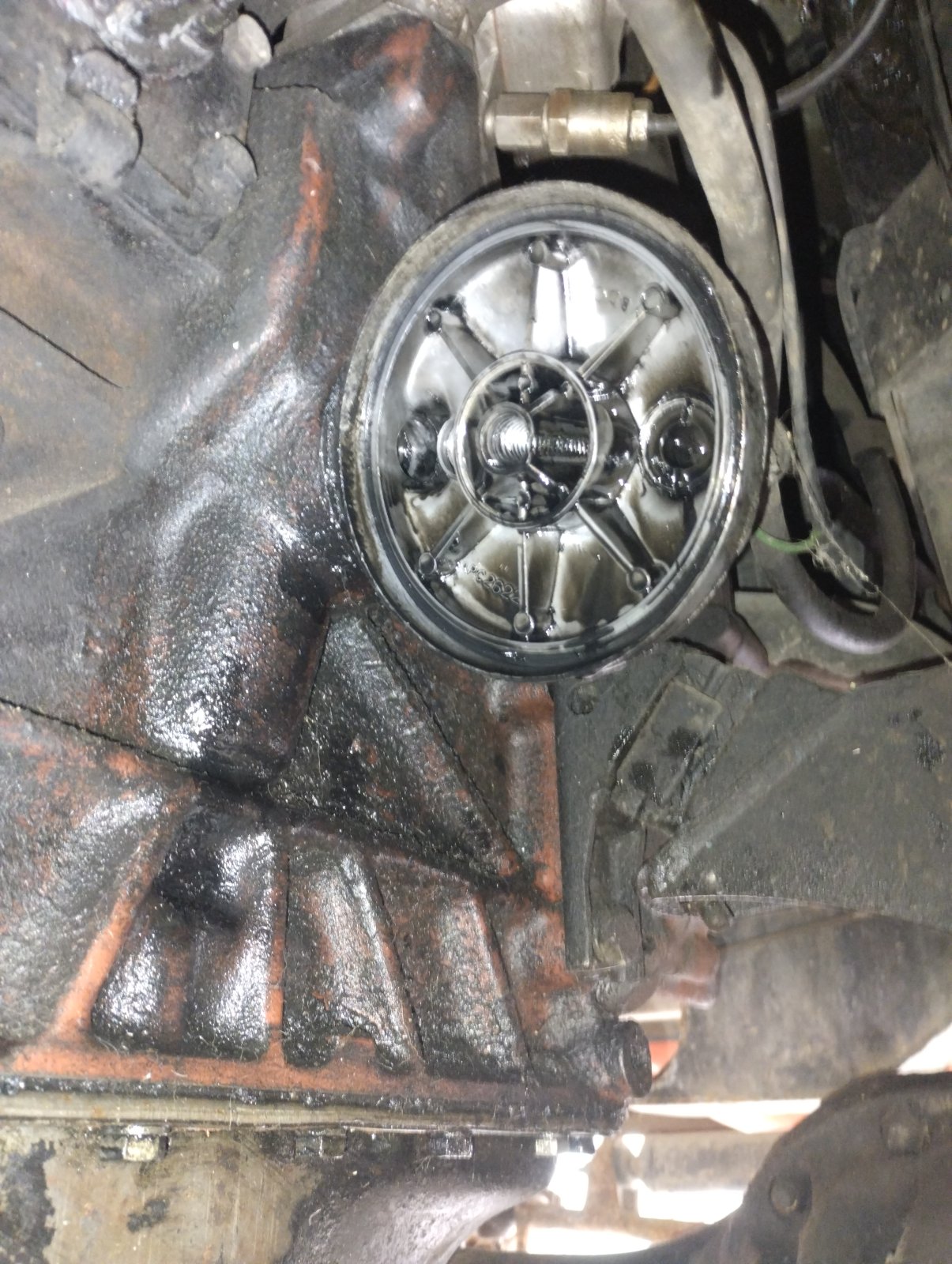

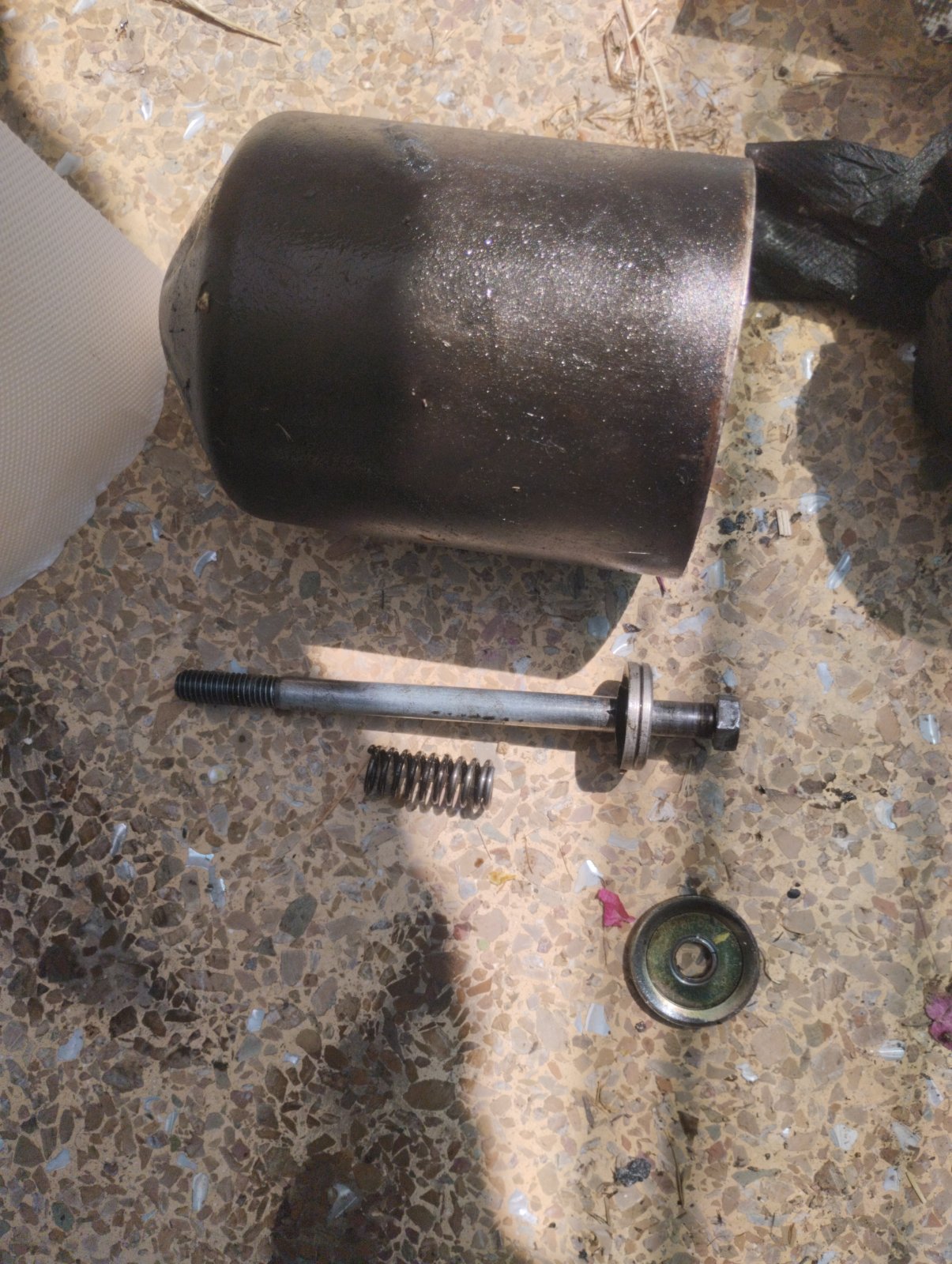

Just finished pulling this out

Am I missing the rubber washer filter bolt? Can you replace this with an rtv silicone like wurth
Also cant really see the upper ring seal.
Maybe explains why he was leaking in two parts

Also the guy used a Mann filter is it good quality? Maybe I buy the next ones

Yes, those seals are pretty important! Buy new or make your own, don't use silicone.
