My project 90 rebuild

Offshiftproject · Jan 18, 2013

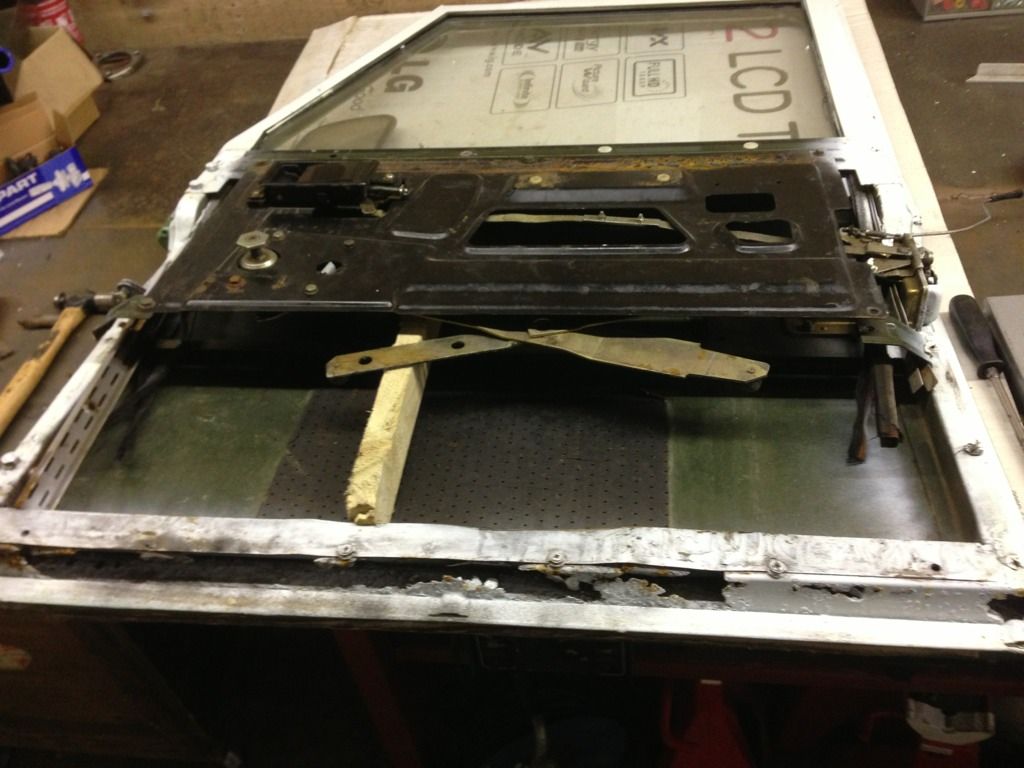

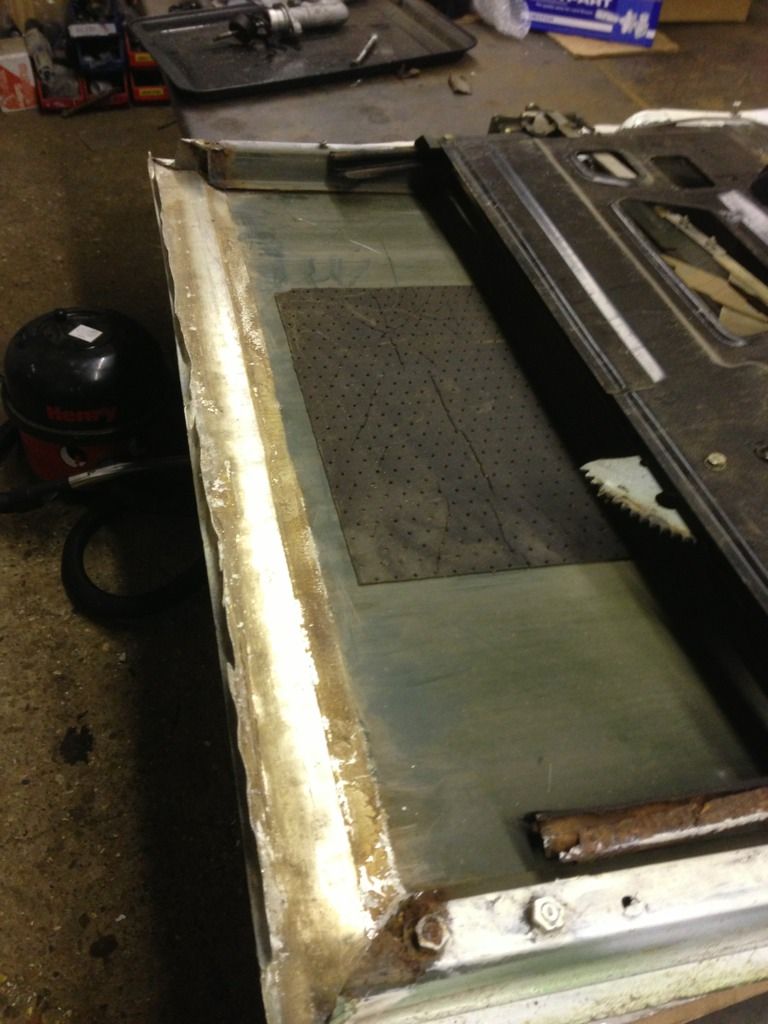

Bit of an update, done some work on the doors, the bottoms were completely shot, plus you can see the mod by a previous owner to keep the glass up !!

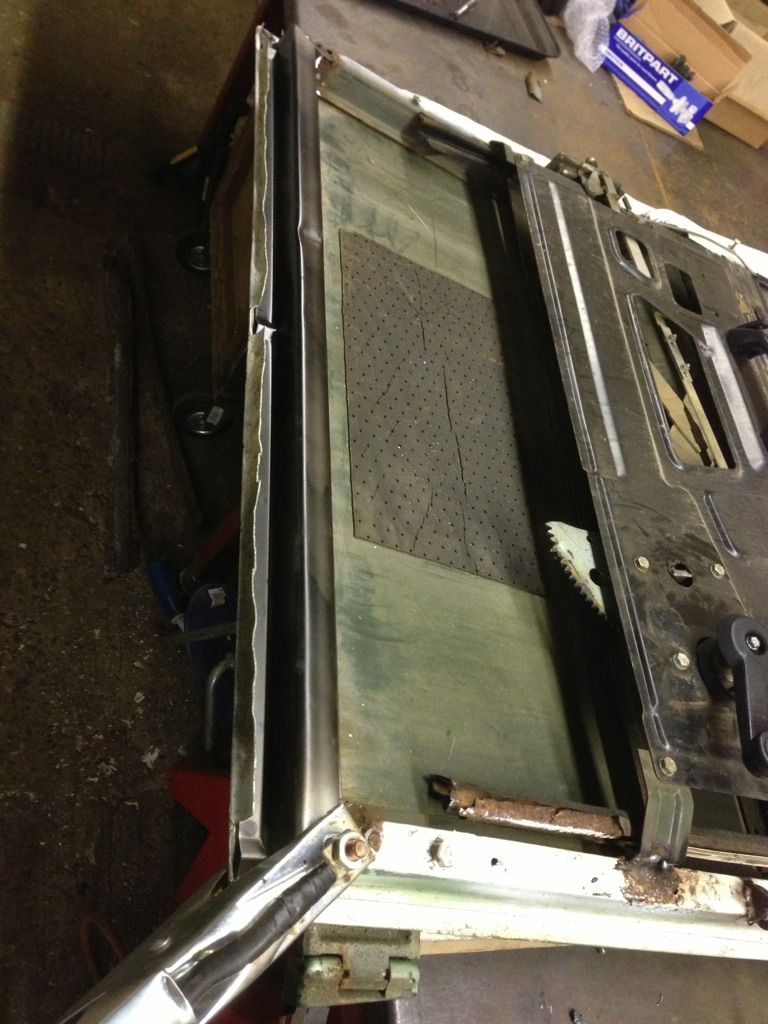

I cut out the rusty frame work on the bottom


Then welded in a new repair section

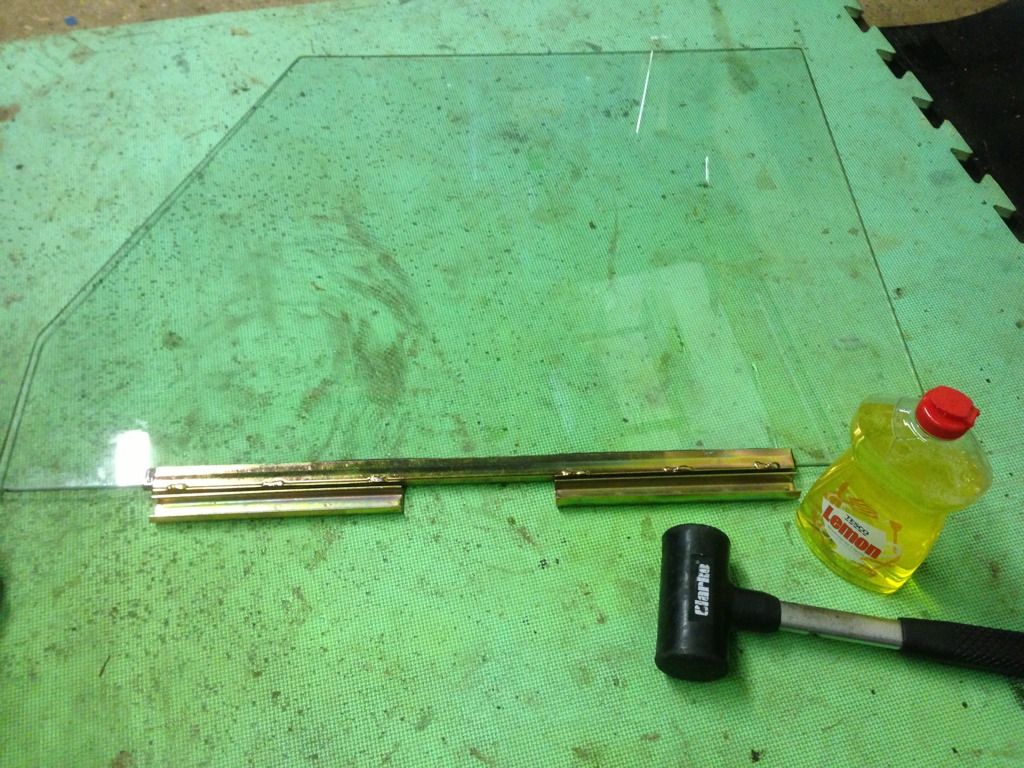

I also treated the glass to a new runner on the bottom


Offshiftproject · Jan 25, 2013

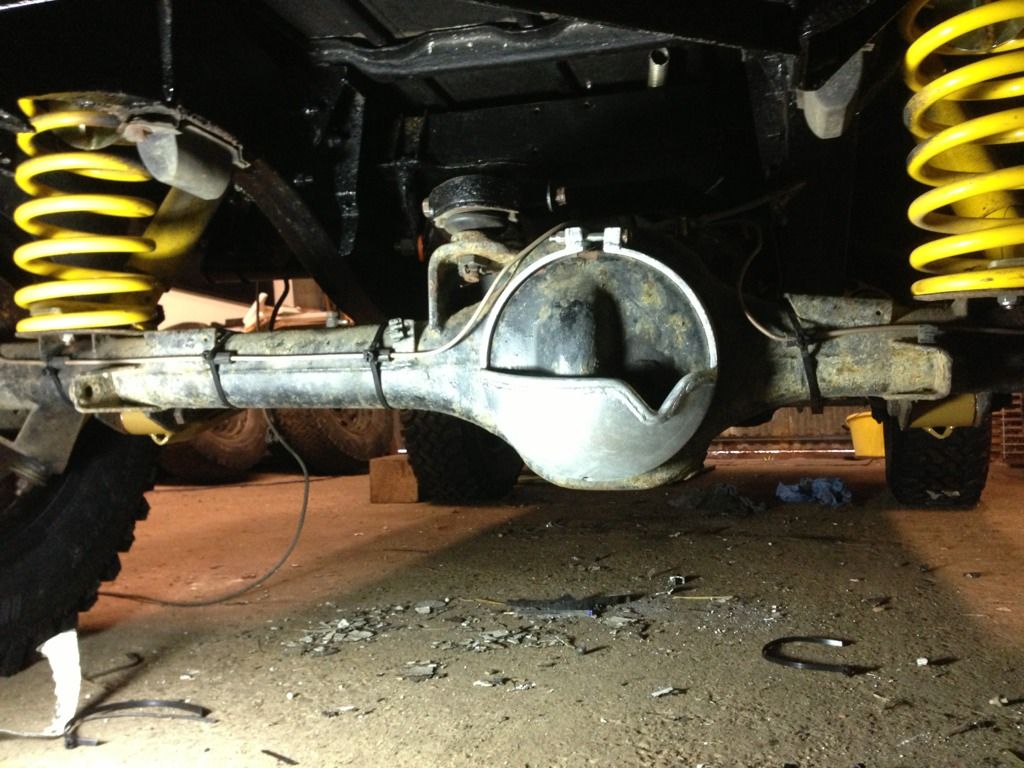

I have now fit some diff guards I bought at the Peterborough show last sept, and secured the new kunifer brake lines

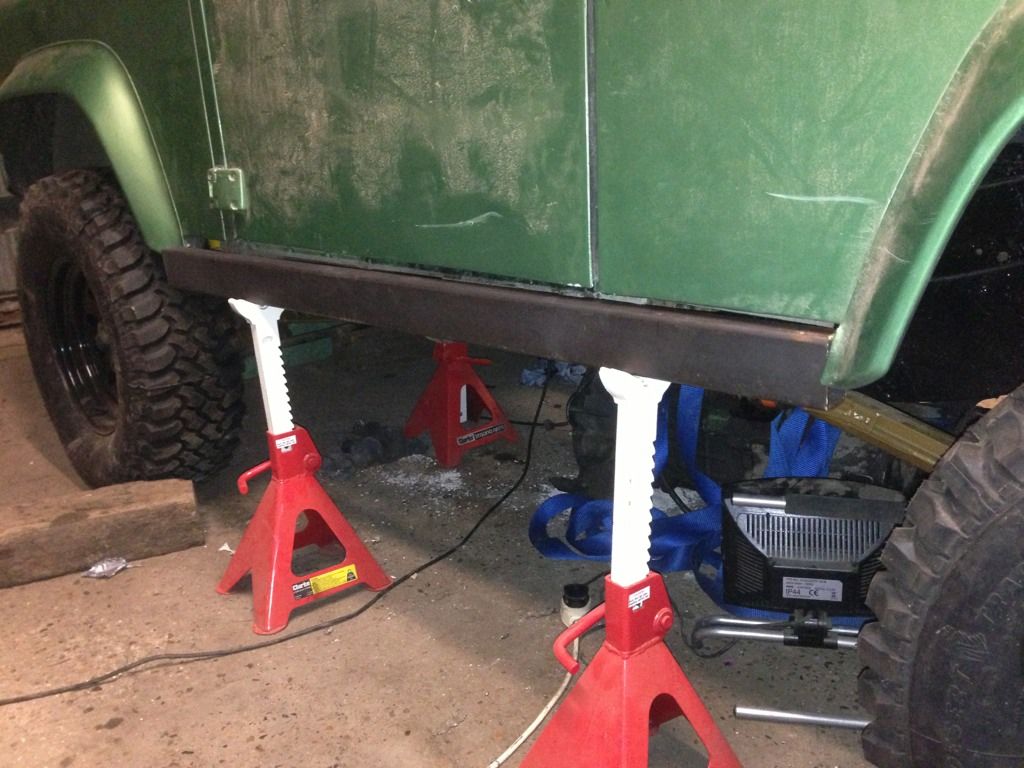

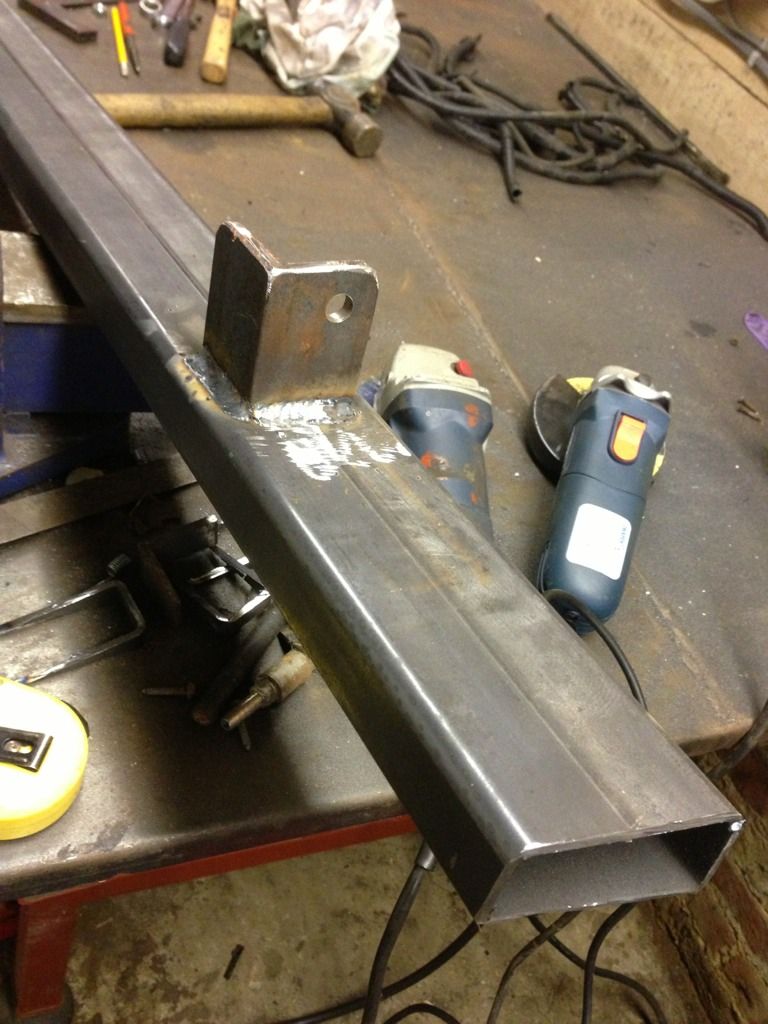

Also in the process of making a pair of rock sliders out of 40mm x 80mm x 4mm box section, just in the process of fabricating the fixing brackets, more pics to follow on these



GINGE · Jan 25, 2013

good work.

I do like a good build thread.

What i wouldnt give to have the space to do mine.

bluehaze · Jan 25, 2013

Me too, these are often the best type of threads.

4x4madness · Jan 25, 2013

Thats a pukka build you got going on there. nice work. i actually quite like that colour, as long as you contrast it out with black modulars and black chequre plate. what size are those tyres?

Offshiftproject · Jan 25, 2013

BIG_GINGA_BEARD said:
good work.

I do like a good build thread.

What i wouldnt give to have the space to do mine.

I'm very lucky to have the workshop, we rent grazing and stables for our horses, and I have a 20' x 60' barn included in with it

Offshiftproject · Jan 25, 2013

4x4madness said:
Thats a pukka build you got going on there. nice work. i actually quite like that colour, as long as you contrast it out with black modulars and black chequre plate. what size are those tyres?

Thanks for your comments everybody, not sure what to do about the colour. The quality of the paint finish isn't great and I'm thinking of G4 orange with black chequer plate, rock sliders etc. I'm going to wait until the weather warms up before I respray her, ideas on colours please lol

Offshiftproject · Jan 25, 2013

4x4madness said:
what size are those tyres?

They are Insa turbo dakars 265/75/16

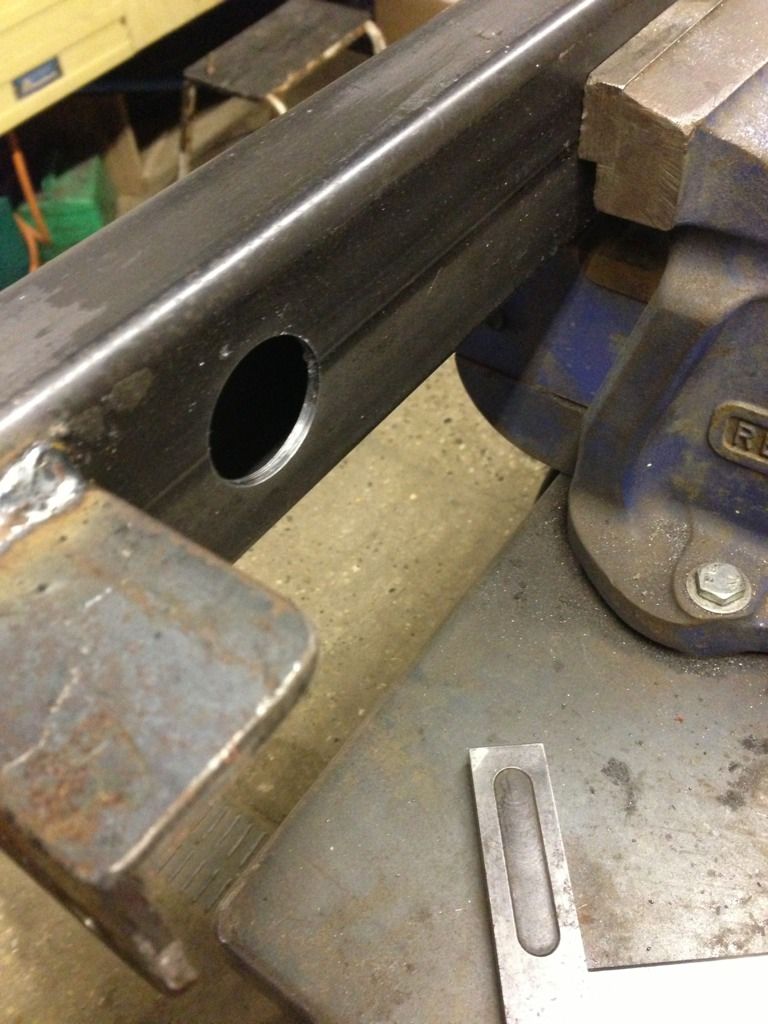

Had a play with the rock sliders today, had to go and buy a 38mm hole cutter so I could make holes for the jacking points

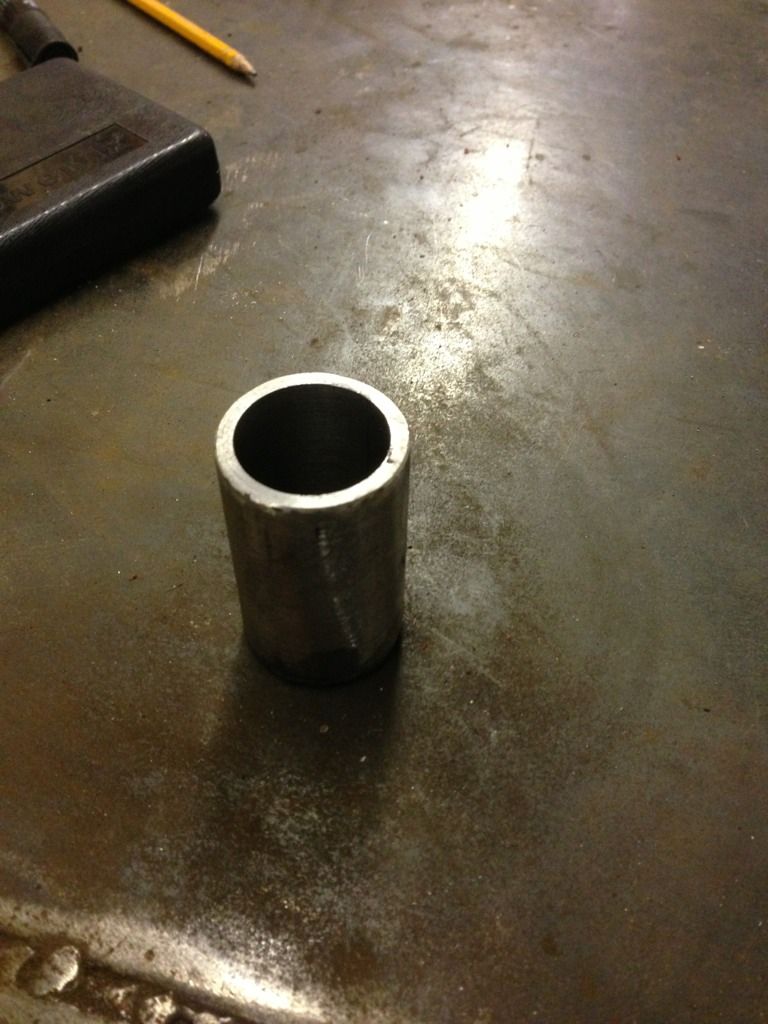

I turned some tubes up in the lathe as couldn't find anything suitable

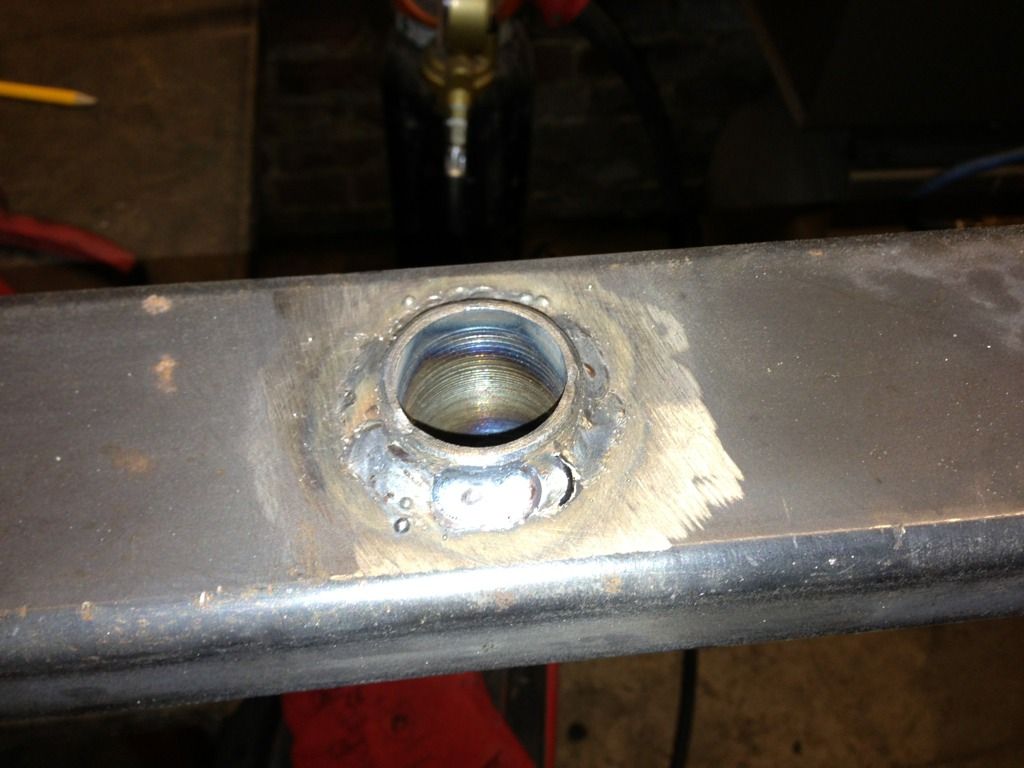

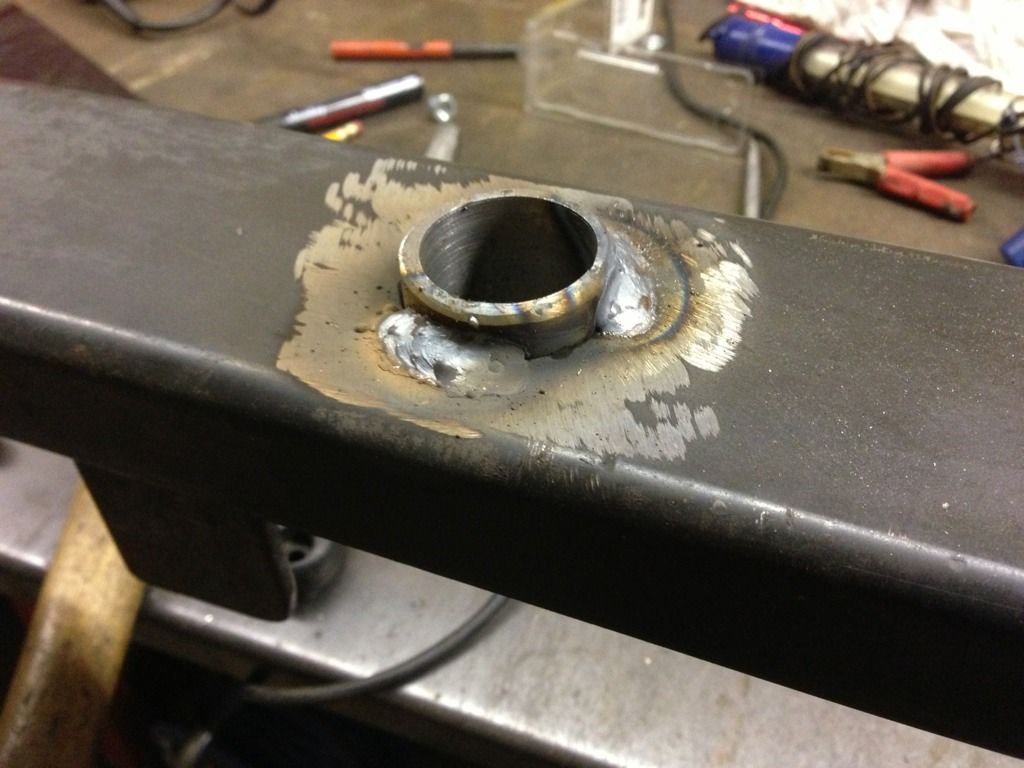

Then welded them into the rock slider



Offshiftproject · Feb 5, 2013

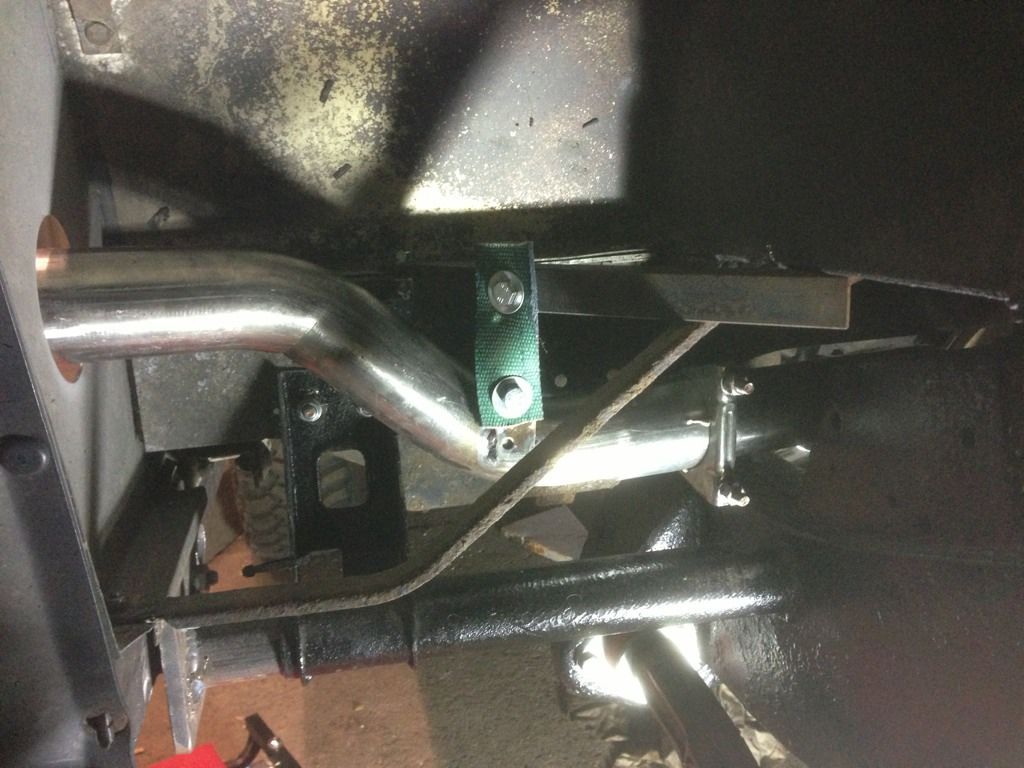

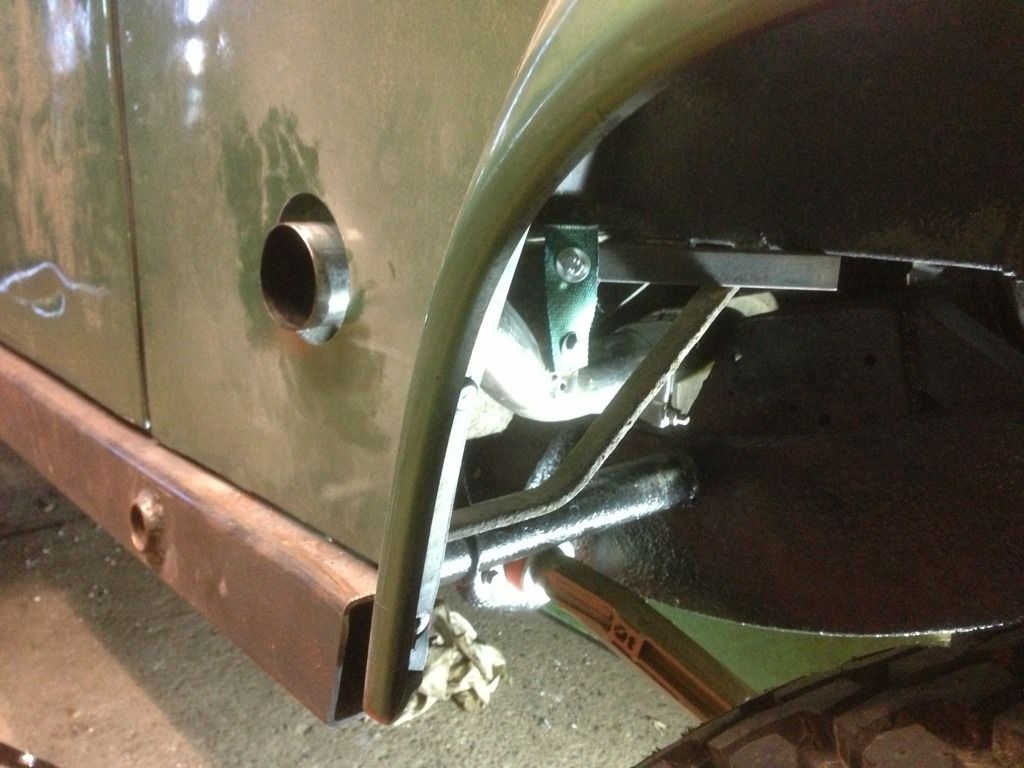

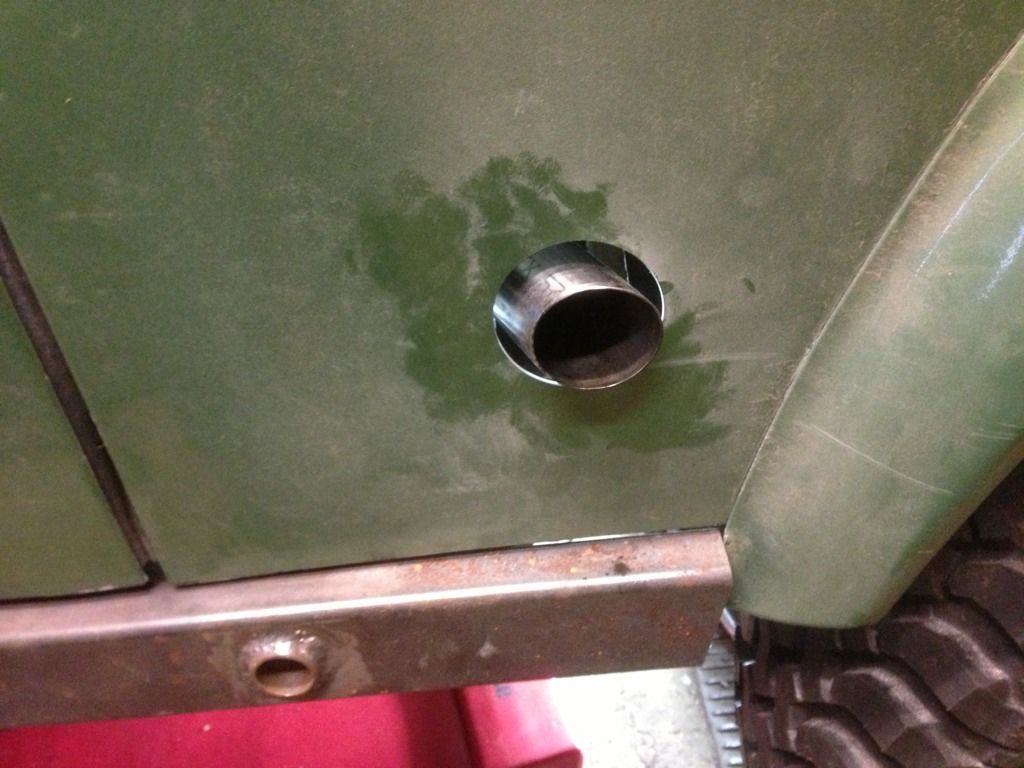

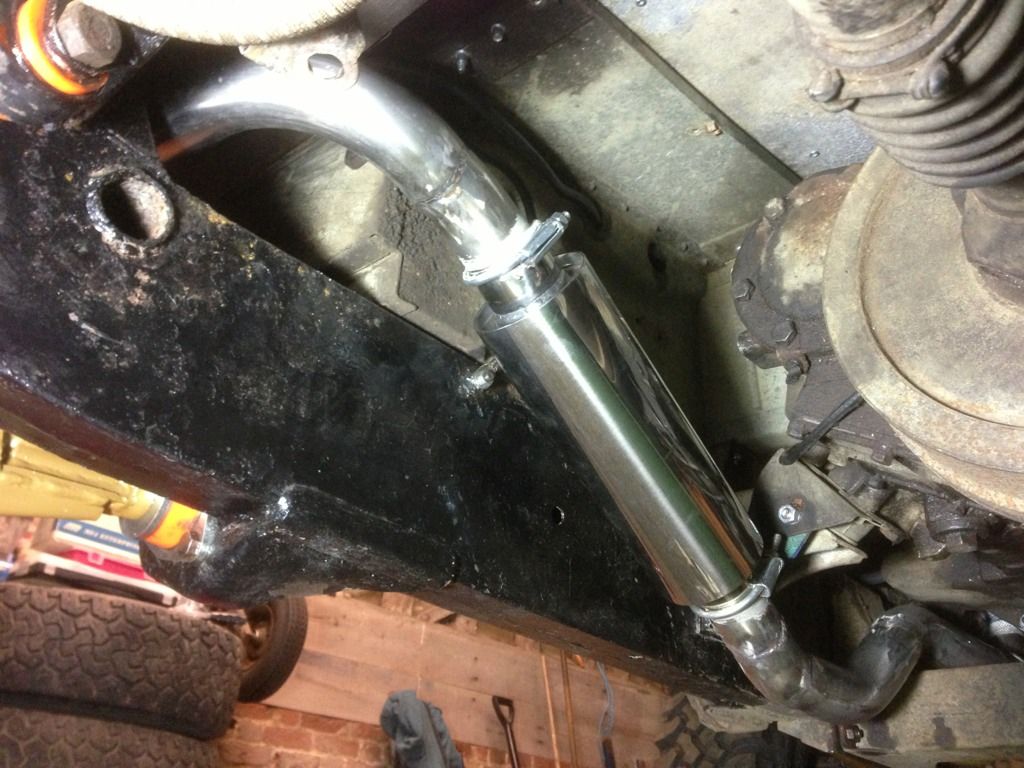

Bit of a update on my work, exhaust is now finished...... Just need to make a ring of some sort to go around the exhaust outlet

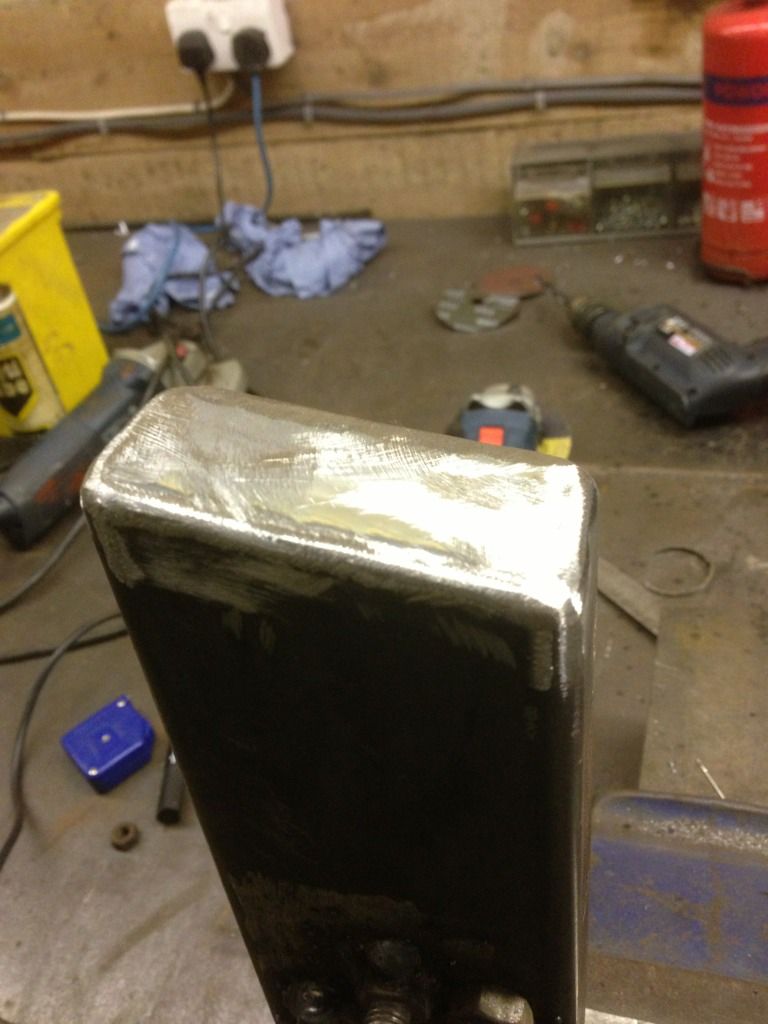

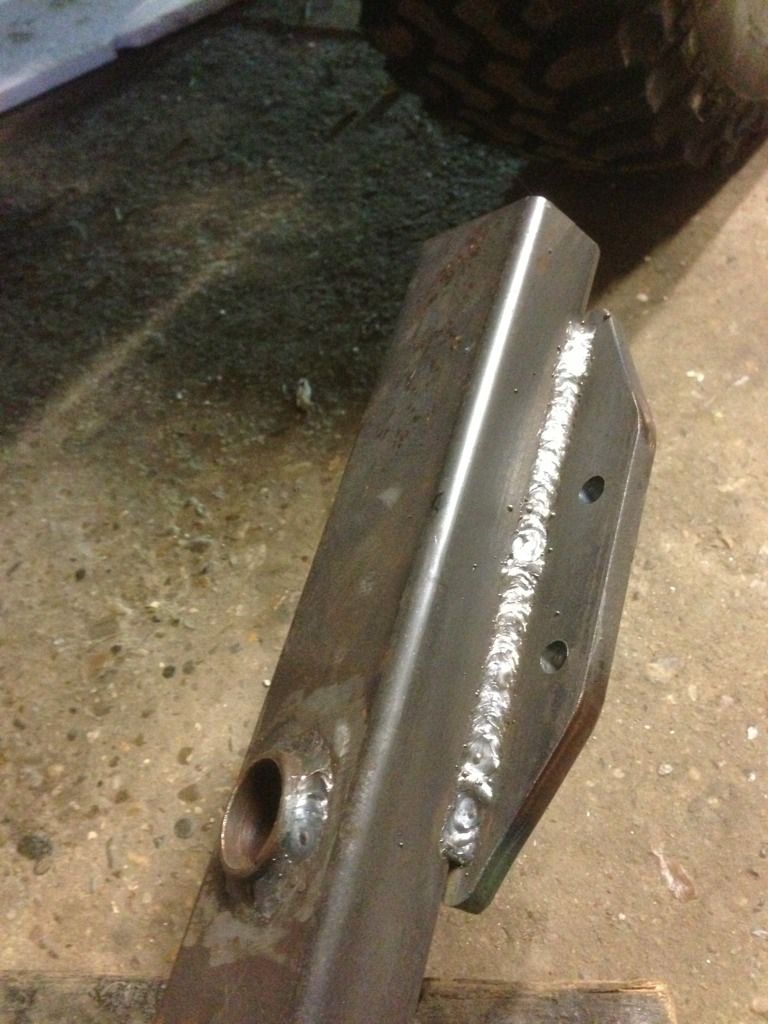

And finished of rock sliders today



bluehaze · Feb 5, 2013

Excellent

Ttuck3r · Feb 5, 2013

Excellent Thread, ive enjoyed reading through it..

Offshiftproject · Feb 6, 2013

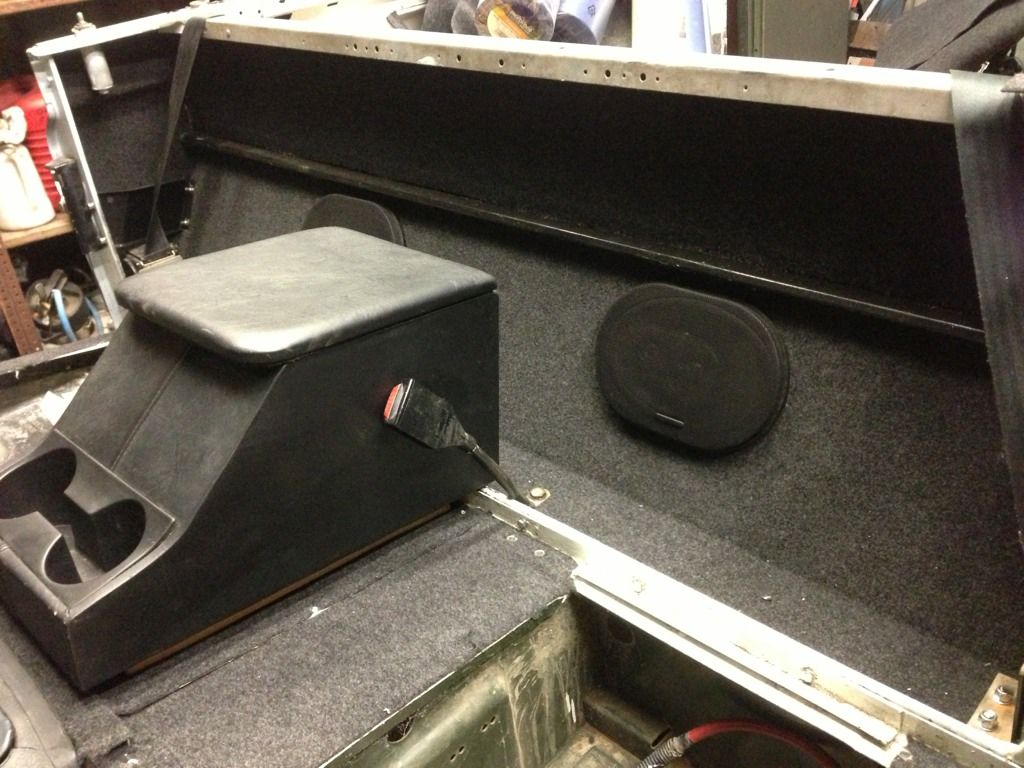

Well I ordered some Veltrim and high temp spray adhesive off the bay, I must admit I'm impressed with it, it gives a good finish ! The previous owner has decided to poorly paint the interior of my 90 with household white gloss paint, so my plan is to cover as much as possible, plus it'll help with noise and condensation etc. you'll see I have put some 6 x 9 speakers in the bulkhead behind the seats, as previous owner had hacked out some round holes for speakers and it looked terrible.

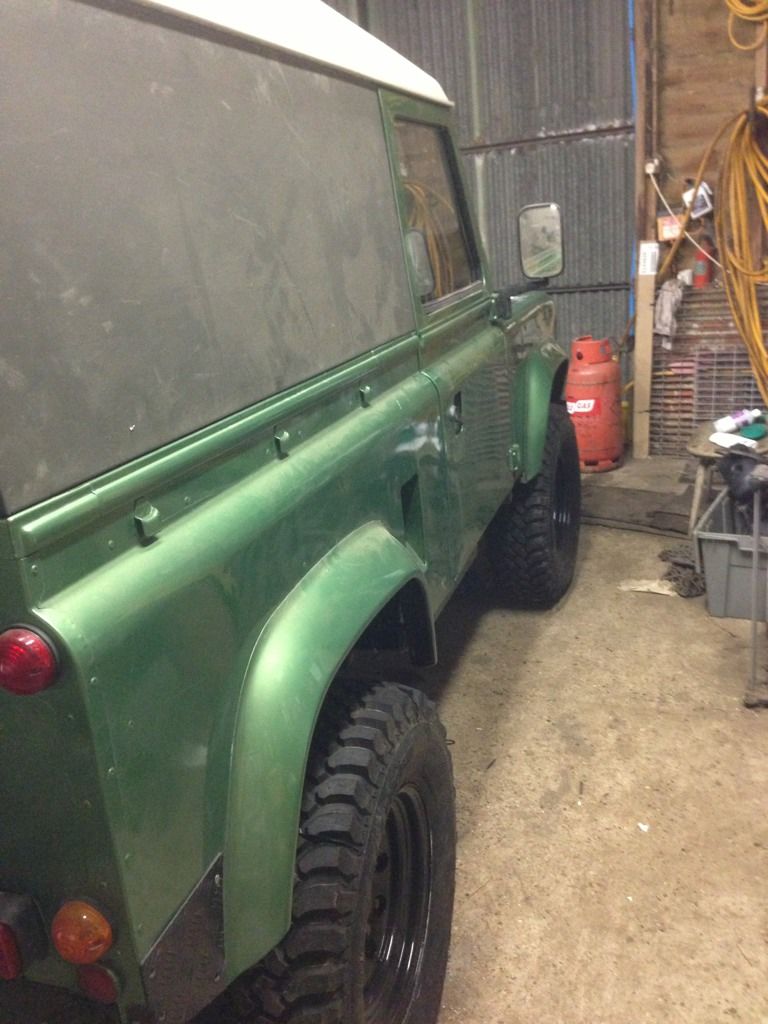

Also have located some hard top sides as wanted some without windows, didn't like the look of the old ones

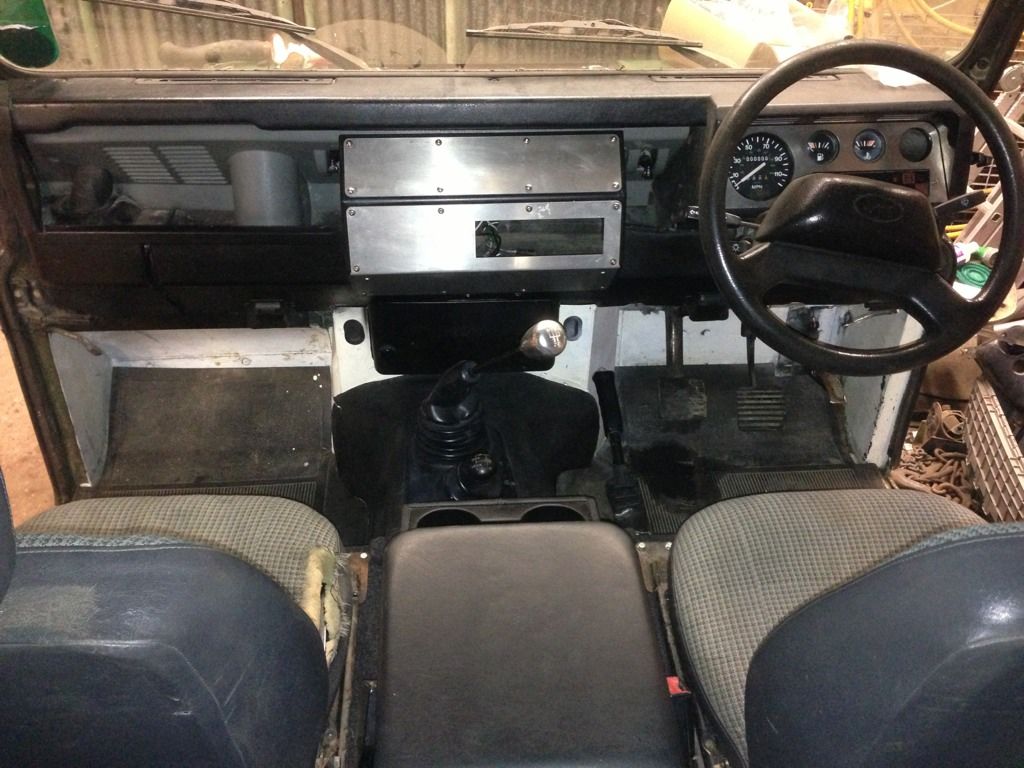

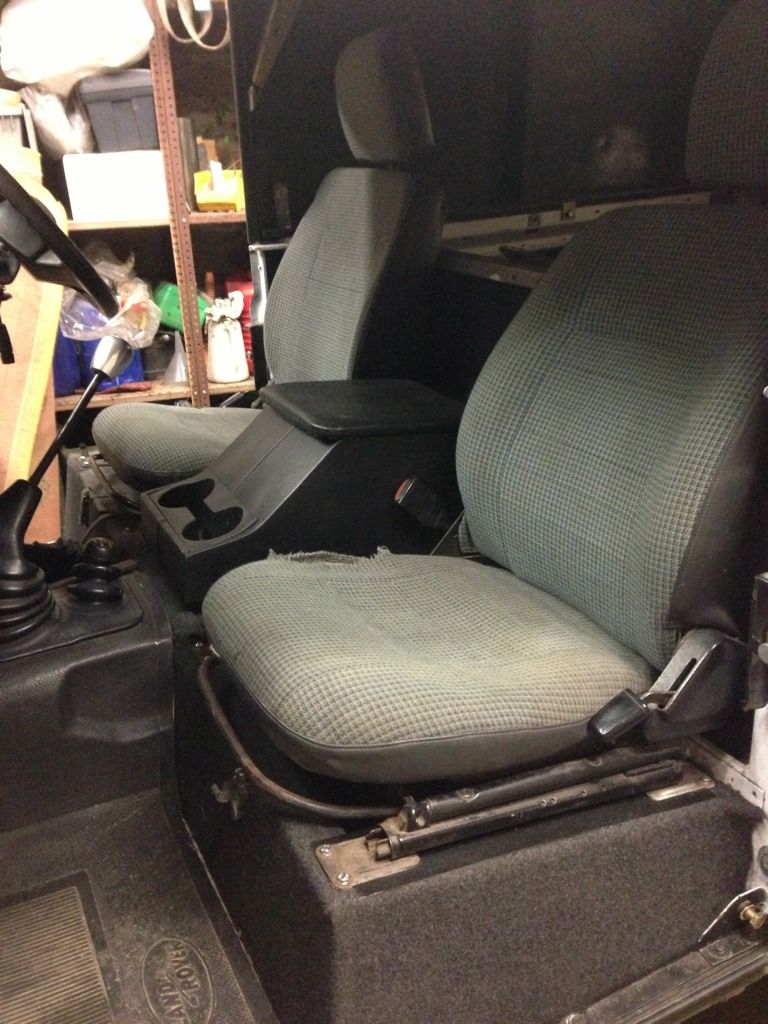

And have put the seats in too


Offshiftproject · Feb 6, 2013

Can I have ideas what to do with the white footwells please ? Carpet them, paint them black, or a combination of the 2 ? They look pants like they are


4x4madness · Feb 6, 2013

not sure where you would buy it brand new but these bits would cover it up and reduce cab noise
LAND ROVER DEFENDER 300TDI BULKHEAD SOUND DEADENING | eBay

Offshiftproject · Feb 6, 2013

4x4madness said:
not sure where you would buy it brand new but these bits would cover it up and reduce cab noise
LAND ROVER DEFENDER 300TDI BULKHEAD SOUND DEADENING | eBay

Thanks for that, I will keep a eye on it put a bid in if it doesn't go up to silly money

Chris W · Feb 6, 2013

bloody great re-build and pics mate

i don't suppose your selling the original engine ?

Offshiftproject · Feb 6, 2013

the egg said:
bloody great re-build and pics mate

i don't suppose your selling the original engine ?

Unfortunately it's already gone mate, somebody snapped it up on the bay. If I get to hear of any more I'll let you know

Chris W · Feb 6, 2013

Offshiftproject said:
Unfortunately it's already gone mate, somebody snapped it up on the bay. If I get to hear of any more I'll let you know

cheers mate

landrover11019 · Feb 6, 2013

Looking good fella!!
What you doing with the old petrol engine?

Offshiftproject · Feb 7, 2013

landrover11019 said:
Looking good fella!!
What you doing with the old petrol engine?

^^^ see above ;-)
