my nato hitch rebuild

landy-lee · Jan 18, 2019

Yo guys

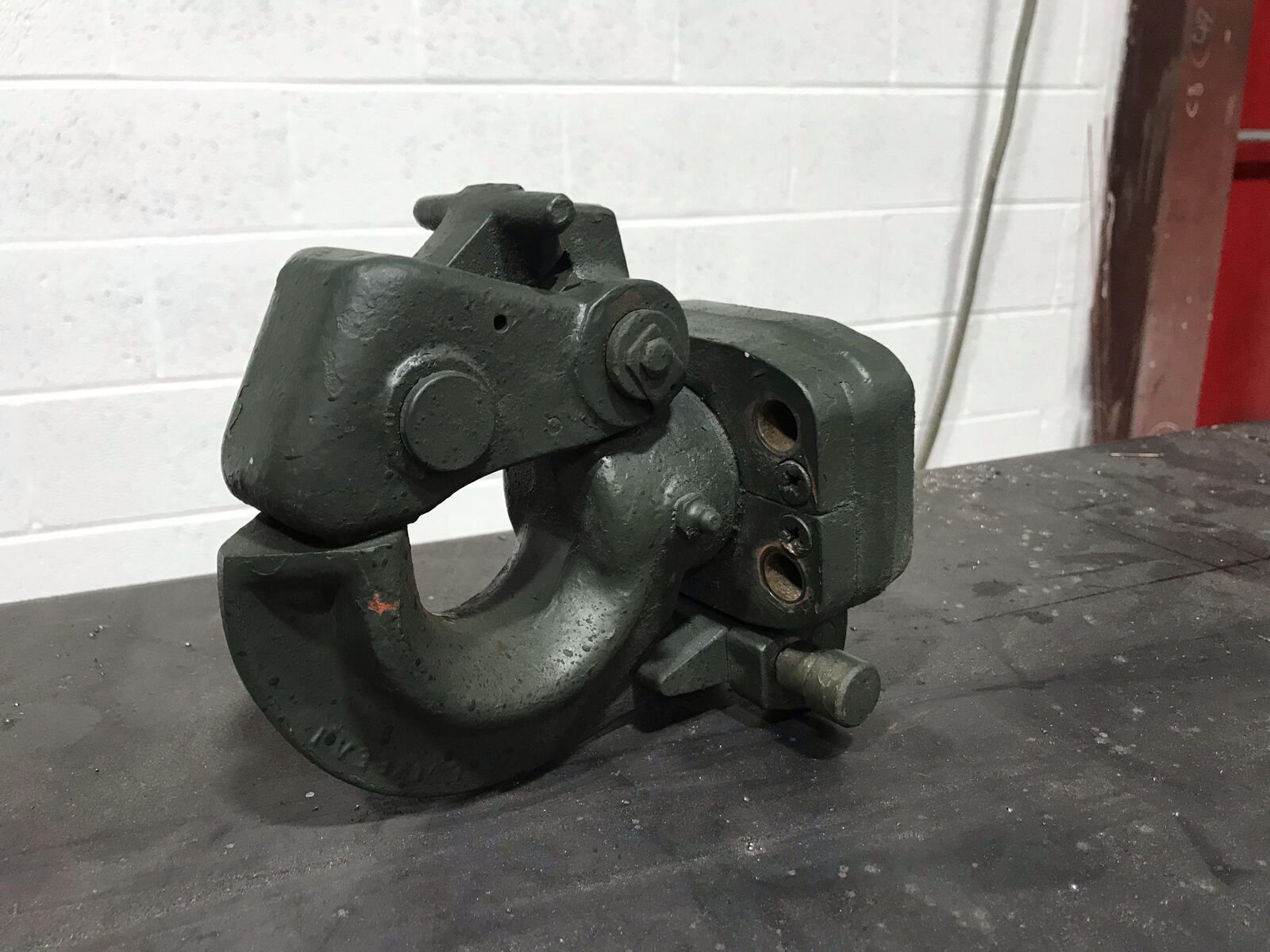

Here is my nato hitch i am rebuilding.

It was sized up and had about 20 years of paint on it.

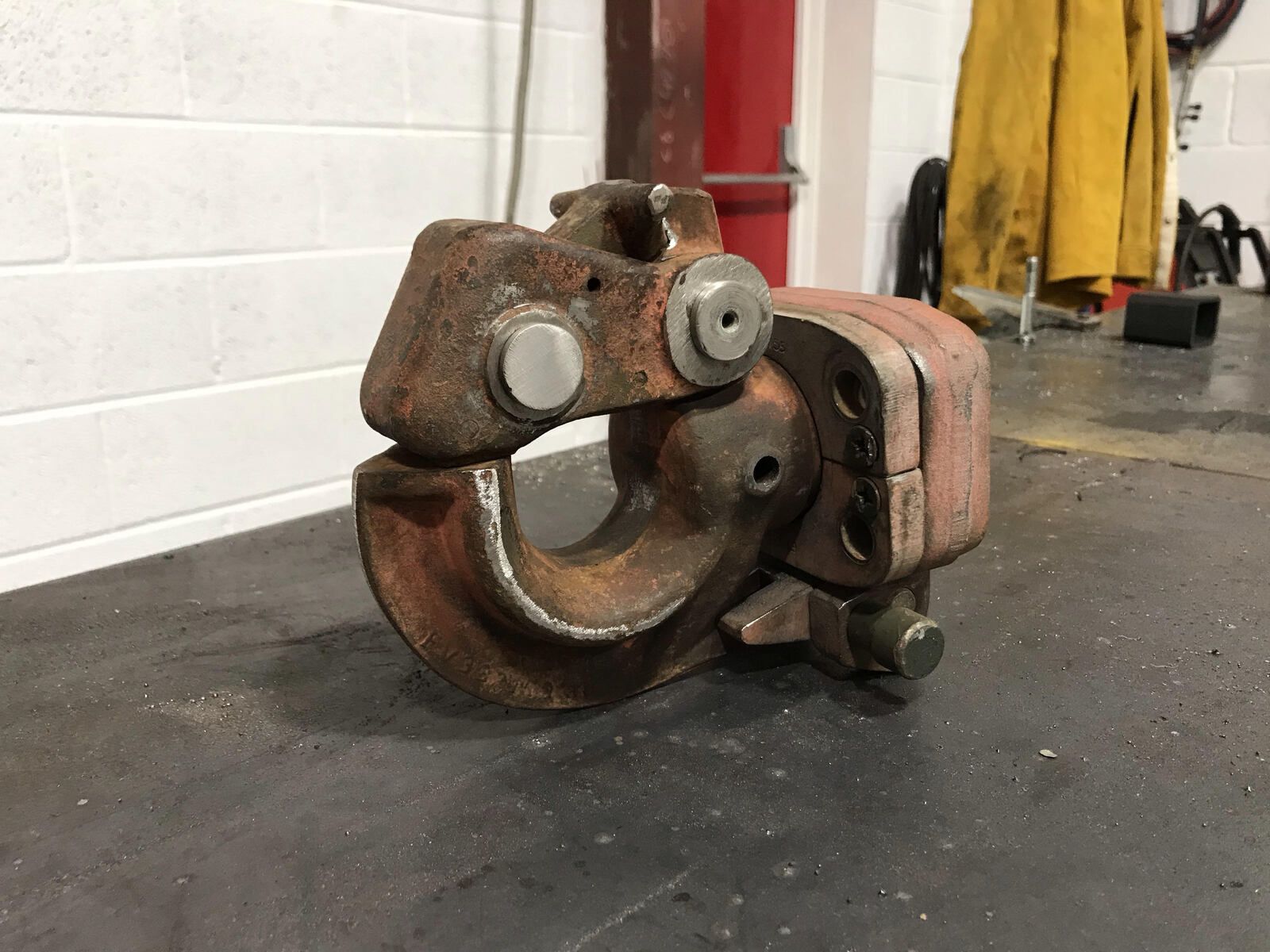

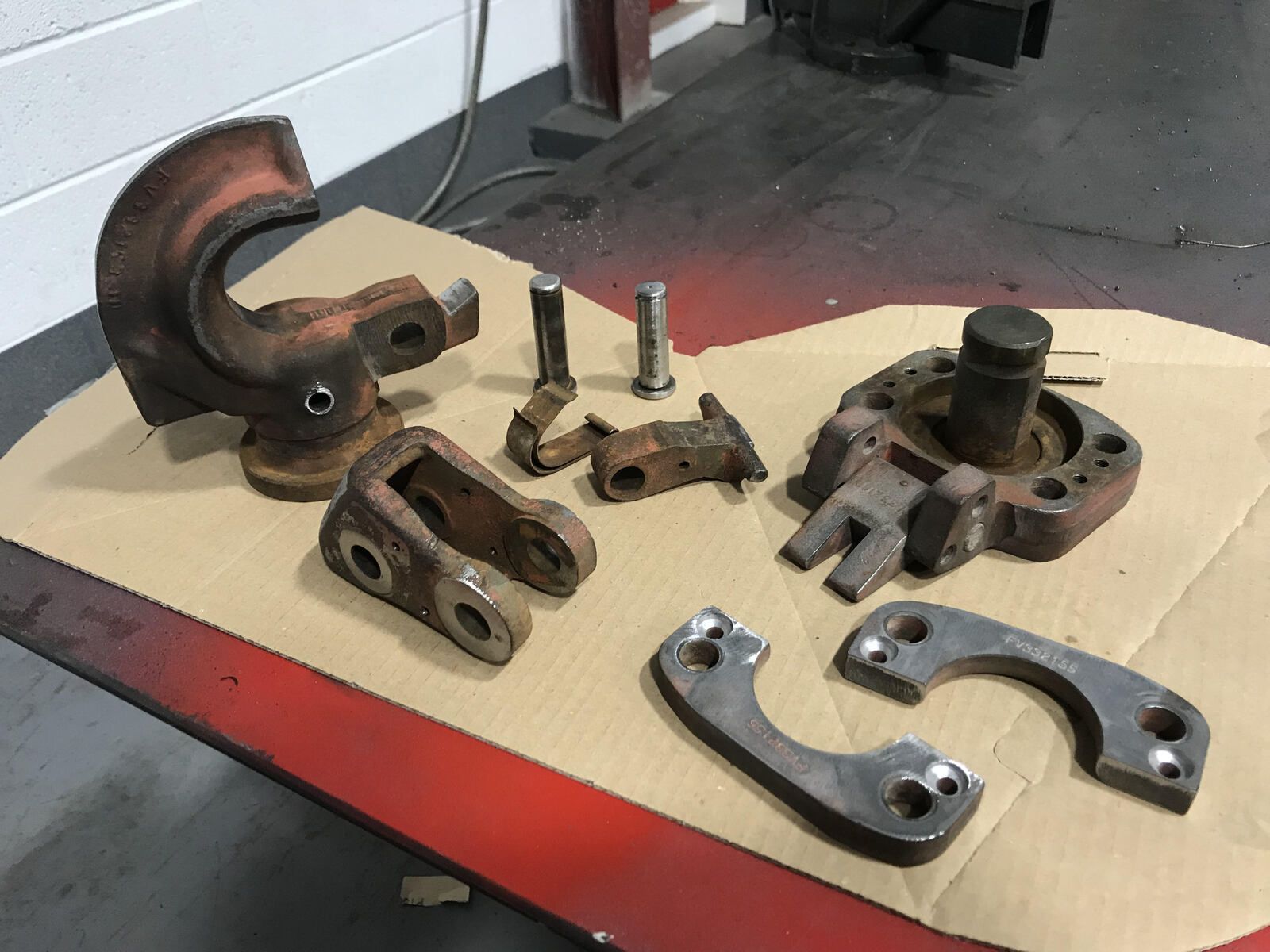

So i striped it this morning and put all the parts is thinners and the years or paint just fell of.

I cleaned up the pins and next i will shot blast the parts and paint.

What size are the 4 counter sink screws that hold the retaining plates in place?

Cheers Landy-Lee

flat · Jan 19, 2019

What do you mean what size? Just take one out and measure, mine came out surprisingly easily

landy-lee · Jan 19, 2019

flat said:
What do you mean what size? Just take one out and measure, mine came out surprisingly easily

I was referring to thread size. They are not metric seem to be a mix of UNC and UNF.

flat · Jan 19, 2019

landy-lee said:
I was referring to thread size. They are not metric seem to be a mix of UNC and UNF.

Oh I see, no idea sorry, mine cleaned up okay so I reused them - couldn’t tell when they had a new layer of red paint on top

resto_d1 · Jan 19, 2019

Always wondered what people were on about when they said NATO hitch - surely it should be baby blue

Does the top open then lock against that t bar in the middle?

bluedog333 · Jan 19, 2019

Re: screw size - no idea! I’d tap them out to take metric machine screws.

Al2O3 · Jan 19, 2019

If you are not using the originals, make sure the replacements are or the correct grade of steel for bolts securing a tow hitch.

mick 1986 · Jan 19, 2019

Al2O3 said:
If you are not using the originals, make sure the replacements are or the correct grade of steel for bolts securing a tow hitch.

The bolts he’s asking about only hold the two half’s together. The 4 securing bolts, I think they are supposed to 3/8”, or 1/2”, are usually replaced with metric, M10 or M12. Its been a while since I done any work with my nato hitch, so can’t remember.

I can remember I used 12.9 bolts for all aspects of my tow bar, but it worries me that some sites sell stainless tow bar kits, especially in A2 - 70 spec.

Chrisg1 · Jan 21, 2019

The 4 countersunk screws should be 1/4 unf & the 4 mounting bolts 1/2 or m12

landy-lee · Jan 30, 2019

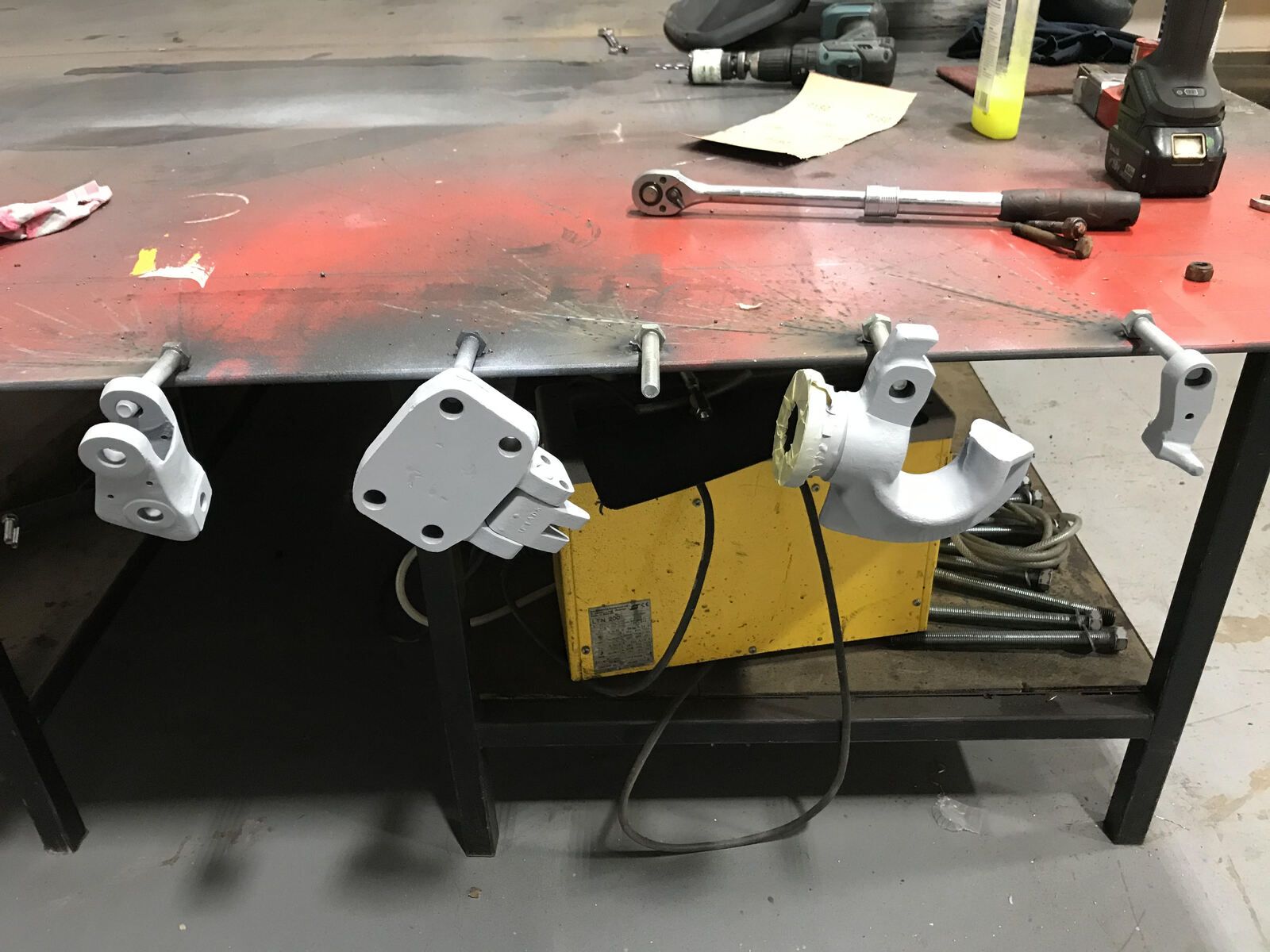

Done bit on the hitch today.

I striped it shot blasted it then primed it. Coat of black tomorrow.

mick 1986 · Jan 30, 2019

landy-lee said:
Done bit on the hitch today.

I striped it shot blasted it then primed it. Coat of black tomorrow.

View attachment 168544 View attachment 168545

For a second I thought you had painted the rotating coupling part. Needed to zoom in to check. Make sure you use a decent waterproof grease when you rebuild it.

landy-lee · Jan 30, 2019

mick 1986 said:
For a second I thought you had painted the rotating coupling part. Needed to zoom in to check. Make sure you use a decent waterproof grease when you rebuild it.

I have masked off all the faces where it rotates.

What grease do you recommend?

Cheers Landy-Lee

mick 1986 · Jan 30, 2019

landy-lee said:
I have masked off all the faces where it rotates.

What grease do you recommend?

Cheers Landy-Lee

I noticed when I zoomed in.

Personally, I would use the same stuff as I use in my props and UJs, which is Castro’s EPL, not sure if it’s grade 1 or 2, but I think it’s EPL2. Basically anything that has a high load capability and waterproof.

landy-lee · Jan 30, 2019

I have some teflon grease that is water resistant.

landy-lee · Jan 31, 2019

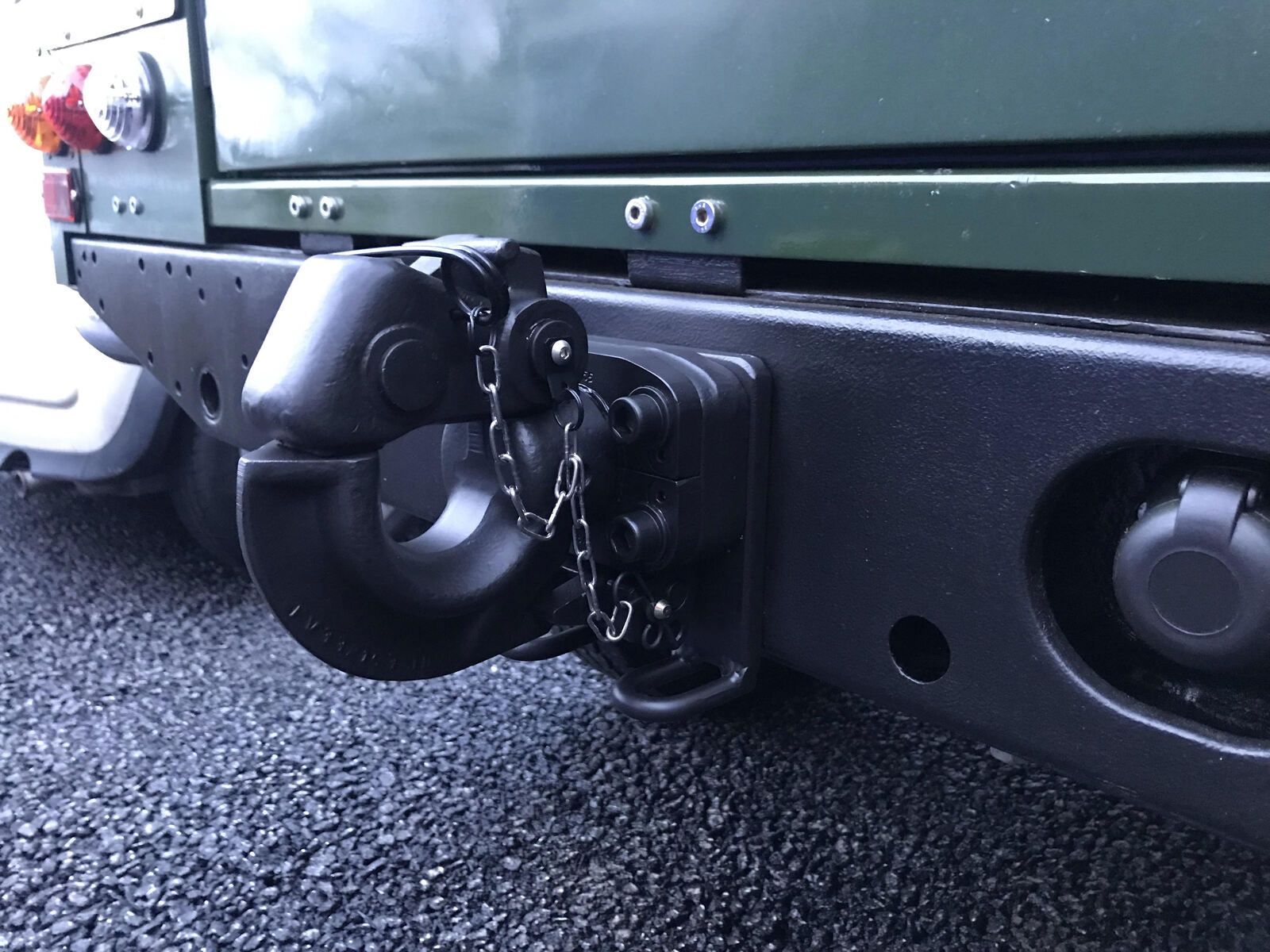

Done and fitted!

Im really pleased how it turned out. Thanks for all the help to guys.

Shippers · Jan 31, 2019

Nice job...want to do mine? iv'e 2 fitted front and back for some reason!

mick 1986 · Jan 31, 2019

landy-lee said:
Done and fitted!

Im really pleased how it turned out. Thanks for all the help to guys.

View attachment 168626

Did you use an adaptor to fit your towing electric socket into the chassis? Or did you just drill the chassis and fit it?

That looks smart now. Wait until you clout your knee/thigh off it. You will wish you didn’t fit it.

landy-lee · Jan 31, 2019

mick 1986 said:
Did you use an adaptor to fit your towing electric socket into the chassis? Or did you just drill the chassis and fit it?

That looks smart now. Wait until you clout your knee/thigh off it. You will wish you didn’t fit it.

When i fitted the new rear crossmember i rewired the back end. there was a hole for the wires behind where the socket now is but i made i bigger and fitted a rubber grommet. No adaptor plate i just dried n tapped for mounting the plug and then packed the pins with dielectric grease.

mick 1986 · Jan 31, 2019

landy-lee said:
When i fitted the new rear crossmember i rewired the back end. there was a hole for the wires behind where the socket now is but i made i bigger and fitted a rubber grommet. No adaptor plate i just dried n tapped for mounting the plug and then packed the pins with dielectric grease.

I planned to fit mine in a similar way, but I don’t want to drill the galv chassis if I can help it. I wonder if tigerseal or stixall will hold a nylon adaptor solid?

landy-lee · Jan 31, 2019

mick 1986 said:
I planned to fit mine in a similar way, but I don’t want to drill the galv chassis if I can help it. I wonder if tigerseal or stixall will hold a nylon adaptor solid?

If everything is nice and clean yeh it will stick. I use tiger seal for loads of stuff its awesome! I repair quarry machines out on site and i have done some tests by sticking things to steel in harsh conditions to see how they last. It sticks well.
