my discovery pickup roll cage outriggers

Henry_b

Think outside, no box required.

Posts

15,509

Location

somewhere else

• Oct 29, 2018

• #21

mark 88 said:

with 3mm plate plasma cutters and welding it will live again lol

Click to expand...

Looks like there is very little to weld to!!

Anyway, good luck!!



M

mark 88

Member

Posts

39

Location

durham

• Oct 29, 2018

• #22

Dippypud said:

You may need some mounts to pop the body on to .....

Click to expand...

the sills will be fully welded to the body and to the outriggers



dieseldog69

Well-Known Member

LZIR Despatch Agent

Posts

9,105

Location

Roaming the UK on assignments

• Oct 29, 2018

• #23

mark 88 said:

the sills will be fully welded to the body and to the outriggers

Click to expand...

Will you not be using proper isolation body mounts as per Discovery 1&2?

You bending pipe yourself or getting a custom cage built up for it?



M

mark 88

Member

Posts

39

Location

durham

• Oct 30, 2018

• #24

dieseldog69 said:

Will you not be using proper isolation body mounts as per Discovery 1&2?

You bending pipe yourself or getting a custom cage built up for it?

Click to expand...

the cage is going to be built by JFT fabrications and no I'm going to skip the hassle with the mounts and just directly weld it to the outriggers



M

mark 88

Member

Posts

39

Location

durham

• Dec 9, 2018

• #25

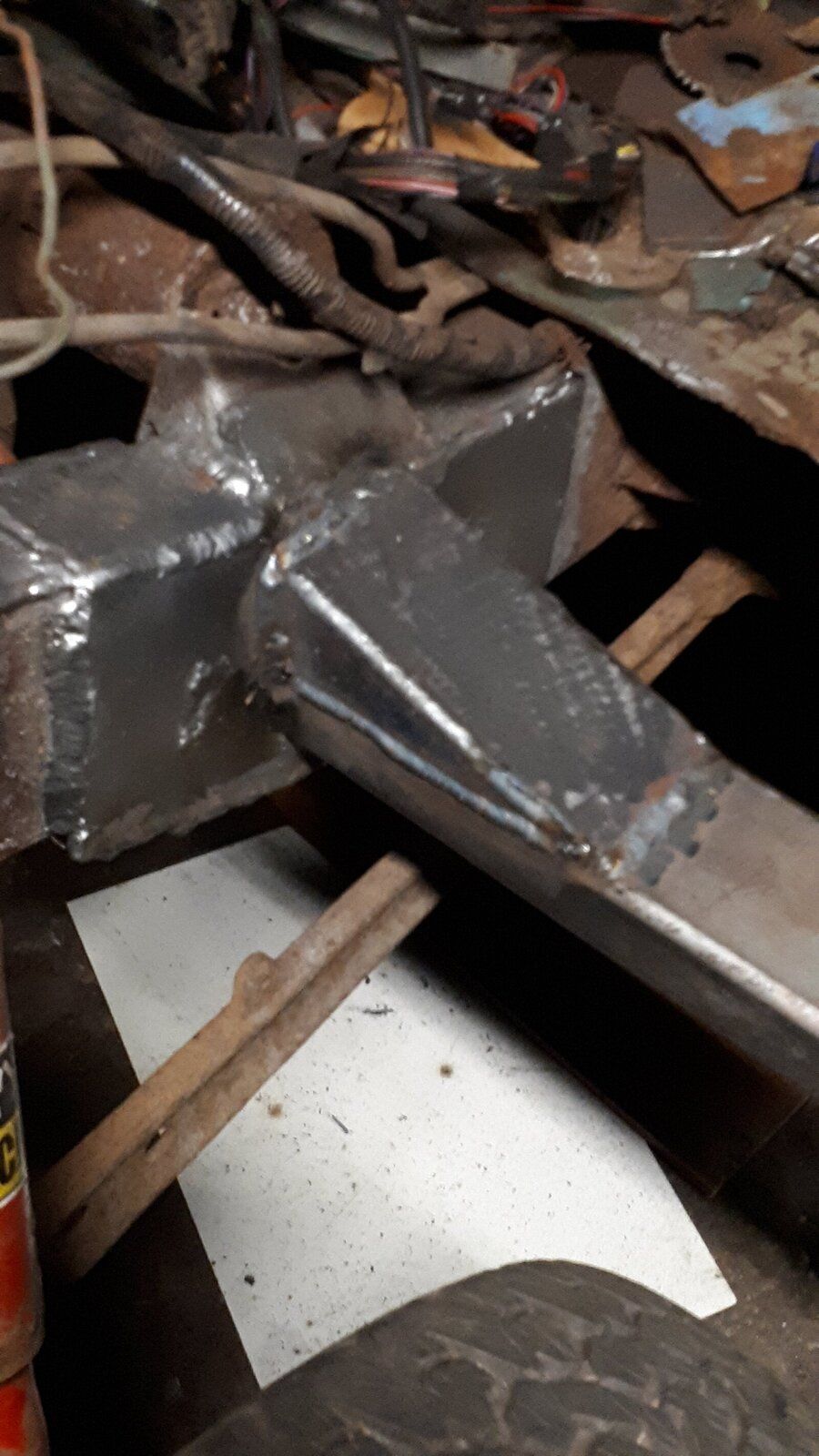

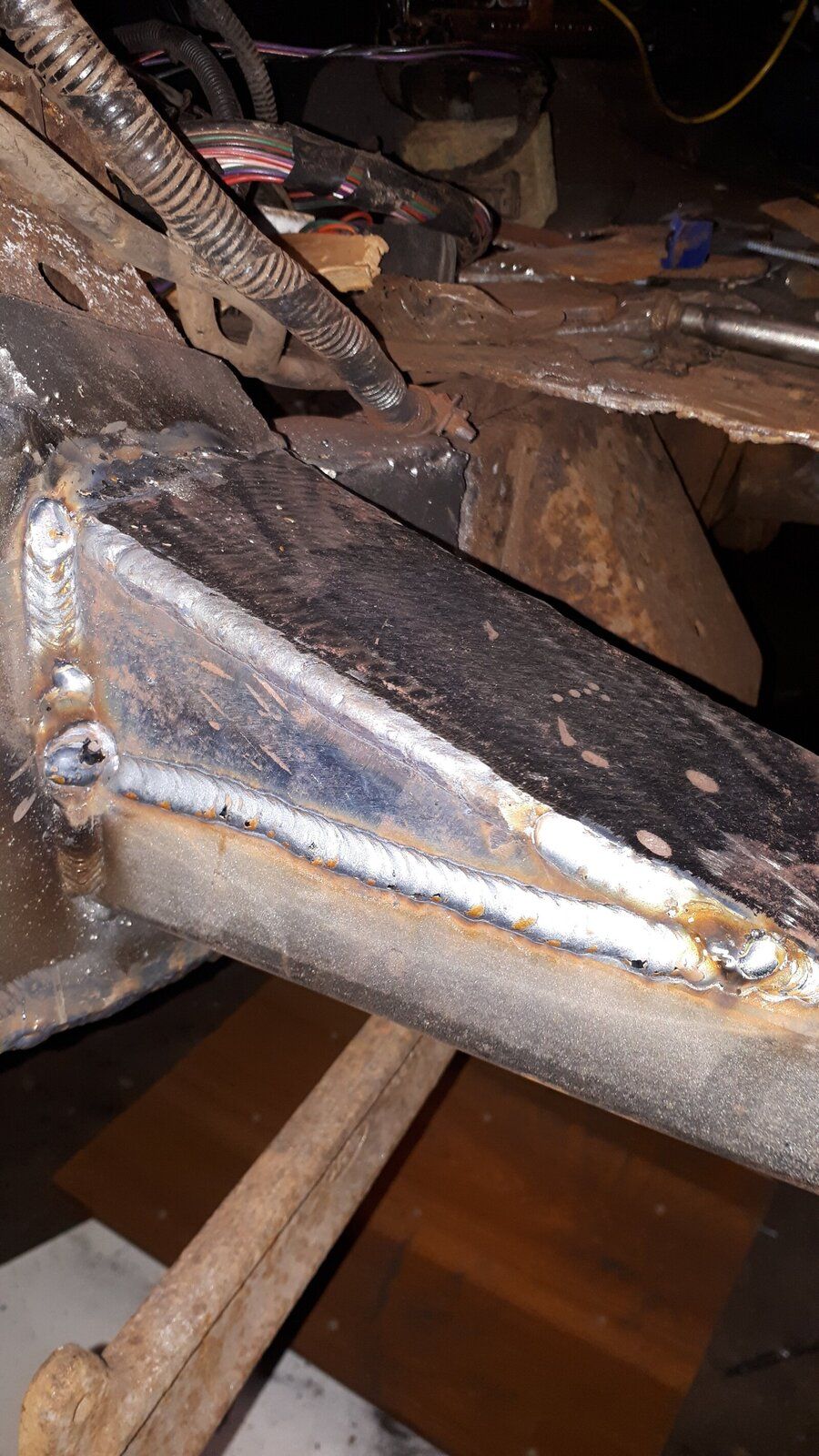

that's one rear outrigger finished I have to start repairing the other side of the chassis before the next ion can go on



Attachments

•

  268.9 KB · Views: 107
•

  184.7 KB · Views: 120

H

Hicap phill

Well-Known Member

Posts

16,319

Location

Wiltshire

• Dec 9, 2018

• #26

Just a thought..
Have you removed the springs/shocks to see if the axle arms touch these roll cage brackets?
Only asking as look close



exmed wayne

Well-Known Member

Posts

250

Location

On my way to Scotlandshire

• Dec 9, 2018

• #27

Mark88
Good on you mate
I love your Optimism and welding abilities

Looking forward to seeing the finished article

.....Although "reinforcing a sand castle with Gaffa tape" did spring to mind looking at some of those pics



M

mark 88

Member

Posts

39

Location

durham

• Dec 9, 2018

• #28

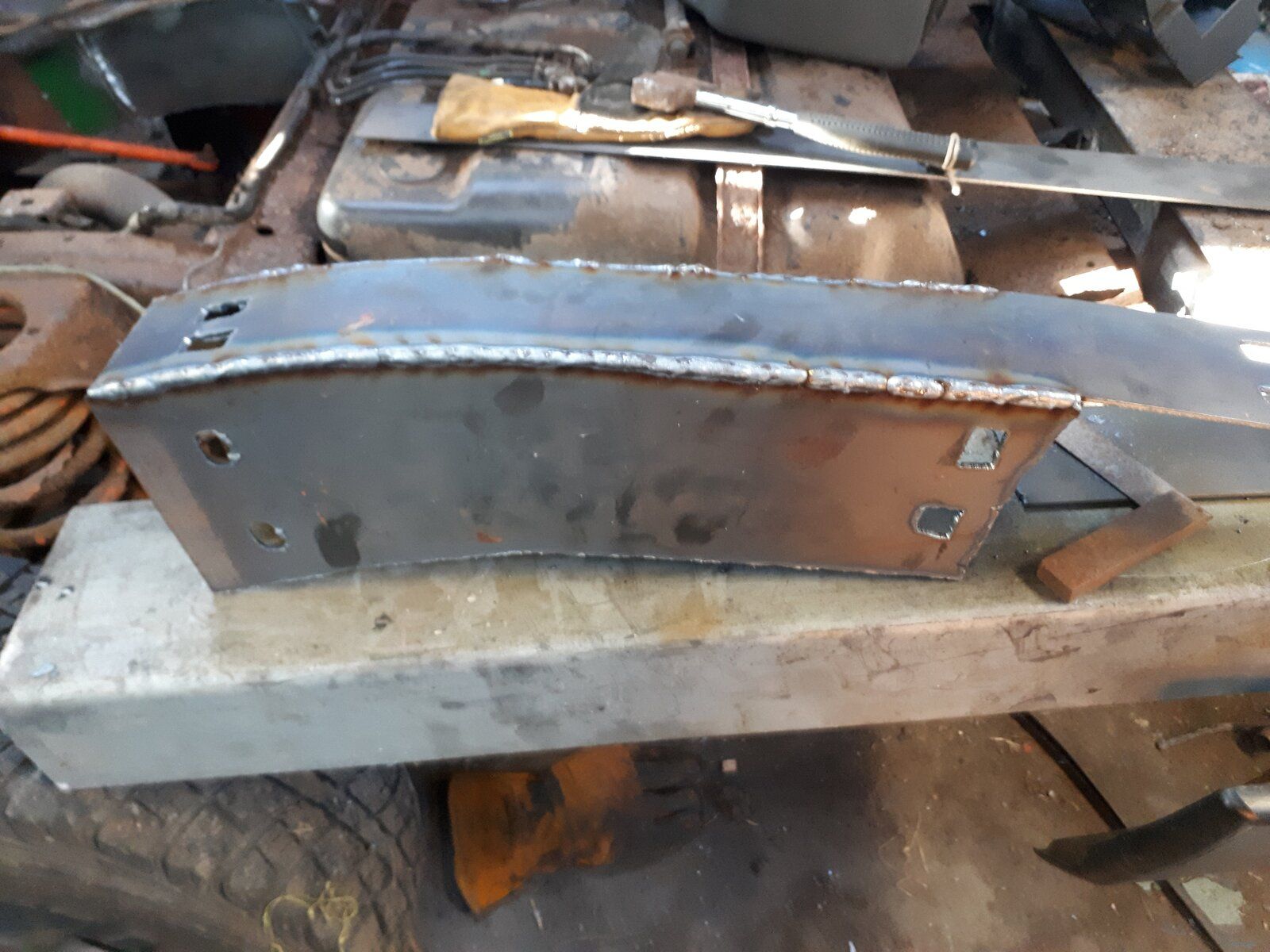

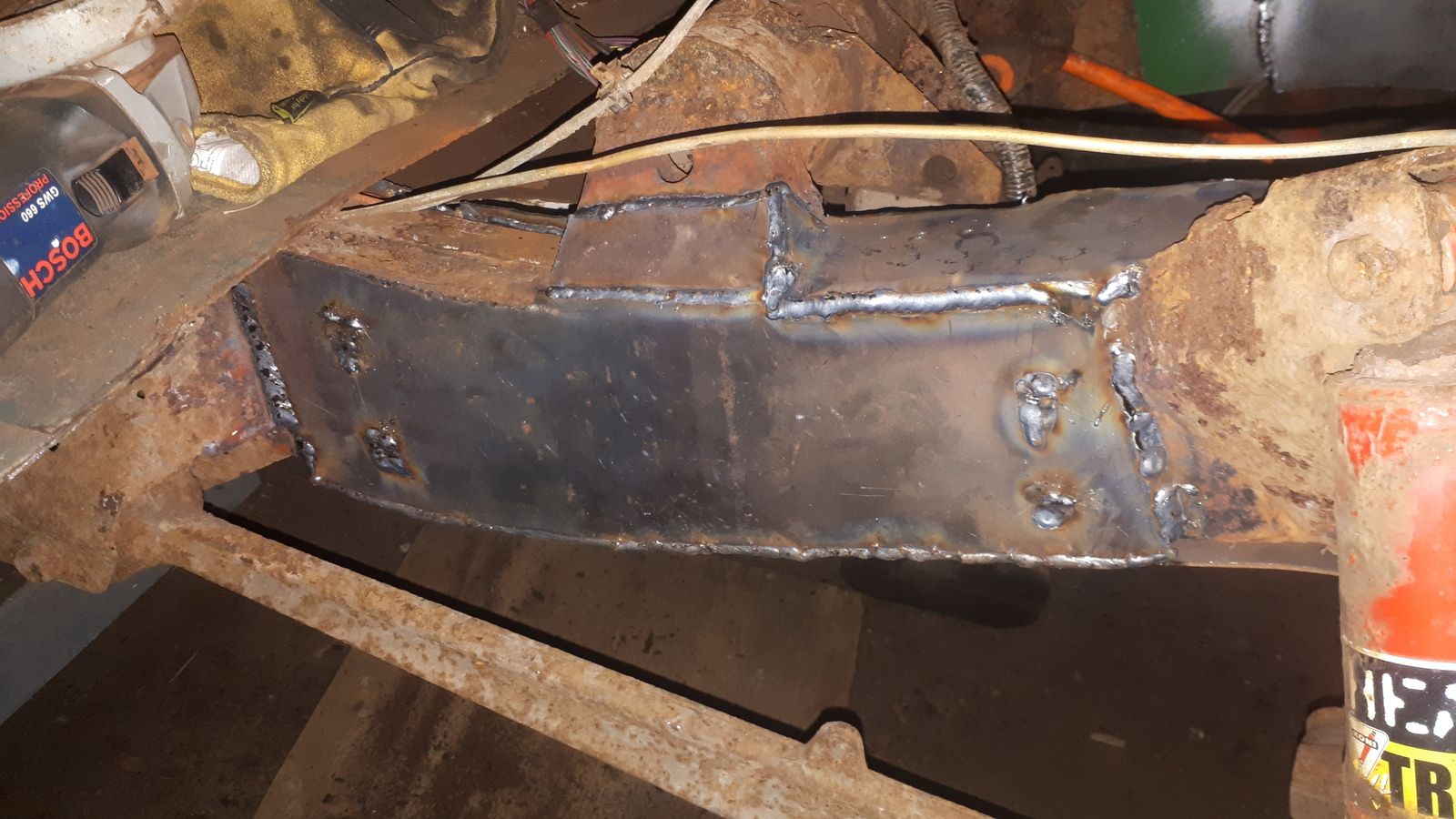

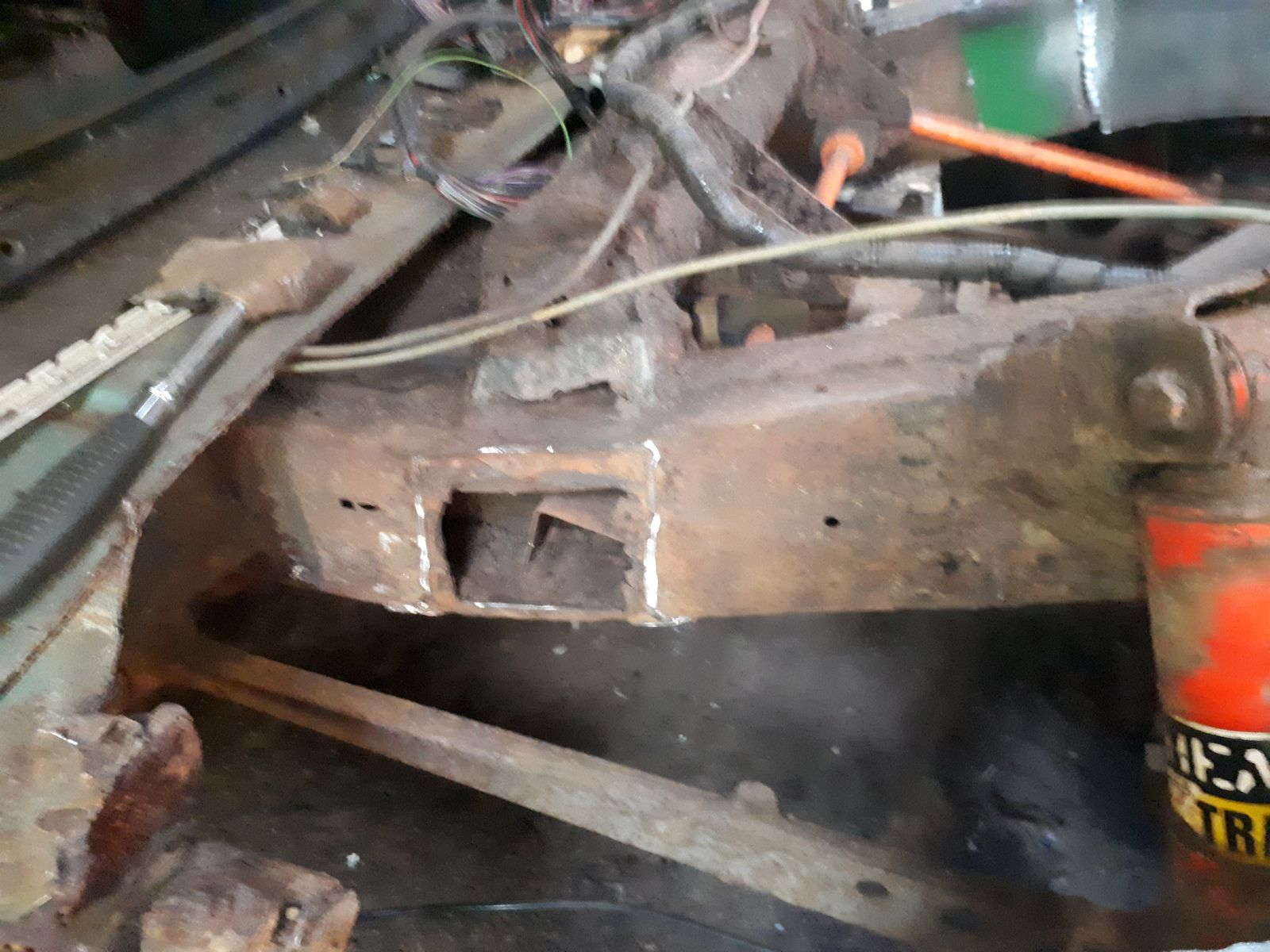

and some more photos



Attachments

•

  223.3 KB · Views: 141
•

  231.4 KB · Views: 149
• 20181208_184831.jpg

  157.4 KB · Views: 116
•

  205.7 KB · Views: 155

M

mark 88

Member

Posts

39

Location

durham

• Dec 9, 2018

• #29

Hicap phill said:

Just a thought..
Have you removed the springs/shocks to see if the axle arms touch these roll cage brackets?
Only asking as look close

Click to expand...

yeah it would be tragic to find out cluck resulting in a bent arm. but yeah they clear fine



M

mark 88

Member

Posts

39

Location

durham

• Dec 9, 2018

• #30

exmed wayne said:

Mark88
Good on you mate
I love your Optimism and welding abilities

Looking forward to seeing the finished article

.....Although "reinforcing a sand castle with Gaffa tape" did spring to mind looking at some of those pics

Click to expand...

structural gaffer tape though lol once you get under the cab the chassis is on really good shape it literally drops from 3mm thick to 1mm in one foot
