I got a full brit part hd lift kit, the only thing that is failing is the powder coat paint
My 3.5 Rangy rebuild
- Thread starter rangy35
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
discomark10
Well-Known Member
- Posts
- 3,977
- Location
- Milton Keynes
Wahey another v8 build!
looks good so far, 1 question, whats the extreme goldy color inside.
looks good so far, 1 question, whats the extreme goldy color inside.
rangy35
New Member
- Posts
- 246

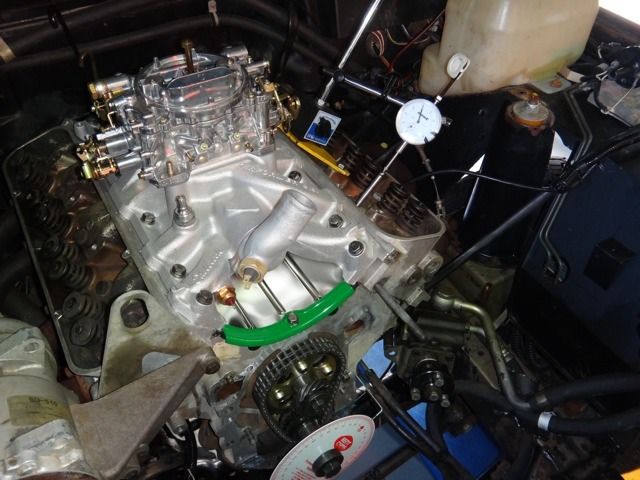

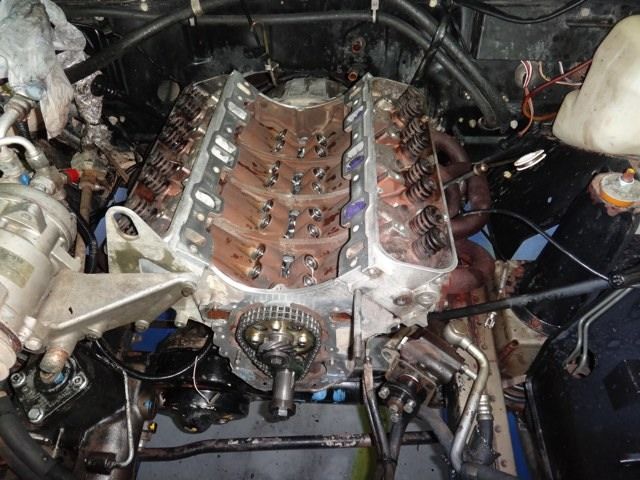

Ok......so today I spent some time starting assembling my baby.
Cam fitted.

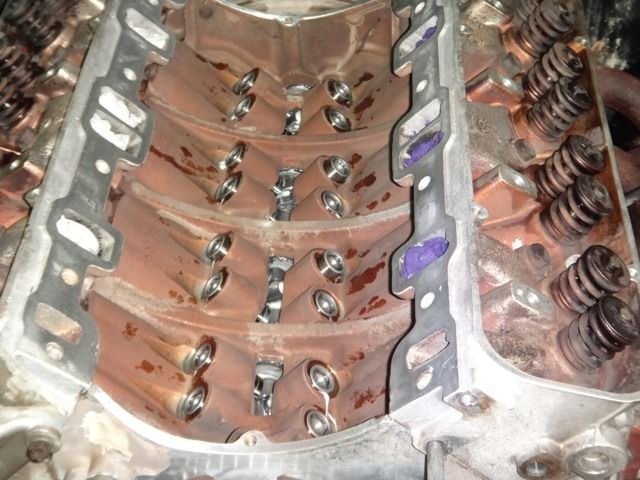

Cam followers fitted.

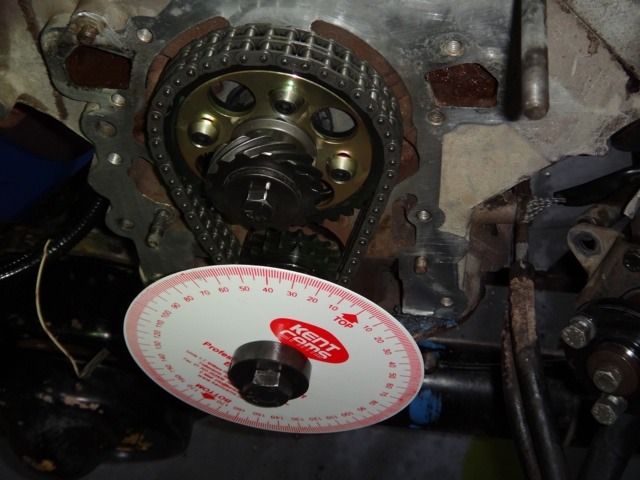

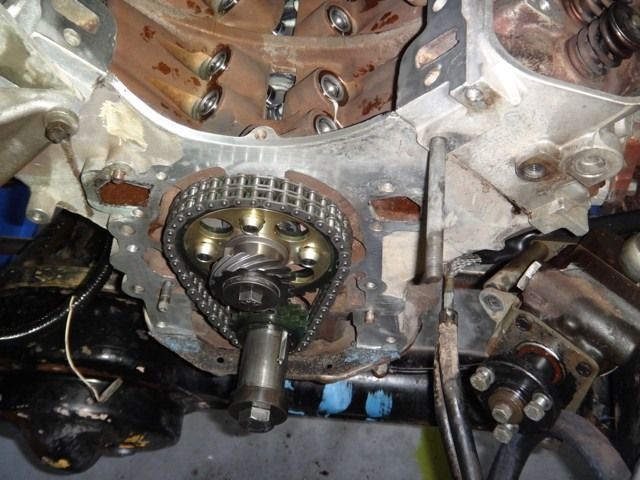

Timing gear/assembly fitted.

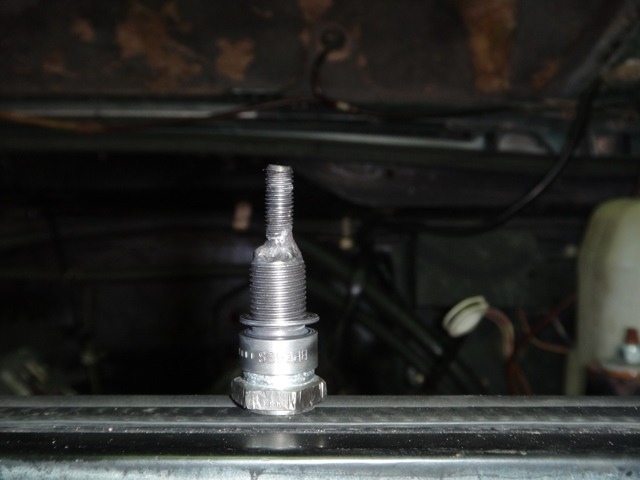

The last photo is my special tool I just made to use for finding true TDC, I spent a bit of time getting the correct length so when I tighten it down I get the more or less 20-30 degrees before TDC stop.
Cam fitted.
Cam followers fitted.
Timing gear/assembly fitted.
The last photo is my special tool I just made to use for finding true TDC, I spent a bit of time getting the correct length so when I tighten it down I get the more or less 20-30 degrees before TDC stop.
Attachments
rangy35
New Member
- Posts
- 246

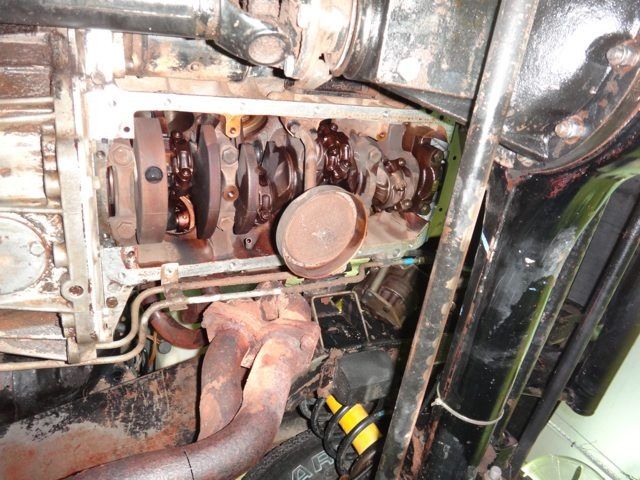

That my friend is the result of using low spec oil and not servicing on time.
rangy35
New Member
- Posts
- 246

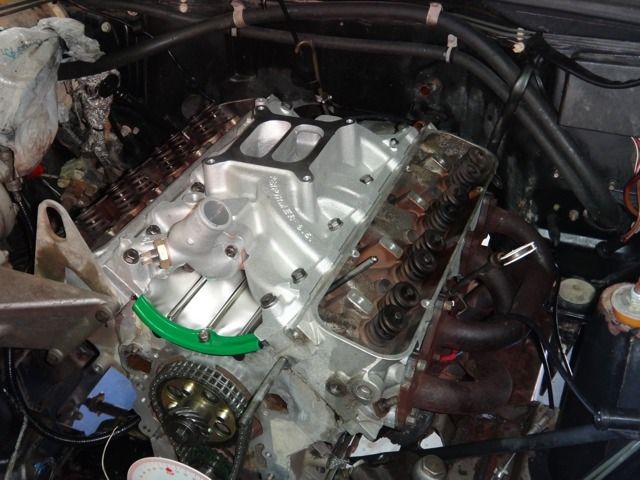

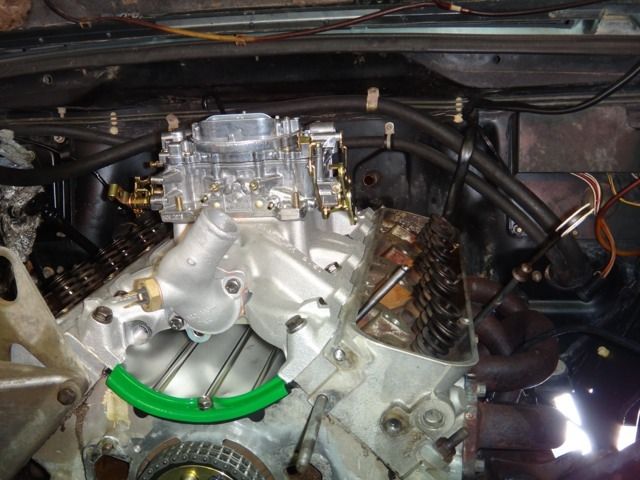

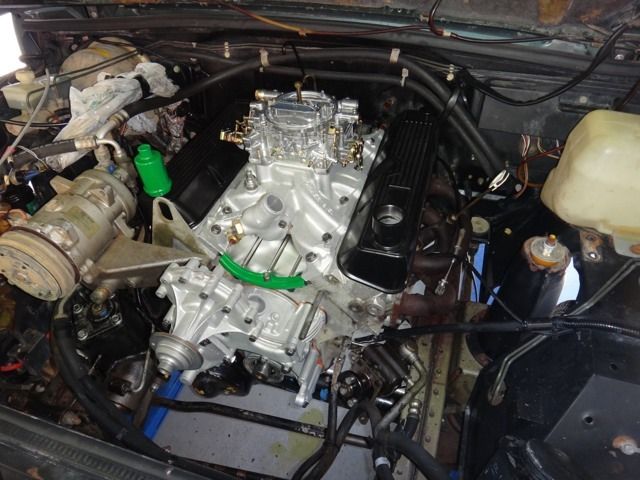

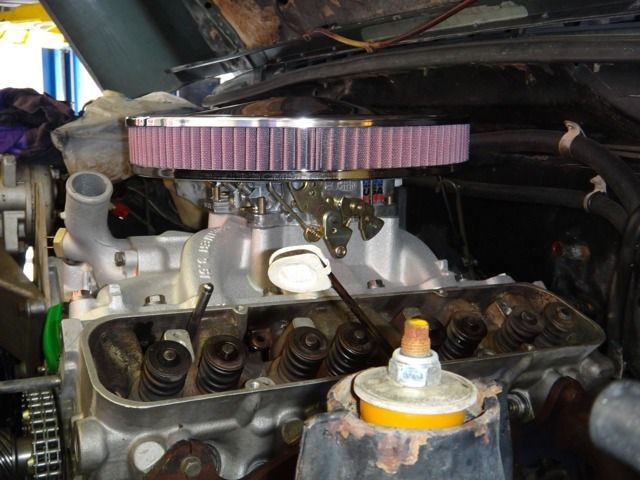

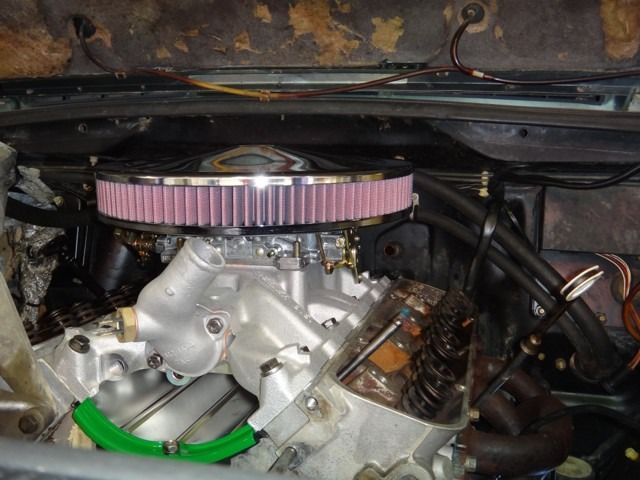

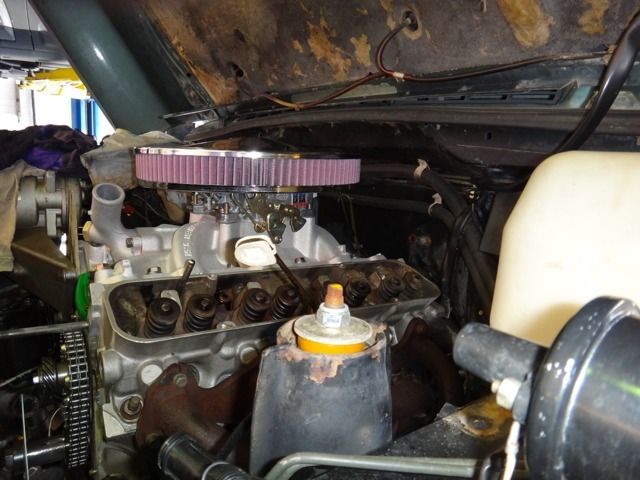

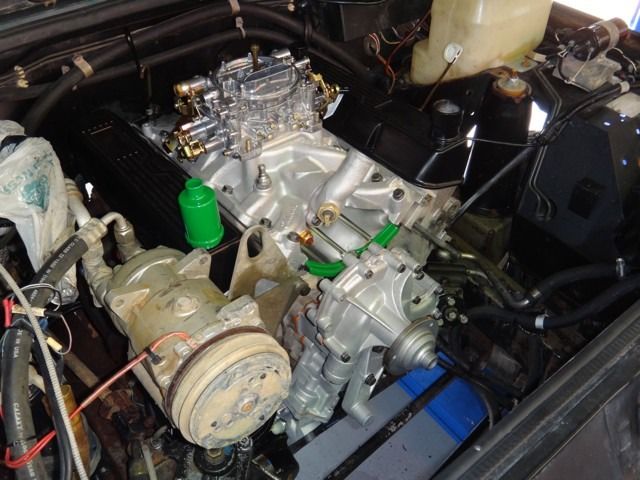

So......i had a few spare minutes and got to do this today.........I think it was made to be there.....geeeeees I just cant get over that intake manifold, there is just something about a pure pice of metal, casted or machined that just gets my attention, and my insides all warm and fuzzy.....
Attachments
discomark10
Well-Known Member
- Posts
- 3,977
- Location
- Milton Keynes
Agreed.. that is nice!
stutab
Well-Known Member
- Posts
- 3,285
- Location
- Hemel Hempstead, Hertfordshire
Was going to fit the same to mine to mine to replace the strongburgs, but then aquired the efi so that went out of the window. Might still fit it to the carb engine then find something to put it in
Looks great.
Looks great.
rangy35
New Member
- Posts
- 246
rangy35
New Member
- Posts
- 246

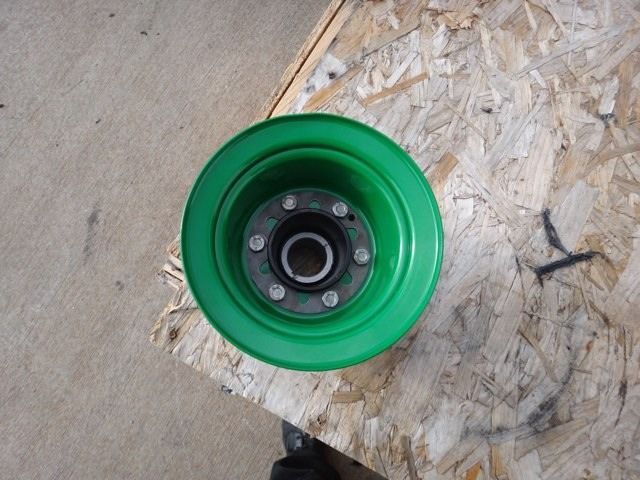

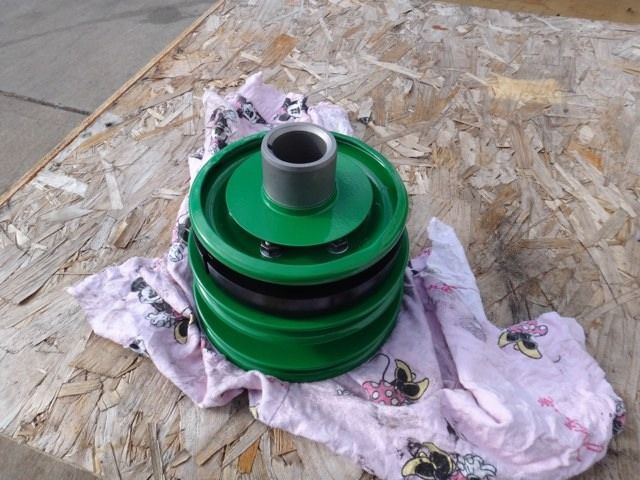

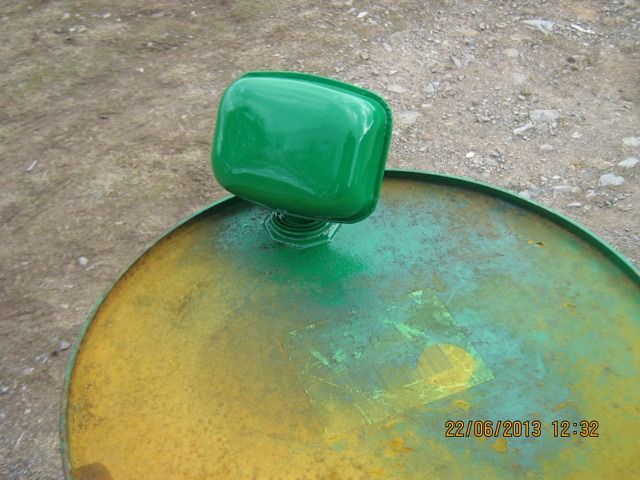

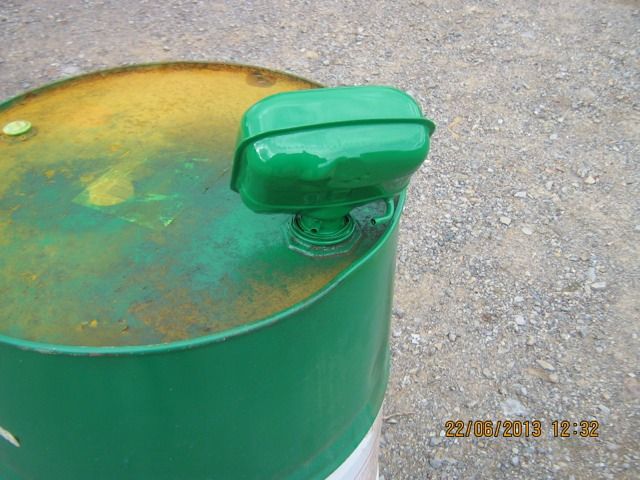

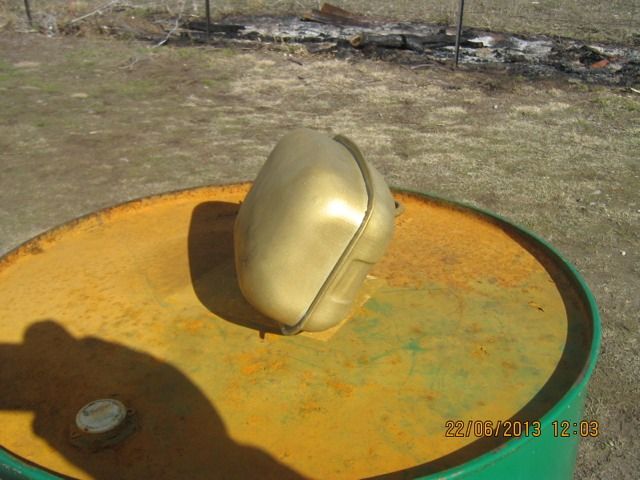

Got some more goodies painted. The weather was not to good but I needed to get this done, does anybody have a schematic of the cooling heating including the heater inside the vehicle. I cant seem to find anything as I have converted from EFI to carby I am not sure how the plumbing should look like and I can not find the interior heater valve.
Attachments
rangy35
New Member
- Posts
- 246

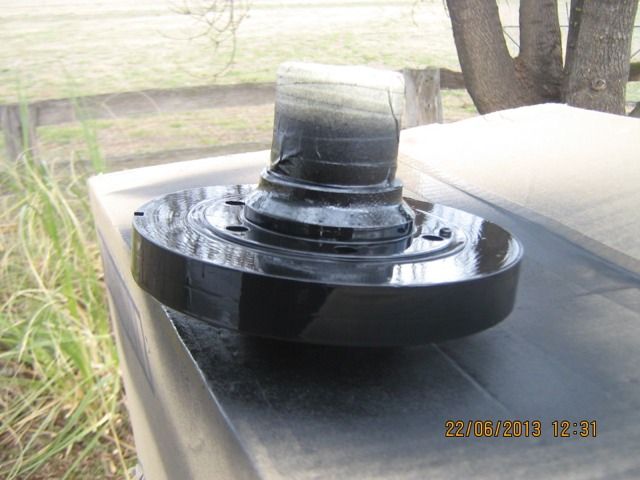

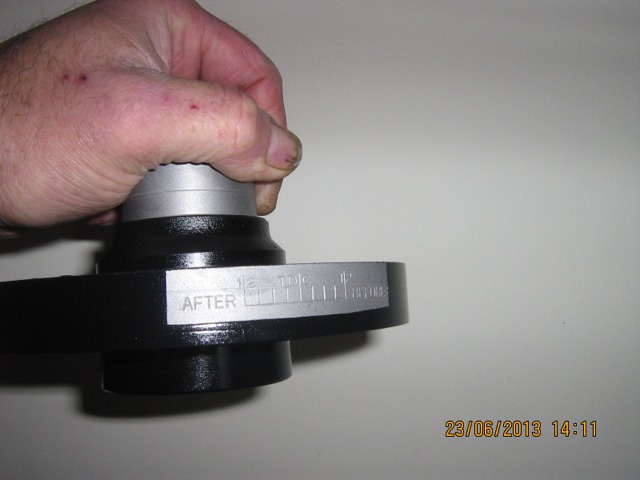

This is the standard timing marks on the crank pulley, before I fit the pulley I will find true TDC again like you do before you dial your camshaft in and then I will compare how accurate the factory marks are on the pulley,if not good I will put my own mark on for TDC and tune the engine from there with much more accuracy. I do fortunately have a very advanced timing light to do this.
Attachments
discomark10
Well-Known Member
- Posts
- 3,977
- Location
- Milton Keynes
You have 2 tubes from the heater inside. The run on top on the drivers rocker cover . One goes to back of the water pump and I think to the manifold. The bit over the rocker cover it done in steel pipe with a bleed in it... do you not have the manifold part?
rangy35
New Member
- Posts
- 246
Thanx for the help.
I do, but for some reason I think there was tinkered so now I am in doubt. I see the new manifold has a out let at the back and searching on Rimmers parts I see there is a fitting that should go on there that the EFI don't have, I will order me one. For what I can figure out the coolant flow's through the block, then the heads, then through the intake, then through the heater matrix, then back to the water pump. I just want to be clear and safe as I have only one chance when I start her up and running the camshaft in.
discomark10
Well-Known Member
- Posts
- 3,977
- Location
- Milton Keynes

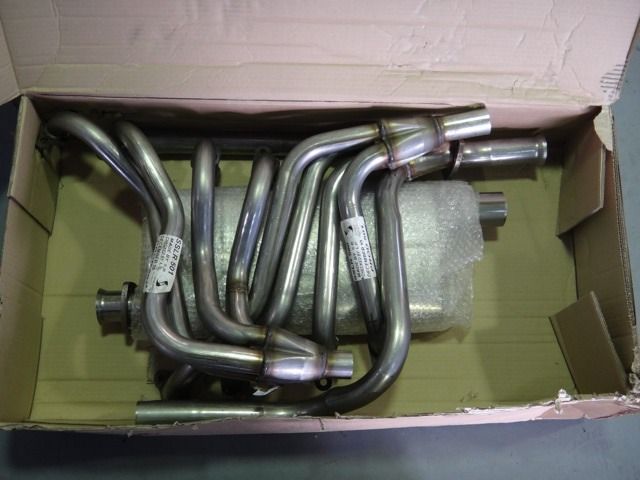

You jammy sod! How much these beauties set you back?
discomark10
Well-Known Member
- Posts
- 3,977
- Location
- Milton Keynes
Dam... just cant justify spending 500 on headers! How much is it going to cost?
rangy35
New Member
- Posts
- 246

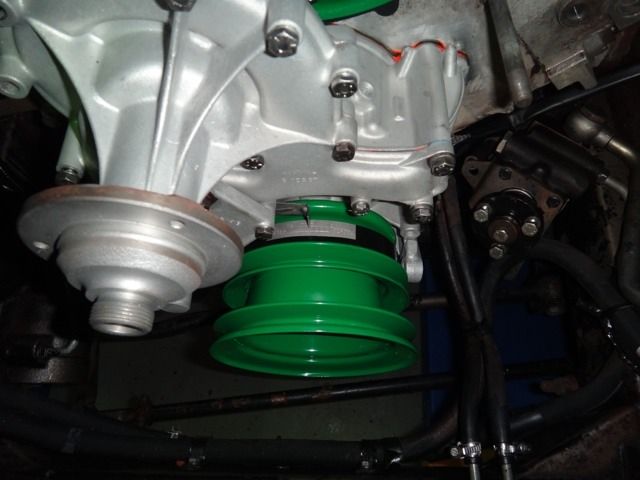

Right.........was away for a few days......on training. So got to do a bit of work this morning and will now spend time with the wife so she is also happy.
Check it out........

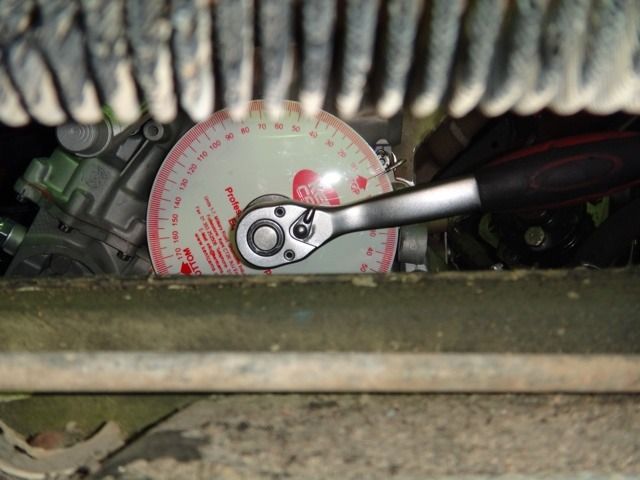

Like I promised I was going to double check the accuracy of my crank pulley timing marks and the marker alignment..........as expected spot on......nice!
Check it out........
Like I promised I was going to double check the accuracy of my crank pulley timing marks and the marker alignment..........as expected spot on......nice!
