LT270 rear drive flange nut torque

Benny_Boy

Active Member

Posts

101

Location

Bristol

• Jul 31, 2020

• #1

My prop brake failed yesterday. Closer inspection revealed the rear oil seal has failed. It's a real mess in there! So I'm trying to remove the drive flange nut so I can get to the seal. Am I right in thinking the retaining nut is torqued up to 146->179 NM?

I'm working on my driveway and struggling to get a breaker bar in there? Any tips or advise? The transmission is in gear with the xfer box in high range to stop the thing spinning as I [try] to turn the retaining nut.



Bennehboy

Well-Known Member

Posts

2,215

Location

Huddersfield

• Jul 31, 2020

• #2

If you've not got much swinging room for the bar, you can try a bottle jack under one end of it.



neilly

Well-Known Member

Posts

20,000

Location

Oxfordshireness

• Jul 31, 2020

• #3

You may find you will require a bar or some way to stop the flange turning. I made a flange tool to use the bolts and stop the flange, or add some big chocks in ftont of the wheels.

try turning the socket on the breaker bar a 1/4 turn to see if you can get it to align better.

Cheers



Benny_Boy

Active Member

Posts

101

Location

Bristol

• Jul 31, 2020

• #4

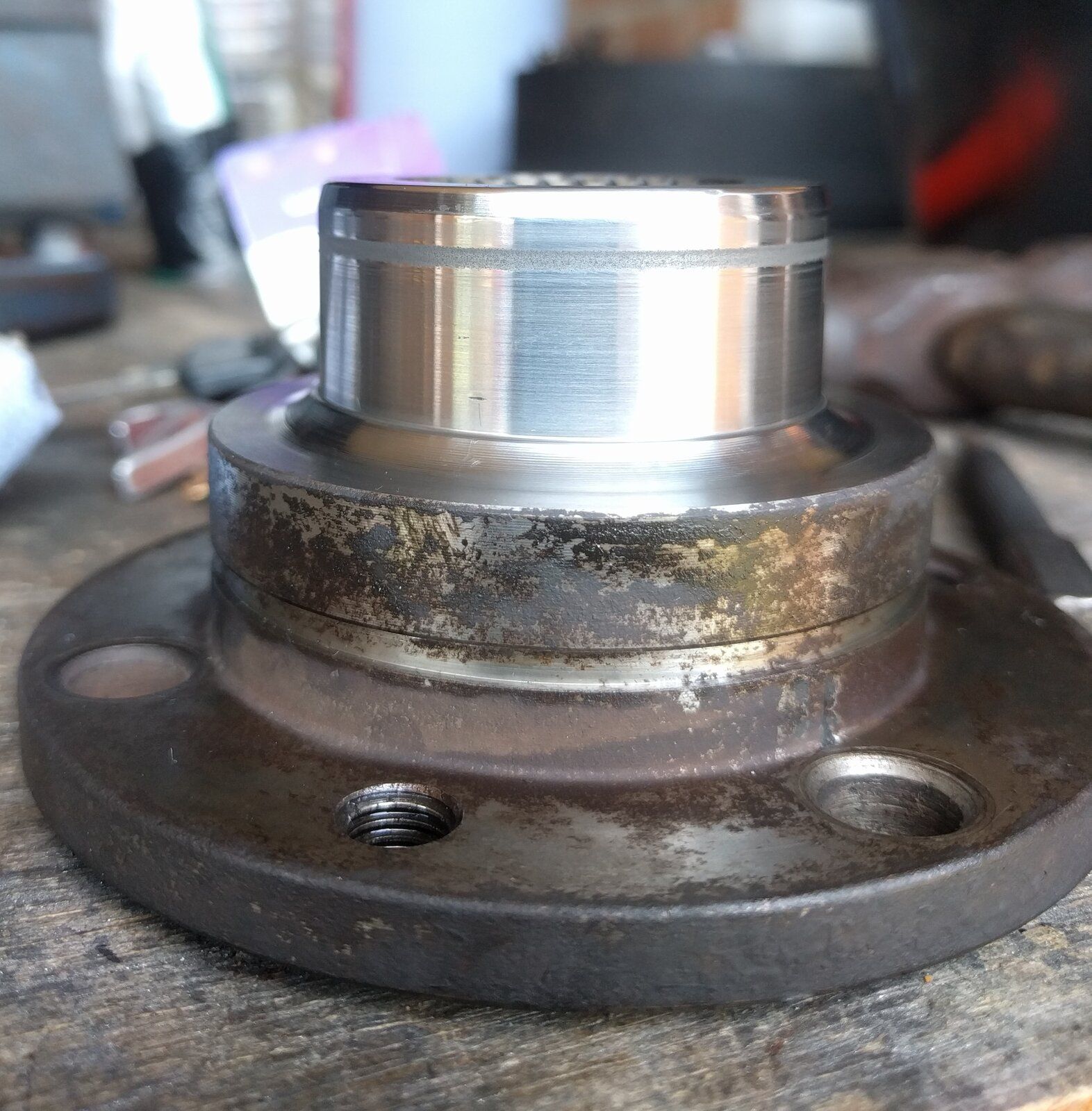

Thanks. After some tinkering I managed to get the drive flange out. What do you guys think to the state of seal landing area in the photo below? I'm guessing the grey line shouldn't be there, but it's not noticeably indented when I run my finger over the race.



Attachments

•

  344.3 KB · Views: 125

Bennehboy

Well-Known Member

Posts

2,215

Location

Huddersfield

• Jul 31, 2020

• #5

I'd fit a new flange - but that's just me.



frog hopper

Well-Known Member

Posts

4,760

Location

france

• Jul 31, 2020

• #6

Bennehboy said:

I'd fit a new flange - but that's just me.

Click to expand...

+1 on that.



jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Jul 31, 2020

• #7

Benny_Boy said:

Thanks. After some tinkering I managed to get the drive flange out. What do you guys think to the state of seal landing area in the photo below? I'm guessing the grey line shouldn't be there, but it's not noticeably indented when I run my finger over the race.

Click to expand...

ffit the seal nearer the outer edge of the housing seal will run on a clean part of the flange then
