Lpg guys air susp pump

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
A

Andysvogue

New Member
Posts
55
To the guys with lpg where are your air suspension pumps relocated too? As just spoke to an installer who says putting it in the side compartment out of its acoustic box burns the compressor out within 8 months!!?. Your thoughts

Mine is placed still in it's acoustic cover and has been moved further forward to nearly under the rear seats...the boot floor has been cutout to accommodate the relocation...

I have some stuff in the boot otherwise I would take a photo for you....I have to get out there and remove the headlamp assembly later and if I get the chance I'll take photo if I muster up the energy to clear it out a bit!!

Saint.V8 said:
Mine is placed still in it's acoustic cover and has been moved further forward to nearly under the rear seats...the boot floor has been cutout to accommodate the relocation...

I have some stuff in the boot otherwise I would take a photo for you....I have to get out there and remove the headlamp assembly later and if I get the chance I'll take photo if I muster up the energy to clear it out a bit!!
Click to expand...

That would be great saint if yo can. The guy said the only way he does it is on top of the boot floor in the boot area which I wasn't sure about as we have a mad Labrador!

Andysvogue said:
That would be great saint if yo can. The guy said the only way he does it is on top of the boot floor in the boot area which I wasn't sure about as we have a mad Labrador!
Click to expand...

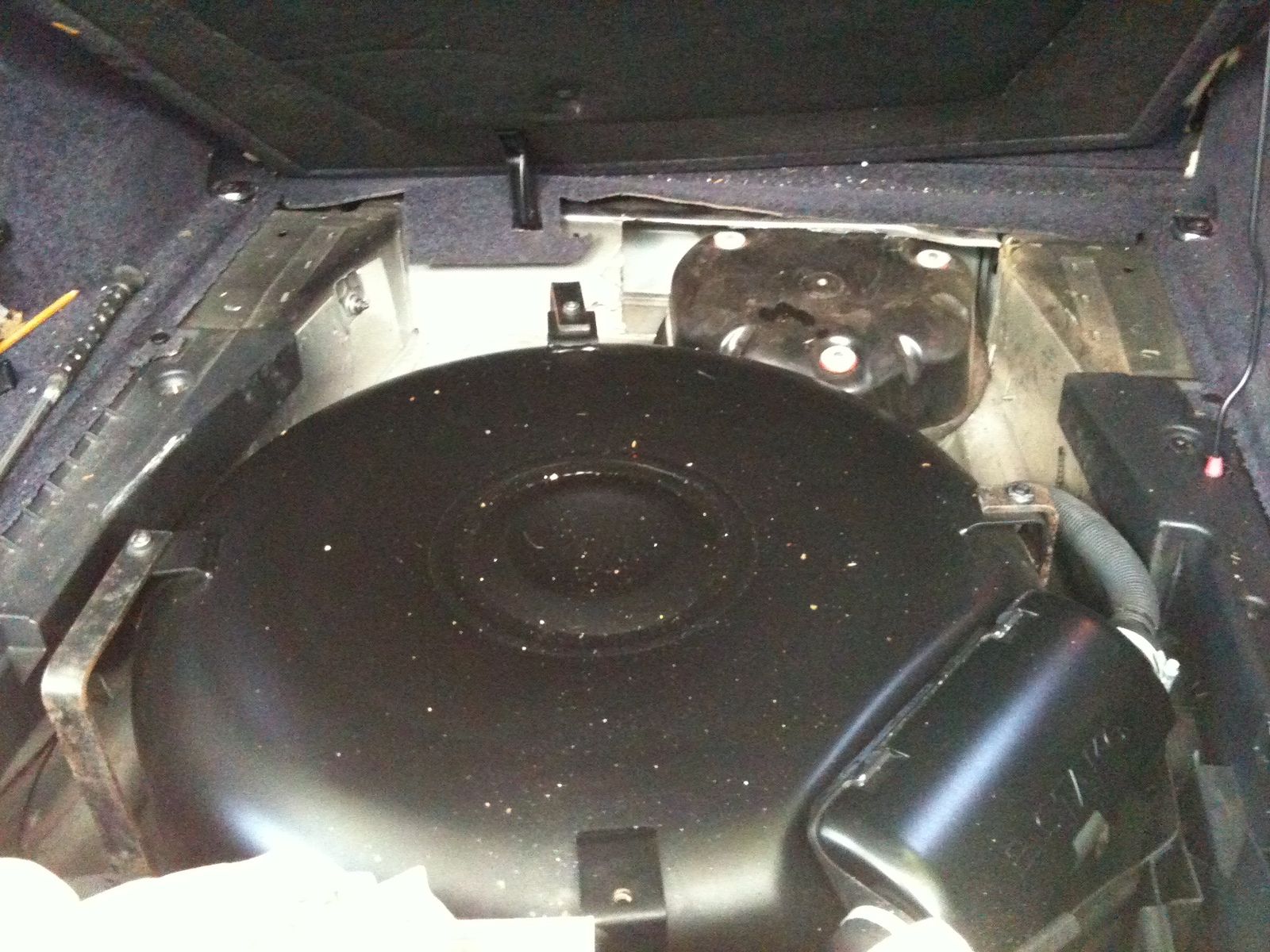

My Compressor Location....hope it helps!


Attachments

  • COMP_001.JPG
    289.4 KB · Views: 615
  • COMP_002.JPG
    292.1 KB · Views: 747

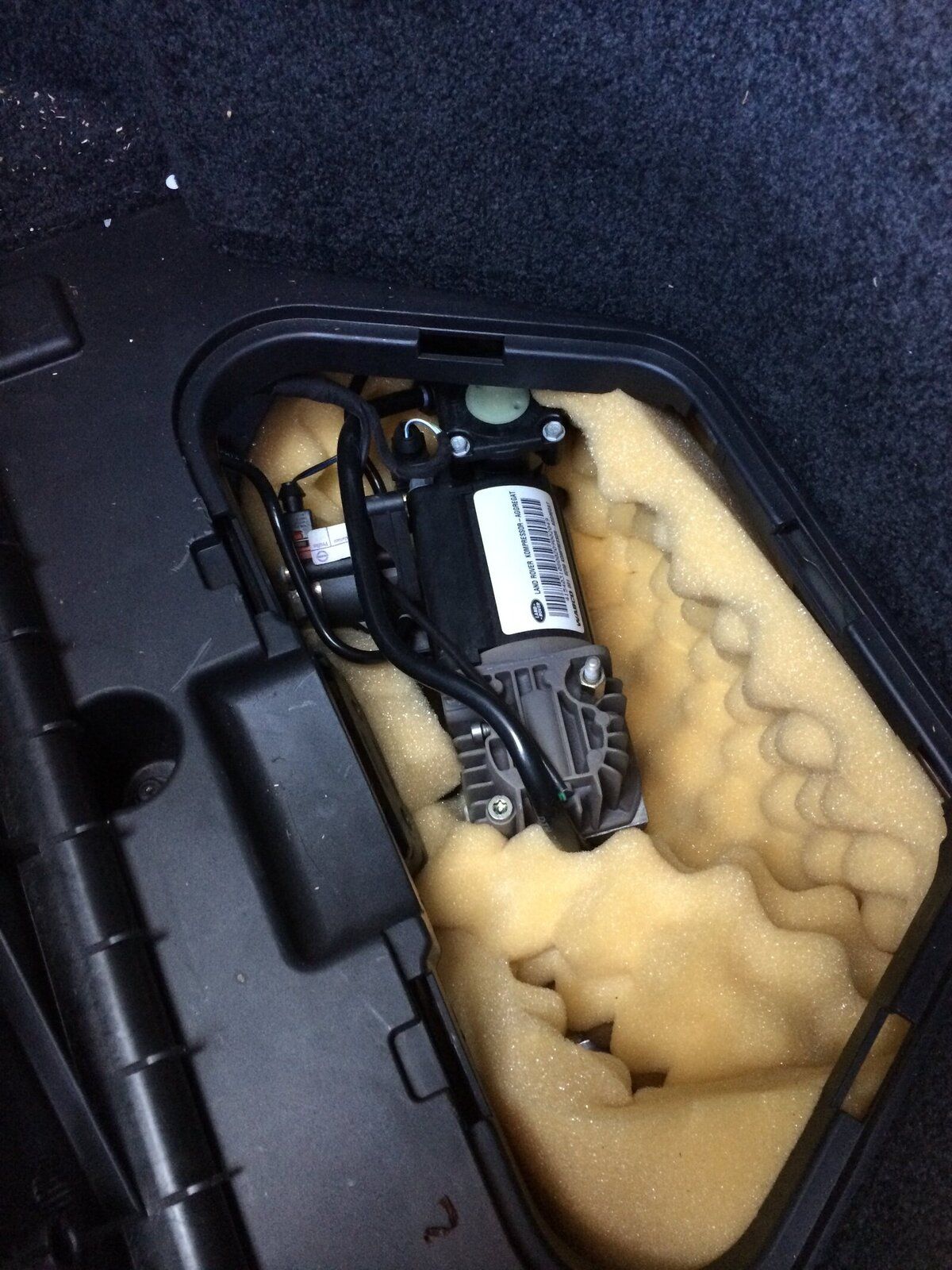

well mines in the o/s/r compartment out of its shell(wrapped in foam) ive owned it 3 years & never had a poblem except its slightly noisy,the only way to eliminate noise is keep it in its shell but as ant (saint) pics shows it needs body mods which is a mod not really reversable i will post pics later

Last edited:
Andysvogue said:
Cheers mate. Is that fixed down? How noisy is it?
Click to expand...

no not fixed & you can hear it hum tbh but if eas is all good it shouldn't kick in that often, unless they are in a shell you will hear it even a factory unmolested set up will hum if bolts are loose/been disturbed etc. why did he say it will burn out after 8 months ? for what reason? its well ventilated & prob better than factory shell for air-circulation. tbh I cant believe he proposed fitting it on display in luggage compartment:eek:

wil2813 said:
no not fixed & you can hear it hum tbh but if eas is all good it shouldn't kick in that often, unless they are in a shell you will hear it even a factory unmolested set up will hum if bolts are loose/been disturbed etc. why did he say it will burn out after 8 months ? for what reason? its well ventilated & prob better than factory shell for air-circulation. tbh I cant believe he proposed fitting it on display in luggage compartment:eek:
Click to expand...

That's what bothered me who wants that on display bolted to the boot floor!

Mines bolted in the wheel well still just further forward and at an angle, but without the top cover over it. Its not too noisy

I may be barking up the wrong tree, or maybe just barking, but don't some companies do a toroidal lpg tank especially for range rovers? The tank fits in the spare wheel well and the tank just fits around the EAS compressor.

A guy I know from work has an LPG converted 4.4 vogue and I'm sure that's what he's got. I'll have to see him and check.

Heres a link to a site that advertises special mounting kits for the EAS compressors, may be of help?

News

It's the article part way down the page, extract below...

New Mounting Bracket for Range Rover L322 Air Suspension Compressor
Have you ever wondered what to do with the compressor on an L322 once you have moved it out of the spare wheel well to make room for the LPG tank?

Here is a solution that will give you a quiet and professional completion to your installation.

This kit is designed for Range Rover L322 vehicles (pre 06MY) and facilitates the relocation of the air suspension compressor to the pocket on the right side of the boot floor.
