Lower swivel pin - which way round?

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

SMG

Member
Posts
43
Location
UK
Hi there
Quick question for the collective. 2002 TD5 110, front swivel pin housing... which way round does the bottom swivel pin go? Was looking for a lug on one side, but mine doesn't seem to have one.

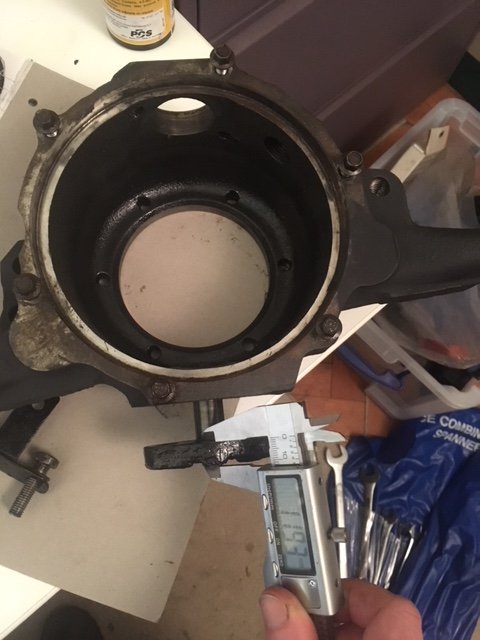

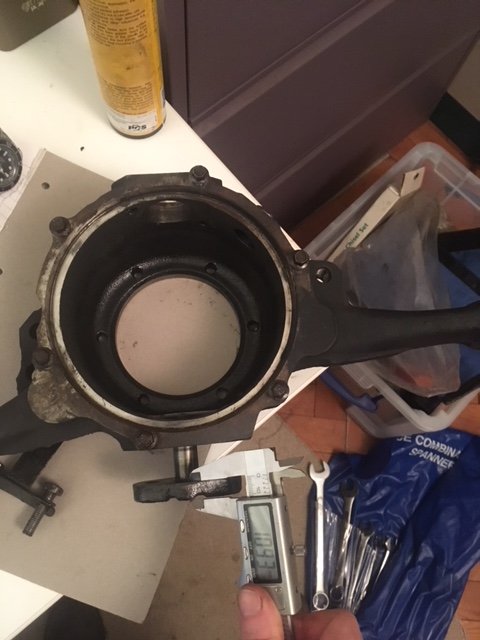

One side of the bottom swivel pin is about 11mm thick, the other is about 12mm. Am guessing the thin side should be pointing towards the swivel ball oil seal / thick side towards the stub axle.

Thought I'd double check

Cheers

SMG


Attachments

  • IMG_0845.JPG
    48.7 KB · Views: 101
  • IMG_0846.JPG
    49.4 KB · Views: 145
Seen them with and without lug. When with lug diagrams show lug to be on stub axle side.
Recon the 1mm difference is just due to inaccurate casting.
