Location of earth chassis 2003 l322 3.0

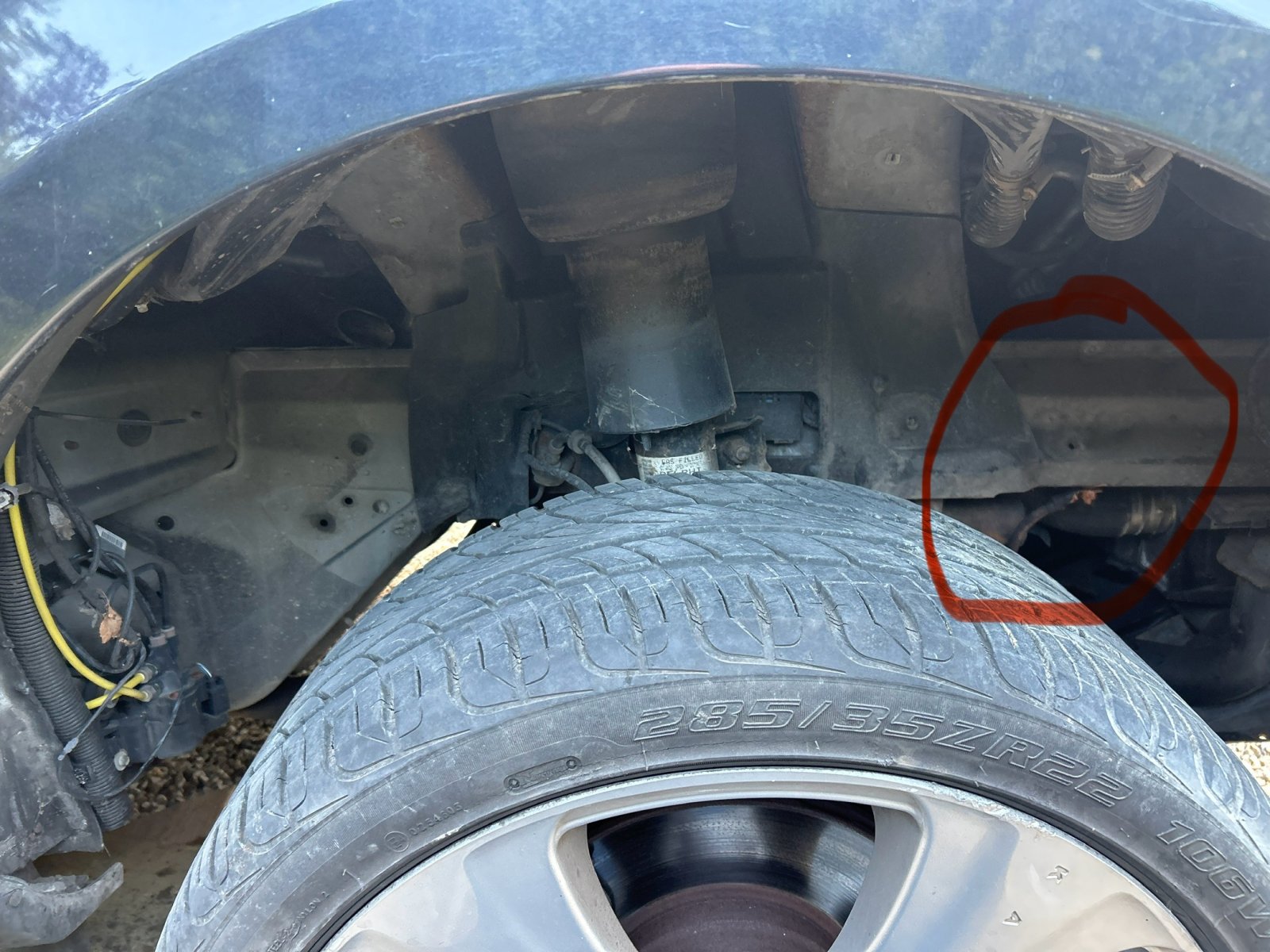

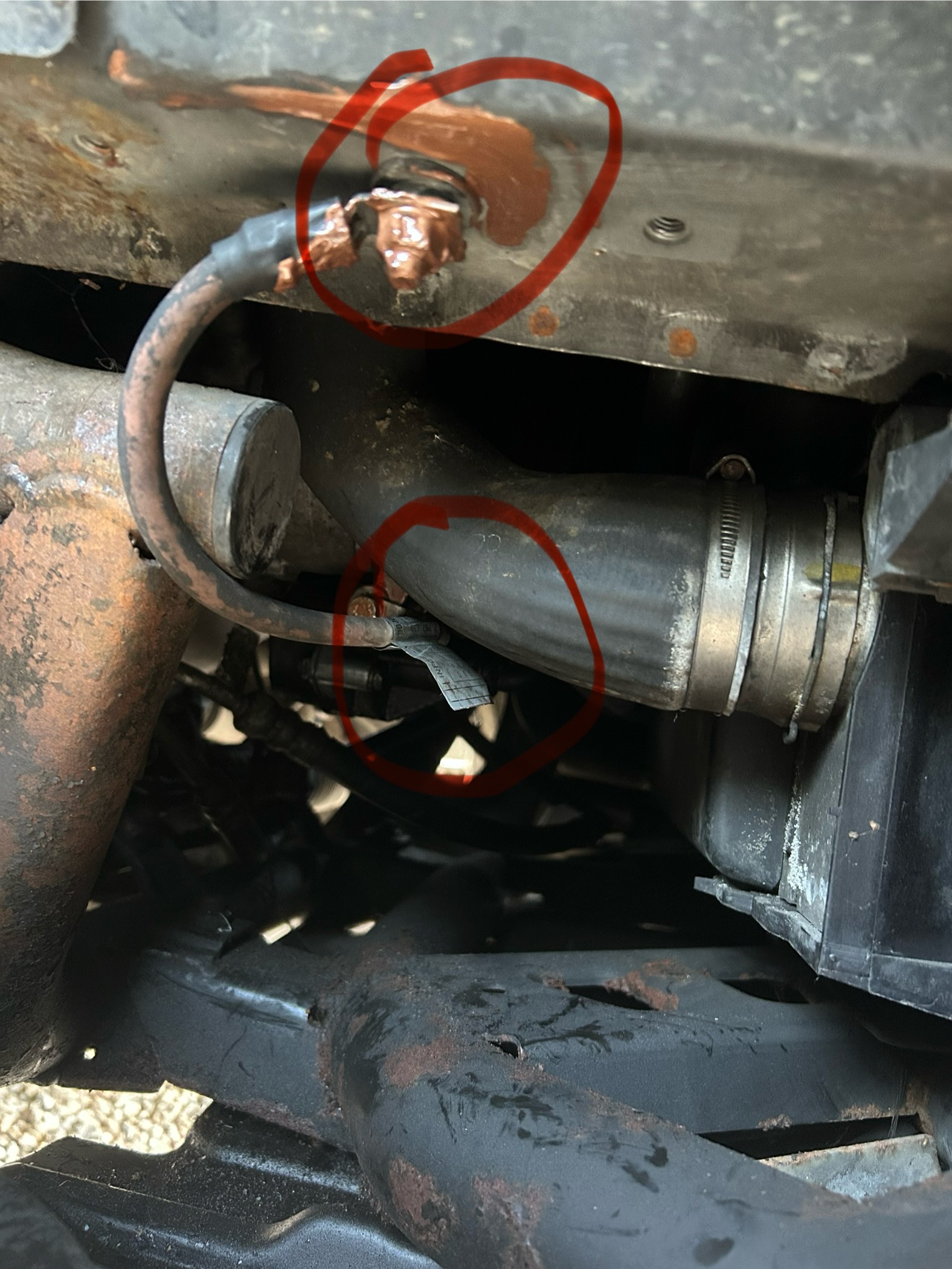

I spent ages searching so after a long time eventually found the engine earth to chassis. Might help someone. First remove the plastic covering in the right hand wheel arch. Then the earth is on the right hand side as in photos.

I’m have an srs issue of less than 9.6v. Battery drops to 8v on starting. Looking at the earths first. I cleaned this one and covered it with copper grease.

Hi Daniel, been a victim of this dreaded earth strap before, fortunately, had a mechanic take care of it whilst changing the alternator.

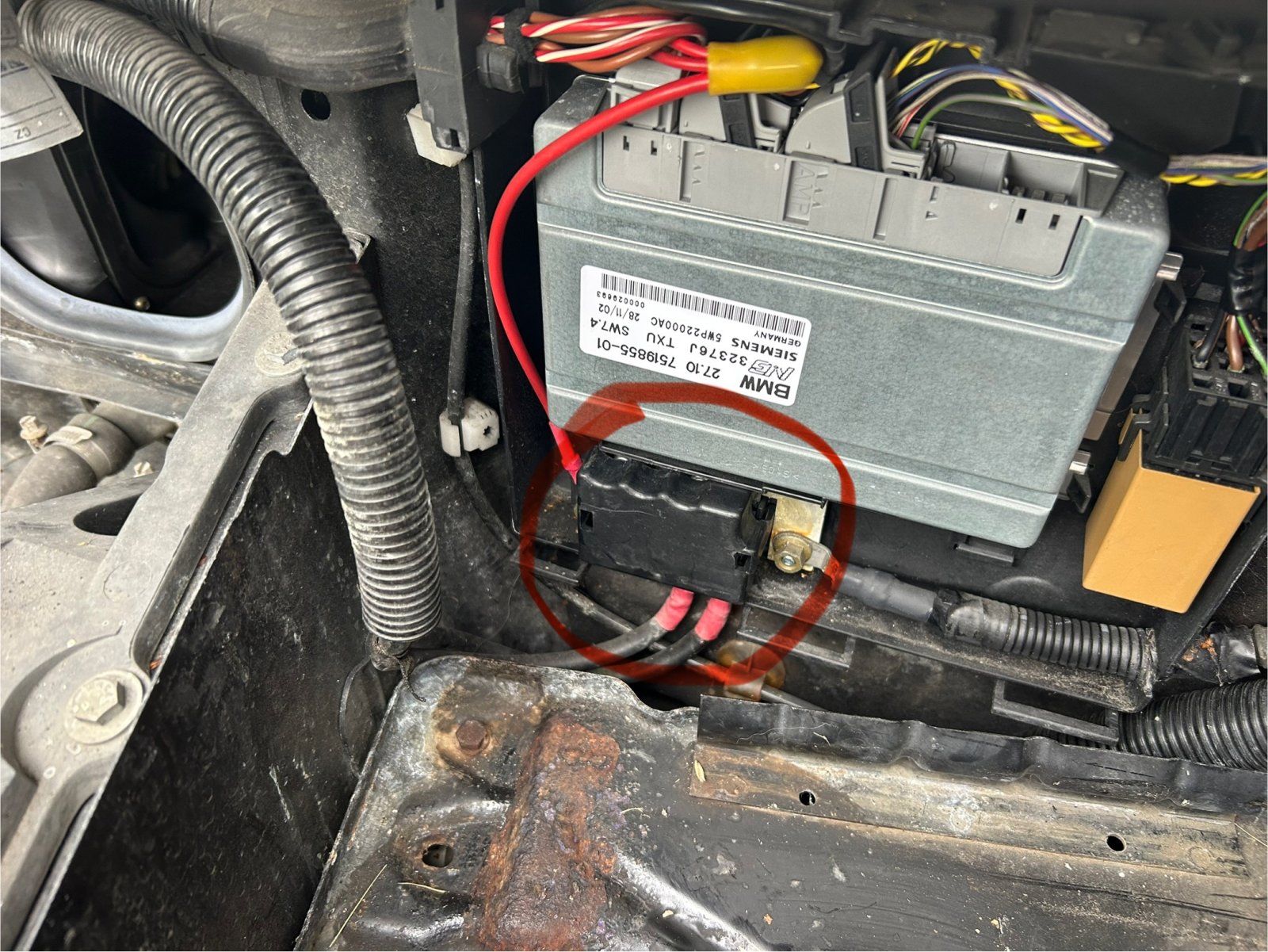

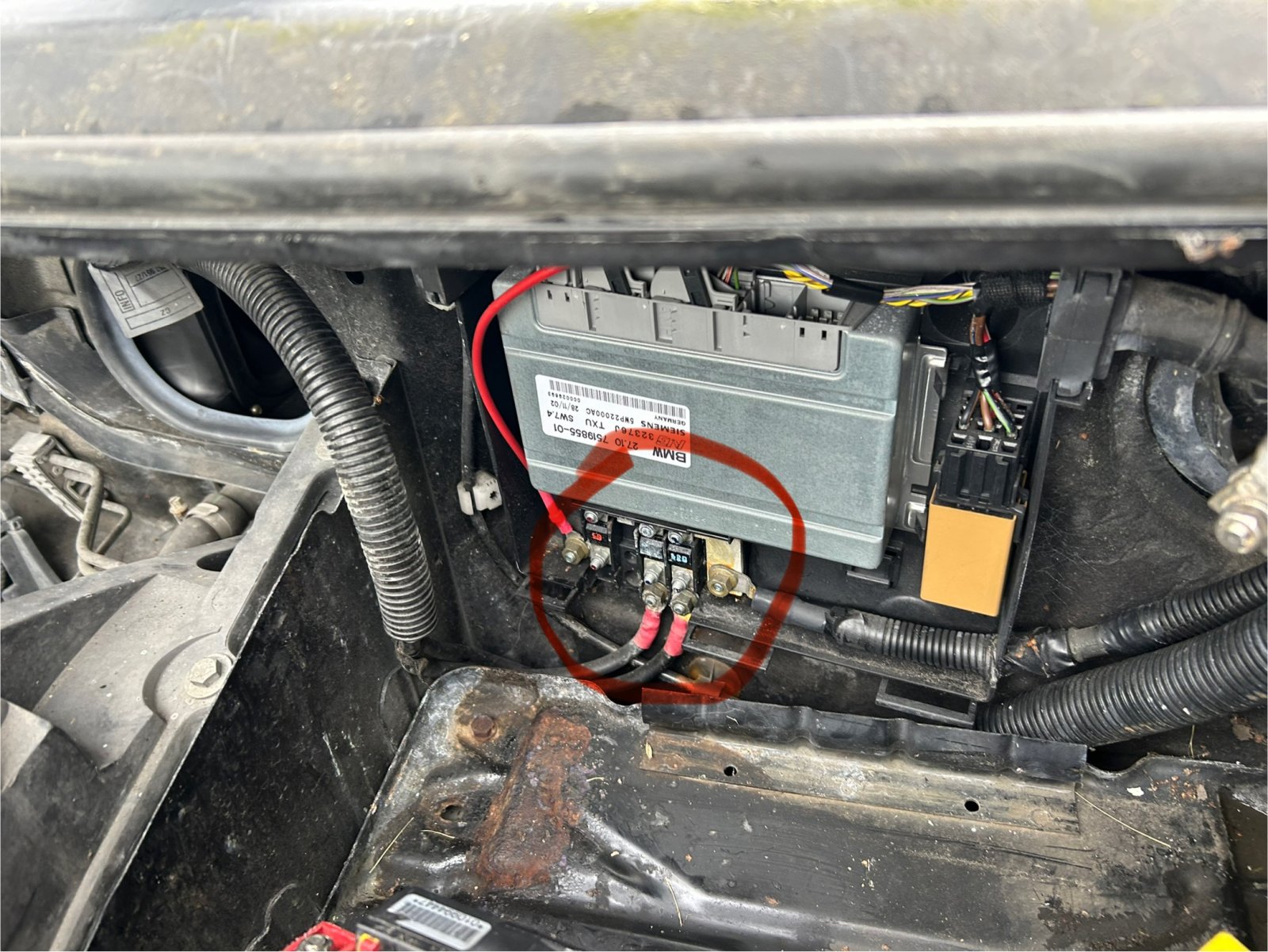

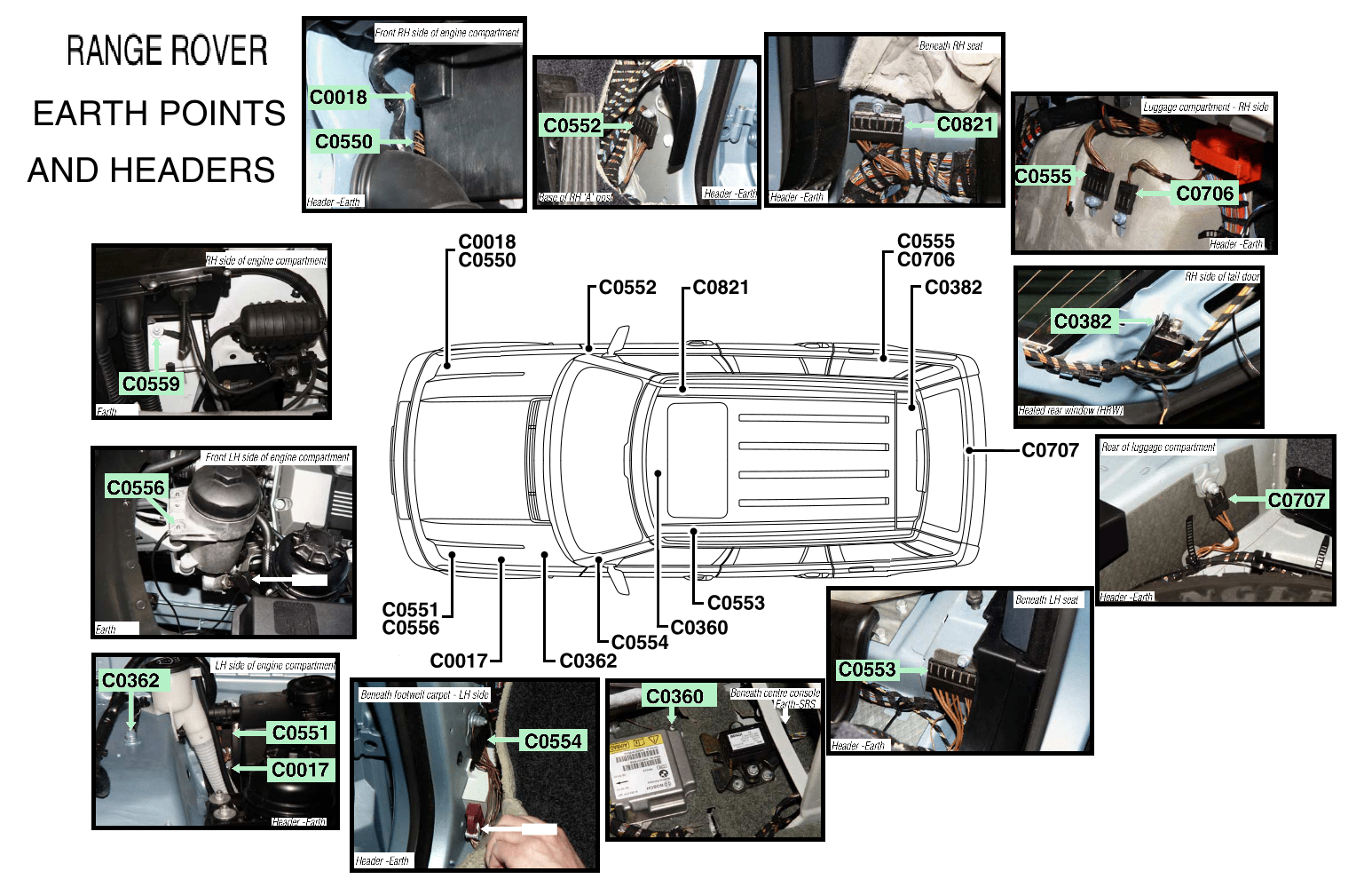

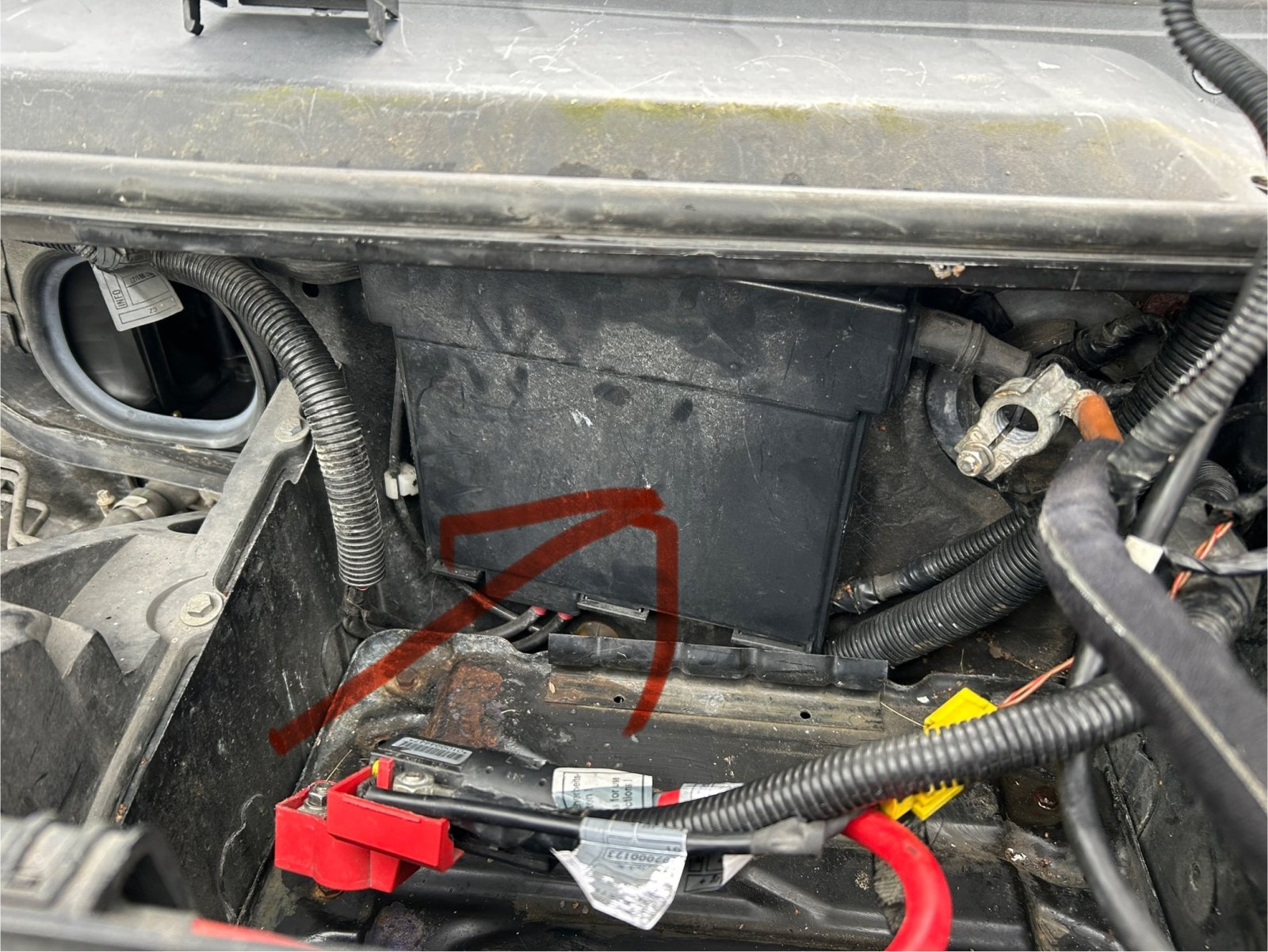

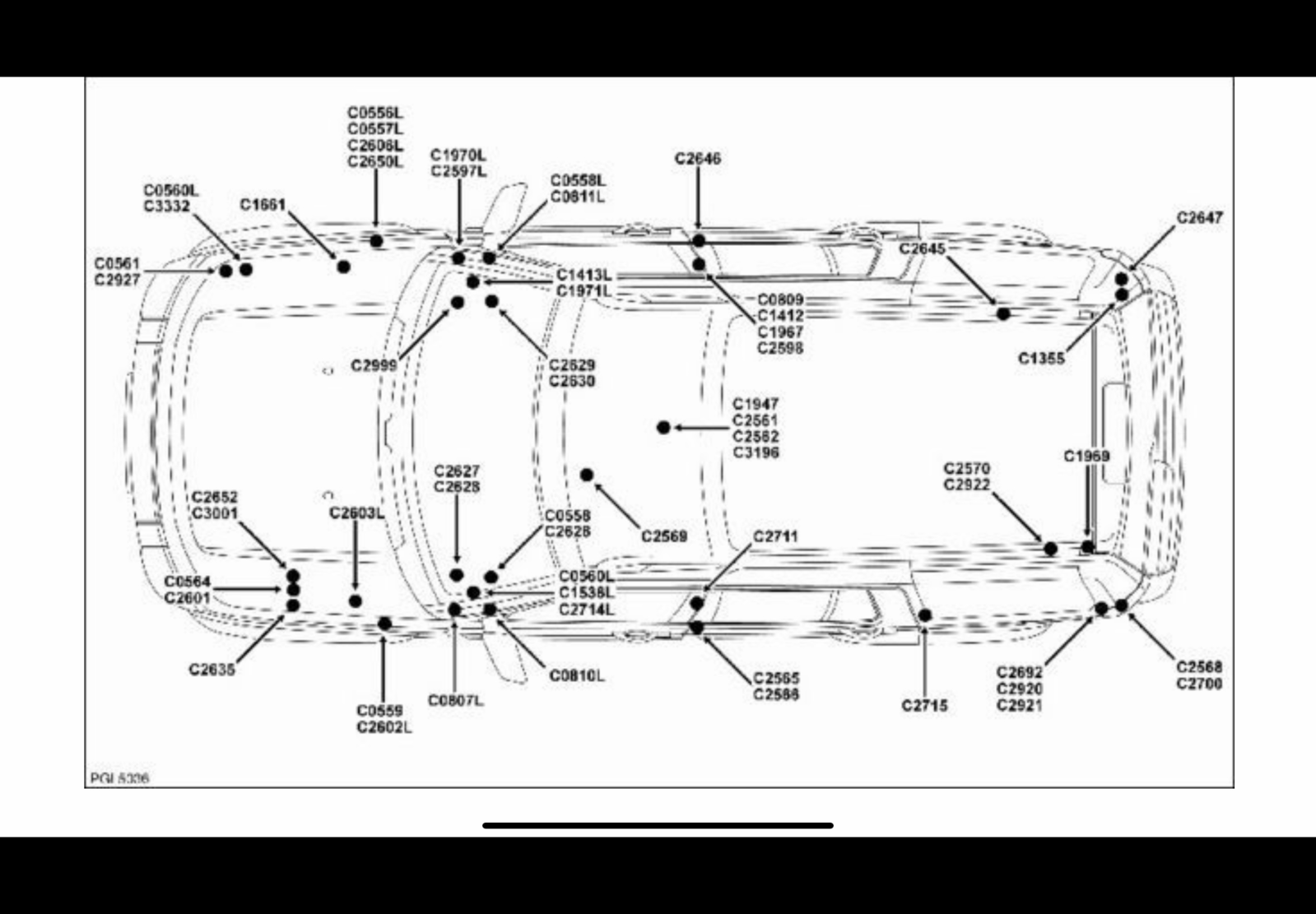

A few more earth locations, just in case you are short of something to do

Tricky

Pretty common issue to be honest
