Land Rover 90 rebuild diff issue

davidsw · May 3, 2020

Hi

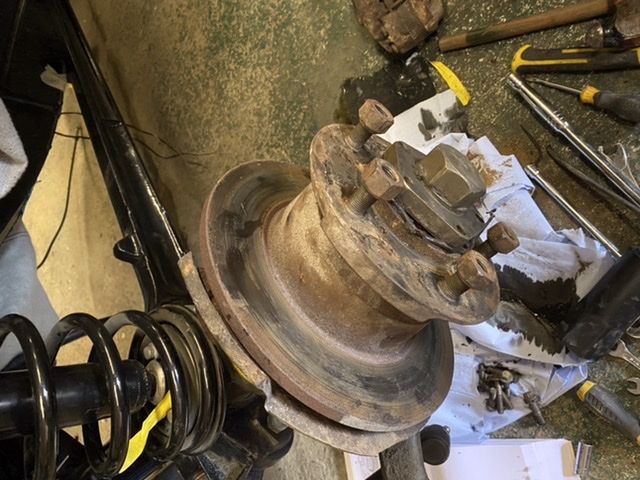

well I’m doing something stupid or I’m being stupid . My Landy 90 1990 came with arp air looking diff and what looks like heavy duty drive shafts . I cannot get them out Thayer Evans seems to be a hexagonal nut that I this is cast as I can’t do anything with it . I need to strip it out to change disks etc and rebuild . Here is a pic

jamesmartin · May 3, 2020

if you put the flange bolts back in nut should undo so you can remove the cv circlip

davidsw · May 3, 2020

Thanks , is that nut then a nut it looks cast

neilly · May 3, 2020

davidsw said:
hexagonal nut

Those hex nut covers can end up being very tight. if you put the flange bolts back in , you may still need to find a way to stop the hub rotating as you try to undo the nut. It should be the same size as the wheel bearing lock nuts.

Cheers

davidsw · May 3, 2020

Thanks very much . I think I’ll order a socket that size and get some air on it . Thanks very much

Wimblowdriver · May 4, 2020

Is that a spot weld on one of the flats of the big nut?

davidsw · May 4, 2020

I hope not . I’ll find our in a bit just going down there

DanClarke · May 4, 2020

Wimblowdriver said:
Is that a spot weld on one of the flats of the big nut?

I think it's an anti-turn tab knocked-up against the flat.
