Citizen Kane
Well-Known Member
- Posts
- 324
- Location
- Hampshire

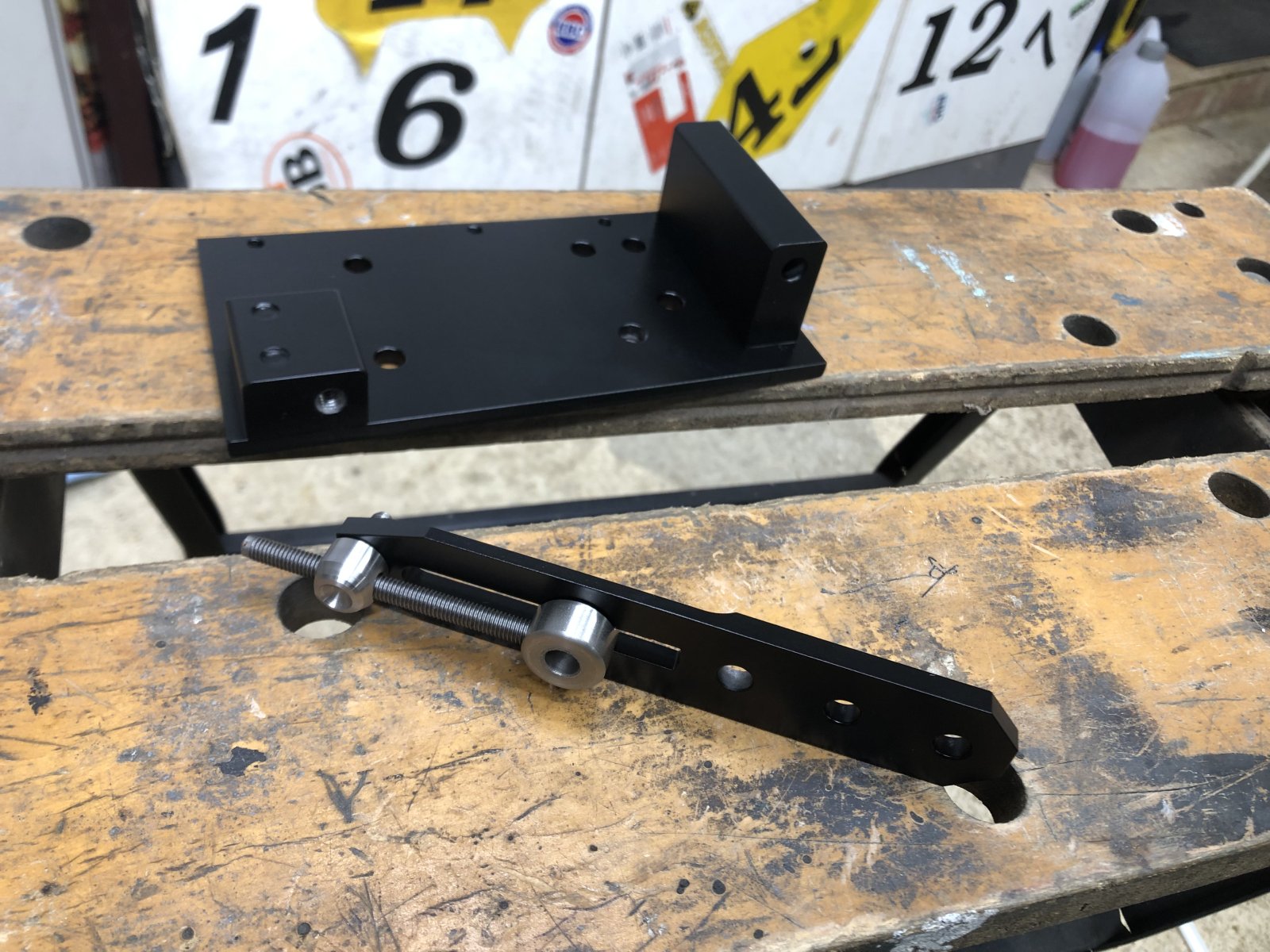

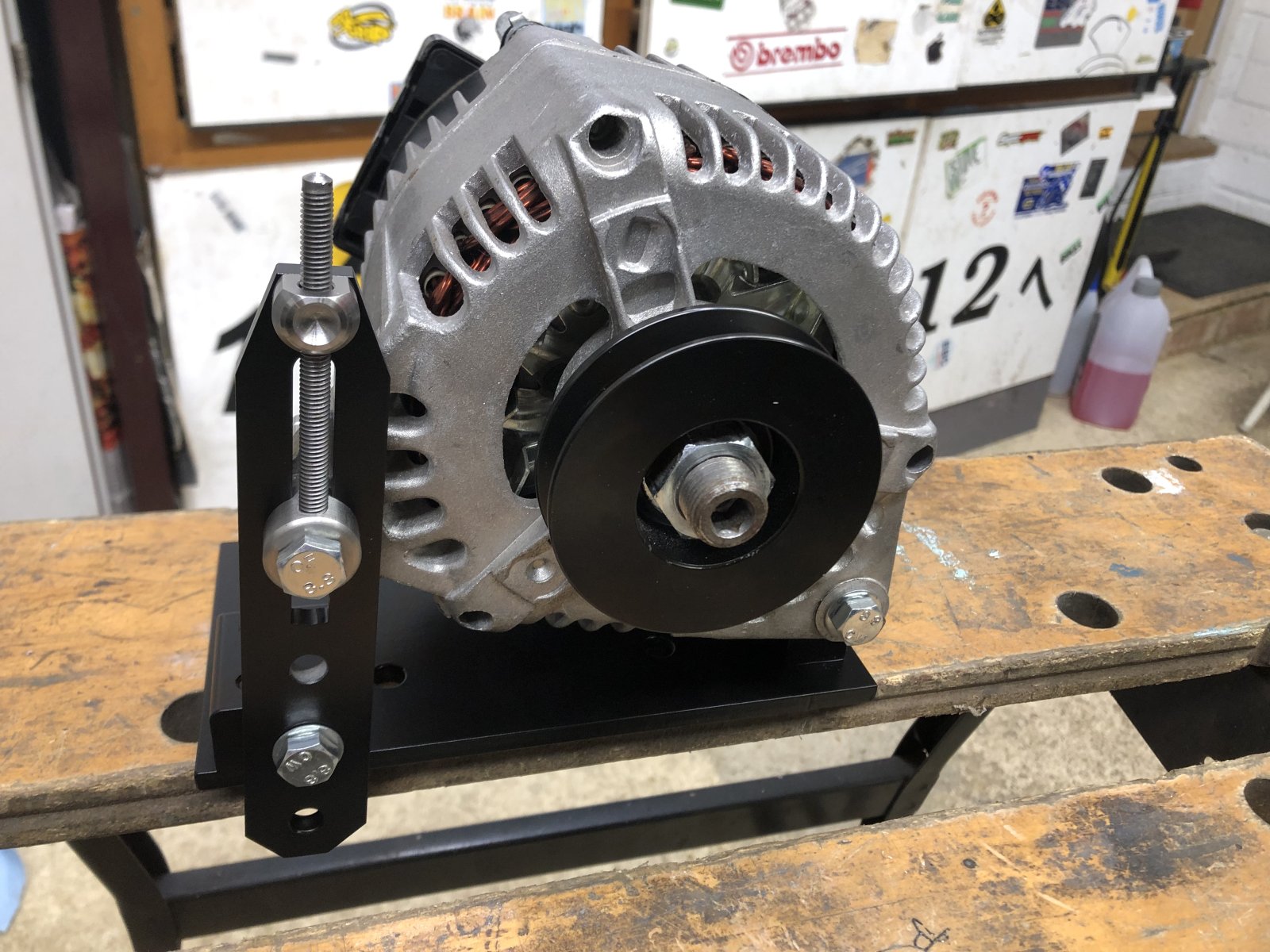

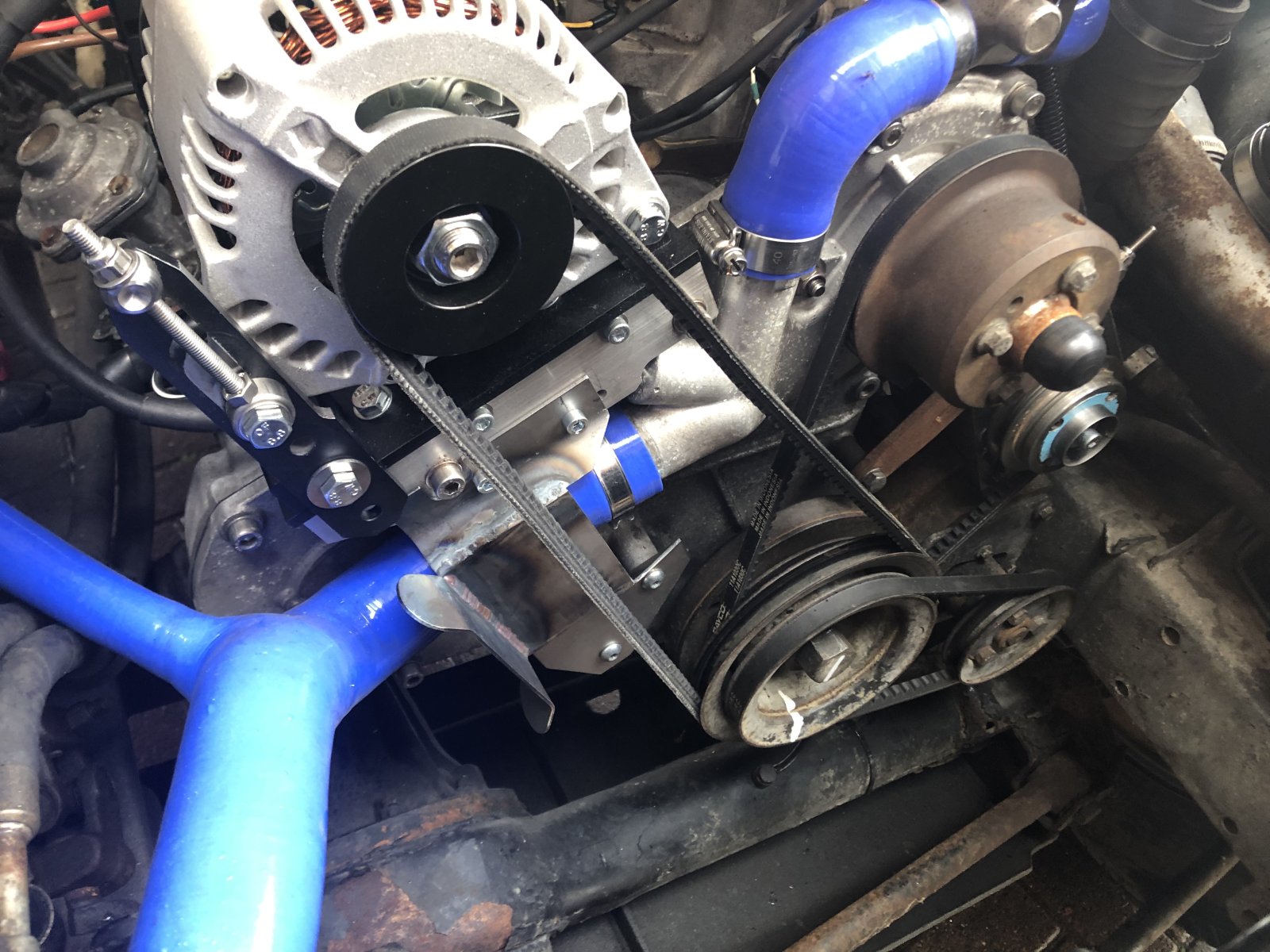

Slightly different setup as mines a Defender. When I fitted a 100 amp alternator I relocated it above the timing case and made a simple bracket with a M6 threaded rod to tension the belt.
Keep Losing Alternator belt tension
- Thread starter dag019
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
I had considered that, a lot of the secondary alternators mount there so it was a consideration but does not seem cheap and is a lot more work to diy than a simple turnbuckle so will try that first
Most v belts are either 3/8 10mm wide, or 1/2 inch 13mm wide, you want the 3/8 10mm wide version, so all you need is the length is normally printed on the belt, for example 10x 765 meaning 10mm x 765mm length.
Made a simple bracket, that mate is a work of art
bluedog333
Well-Known Member
- Posts
- 5,514
- Location
- Henley on Thames, Oxfordshire
That was my first thought. My sort of simple bracket is a bit of flat bar hammered over in the vice.Made a simple bracket, that mate is a work of art
Last edited:
As is mine, Something grabbed from the scrap pile and butchered to just about fit!
