I think I will need to take proper photos and a video of the chassis when I get everything off it. It looks very dodgy but seeing as it's the first one I've ever seen, it's difficult to judge what state it's in. I will definitely need a second opinion.
Italian 88 Series III - Should I or Shouln't I?
- Thread starter Mandy
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
I think I will need to take proper photos and a video of the chassis when I get everything off it. It looks very dodgy but seeing as it's the first one I've ever seen, it's difficult to judge what state it's in. I will definitely need a second opinion.
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
Get someone to help you roll it outside. Give it a good scrub with degreaser and pressure wash it.
That may blow some more holes in it. If not, go over it with a small hammer. Good metal will ring or bang. Rotten will cave in, or give a dull thud.
Gazbo
Well-Known Member
- Posts
- 3,949
A bit "Swiss cheesy" it seems, new chassis required perhaps.
It's the remaining thickness of the bits you can't see that can be a worry.
I've been helping a mate do a 1950 S1, all along the bottom of the side rails of the chassis were badly rusted from the inside out, looked ok in some places from outside.
Bobsticle
De Villes Advocaat
- Posts
- 27,632
- Location
- Manchester
There you go. All that worry over nothing. Its in good nick that one. You should have seen mine
Extreedoc
Well-Known Member
- Posts
- 505
- Location
- Leicestershire
Outriggers are the things that go first, if the main chassis rails are sound you can always fit new outriggers but don't make any premature decisions until you've been over every inch of that chassis with a fine tooth tapping hammer and a wire brush. Turboman is bang on, listen to the sound it makes when you tap it, if it sounds dull, it's too thin with rust.
rob1miles
Well-Known Member
- Posts
- 3,565
- Location
- Slough and Bath
Rails look ok, spend time getting any mud out and waxoiling inside. When you cut the outrigger off you will get a look at the chassis rail inside as the outrigger will come with a section of chassis side.
I see you have a remote servo. Mine had one but it was disconnected, I now have an S3 servo and master cylinder to get dual circuit brakes.
I see you have a remote servo. Mine had one but it was disconnected, I now have an S3 servo and master cylinder to get dual circuit brakes.
Turboman
Mab An Gov
- Posts
- 60,151
- Location
- Lathrowda, Kernow
Rear crossmembers are a weak spot as well. But replacing those also gives a good opportunity to inspect inside the chassis legs.
The remote servos are quite good if they work, and can be rebuilt off the vehicle, assuming the seal and diaphragm kits are still available. It has been a few years since I did one.
I have those, very useful. getting the nut out of the socket can be interesting when it took a lot of effort to get it loose
you can also get sockets that grip just the flat edges of the bolts and not the corners. can't remember who makes them but I have a set.
Last edited:
rob1miles
Well-Known Member
- Posts
- 3,565
- Location
- Slough and Bath
I've always fancied one of these:
But they are expsensive but I've now seen some home made ones on you tube so its giving me ideas:
But they are expsensive but I've now seen some home made ones on you tube so its giving me ideas:
Last edited:
rob1miles
Well-Known Member
- Posts
- 3,565
- Location
- Slough and Bath
I want one of these:
http://www.theinductor.com/induction-heating-products/mini-ductor/models/md-700-110v
but there are 2 problems:
1 its £400
2 its for "proffessionals only" so that rules me out, still nice of them to tell me.
http://www.theinductor.com/induction-heating-products/mini-ductor/models/md-700-110v
but there are 2 problems:
1 its £400
2 its for "proffessionals only" so that rules me out, still nice of them to tell me.
Extreedoc
Well-Known Member
- Posts
- 505
- Location
- Leicestershire
The sockets you refer to are called "Single Hex", the ones that grip at the corners are "Double Hex" but the best ones are single hex, flank drive, the flats are slightly curved inward so that the point of contact is set back from the corner, so much less likely to round the corners off. Snap-On make them but there are many others copying the idea.
Bobsticle
De Villes Advocaat
- Posts
- 27,632
- Location
- Manchester
Rather use a grinder and a new nut n bolt

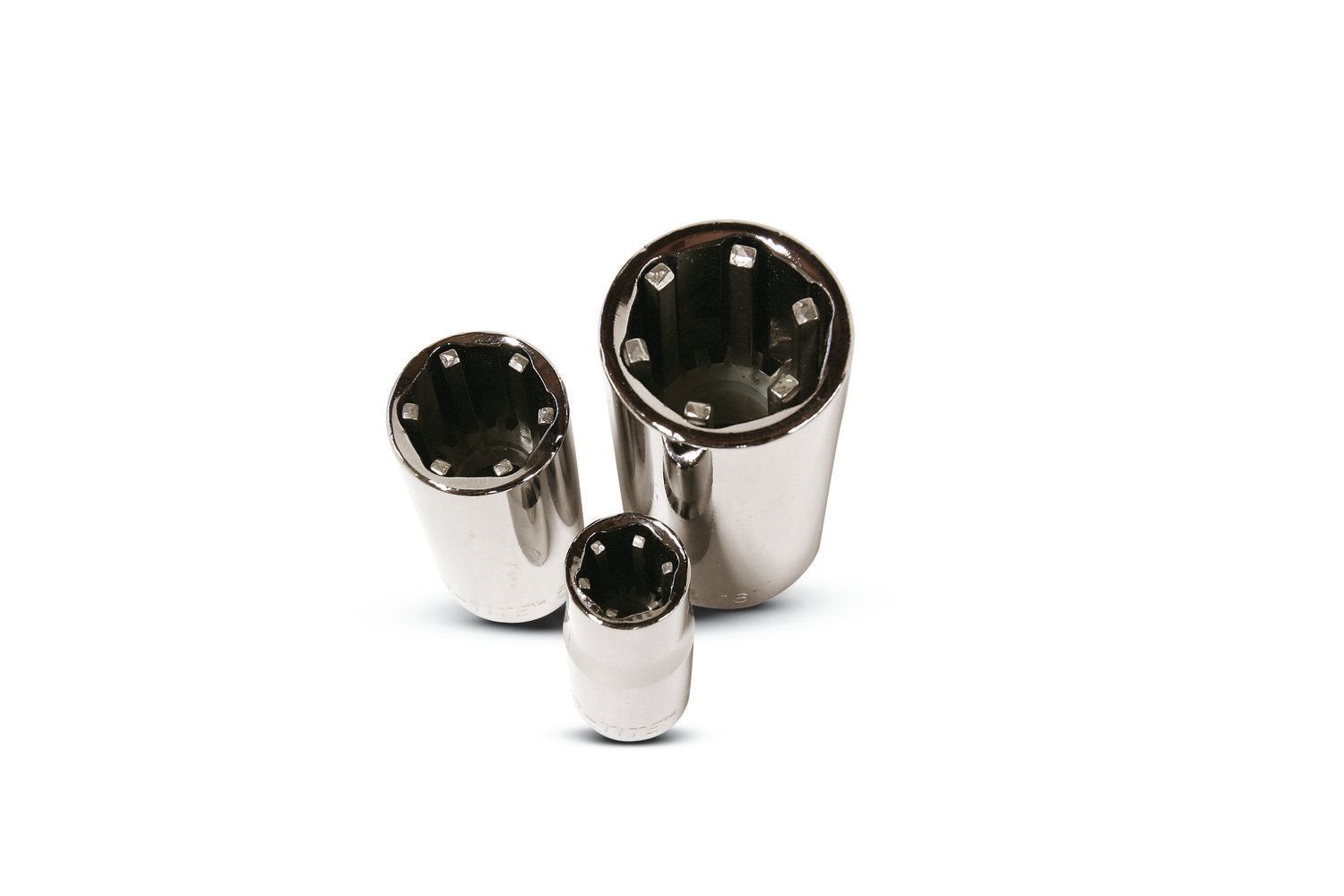

these are the ones I meant (grip tite) they just have a piece that goes against the flat of the bolt
http://www.griptitetools.com/Products/7-Pc-Socket-Set-38-Drive-Metric-43.htm
Extreedoc
Well-Known Member
- Posts
- 505
- Location
- Leicestershire
Never seen those before, they look very interesting.
Extreedoc
Well-Known Member
- Posts
- 505
- Location
- Leicestershire

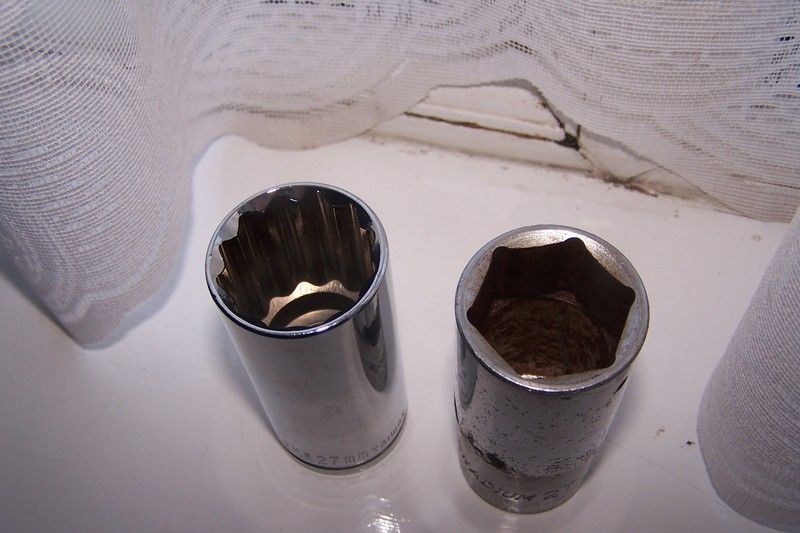

Double hex on the left, what everybody thinks of when they think 'socket'. Single hex on the right, this is also a 'flank drive' socket but neither are Snap-On. Note the slight curve inward of the flats and the rounded corners which allow the pressure to come on the nut 'back' from the corner. I should think that most single hex sockets made now are some version of the flank drive idea. Success has many fathers etc...
Gazbo
Well-Known Member
- Posts
- 3,949
Impact sockets are always, what we call here "six point", (single hex), if you have a really tight nut or bolt and try to use a "twelve point", (double hex), socket one of two things will happen, the socket will split open or the hexagon of the bolt/nut will lose its corners and round off.
For most jobs except for twelve point bolts and nuts, I have a good set of 1/2" and 3/4" drive impact sockets, (six point), that, if used with a rachet bar give all the benefits of a twelve point socket.
There are lots of innovative variants of the basic old socket spanner but the only ones I haven't managed to break are the impact type.
Had an apprentice years ago who managed to break a few ordinary twelve points from a hand socket set, before he realised they weren't made to be used with an Atlas Copco industrial grade impact gun.
