Injectors, DIY refurbishing?

Arctic2 · Jun 15, 2018

Hi Poprivet
Do you have the link for the special tool below in your how to please cheers Arctic.

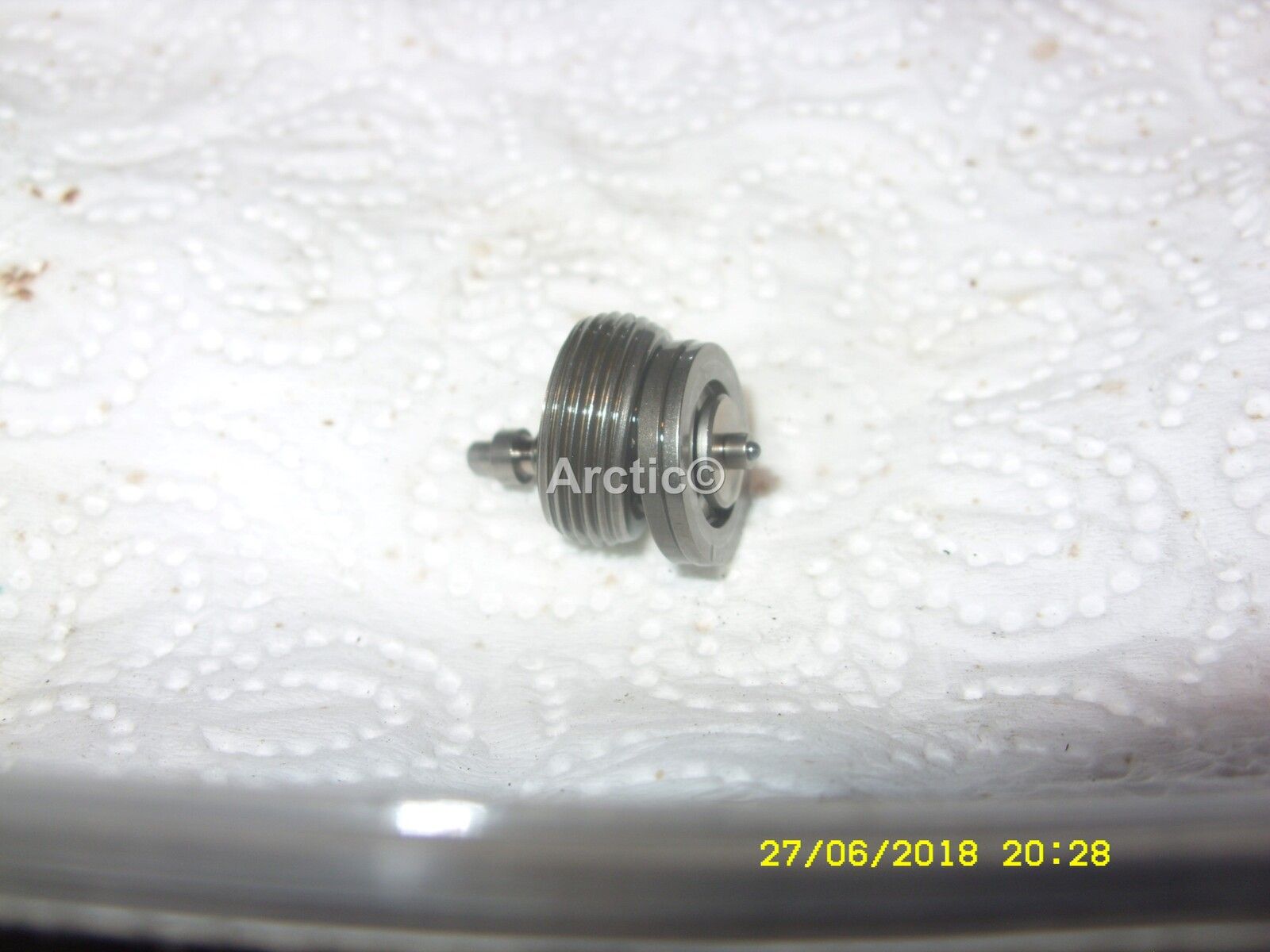

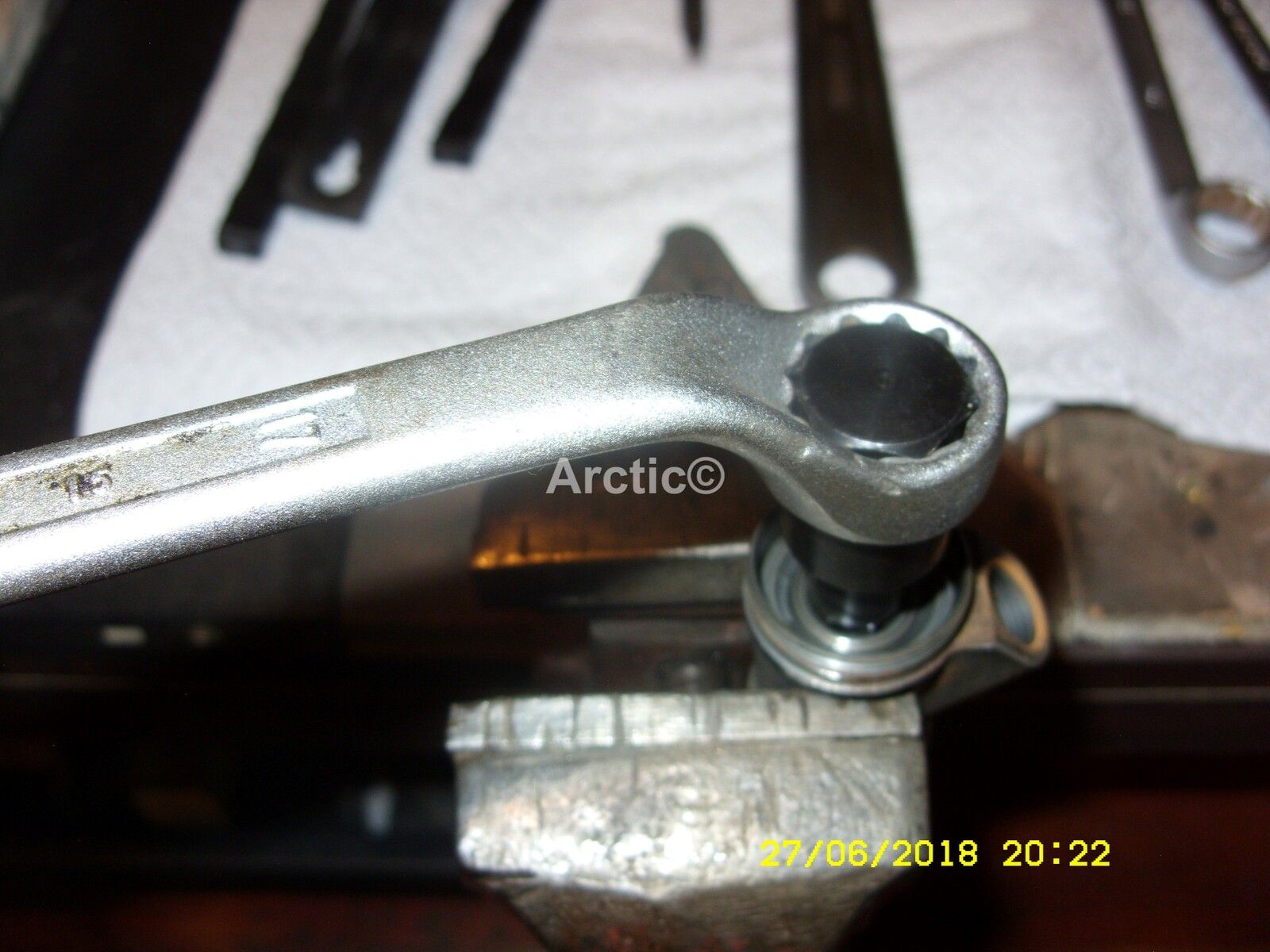

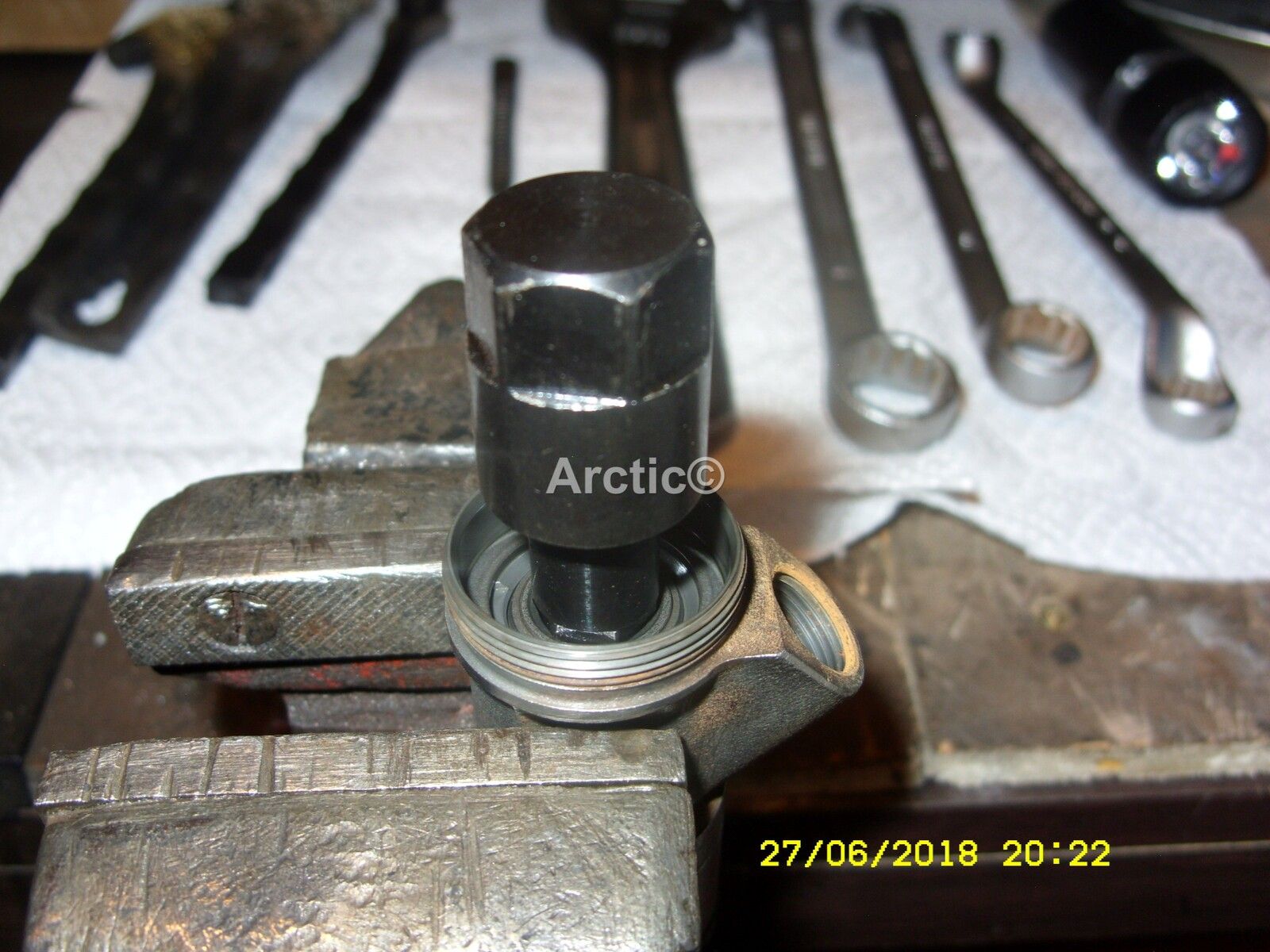

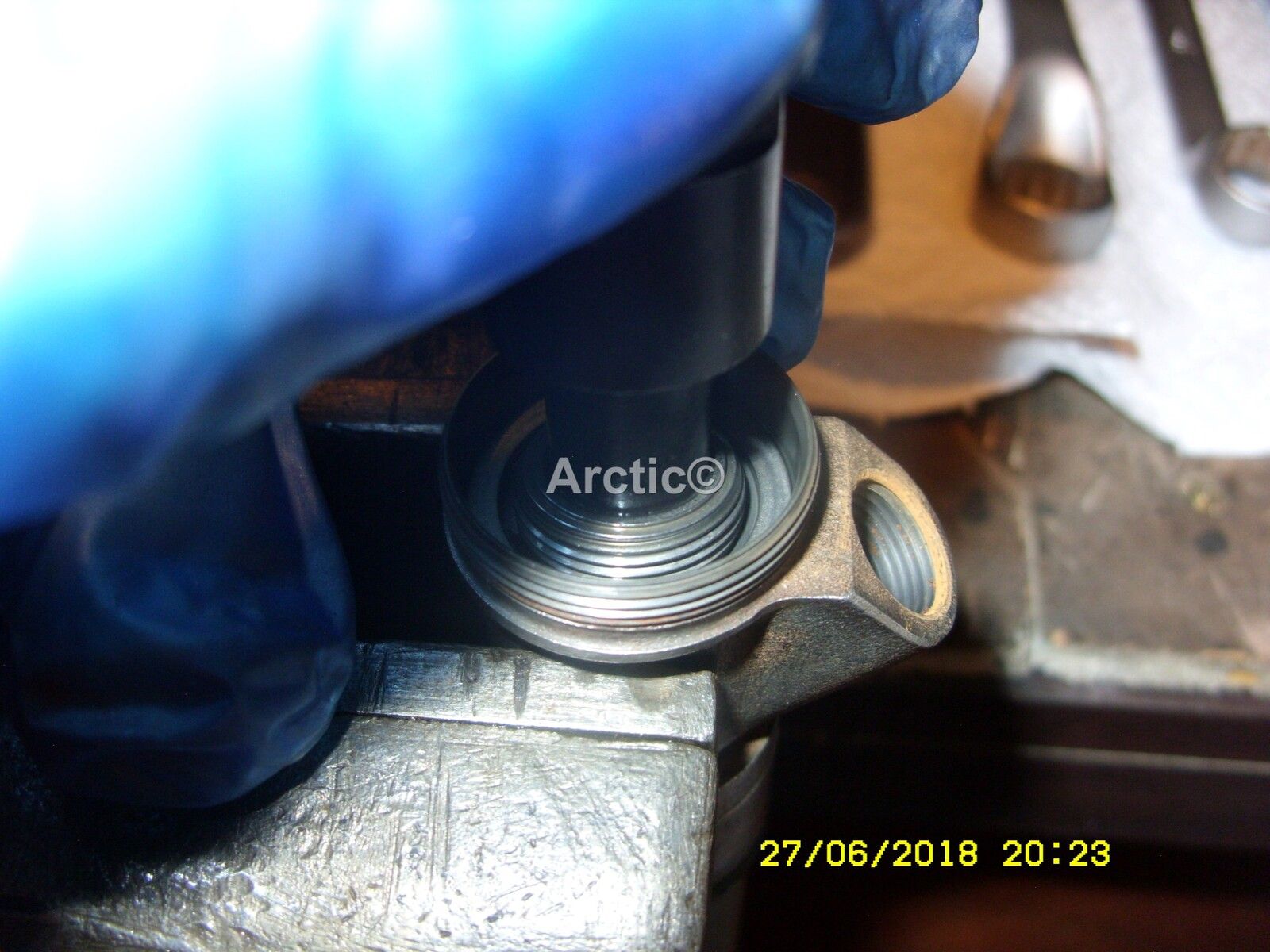

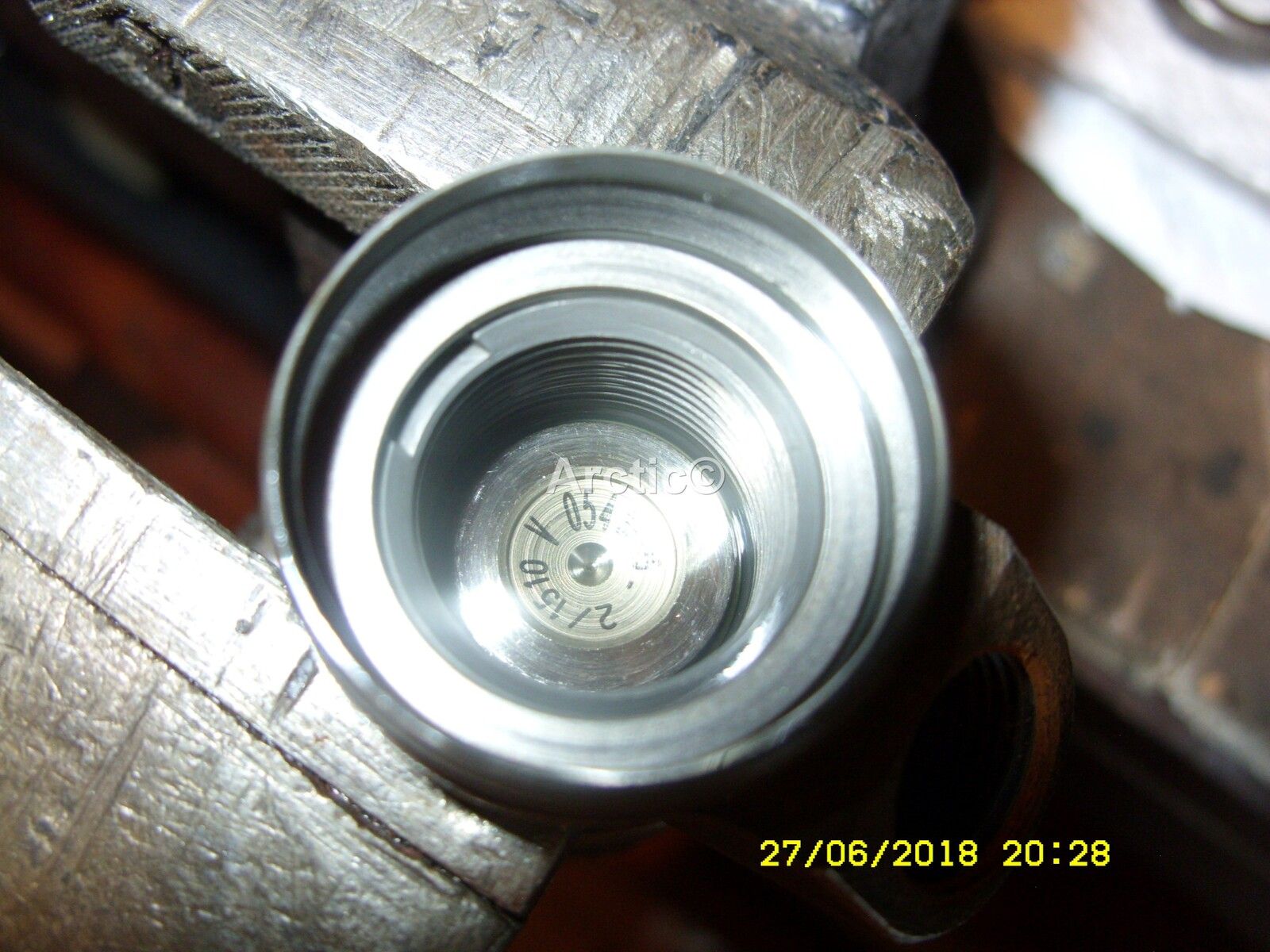

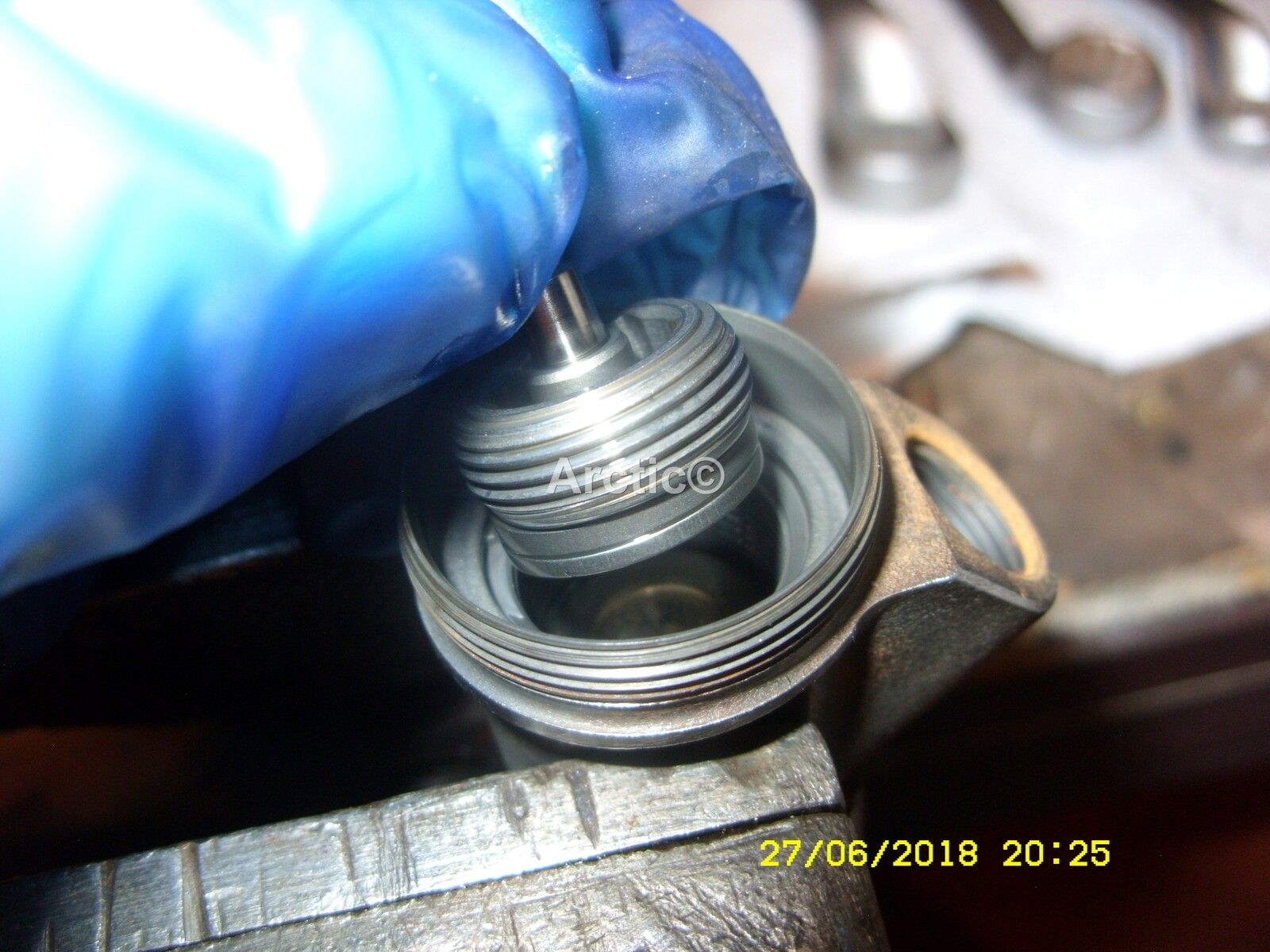

Next to be seen is a hexagonal captive nut. You must be very careful when you remove this as it needs to go back in the same way it comes out. The lower-side has a machined face. Also, you need to have a special tool to remove this. I bought one off Ebay. It’s a 10mm HEX ALLEN BIT Bosch Injector Dismantling REMOVAL Tool TAMPERPROOF SECURITY.

PS was it this one you used ?
https://www.ebay.co.uk/itm/10mm-HEX...e=STRK:MEBIDX:IT&_trksid=p2055119.m1438.l2649

andyfreelandy · Jun 20, 2018

Thanks for useful info - cleaned up a couple of spare injectors to try to eliminate the 'pinking' on my 2002 TD4 - see pinking thread.

Whilst doing this I noticed that the part numbers for a manual car (0445110049) are different to those for an auto (0445110110) - does anyone know what the difference is please?

It will surprise no one that a reputable garage put 2 new injectors in my car about 4 years ago and they are the wrong part number !! One is now suspect. I have bought a 4 channel stethoscope and driven hard up hill with monitor microphones on each injector and listened to each in turn whilst the engine pinks merrily. Injector 4 makes a very odd noise compared to the other 3 so I'll start there ! It sounds like it is 'dithering' rather than the bang bang of the others..

andyfreelandy · Jun 20, 2018

Apologies - the auto part is 0445110130 !

Nodge68 · Jun 20, 2018

andyfreelandy said:
Whilst doing this I noticed that the part numbers for a manual car (0445110049) are different to those for an auto (0445110130) - does anyone know what the difference is please?

The auto box engine makes a couple of extra Ftlb of torque over the manual, so that's likely due to injector capacity.

andyfreelandy · Jun 26, 2018

So - have changed injector 4 and substituted a refurbed one. Power is back and is good, injector knock at tickover is much reduced. That's all good. However, the 'pinking' is still there when engine pulling hard. Shall I; a) leave it alone. b) substitute other injectors one at a time with a known good one. c) something else??

Am wondering whether it might be an exhaust gas leak?? Can't see or hear one on tickover.

Arctic2 · Jun 27, 2018

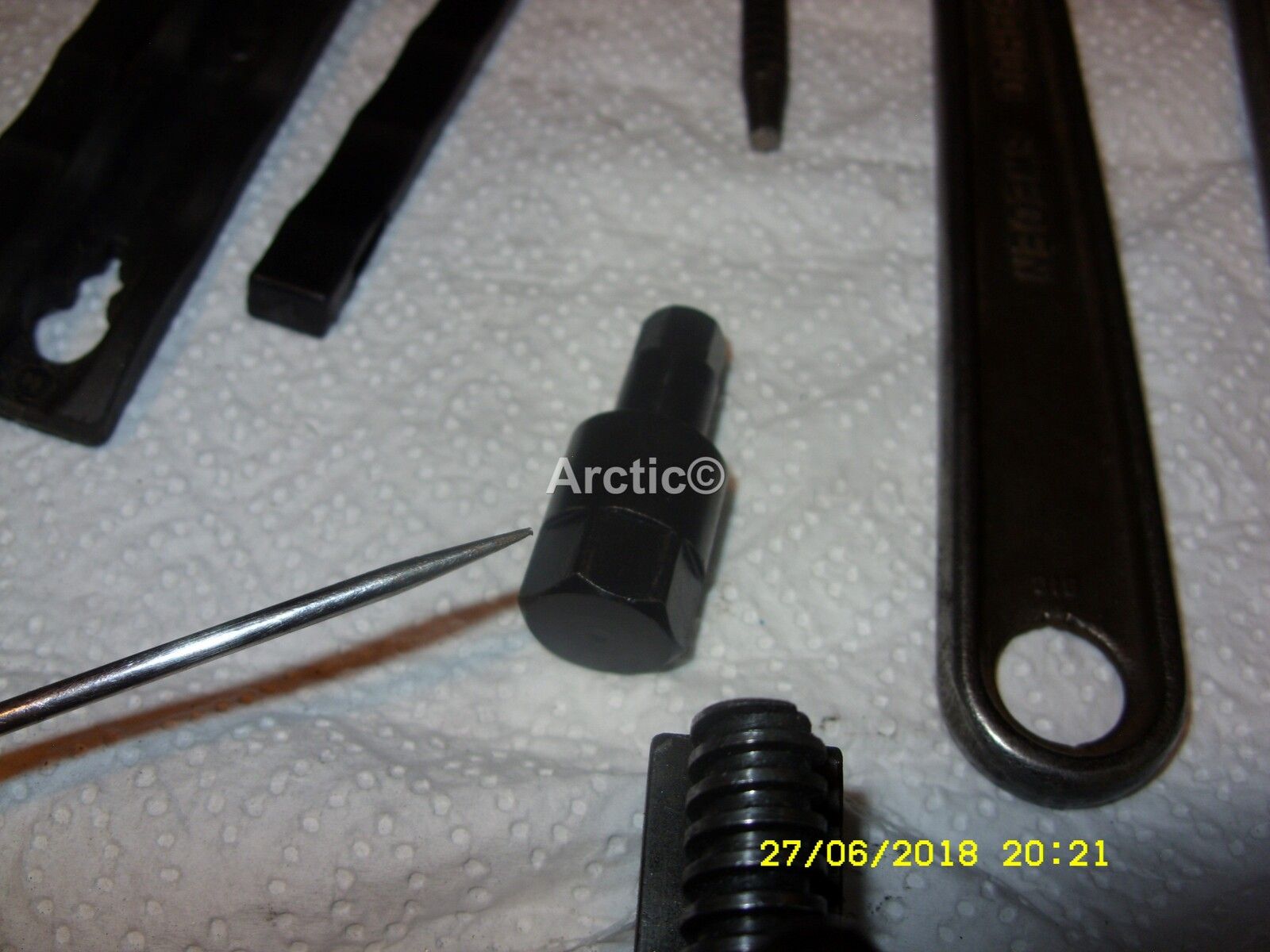

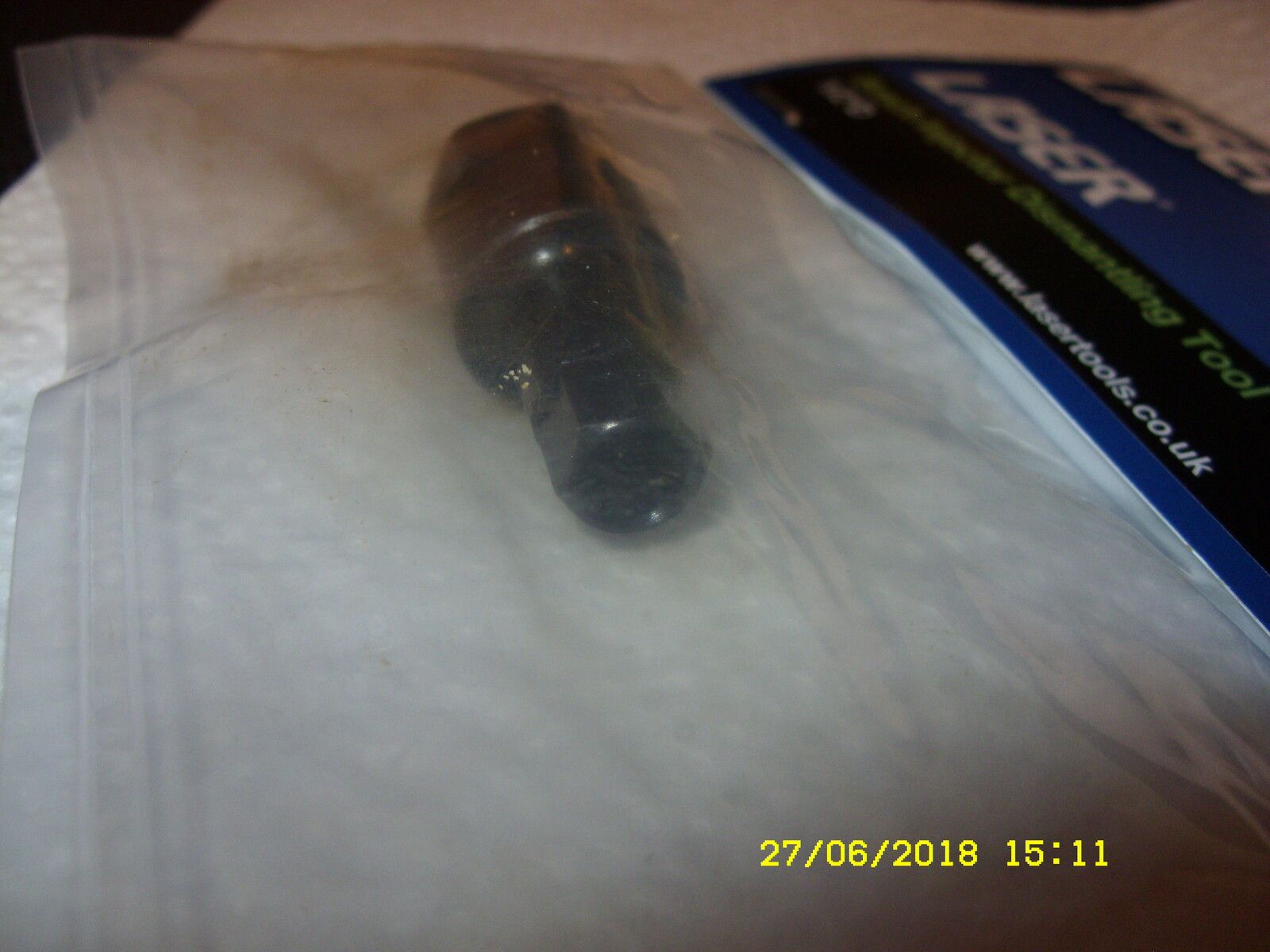

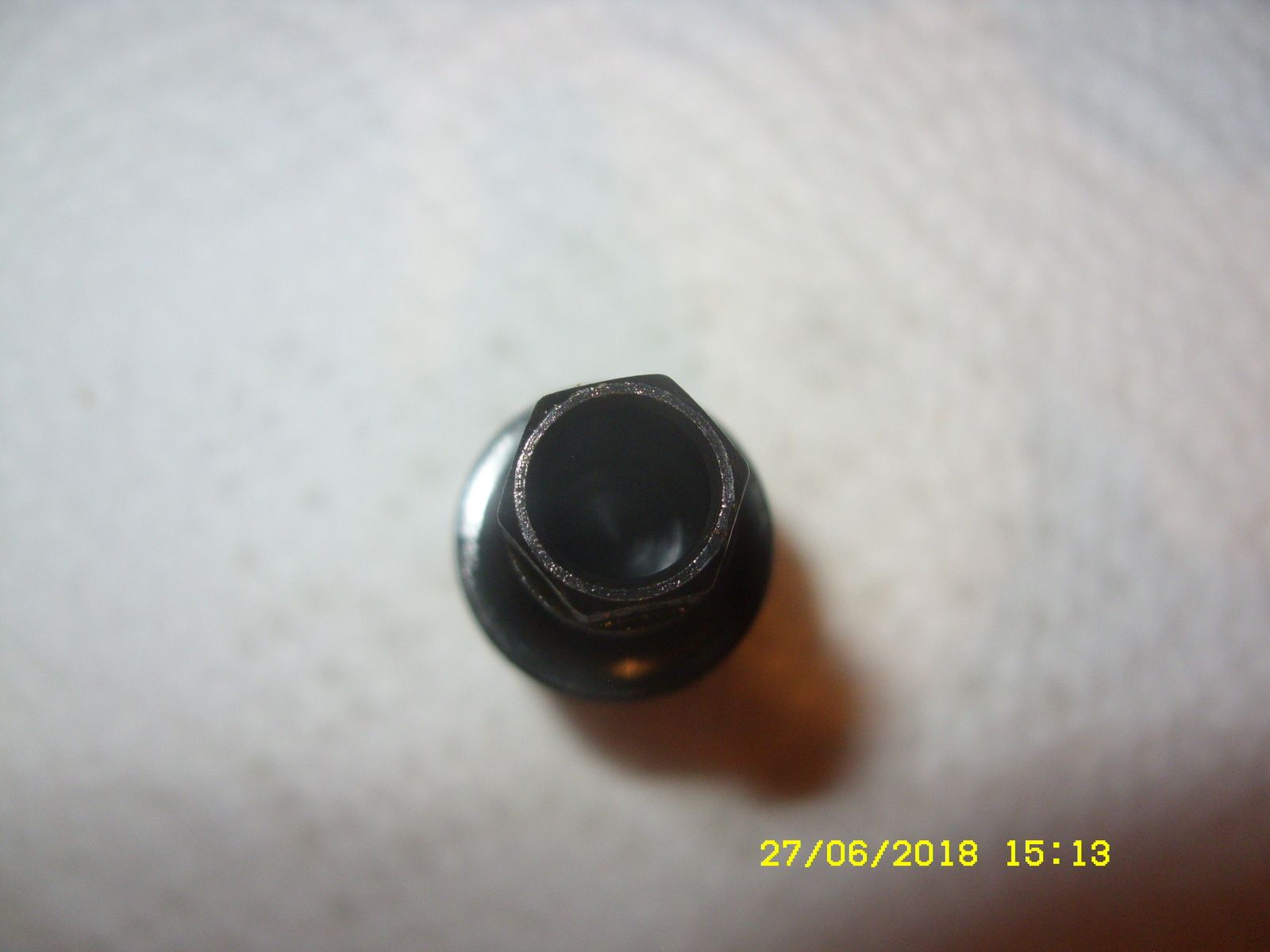

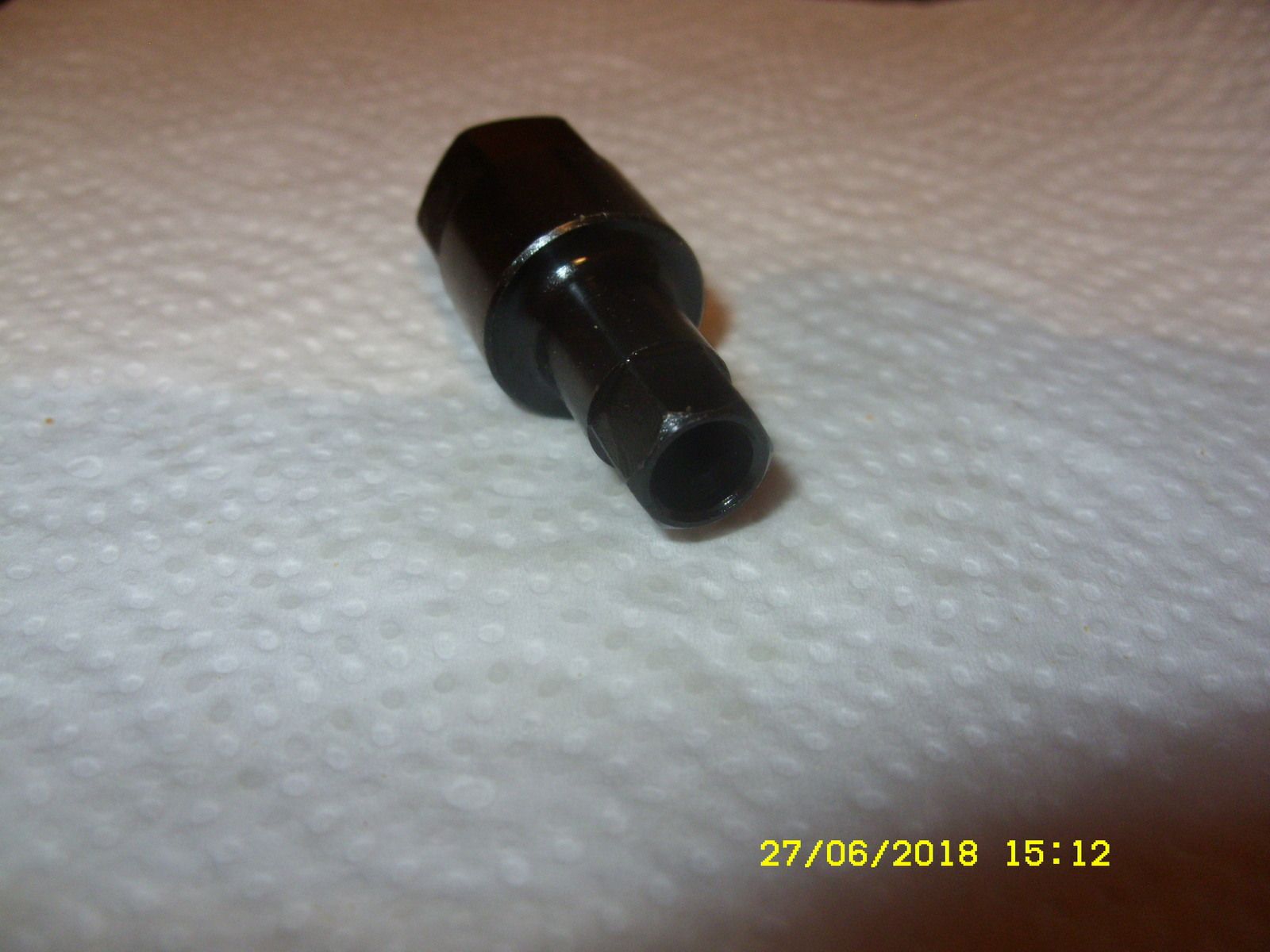

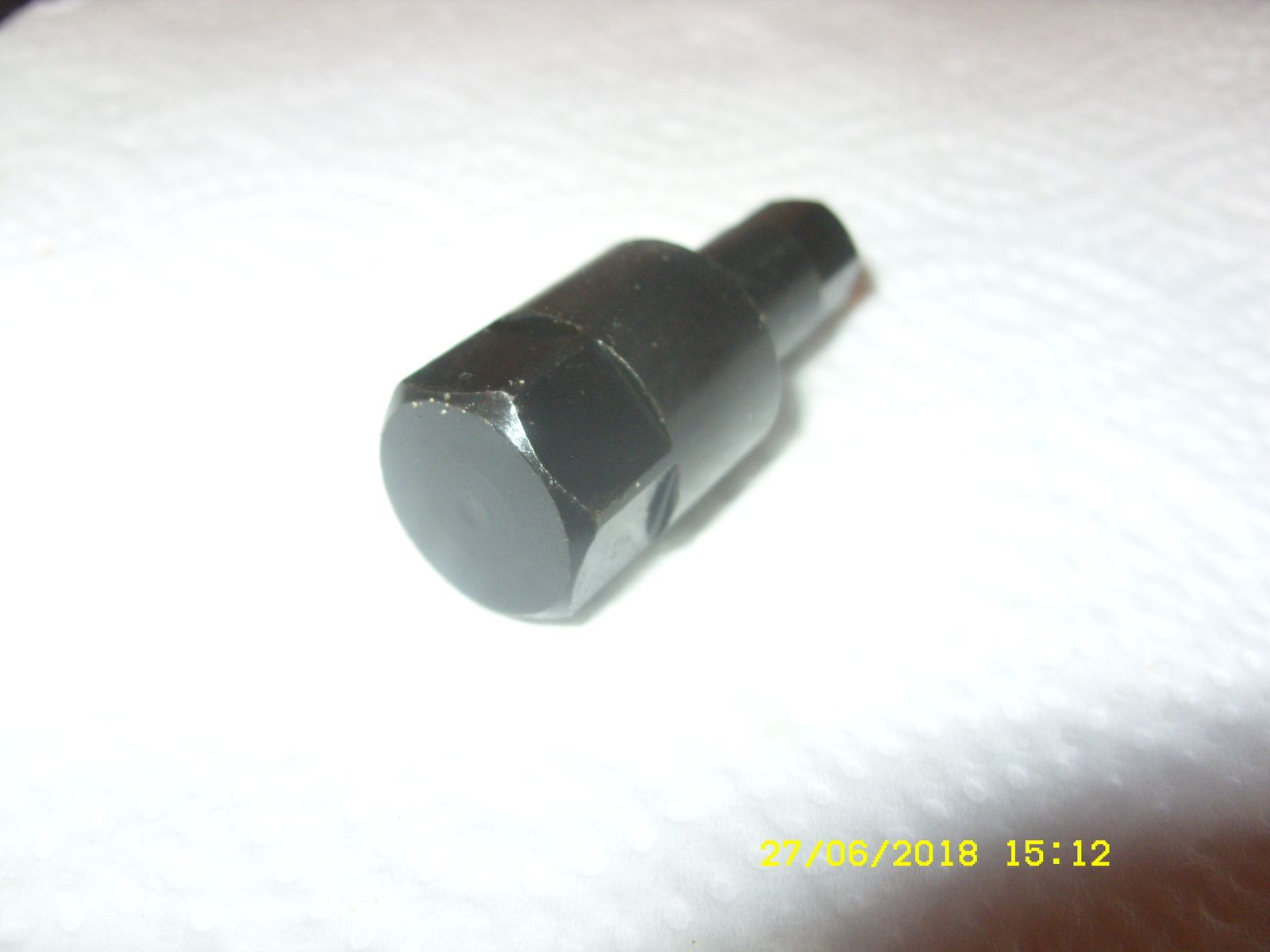

Special tool arrived today for some reason I do not think it is the right one, will report back later when I have had chance to check.

comeinhandy · Mar 23, 2019

Arctic2 said:
Special tool arrived today for some reason I do not think it is the right one, will report back later when I have had chance to check.

Was it the right tool?

Arctic2 · Mar 23, 2019

comeinhandy said:
Was it the right tool?

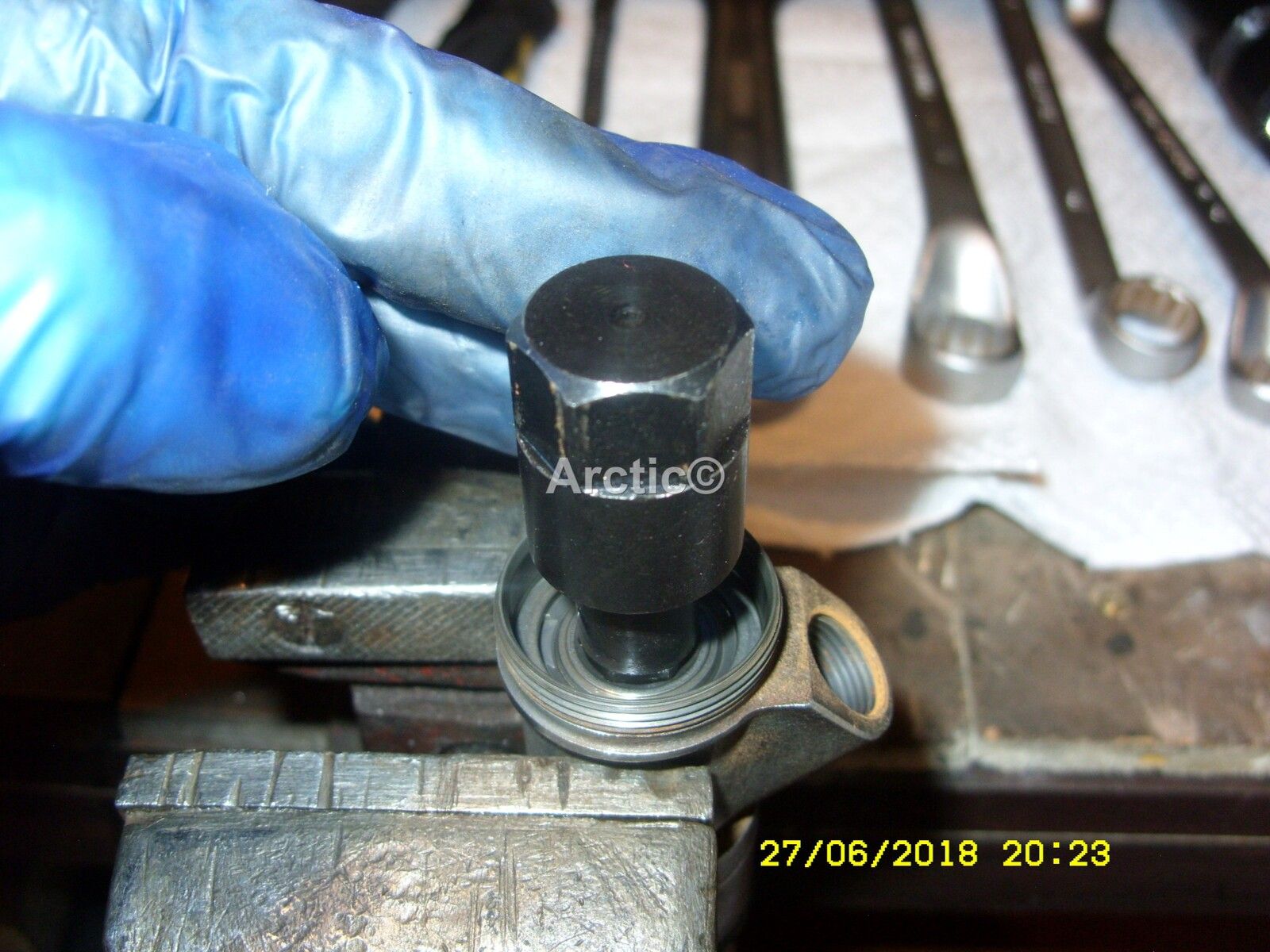

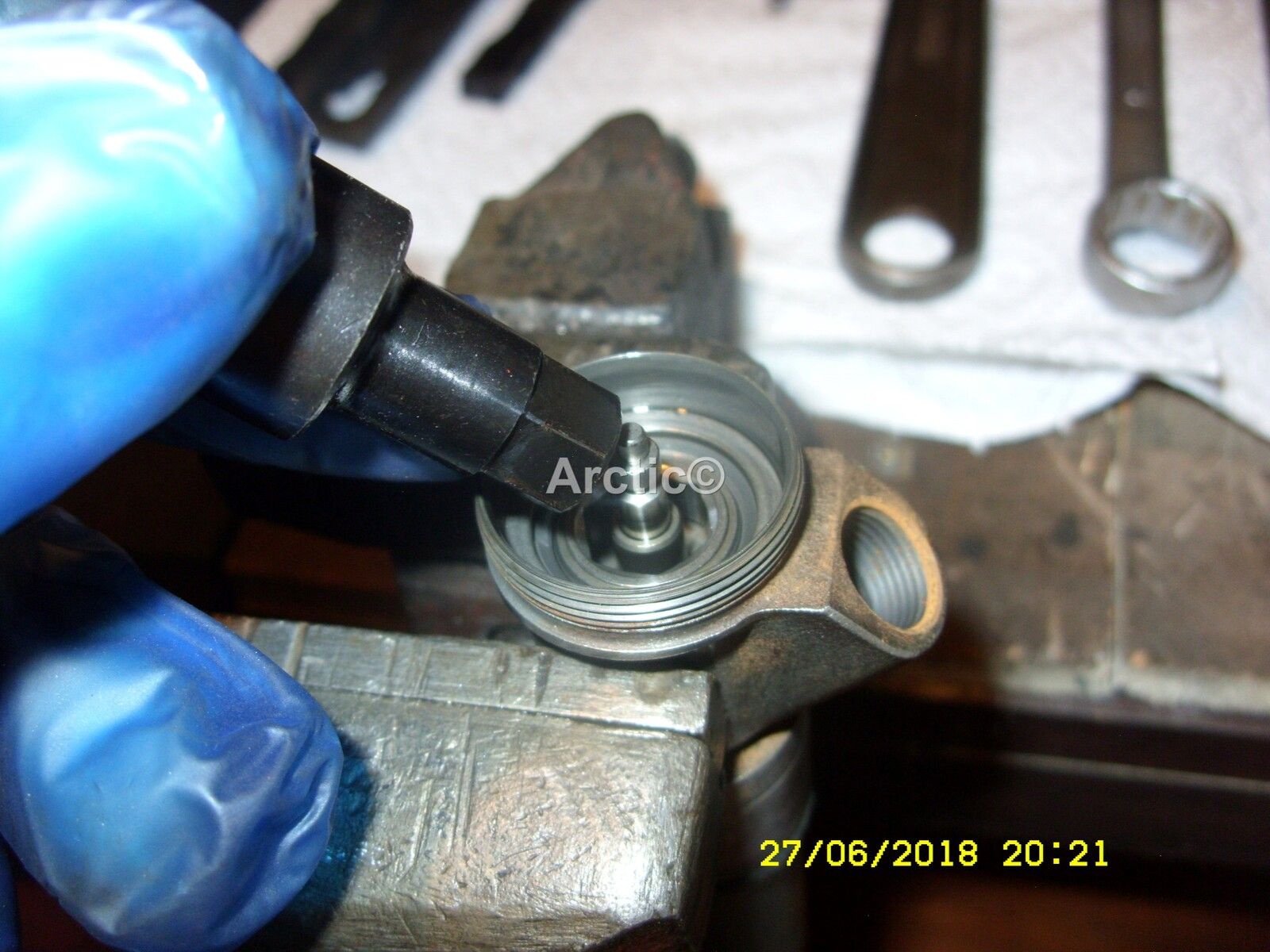

Hi Sorry yes it was the right tool link below.
https://www.ebay.co.uk/itm/10mm-HEX...e=STRK:MEBIDX:IT&_trksid=p2055119.m1438.l2649

comeinhandy · Mar 23, 2019

Arctic2 said:
Hi Sorry yes it was the right tool link below.
https://www.ebay.co.uk/itm/10mm-HEX-ALLEN-BIT-Bosch-Injector-Dismantling-REMOVAL-Tool-TAMPERPROOF-SECURITY/360982307866?ssPageName=STRK:MEBIDX:IT&_trksid=p2055119.m1438.l2649

Thanks. I’m in the middle of stripping my mine now. I did the injector ends ok but nearly lost the very tiny 2mm wide disc/shim that goes in the brass tube that sits between the spring in the body and the injector head needle. Seems a bit different to your picture. I’m hoping it fixes a bad white smoke problem when revving and very poor rev pick up from idle.
