Info re- biggest battery

Flossie

Well-Known Member

Posts

10,975

Location

Shropshire

• Mar 16, 2021

• #1

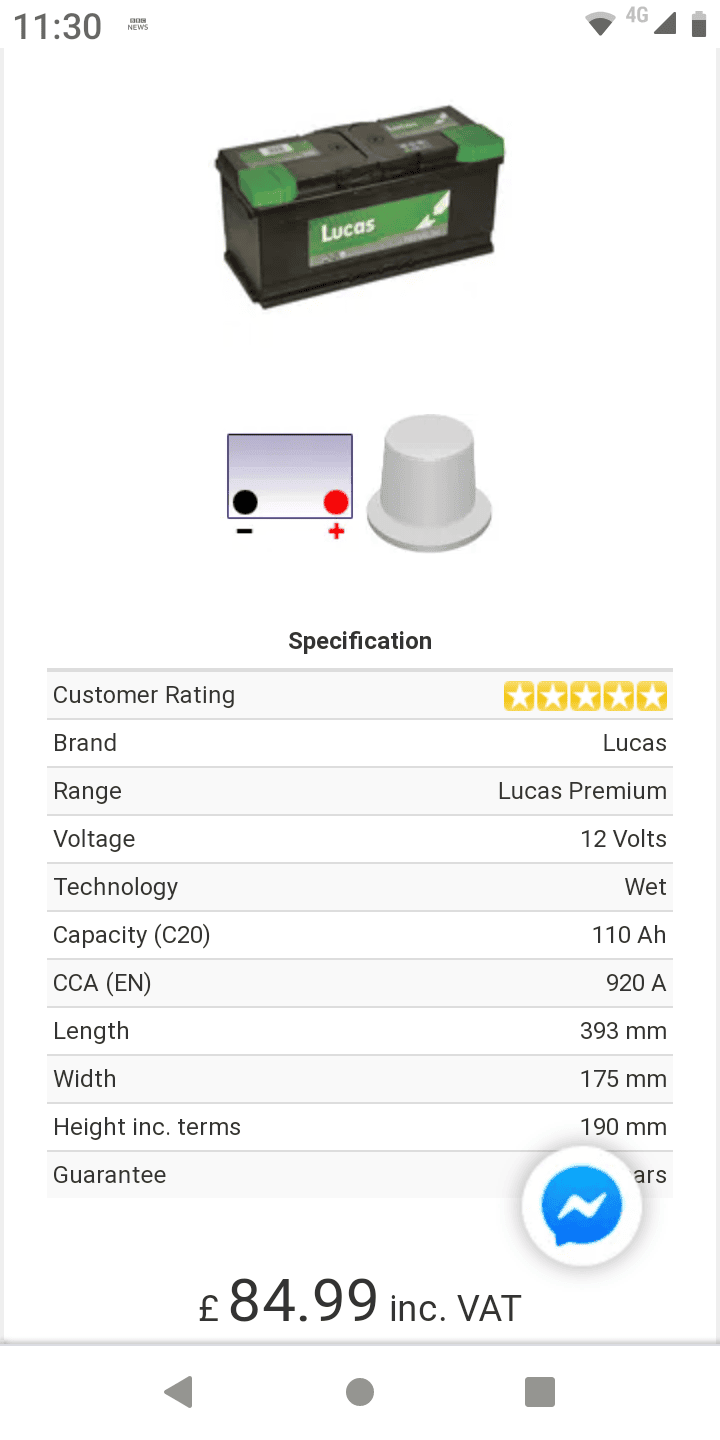

I've just fitted a new battery in my 1986 110 and this one just squeezes in. Some my find the measurements in the pic useful. The battery clamp rod holes get covered though so an alternative battery clamp method is needed.
Shouldn't be too difficult to sort.



Flossie

Well-Known Member

Posts

10,975

Location

Shropshire

• Mar 16, 2021

• #2

Oh, and bear in mind the post layout.
I made all new leads during the rebuild many yrs ago so I can fit positive front right or positive front left, plenty of slack.
Yours might not be long enough?



L

lynall

Well-Known Member

Full Member

Posts

25,731

Location

Kent

• Mar 16, 2021

• #3

Looks like an 019 battery?
Dead common on most modern larger engined cars.



L

Litch

Well-Known Member

Posts

2,235

Location

Oxfordshire

• Mar 16, 2021

• #4

No, spec is different to an 019 (which is what I have been using for the past 18-years).

019.
Voltage 12 Volts
Technology Wet
Capacity (C20) 100 Ah
CCA (EN) 830 A
Length 353 mm
Width 175 mm
Height inc. terms 190 mm

LP020.
Voltage 12 Volts
Technology Wet
Capacity (C20) 110 Ah
CCA (EN) 920 A
Length 393 mm
Width 175 mm
Height inc. terms 190 mm



L

lynall

Well-Known Member

Full Member

Posts

25,731

Location

Kent

• Mar 16, 2021

• #5

Litch said:

No, spec is different to an 019 (which is what I have been using for the past 18-years).

019.
Voltage 12 Volts
Technology Wet
Capacity (C20) 100 Ah
CCA (EN) 830 A
Length 353 mm
Width 175 mm
Height inc. terms 190 mm

LP020.
Voltage 12 Volts
Technology Wet
Capacity (C20) 110 Ah
CCA (EN) 920 A
Length 393 mm
Width 175 mm
Height inc. terms 190 mm

Click to expand...

Good to know, I need a new bat for the D3 so will have a measure up.



dag019

Well-Known Member

Posts

6,077

Location

Warwick

• Mar 16, 2021

• #6

Flossie said:

Oh, and bear in mind the post layout

Click to expand...

I recently fitted a Yuasa Battery YBX3642 (110Ah 925 CCA) this has central posts so do not need to worry about the post orientation. Dimensions
Length : 329mm
Width : 173mm
Height : 240mm

However it was more expensive than the LP020 shown above at £104 and looks to have basically the same spec (although a little smaller physically). When I was looking it was head and shoulders above any other I could find in terms of CCA.
