Hybrid defender body to range rover 91 chassis lower steering column to steering box.

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

cljcars

Active Member
Posts
328

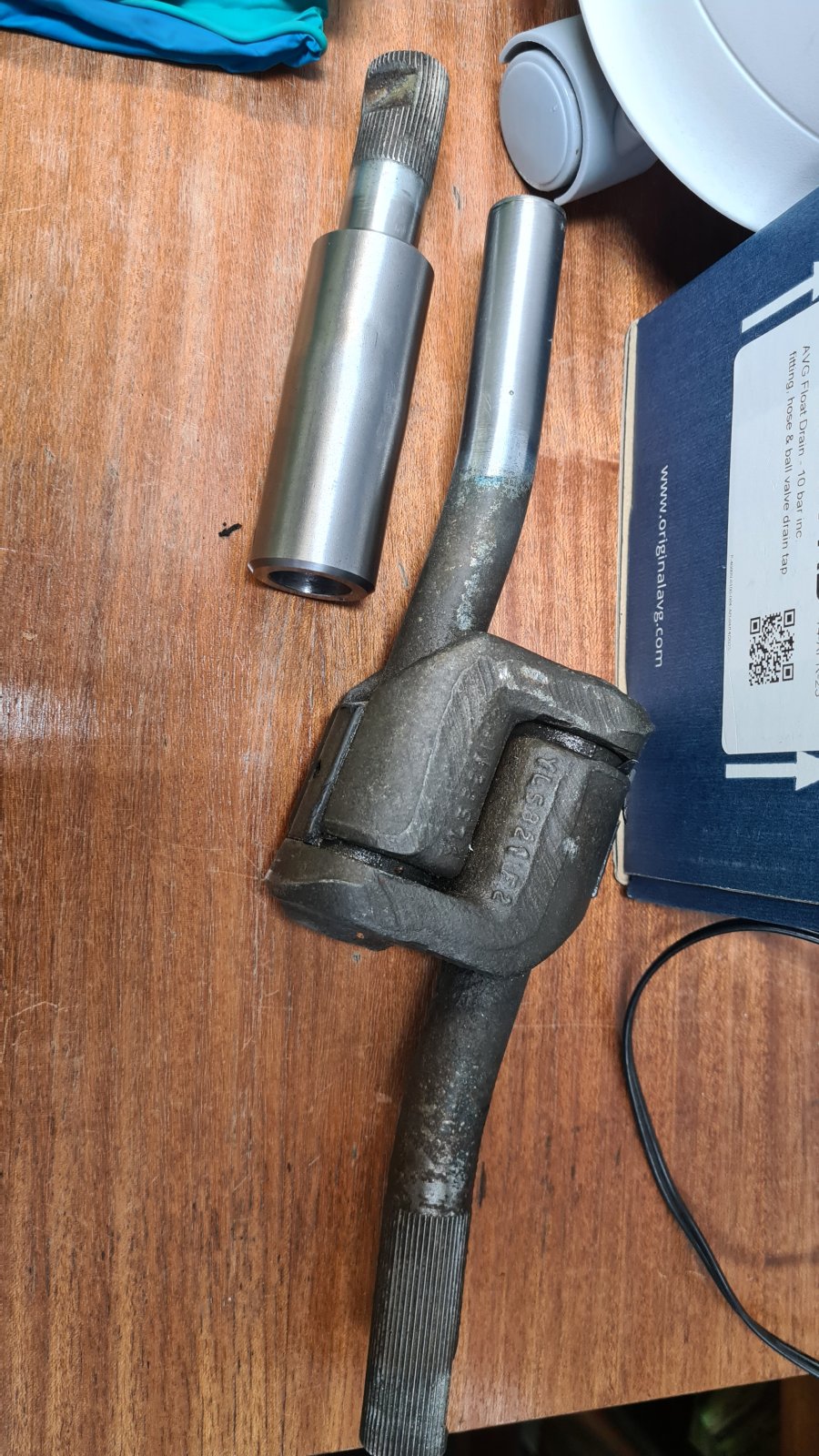

Looking to sort out a missing part, the one shown is too short. Are the splines the same on other landrovers that I can get a new replacment? Identify what this is off would be a start.

That’s off an early 90/110.
Disco/Range Rover are all the same splines but are slightly different in designs.

What are you trying to do?
(Only asking as others may have ideas and help)

That’s off an early 90/110.
Disco/Range Rover are all the same splines but are slightly different in designs.

What are you trying to do?
(Only asking as others may have ideas and help)
It needed lengthening by 1/2 inch to engage properly, so the plan was to cut, sleeve and weld it. Anyway, in a rush to get it together the end was crushed in the press.... It would be good to get one that doesn't have the nuckle in it. I can cut and shut if too short but I would rather not.
Thanks for the info, if the splines are the same it gives me option. Much appreciated.

Last edited:
It needed lengthening by 1/2 inch to engage properly, so the plan was to cut, sleeve and weld it. Anyway, in a rush to get it together the end was crushed in the press.... It would be good to get one that doesn't have the nuckle in it. I can cut and shut if too short but I would rather not.
Thanks for the info, if the splines are the same it gives me option. Much appreciated.
Early range rovers don’t have the knuckle in the middle & are straight bars. Easier to cut & lengthen.
Also the make diffent length ujs
