Hub diagram
- Thread starter Aidso
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
- Posts
- 7,332
- Location
- Under my landy

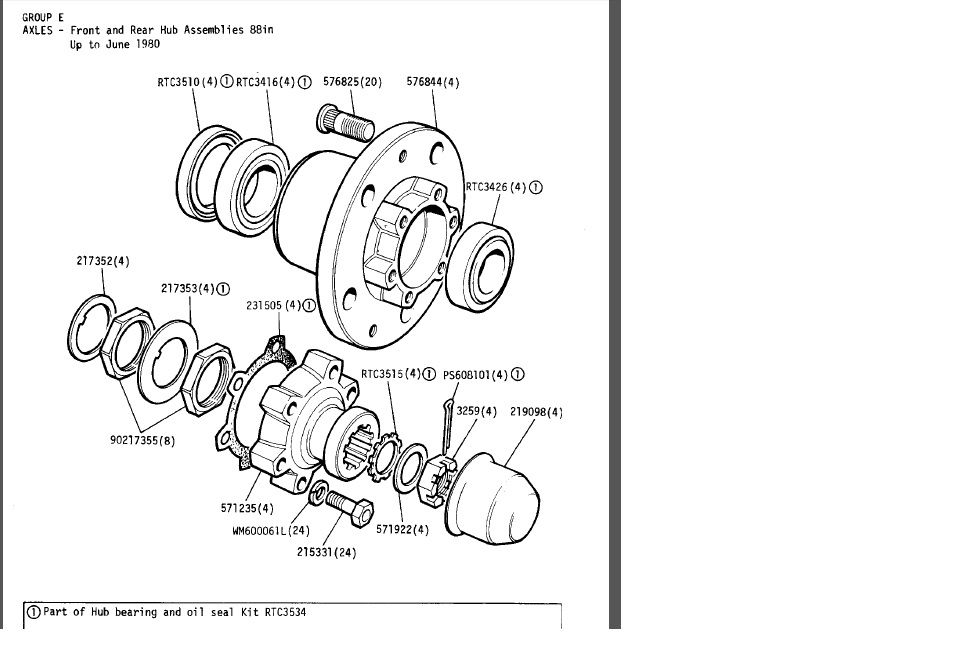

This what you are after?
owl
Well-Known Member
- Posts
- 1,807
- Location
- Breaston Derbyshire
The screw in stud hub is probably superseded by the splined stud hub. the splined hub is much better anyway.
mrchurchill109
Active Member
- Posts
- 557
- Location
- Northeast US
Hate to ask a dumb question, but why are you replacing the hub casting? if it's a matter of a stripped-out lug the common fix for this is to simply drill the threads out and press/draw in a splined lug to replace it. I have a hub on my 109 that has had 2 lugs done that way and I've had no problems with it.
As previously stated the thread-in lug hubs are no longer available, but a used one could no doubt be sourced. There is very little that can go wrong with a hub to render the casting unfit for service.
As previously stated the thread-in lug hubs are no longer available, but a used one could no doubt be sourced. There is very little that can go wrong with a hub to render the casting unfit for service.
Aidso
New Member
- Posts
- 500
What studs did you use? That might be a lot easier. Cause if I do get the new hubs I'm going to have to get someone to swap bearings over as bearings I have at the min are perfect.
Thor1950
Well-Known Member
- Posts
- 39,238
- Location
- Land of the midnight sun
why you need new hubs?
Thor1950
Well-Known Member
- Posts
- 39,238
- Location
- Land of the midnight sun
you could press in new studs and save the price of a hub, or you could use this with new thread studs.
Loctite 270 High Strength Threadlocker - Henkel
Aidso
New Member
- Posts
- 500
New hubs are not that expensive £19+ each. Really don't mind paying that if its going to fix it good. My only problem is swapping bearings. The bearings in at the min are perfect.
Has anyone ever removed and refitted the same bearings before? There is an engineering company near me with a couple of 40t presses, so thinking bring it all around to them.
Has anyone ever removed and refitted the same bearings before? There is an engineering company near me with a couple of 40t presses, so thinking bring it all around to them.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
yes is quite simple either press race out or drift out using brass or copper punch not steel ,ensure races stay with the same rollers
mrchurchill109
Active Member
- Posts
- 557
- Location
- Northeast US
OK, studs I used were externally threaded to take the same double-ended lug nuts and had a splined inner end to be pressed in place.
i don't consider this a bodge - the splined lug is a better item than the threaded in my opinion.
if you order hubs (19 quid is not that bad) just make sure that you get the ones with the smaller lugs and not the great whacking Series III things.
ajr
i don't consider this a bodge - the splined lug is a better item than the threaded in my opinion.
if you order hubs (19 quid is not that bad) just make sure that you get the ones with the smaller lugs and not the great whacking Series III things.
ajr
Aidso
New Member
- Posts
- 500
Grr. Rang today to see if my hubs where in since ordered them on Monday. And they weren't so they rang their suppliers to be told they didn't have them but didn't think to mention that when they ordered them.
I'm thinking will s3 hubs with push in studs fit a s2a? I might be easier trying to get those.
I'm thinking will s3 hubs with push in studs fit a s2a? I might be easier trying to get those.
