Right then, here are the results!!!!
The lower control board in the heavy has developed "the" problem.
I've connected the older spare hevac and it all works. So I'll connect
my working face panel to the older lower driver/controller?? Panel and see how this is going to go.
The lower control board in the heavy has developed "the" problem.
I've connected the older spare hevac and it all works. So I'll connect
my working face panel to the older lower driver/controller?? Panel and see how this is going to go.
Last edited:
- Posts
- 12,628
- Location
- Sud ouest France !
It works
sorry...
It's doing its job
sorry... It's doing its job
- Posts
- 12,628
- Location
- Sud ouest France !
Nope, the old control panel now won't power the aircon......
Last edited:
- Posts
- 3,877
- Location
- Near Heathrow.
Dry solder joints or connectors need loads of cleaning.
- Posts
- 12,628
- Location
- Sud ouest France !
So....i can set the left hand blend motor to 20° using the old control panel and then plug my original panel in and regain the aircon. Which I think is more needed.
Very slowly starting to lose interest in this thing....
Very slowly starting to lose interest in this thing....
- Posts
- 12,628
- Location
- Sud ouest France !
The connectors are really clean and the older hevac proves the cars plugs are ok.
Tbh, I can't see the joints let alone resolder them with tools I have.
I believe there was a fred on the older panel not running AC for some reason but cant remember if there was a work around. Vaguely remember something about a relay?Nope, the old control panel now won't power the aircon......
Sure @Datatek was involved and maybe the late Wammers.
J
- Posts
- 3,877
- Location
- Near Heathrow.
Later vehicles have a relay for the compressor. Early & late HEVAC have different output circuits Early HEVAC expects the full compressor clutch current, so don't work properly in later cars. There's a TSB somewhere about this somewhere. will look for it.
What year is the car, and what HEVAC part numbers do you have ?
What year is the car, and what HEVAC part numbers do you have ?
- Posts
- 3,877
- Location
- Near Heathrow.
RAVE TSB section does not allow me to "print to PDF", so & printed it on paper & scanned it for you !!
- Posts
- 12,628
- Location
- Sud ouest France !
It's an october 99 plate with later hevac and external relay in the fuse box
- Posts
- 12,628
- Location
- Sud ouest France !
Thank you very much for that.
It's because the early hevac I've got is faulty towards the current draw..
I'm putting it back together with the temp set at 20...
I've got Too much to do today and tomorrow to be aggravated with a minor issue like this...
It's been tough the last two years dealing with my own mental issues, two teens and an adult son who can't leave due to financial reasons with his own crap, trying to be mum and dad along with to trying to run a business. This I don't need right now .....
I'm sorry to let that out into the air upon you kind people...
That was tough
We all have little rants don’t worry.
Strangers can help easier sometimes than people face to face, once you come out the other side of the wringer it will all work out.
I went through 2 of the dam things, I am quite slim now
.
J
Strangers can help easier sometimes than people face to face, once you come out the other side of the wringer it will all work out.
I went through 2 of the dam things, I am quite slim now
.J
- Posts
- 3,877
- Location
- Near Heathrow.
You could bypass the relay so the HEVAC thinks it's the early car !!

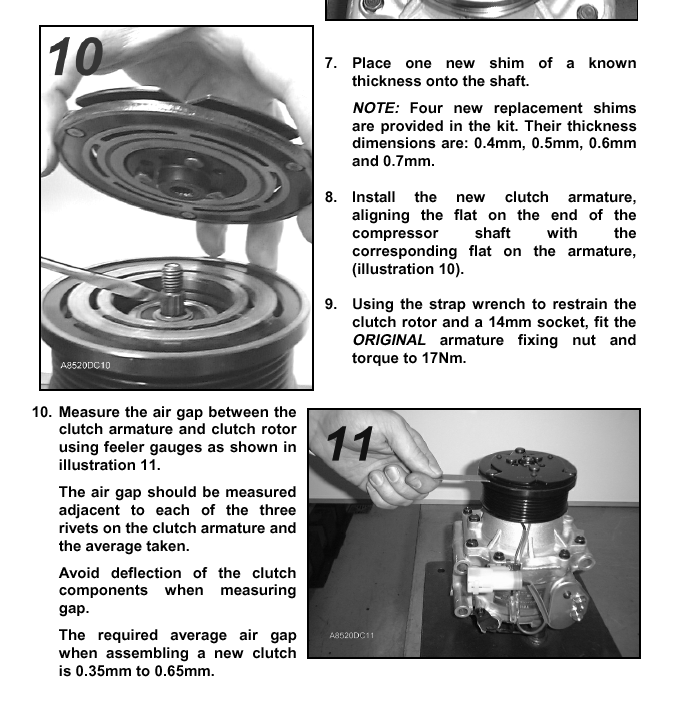

If you don't have the extra relay, it could also be the AC compressor clutch needs re-shimming ? If the gap gets too big with wear, the clutch doesn't engage reliably.
If you don't have the extra relay, it could also be the AC compressor clutch needs re-shimming ? If the gap gets too big with wear, the clutch doesn't engage reliably.
Datatek
Well-Known Member
- Posts
- 44,883
- Location
- Near Poitiers SW France
Older control panel? Is that the one from Elliots car?Nope, the old control panel now won't power the aircon......
Datatek
Well-Known Member
- Posts
- 44,883
- Location
- Near Poitiers SW France
Early cars drive the AC clutch direct, later cars drive is via a relay. The relay does not draw enough current for the early HEVAC so it throws a fault. There are 3 possible mods, one is to add a resistor across the relay, two is to remove the relay and fit a jumper wire across the contacts, the third is to change the output drive MOSFET in the early HEVAC to the later device.
Datatek
Well-Known Member
- Posts
- 44,883
- Location
- Near Poitiers SW France
It can only get better.Thank you very much for that.
It's because the early hevac I've got is faulty towards the current draw..
I'm putting it back together with the temp set at 20...
I've got Too much to do today and tomorrow to be aggravated with a minor issue like this...
It's been tough the last two years dealing with my own mental issues, two teens and an adult son who can't leave due to financial reasons with his own crap, trying to be mum and dad along with to trying to run a business. This I don't need right now .....
I'm sorry to let that out into the air upon you kind people...
That was tough
- Posts
- 12,628
- Location
- Sud ouest France !
It's from the doner 1996 P38' Keith.
Last edited:
- Posts
- 12,628
- Location
- Sud ouest France !
I tried that and no joy, I've no doubts of the aircon clutch tbh. It's been working fine and works with original control panel when it's plugged in Mr @pwood999
