P38A Height Sensor replacement

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Just to revive this thread, I've been having height ride sensor issues for years now and have been tackling every part of the air suspension system to no avail. The last place to be tackled is the wiring to the sensors. A the height sensors are new underside but I now believe there's a wiring issue somewhere.

Can I ask where to find the front passenger internal sensor cable can be located?

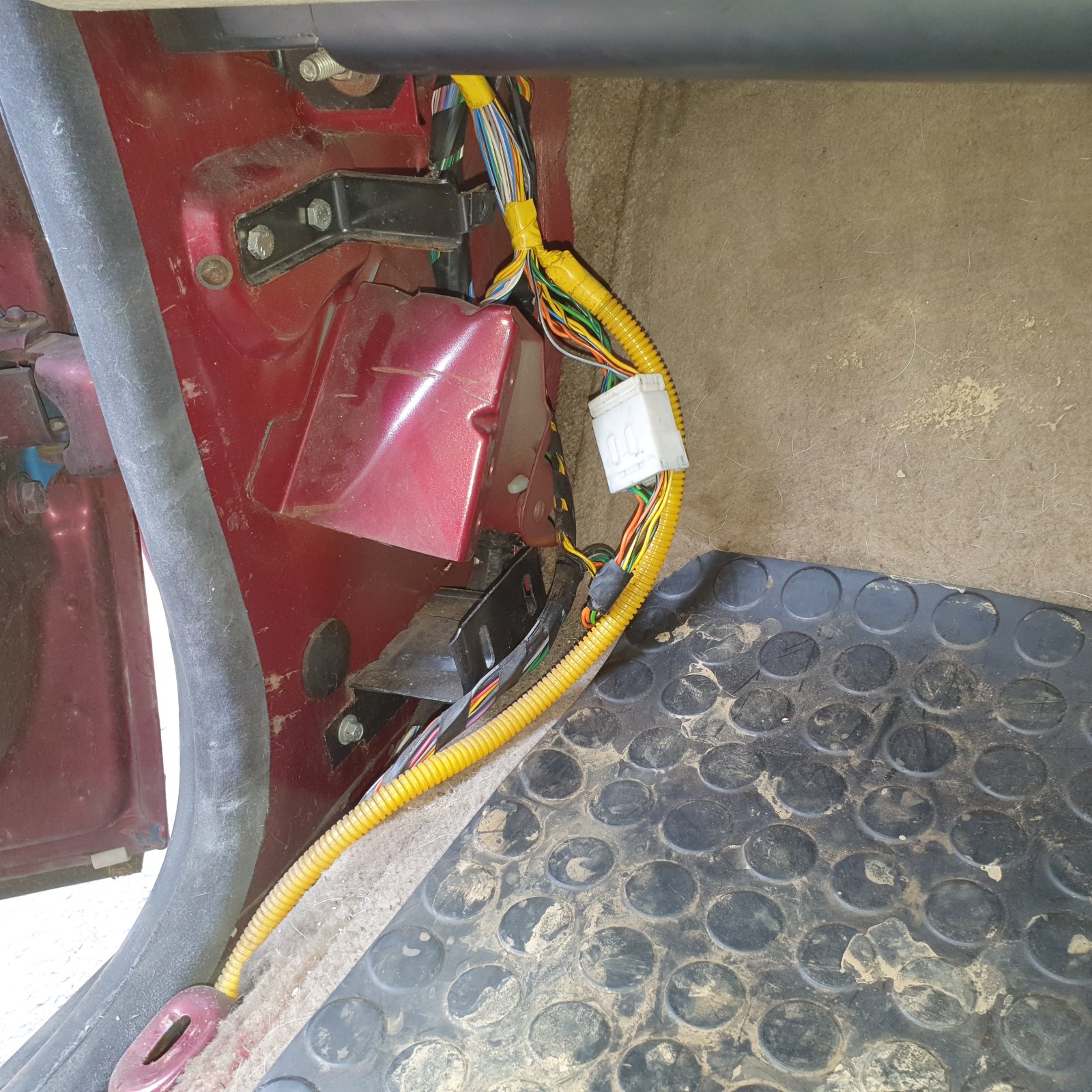

I've taken this photo as reference. What wires/connectors am I looking at here?
View attachment 319192

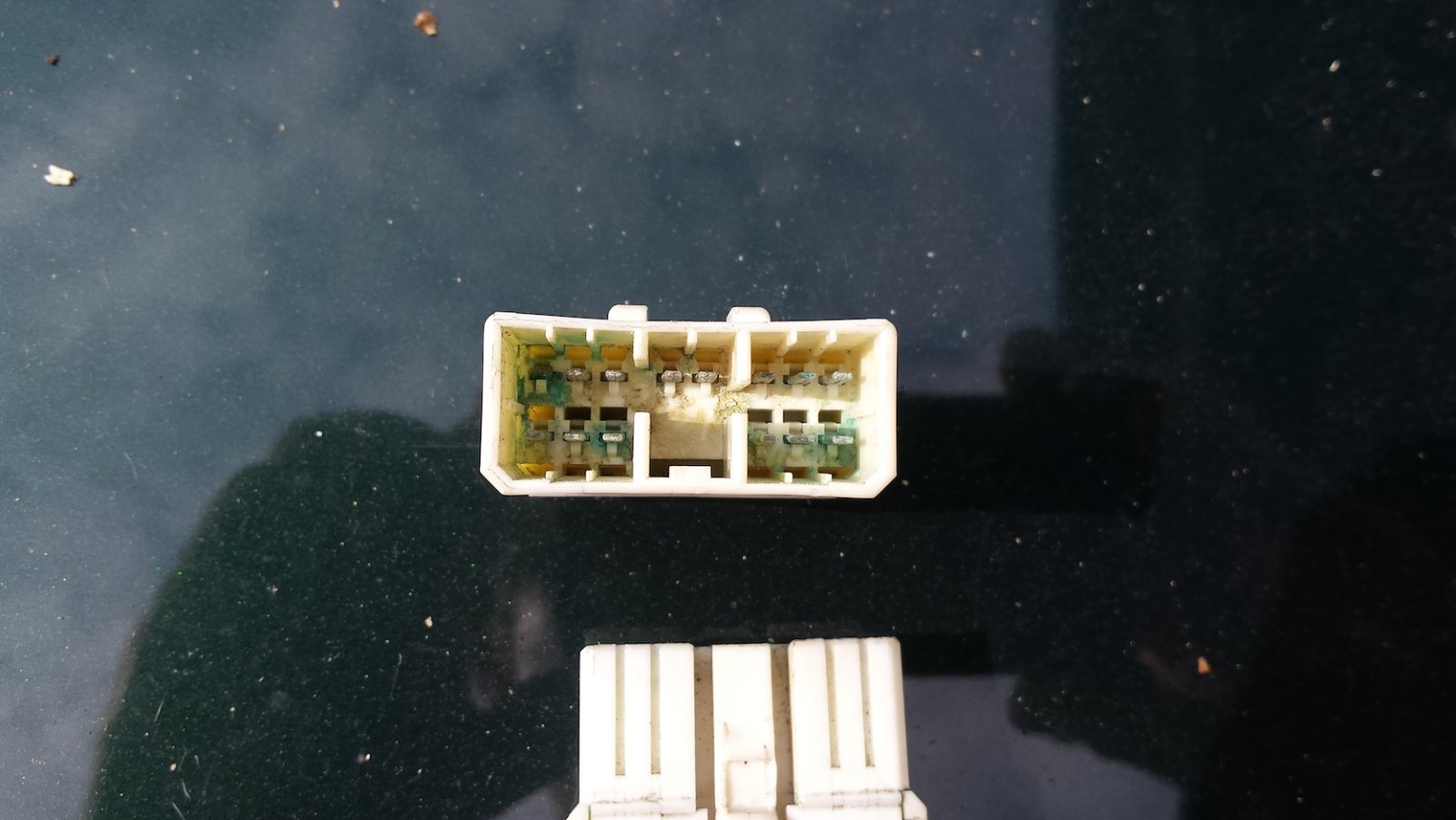

The large white connector is the one your looking for. Cut and sold each wire that goes through it on by one. Drips of water via the water tray under the screen cause Corrosion in this connector and give eas and sound issues. 👍

Last edited:
Thanks chaps. I'm an idiot so would someone explan which side of the white connector I'm supposed to replace the wires and how far. Also where do the internal sensor wires come from outside through the bodywork and into the footwell. I'm hopeless with electrical diagrams I'm afraid but I'm great with pictures that point out exactly where everything is.

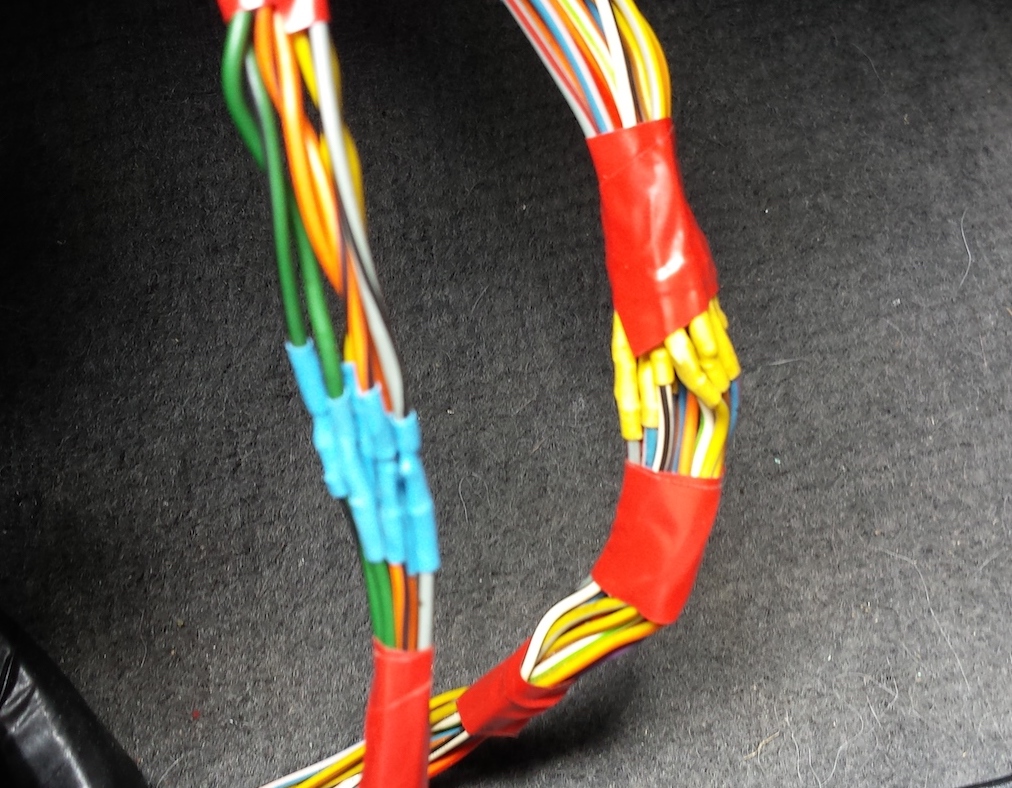

Like this:


But the height sensors do not go via those connectors !! Soldering C104-C204 and C207-C357 did sort other stuff like these:

EAS timer relay diagnostic trigger
EAS Height Switch
Dodgy audio glitching
Cruise control,
Ambient air sensor
SRS diagnostics

Last edited:
But the height sensors do not go via those connectors !! Soldering C104-C204 and C207-C357 did sort other stuff like these:

EAS timer relay diagnostic trigger
EAS Height Switch
Dodgy audio glitching
Cruise control,
Ambient air sensor
SRS diagnostics
Is the cruise control circuit in the rh connectors? I haven't soldered that one yet, I am going to be doing it in the near future in the hopes that it solves an issue I have had for years with the eas inhibit not working with the doors open but does work with the brake pedal depressed. I have all new kit on the cruise control but it also hasn't worked for a long, long time, I replaced all of the pipes and the brake pedal switch along with the module etc. It holds a good vacuum so no leaks so maybe the issue does stem from the RH connector if that is where it is

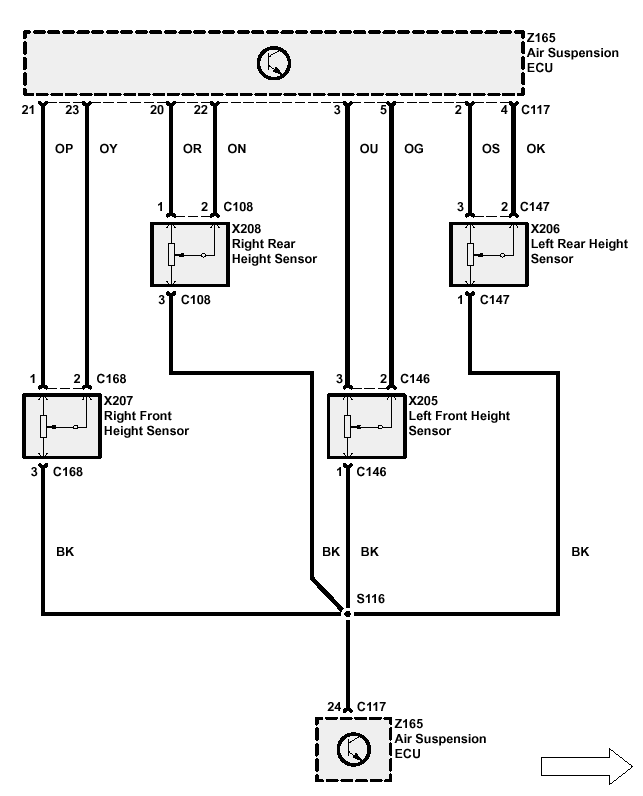

Well I'll do that anyway. So where do the height sensor cables come in. I've replaced all the sensors but the diagnostic still says the front left is out of range. I've replaced the CPU and relay with no difference. All I can think is its the physical wires themselves to the actual sensor.

Is the cruise control circuit in the rh connectors? I haven't soldered that one yet, I am going to be doing it in the near future in the hopes that it solves an issue I have had for years with the eas inhibit not working with the doors open but does work with the brake pedal depressed. I have all new kit on the cruise control but it also hasn't worked for a long, long time, I replaced all of the pipes and the brake pedal switch along with the module etc. It holds a good vacuum so no leaks so maybe the issue does stem from the RH connector if that is where it is
Cruise pump uses LH connectors - see picture.

RF footwell white connectors (C101 & C102). Just search RAVE for these two (Control F3 & search).

Cruise wiring (except pump)
Various ECU diagnostic connections
Brake Switch
Some of the HEVAC stuff
Some of the Instrument wiring
Etc. Etc.


Attachments

  • 1718977124105.png
    9.7 KB · Views: 51
