Freelander 2 (LR2) Front Wheel Engine splash guard problem

T

Tdmfree

New Member

Posts

6

Location

Essex

• Aug 23, 2018

• #1

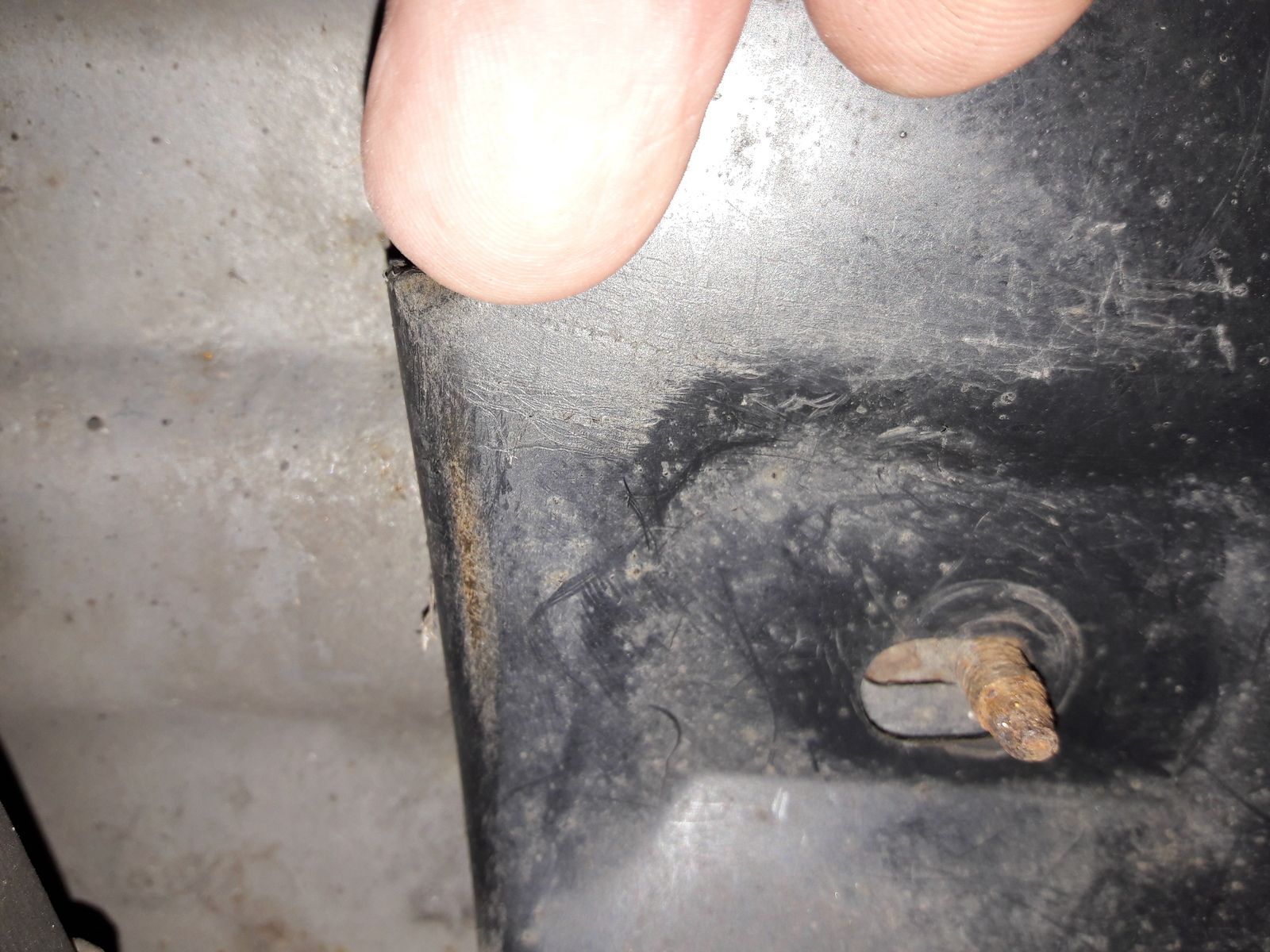

I have a freelander 2 (2007) and the front wheel engine splash guard is loose. One of the nuts that holds it on is missing and the bolt is rusted and seems to have no thread left. Any ideas how I can fix this and ensure that the guard does not fall off?
Picture attached

thanks,



jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Aug 23, 2018

• #2

what is the stud fastened to



Arctic2

Well-Known Member

Posts

2,738

Location

Westmidlands

• Aug 23, 2018

• #3

HI TDMfree

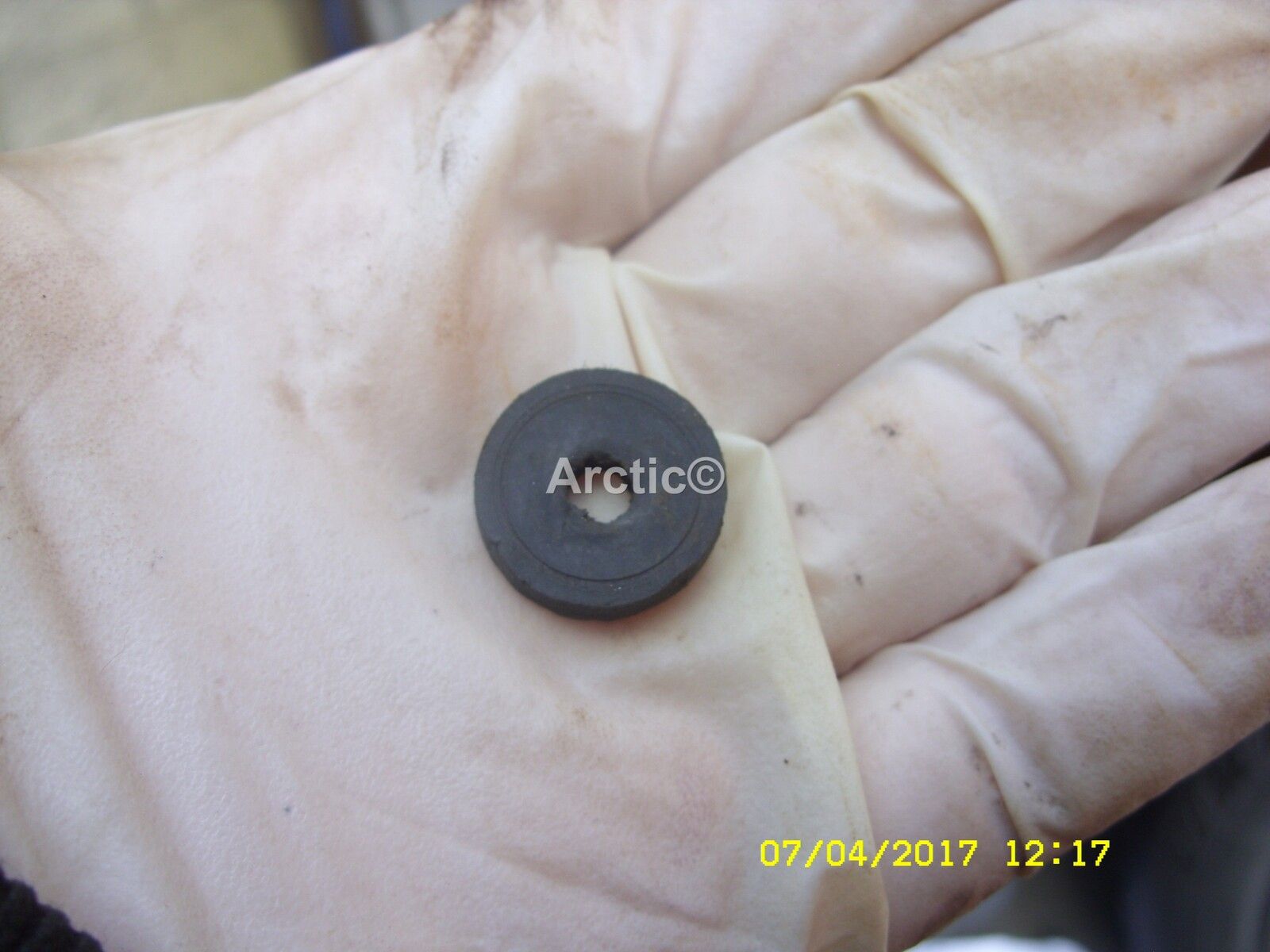

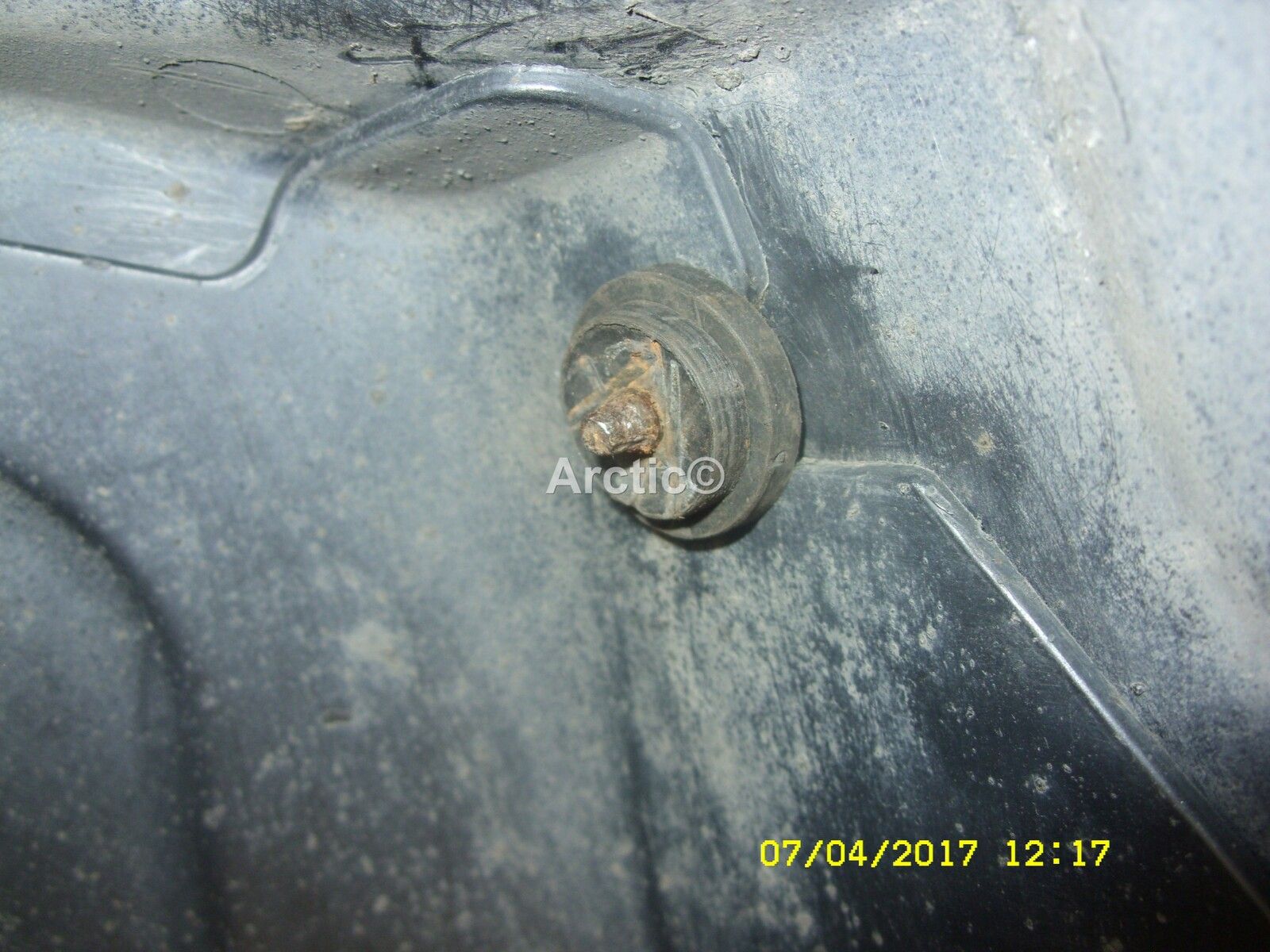

yes that is an easy fix I changed mine for 3/4 & 1/2 inch rubber tap washers, you can buy the from any Wilkinsons photo below, they work great and will not fall of or rust.



Attachments

•

  329.3 KB · Views: 100
•

  278.9 KB · Views: 123
•

  259.7 KB · Views: 112
•

  142.1 KB · Views: 139

T

Tdmfree

New Member

Posts

6

Location

Essex

• Aug 23, 2018

• #4

jamesmartin said:

what is the stud fastened to

Click to expand...

the stud seems to come from one of the engine compartment frames - hard to see exactly where



T

Tdmfree

New Member

Posts

6

Location

Essex

• Aug 23, 2018

• #5

Arctic2 said:

HI TDMfree
yes that is an easy fix I changed mine for 3/4 & 1/2 inch rubber tap washers, you can buy the from any Wilkinsons photo below, they work great and will not fall of or rust.

Click to expand...

thanks - that sounds like a good option - I assume you just pushed them on?



Arctic2

Well-Known Member

Posts

2,738

Location

Westmidlands

• Aug 23, 2018

• #6

Tdmfree said:

thanks - that sounds like a good option - I assume you just pushed them on?

Click to expand...

Yes the washers were just pushed on and they are a very tight fit, I also use the m on my under guard tray on my MGZT albeit fixed with a stainless steel screw, so they have many uses



Attachments

•

  232.2 KB · Views: 108

jamesmartin

Well-Known Member

Posts

91,879

Location

louth lincs

• Aug 23, 2018

• #7

Tdmfree said:

the stud seems to come from one of the engine compartment frames - hard to see exactly where

Click to expand...

you could use a rivnut, weld a fresh stud on or a quick fix use a tec screw



T

Tdmfree

New Member

Posts

6

Location

Essex

• Aug 23, 2018

• #8

thanks folks - I tried the 1/2 tap washer as I had one in the garage - works a treat. Its pretty firm but if that ever comes off it will be underneath and some means of replacing the stud.



Arctic2

Well-Known Member

Posts

2,738

Location

Westmidlands

• Aug 23, 2018

• #9

Tdmfree said:

thanks folks - I tried the 1/2 tap washer as I had one in the garage - works a treat. Its pretty firm but if that ever comes off it will be underneath and some means of replacing the stud.

Click to expand...

That washer should not move. but I would changed it for a 3/4 one when you can, it is a little larger so holds the panel better



D

Denboy

Active Member

Posts

124

Location

Merseyside

• Aug 23, 2018

• #10

Tdmfree said:

thanks folks - I tried the 1/2 tap washer as I had one in the garage - works a treat. Its pretty firm but if that ever comes off it will be underneath and some means of replacing the stud.

Click to expand...



Attachments

•

  149.5 KB · Views: 123

D

Denboy

Active Member

Posts

124

Location

Merseyside

• Aug 23, 2018

• #11

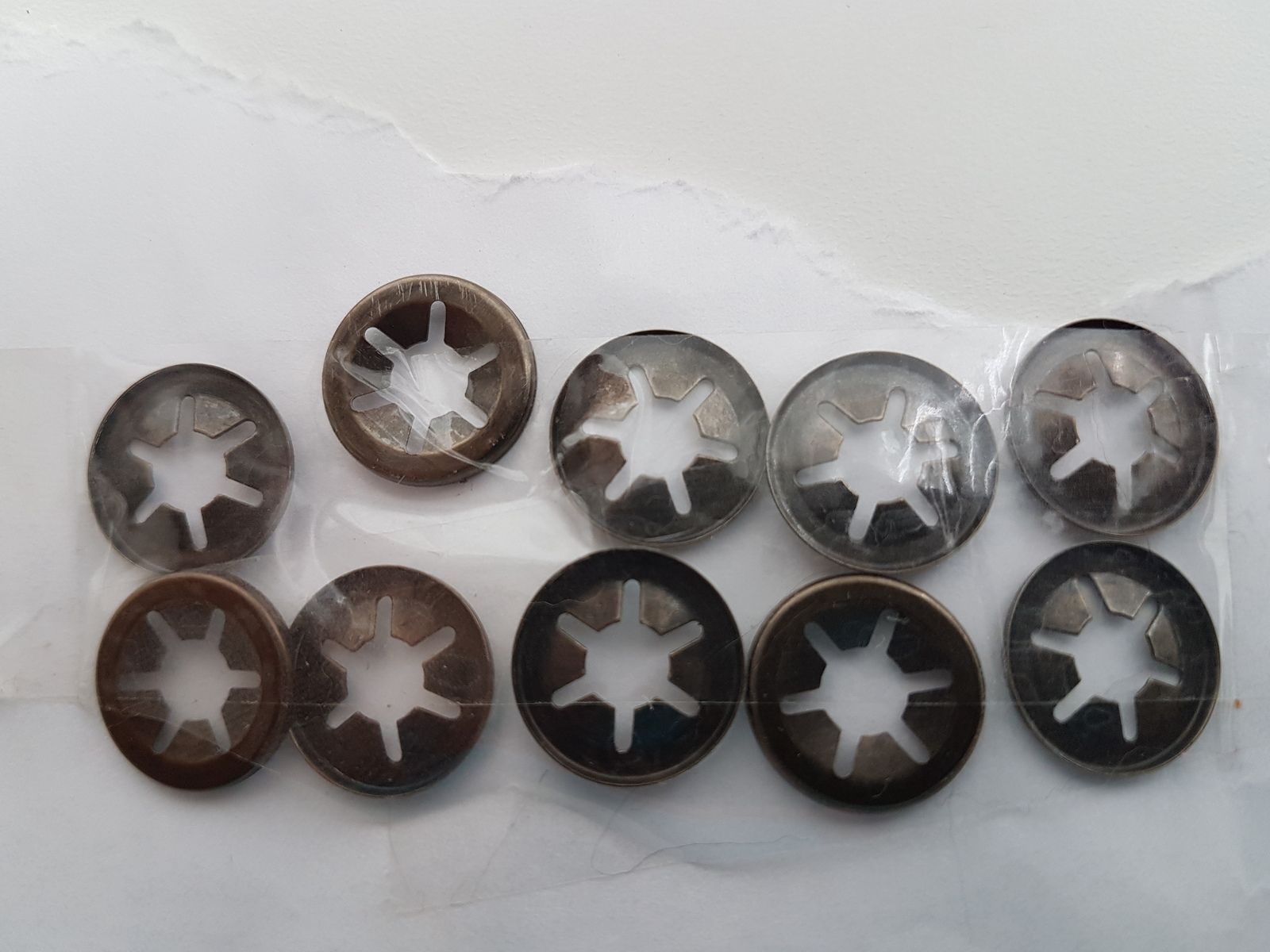

Star lock washer cheap lots of sizes never fall off
