Front damper installation-Special Tool

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

ciderman

Active Member
Posts
770
Location
sunny worcestershire
Hi
cursing my good fortune find that I had to remove the alternator to fit the upper damper bolt- there wasn't one in vehicle when I purchased it- I was faced again with the problem of compressing the bottom bushes to fit the split pin. In the past I used a steel yoke and "g" clamp, but with a slightly small washer I found my wife was unable to hold the yoke still as I tightened the screw.
So I made a tool, which was cheap (pence) and fast to make (2 minutes)

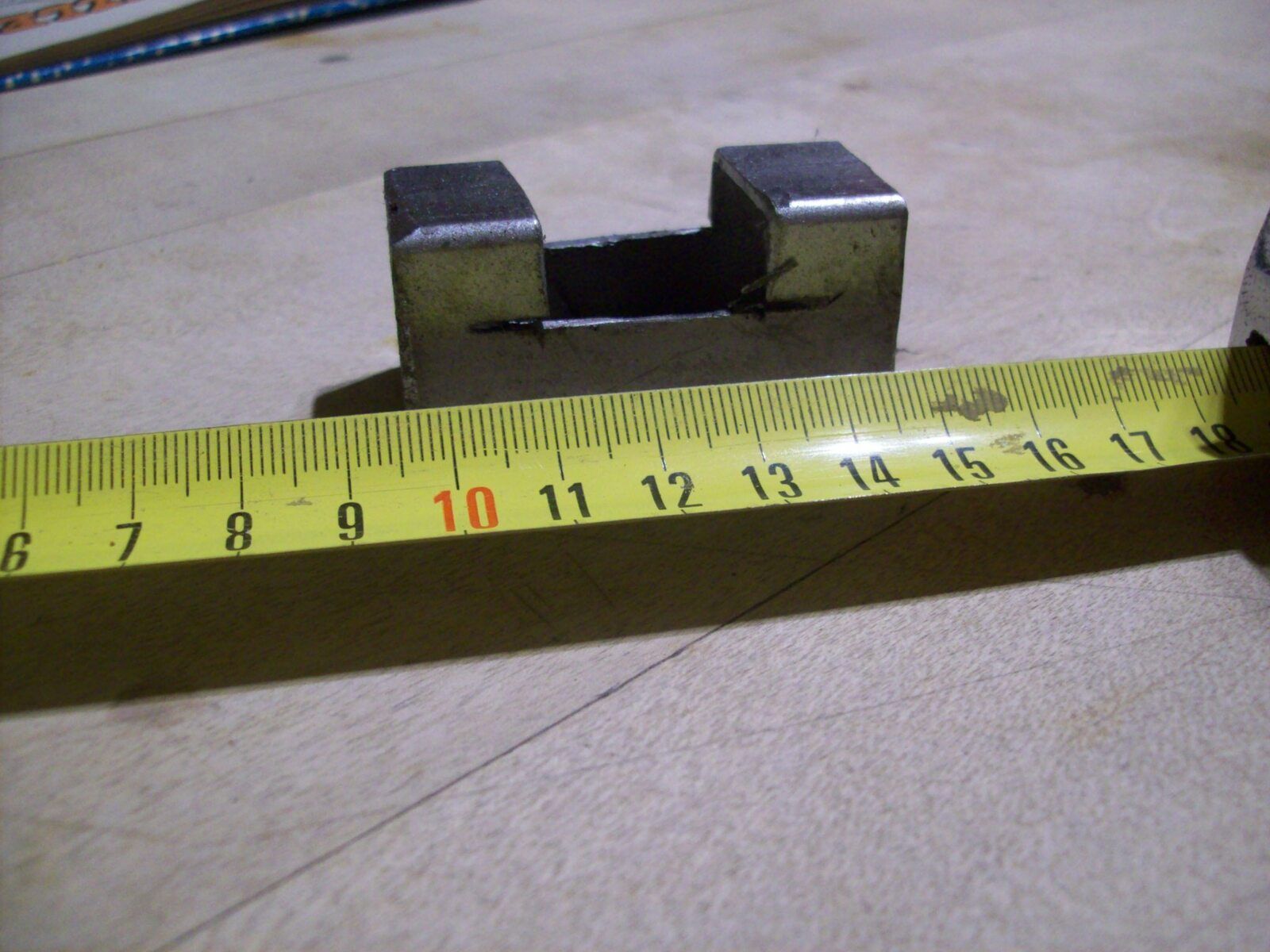

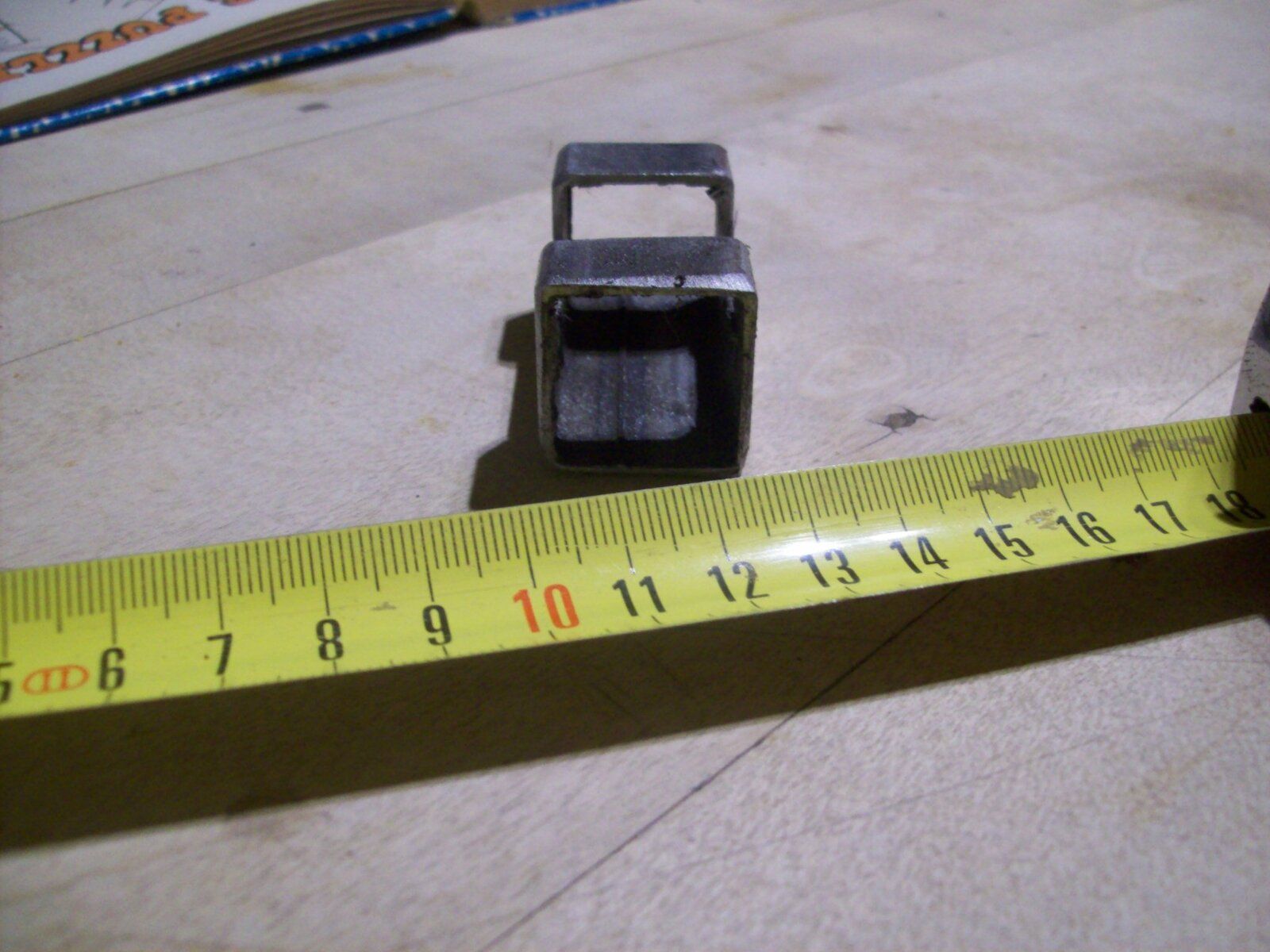

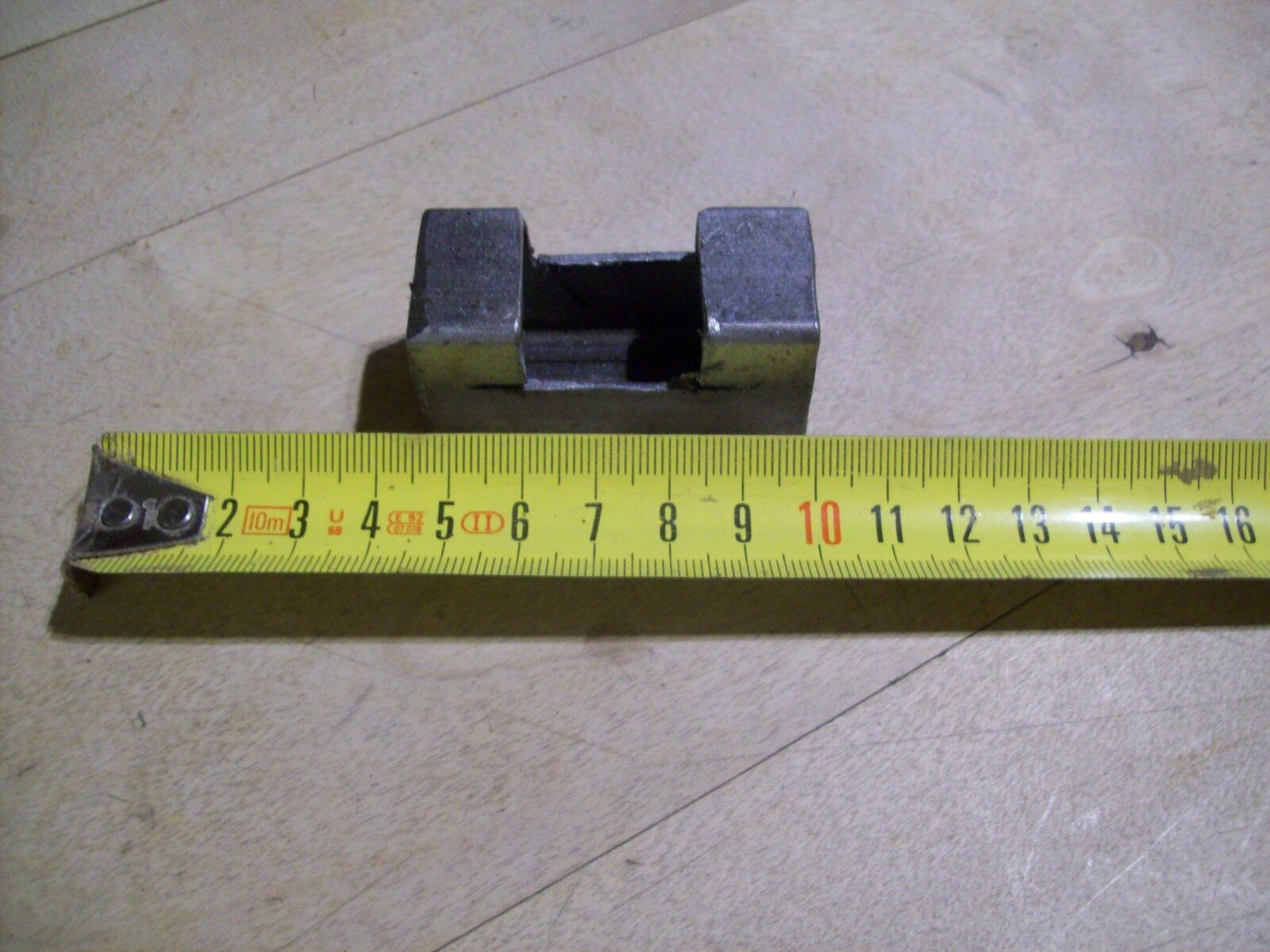

Take 50mm of 25mm square section with1.5mm walls (approx.) cut out the centre 25mm , 12mm deep, and Hey Presto- a cheap effective tool. Simply centre the tool over the post, use a jack handle against the inside of the swivel and PUSH!
Why I never did this before I really don't know.
here it is:


Attachments

  • 01jan18-tool 002.JPG
    01jan18-tool 002.JPG
    204.2 KB · Views: 197
  • 01jan18-tool 003.JPG
    01jan18-tool 003.JPG
    194.6 KB · Views: 171
  • 01jan18-tool 004.JPG
    01jan18-tool 004.JPG
    215.6 KB · Views: 172

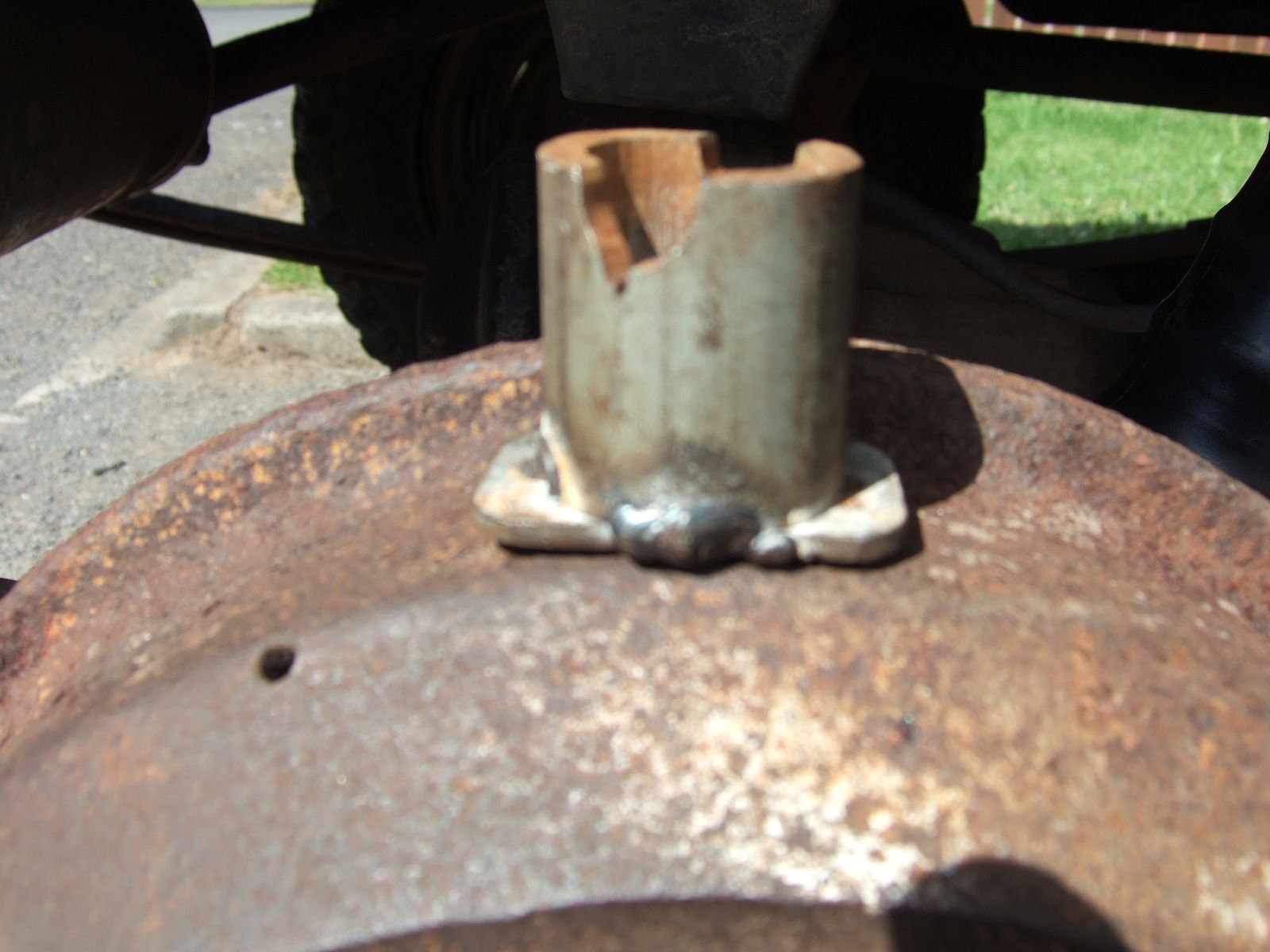

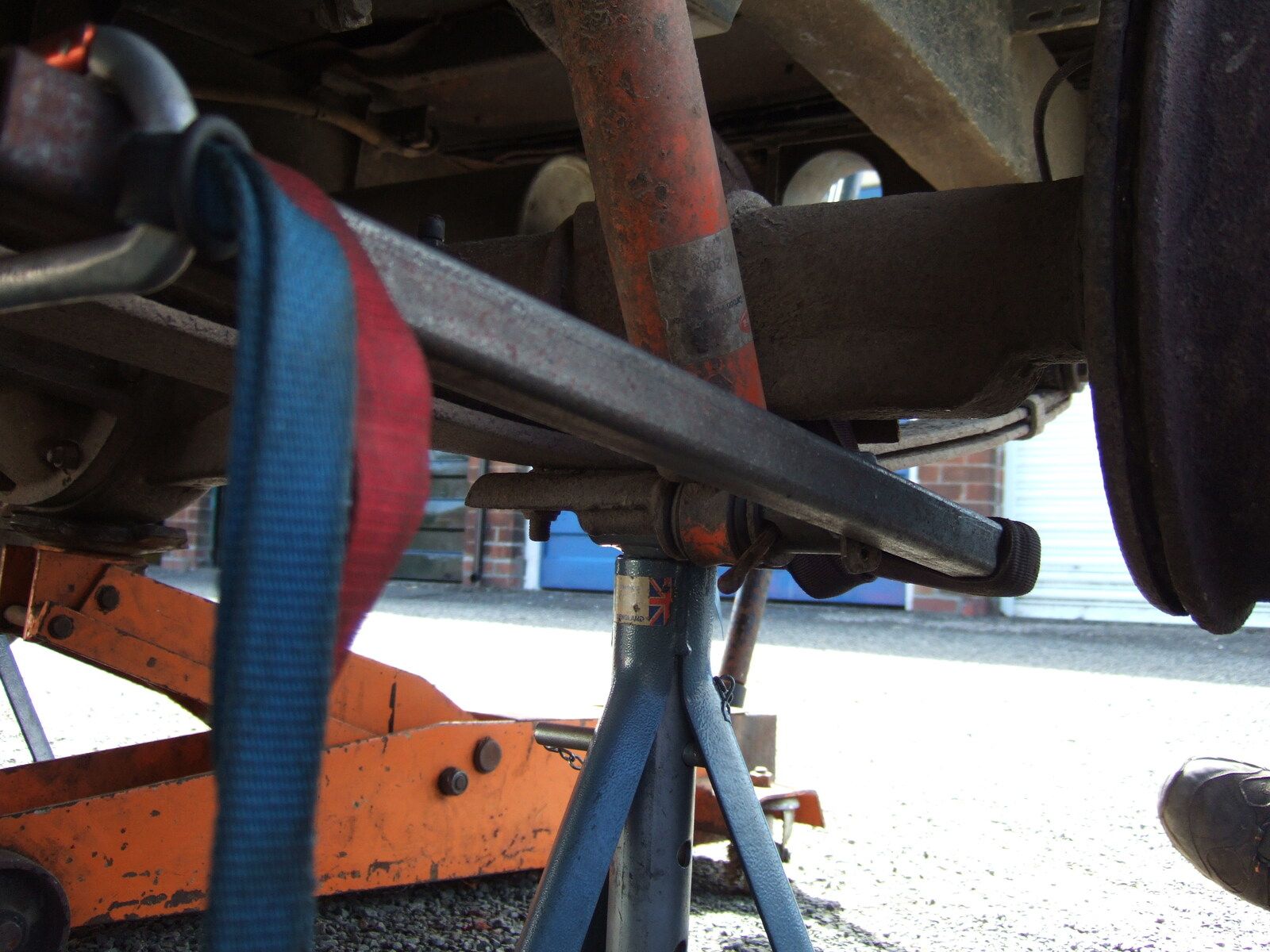

Made this years ago but I usually use a strap around the leaf spring to hold the end of the lever yours looks a lot neater than mine.


Attachments

  • DSCF3042.JPG
    156.9 KB · Views: 164
  • DSCF3043.JPG
    244.1 KB · Views: 168
