Freelander heater fan speed fix

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

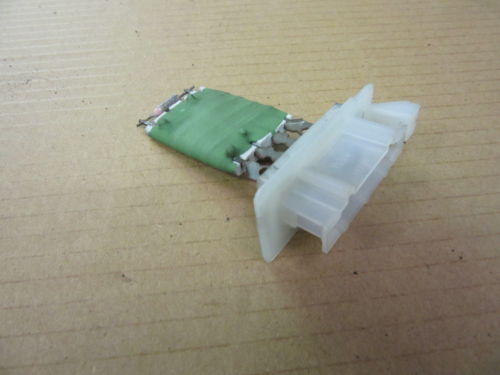

I have a 2002 52 plated freelander where the air blower was working intermittently. I looked at a resistor that was attached and thought that it may need replacing. I then tucked it down the back of the carpet next to the clutch peddle - where it then went to melt some black plastic. I will now have to replace this. It doesn't look anything like the picture of the part given previously in this post. A photo of mine is attached. Does this serve the same purpose, or is this another part altogether????


Attachments

  • $_12.JPG
    19.9 KB · Views: 378
The internal heater fan has only worked in 3 and 4 settings, and I always like the fan on at least 1 setting to prevent misting, so it needed fixing pronto. Found on these fora that there is a pack of heater coils in the airflow that determine the fan speed. Sounds like an overly complicated way of doing things, especially as they break on a regular basis. Anyhow, found the repair kit on ebay Freelander I Rezpax Heater Resistor Pack Repair Kit on eBay (end time 13-Feb-11 22:01:29 GMT)

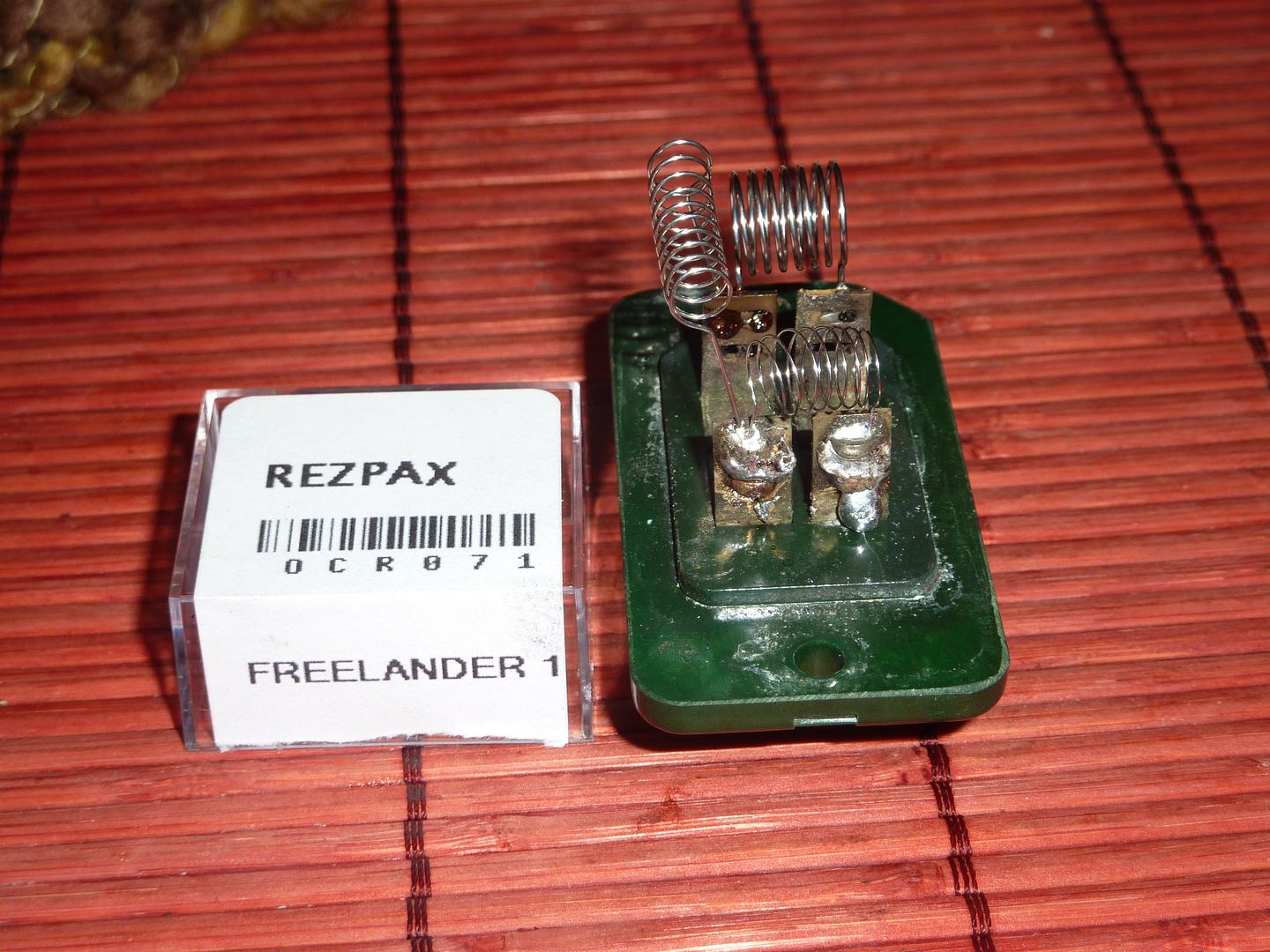

Removed the device from my car. It's green plastic with a wire block coming out of the middle located in the driver's footwell, held in by two screws into the heater/air pipes:

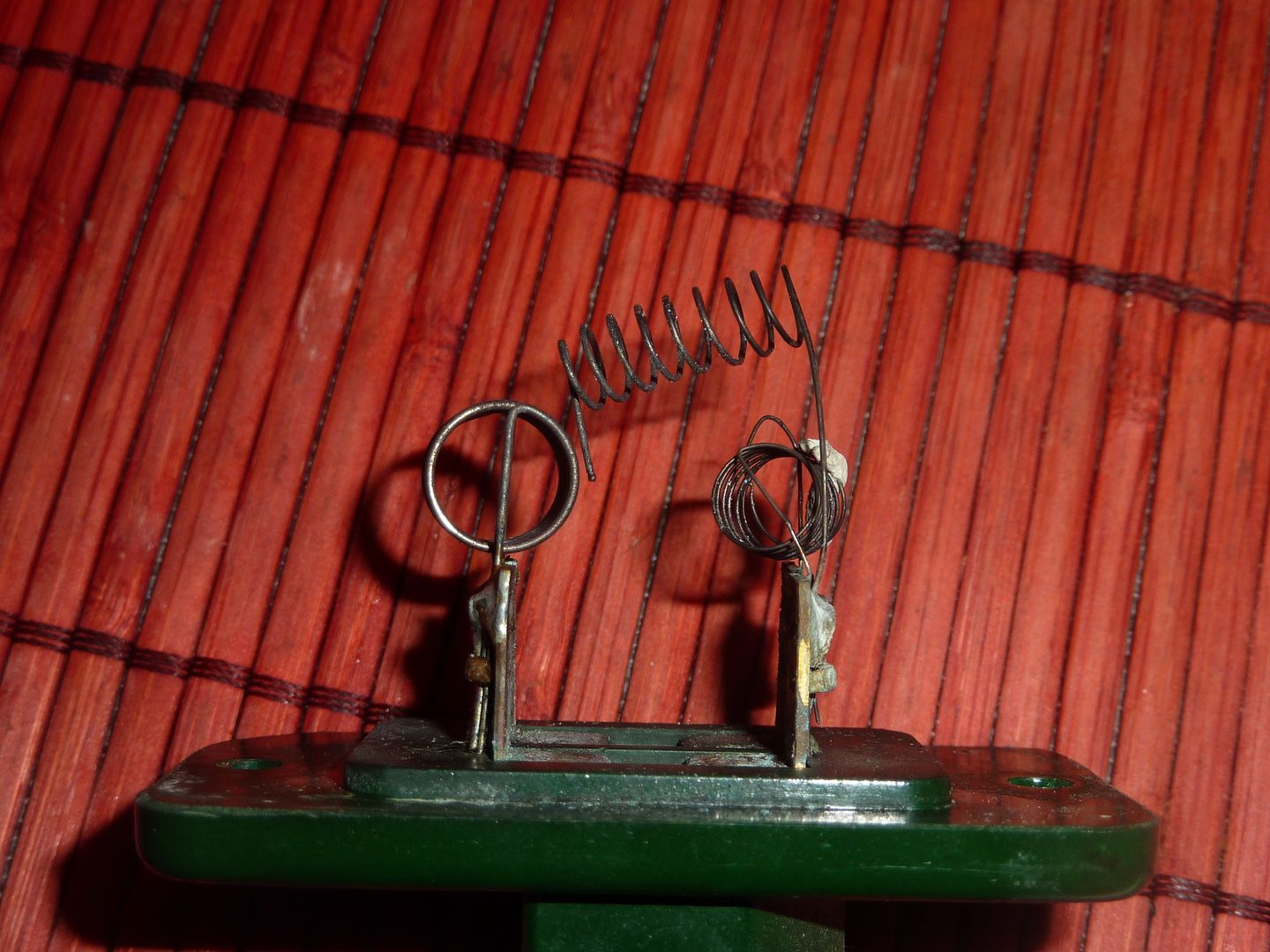

It looked a bit knurdled...





So removed the dead bits with a soldering iron and added the new. Easy peasy took a couple of minutes waiting for solder to melt. Didn't need a solder sucker, just slipped the new bits in while old solder melted.







All together and works a treat on all settings/speeds!
THANK YOU!

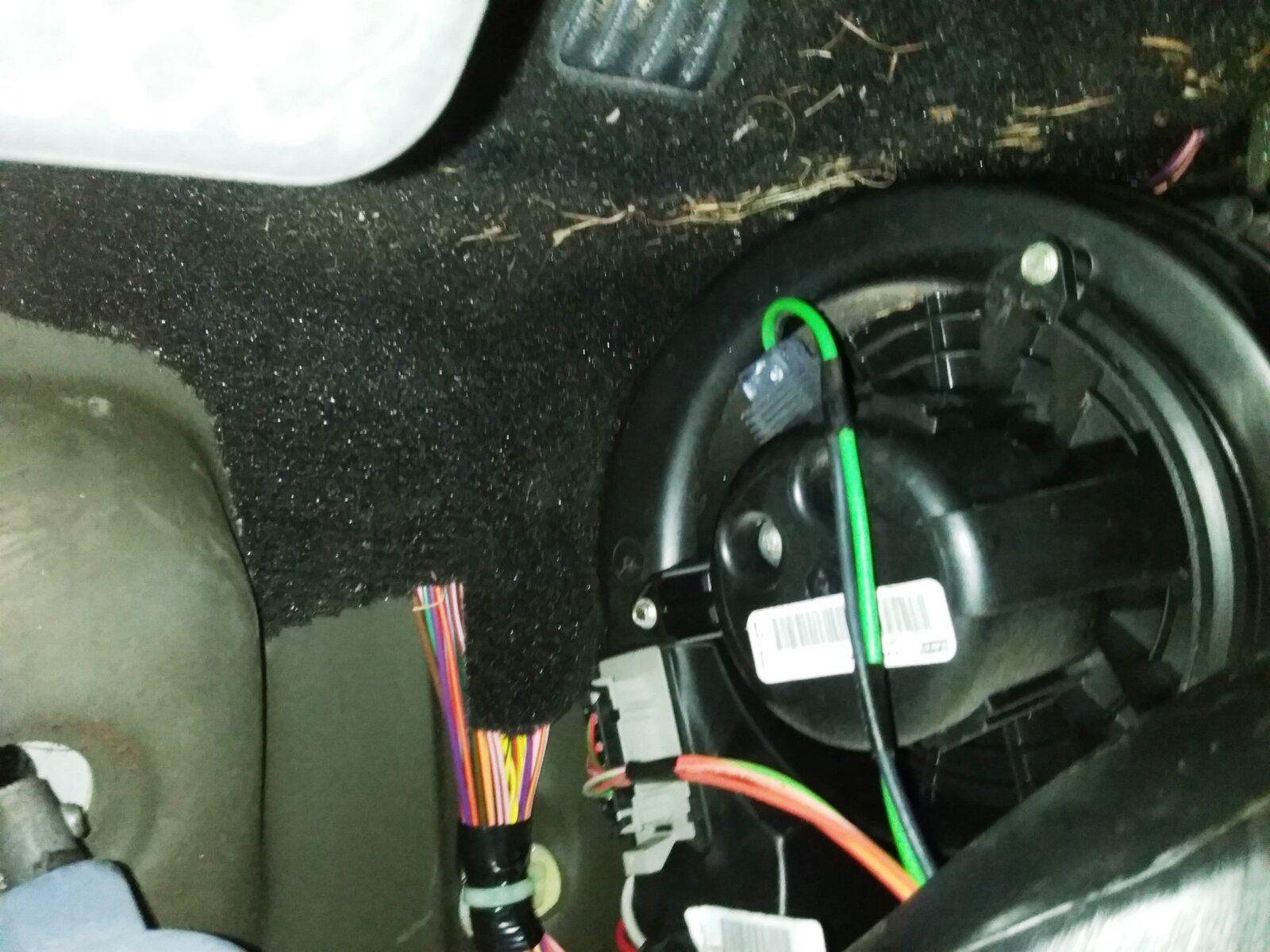

The first image by Spacemonkey does not look the same on my Freelander 1. I have one connection going into the fan but fail to see a green resistor connection nearby.
I note this bit on eBay which is a new resistor kit but where would I find it on the Freelander?


Attachments

  • s-l500.jpg
    8.1 KB · Views: 305
