Hello,

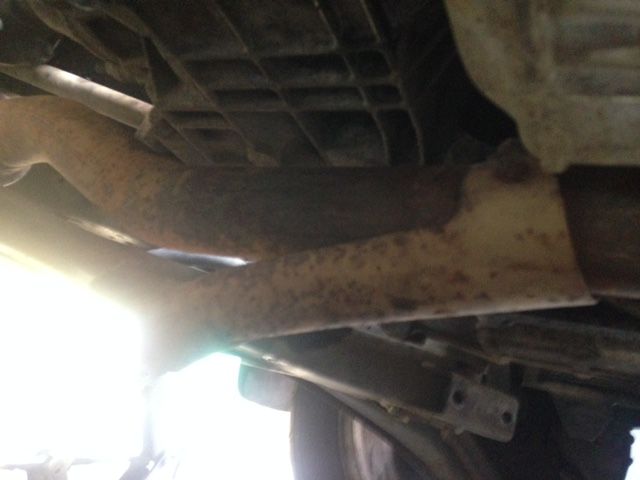

Anyone got a full diagram of the exhaust system including heat shields for the 1.8 engine. Have removed the engine under tray and there is a metal (what appears to be) heat shield. It is held on by two strap type brackets around the exhaust, but one strap is missing so it is just hanging. Can make a new bracket, if only I knew where the shield should be located.... Looks like it should go on the top of the exhaust toward the back end of the front exhaust to protect the Intermediate Reduction Drive - views please.
