okay I blanked my egr and fitted a blank to the correct place of my Egr Modulator, and all was well.
until now, where as my TD5 gets upto temp. the modulator will vibrate really hard.
where have I gone wrong and what do I do to fix it lol
Thanks guys
modulator???.the EGR valve should have been removed.the blanking plate should have been used at the other end of the pipe.
It's okay I've figured it out!! The EGR Valve Modulator or whatever a dozen different diagrams called it differently (one calling it egr thingy!!) was going nuts as I discovered there was very little coolant and mainly water in the cooling system and it wasn't cutting it in this warm weather.
Still on to the next problem I guess lol
Still on to the next problem I guess lol
gemsdad
NOT BOTHERED.
- Posts
- 67,809
- Location
- halfway between here and there.

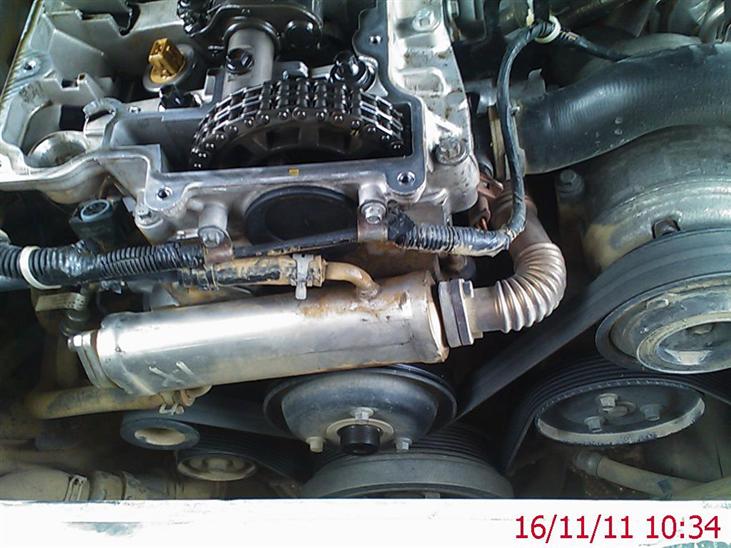

water in the EGR valve,you sure??.not the fuel cooler is it.got any pics of what your on about.
xat44
Active Member
- Posts
- 474
- Location
- biggin on the bump
not 100% certain of this.
but some egr`s are watercooled. I think later d2`s.
probably what op is on about.
but some egr`s are watercooled. I think later d2`s.
probably what op is on about.
sierrafery
Well-Known Member
- Posts
- 17,933
- Location
- Arad/Romania
i'm 100% certain that there are D2-s with cooled EGR
gemsdad
NOT BOTHERED.
- Posts
- 67,809
- Location
- halfway between here and there.
i'm 100% certain that there are D2-s with cooled EGR
yes,my error.i did not know about the cooled egr's.
DIFFLOCK66
Well-Known Member
- Posts
- 3,249
- Location
- Chipping, Lancashire
Bugger! I've just ordered an EGR removal kit for my 2001 D2....need to check for coolant pipes now :embarrassed:
Diff.
Diff.
ratty
I'm not special I'm limited edition
- Posts
- 34,277
you should be ok as yours'll be a 10p engine.
gemsdad
NOT BOTHERED.
- Posts
- 67,809
- Location
- halfway between here and there.
ratty,he said his has got the water cooled fuel cooler though????
ratty
I'm not special I'm limited edition
- Posts
- 34,277
gemsdad
NOT BOTHERED.
- Posts
- 67,809
- Location
- halfway between here and there.
No. He said it had water cooled egr valve.
dont be so picky ffs.i knew it was cooled summat or other.
ps i aint got one of those???????
ratty
I'm not special I'm limited edition
- Posts
- 34,277
dont be so picky ffs.i knew it was cooled summat or other.
you are right about water cooled fuel coolers though.

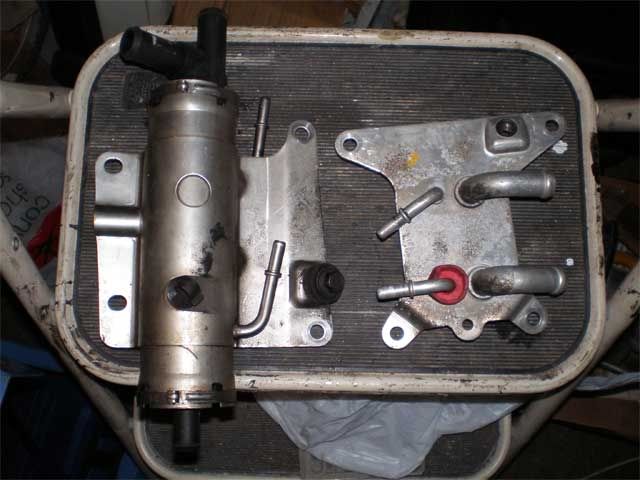

early fuel cooler on the left
later type on the right
gemsdad
NOT BOTHERED.
- Posts
- 67,809
- Location
- halfway between here and there.
you are right about water cooled fuel coolers though.
early fuel cooler on the left
later type on the right
ok,my td5 is a 2001 on a y plate,got the early fuel cooler,why have i not got the egr cooler then.
.is it only fitted to the later 10p engine????
ratty
I'm not special I'm limited edition
- Posts
- 34,277
ok,my td5 is a 2001 on a y plate,got the early fuel cooler,why have i not got the egr cooler then.
the early engines like yours and mine are 10p
the later engines are 15p. it's only fitted to 15p engines AFAIK
gemsdad
NOT BOTHERED.
- Posts
- 67,809
- Location
- halfway between here and there.
DIFFLOCK66
Well-Known Member
- Posts
- 3,249
- Location
- Chipping, Lancashire
Ratty's correct about my engine: No water cooling for the EGR valve. Just waiting for the kit to arrive... bolts liberally sprayed with WD40 as I type
Sorry for the thread hijack too!
Diff.
Sorry for the thread hijack too!
Diff.
