Door Card Clips

domderbyshire · Sep 15, 2017

Afternoon, All.

I took my door card off to rectify a lock issue and, predictably, most of the black plastic fasteners broke. I ordered some more, but they don't work as the circular aperture has too great a diameter. The part number was MXC1800.

When I compared them to the old clips, I could see the diameter of the circular aperture was smaller in the original fasteners.

My truck is a 1993 Defender 90. Does anyone know the part number of the right fasteners?

Many thanks,

Dom

jamesmartin · Sep 15, 2017

mxc1800 is the correct number are your original black

domderbyshire · Sep 15, 2017

Yes, they are.

jamesmartin · Sep 15, 2017

do they fit even if they are a bit loose

domderbyshire · Sep 15, 2017

Not really. There's no way I could refit the door card without them dropping off and I don't think they'd hold the card in place.

Litch · Sep 15, 2017

I had a similar issue recently but resolved it by replacing the white inserts, no problems after that.
The original ones were just old and worn.

domderbyshire · Sep 15, 2017

Thanks for that. The white inserts are fine. It's strange that the two black fasteners I managed to save have a smaller diameter circular recess than the new ones, which just pull straight off the plastic buttons on the inside of the door card.

domderbyshire · Sep 15, 2017

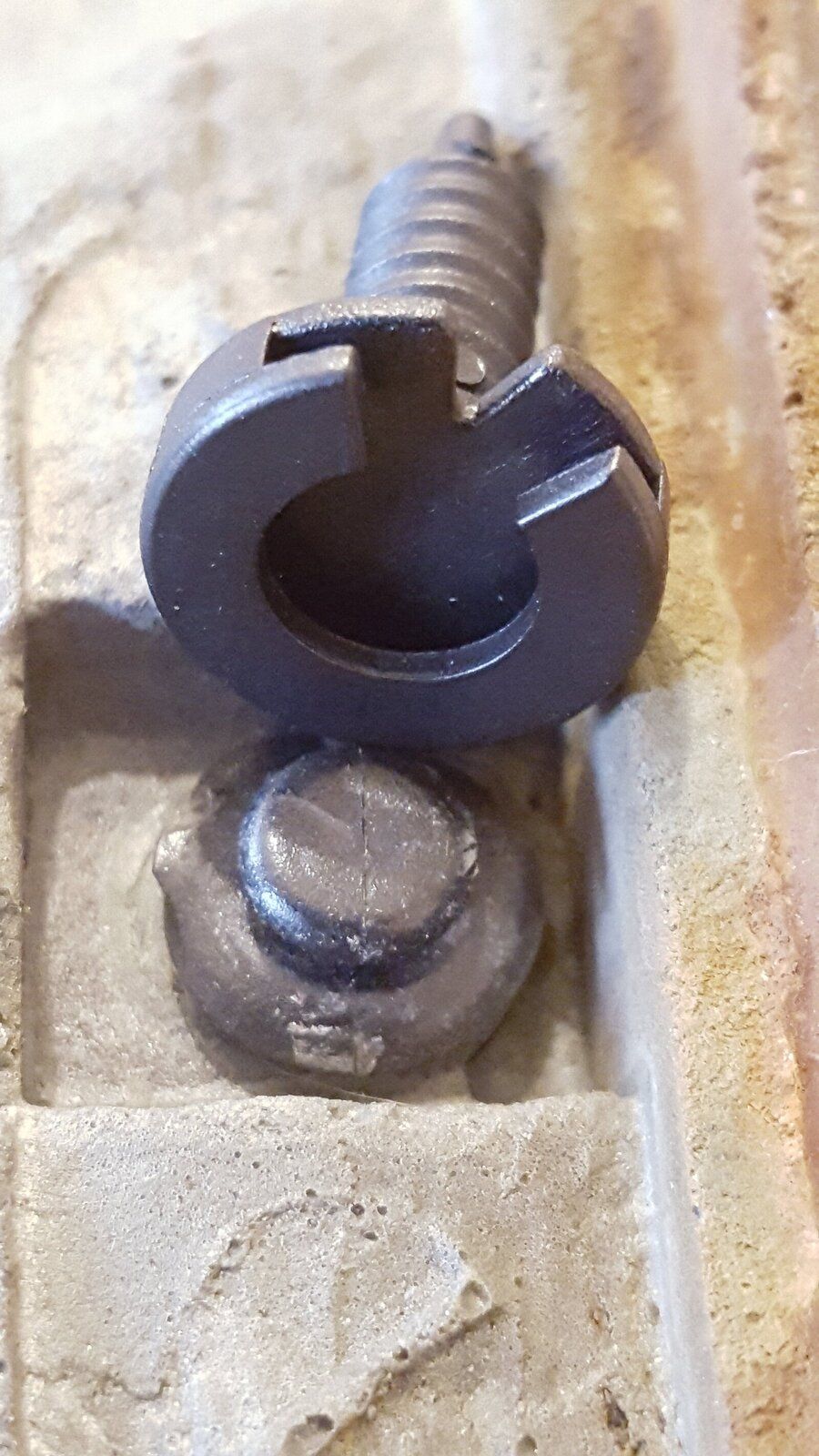

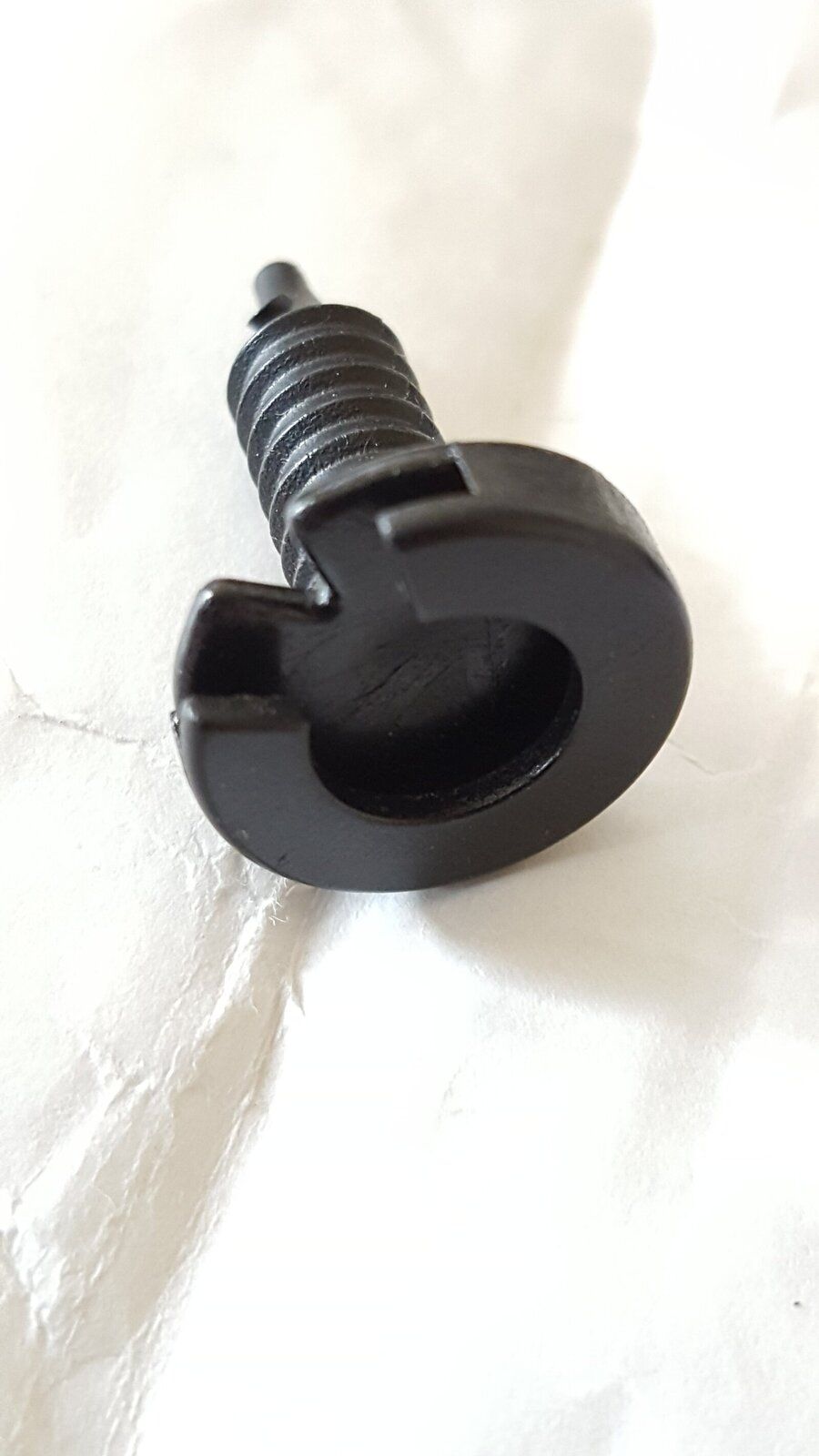

Above, you can see the problem.

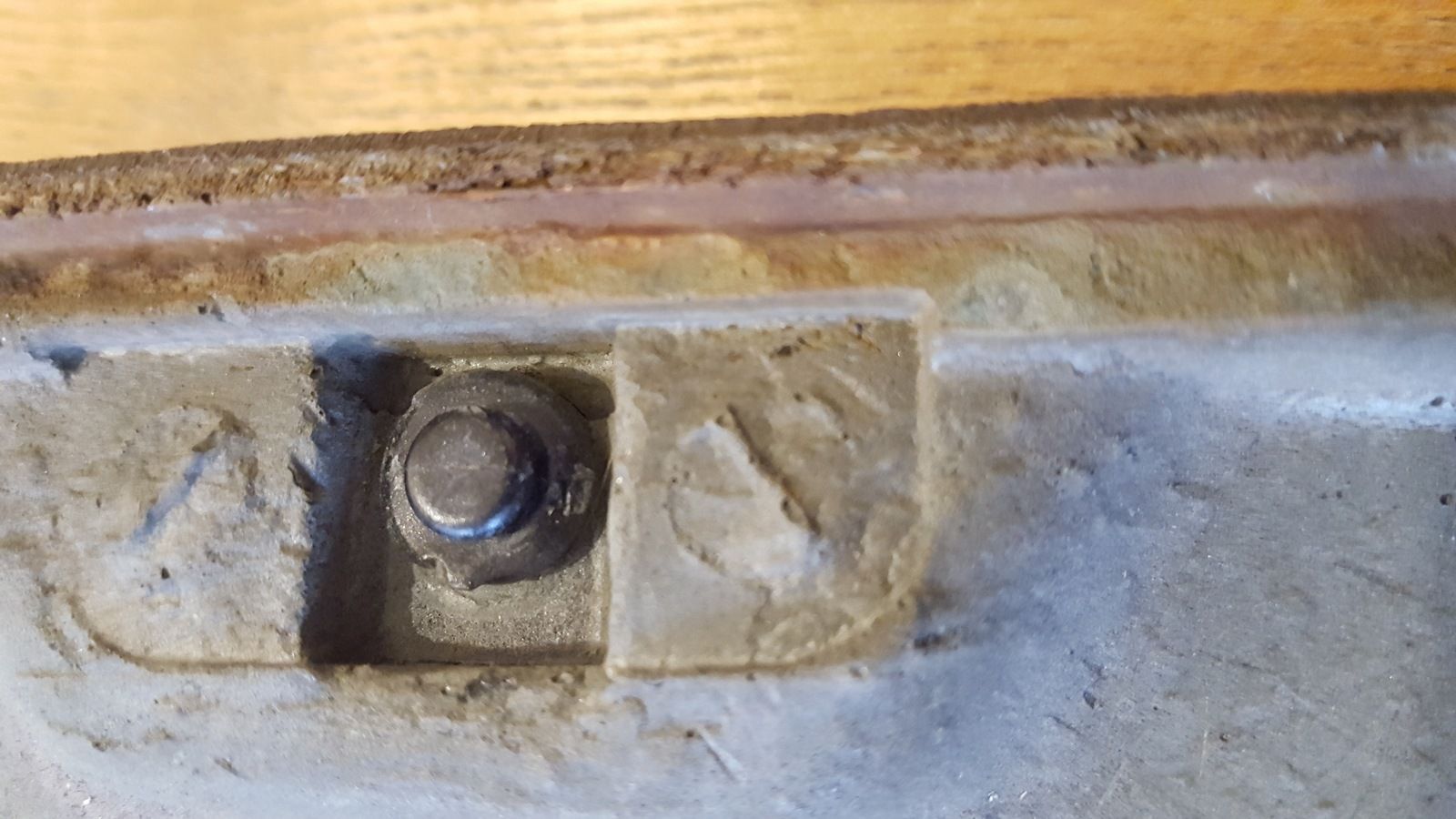

Here is a shot of the receiver on the door card:

Al2O3 · Sep 15, 2017

I've got a couple of packets of those anorl.
Had to reorder

domderbyshire · Sep 21, 2017

Update: I ordered some more clips from a different supplier and they fit. They're the same part number. Go figure....
