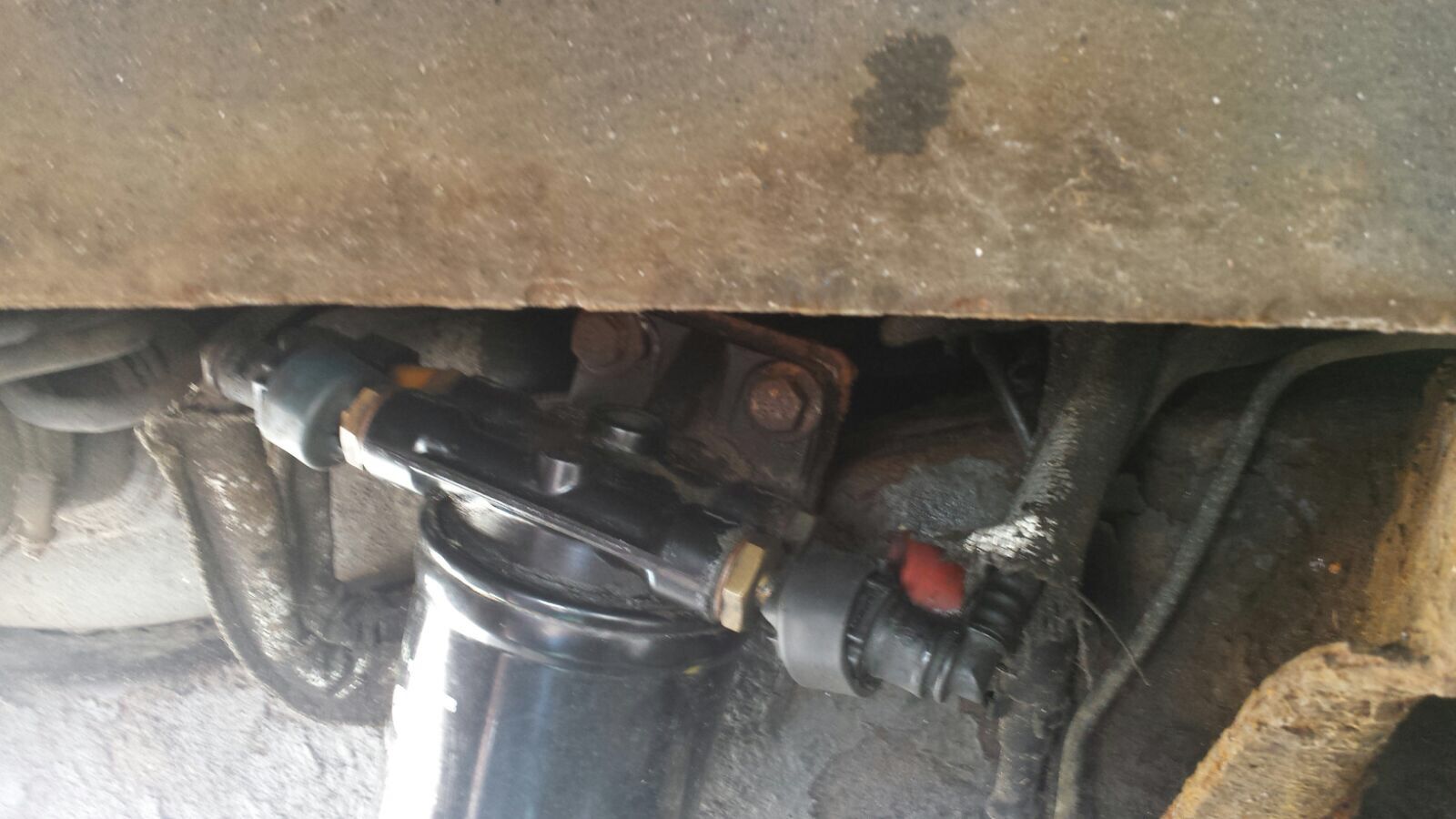

I have just replaced the 4 lines from the tank and the girl won't start Have been trying for 3 days now. Can anyone help with the layout and colours of the lines going to the filter as I am now not 100% sure I have connected them up correctly. The attached photo is what I have connected up to fuel pump. The green line is connected to a fitting under the chassis. I hear the fuel pump working when I run it through the auto bleed routine, but don't know how to check it is getting fuel.
.
Discovery 2 Fuel lines from tank to fuel filter
- Thread starter Roblister
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
jamesmartin
Well-Known Member
- Posts
- 91,879
- Location
- louth lincs
tank is correct green does go to the line along the chassis as is feed to the fpr
white goes to rear outer fitting on filter head ,black front outer fitting ,blue rear inner fitting and front inner fitting is return from fpr, undoing the filter drain and having a constant flow with ignition on shows low pressure side is feeding the filter
white goes to rear outer fitting on filter head ,black front outer fitting ,blue rear inner fitting and front inner fitting is return from fpr, undoing the filter drain and having a constant flow with ignition on shows low pressure side is feeding the filter
MuddyMat
New Member
- Posts
- 7
- Location
- Canterbury, Kent
Hi... quick question... were you able to change these lines without dropping the tank down? Can you just wiggle them into place and connect them up ?
thanks
M
thanks
M
