Disco Bobtail home build

GreenHornet · Jun 23, 2012

Monday night, is in my diary!

Matt Baxter · Jun 23, 2012

Paul D said:
Looks a lot better at the 'right' height ..

Whilst you're there with easy (ish) access, obviously it can't be refitted with the ARB's anyway, so I'd suggest you remove all traces of them from the chassis and axle ... When mine went through the last MOT I'd forgot to put them back on and it failed! Where a vehicle originally has AntiRollBars fitted it must have them to pass, apparently!

'course, if you have a 'tame' or friendlt mot man this might be a moot point.

Dunno if others have had this issue or whether it's just me they dislike ...

As far as the manual goes its something along the lines of IF a vehicle known to be fitted with anti roll bars as standard then they must be fitted, buttttt how the hell would I know if it was fitted as standard on every different model so would struggle to fail a motor unless I knew 100% then I would have to pass and advise

Matt Baxter · Jun 23, 2012

Not much left for me to do now, make up body mounts( both chassis and body)cap chassis ends chop and reweld exhaust,find then plumbe fuel tank, final fit the bumper, them loads of underseal, think that's about so another few hours will have it sorted and back in the mud!!

Then Mark can get cracking on the paintwork!!

Matt Baxter · Jun 23, 2012

What about adding a pair of these

2 x Recovery Eyes/Weld on Recovery Rings warn 8274 winch off road gwynlewis4x4

You can never have too many recovery points

Matt Baxter · Jun 23, 2012

Can't get link to copy over on me phone

eBay item no 170776967221

Paul D · Jun 23, 2012

Matt Baxter said:
As far as the manual goes its something along the lines of IF a vehicle known to be fitted with anti roll bars as standard then they must be fitted, buttttt how the hell would I know if it was fitted as standard on every different model so would struggle to fail a motor unless I knew 100% then I would have to pass and advise

Only going by my local MOT man .. but to me it's pretty obvious what the brackets are for ...

Paul D · Jun 23, 2012

Matt Baxter said:
What about adding a pair of these

2 x Recovery Eyes/Weld on Recovery Rings warn 8274 winch off road gwynlewis4x4

You can never have too many recovery points

Probably anything by GwynLewis is pretty good, and the ebay listing gives good advice about 'em ...

They're way better than the 36mm swivels that many people fit .. 200780710659 .. forgetting how little metal there is actually holding the swivels on when under recovery tension, especially if at an angle!!

Matt Baxter · Jun 23, 2012

Paul D said:
Only going by my local MOT man .. but to me it's pretty obvious what the brackets are for ...

Totally agree mate but there are some cars that left the factory without arb fitted( Renault clios are one)so even if you removed just the arb the tester would have to be 100% sure it's been removed as opposed too never fitted!

gummy bear · Jun 29, 2012

Hi all
Just to let u know,we havnt given up on disco

Just ran out of time the last week and hoping to get on it during day's next week.
Gotta say a big thankyou to Matt Baxter as altho I havnt had much time in last week he's been out there on his own doing lots of fab and welding work(cheers mate)
Also thanks to Ian for helping me get what was left of Salisbury plain out of top of gearbox

Will update soon with more pics and progress.

Matt Baxter · Jun 29, 2012

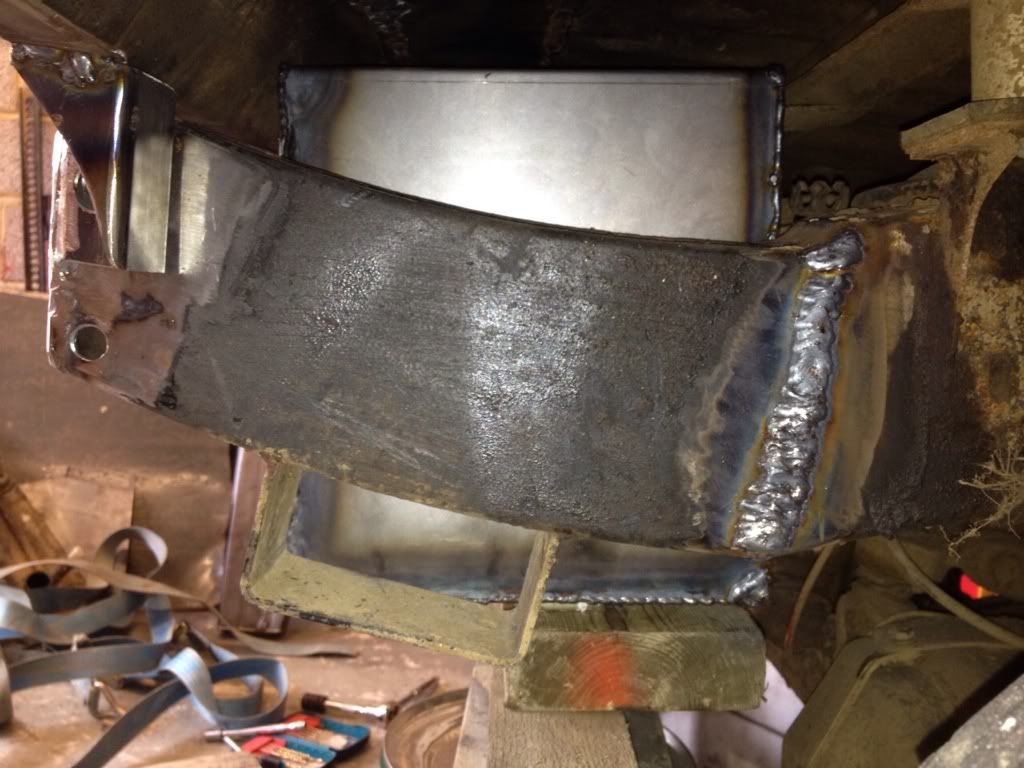

Well the fuel tank is all welded up and "pressure tested"

just need the filler neck and pipework so we can fit it up for the last time so I'm now waiting for stuff to weld :bored:

The bumper is finished and fitted although I will remove/refit it when we get the metal to make and fit the tank guard.

not a lot left to do now just a shame I'm off on holiday on sunday morning :dance:

and we want it back out and in the mud for next weekend (08/07) so will be cutting it fine but its doable with a little help!

Paul D · Jun 29, 2012

Looks way better at the back now ..

gummy bear · Jul 12, 2012

Hi all
After a hectic couple of weeks its time for update
havnt had a great deal of time spare lately but luckily its at matts and he gets bored easily

so we have made progress.

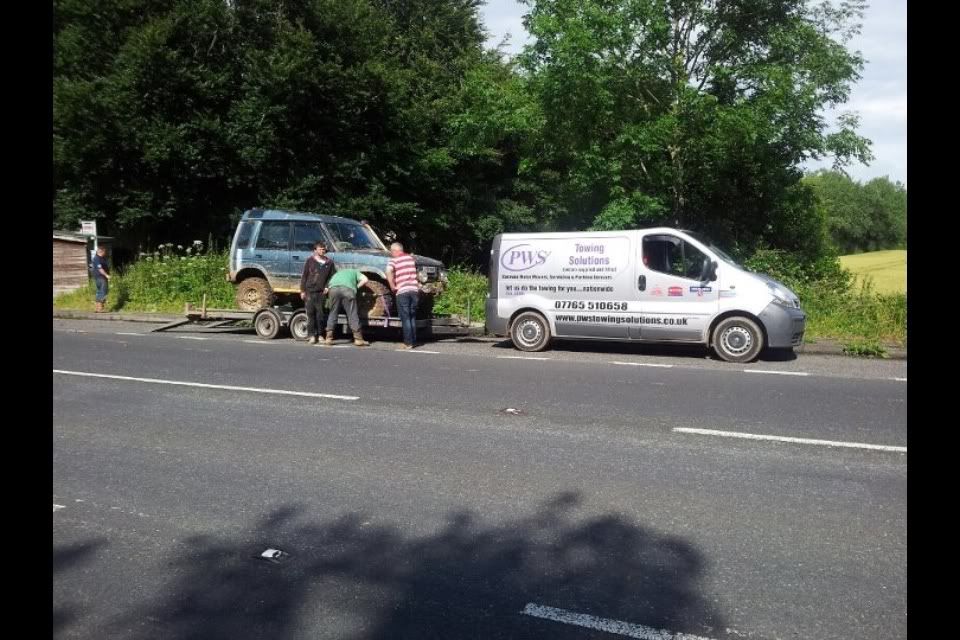

so much so that we took it down to the new thamesvalley4x4 site at winchester on the 8th
unfortunately its not finished so had to go on trailer but once there it performed like a dream.
anyway,jobs done....
fuel tank custom made (by matt ) thanks to ian for stepping in when matt popped to majorca for a few days and welding the filler pipe into tank,oh and the signature obviously

rear bumper fitted,inc nato hitch
clear perspex cut to fit side windows and heated and bent for roof windows(worked a treat)
lots of interior trim re cut and back in but still alot to go

plus lots of other little jobs.
we lost quite abit of time on the fuel tank (my fault ) as i really really wanted to use the space under what is left of the boot between chassis rails as i didnt want to follow usual root and have cans/tank in boot as i usually have wife and kids with me when playing so wanted the room and also didnt wanna risk diesel smell in car.
we eventually made a tank (obviously we pressure tested it ) and managed to to fit my original snder unit/swirlpot.the gauge is working but not quite sure how accurate yet.
the filler is now below rear light (to be moved above light ) and is made from a jerry can neck as i was gonna buy a chrome filler and then decided a jerry can would look part as car will be painted nato green and satin black camo when finished.

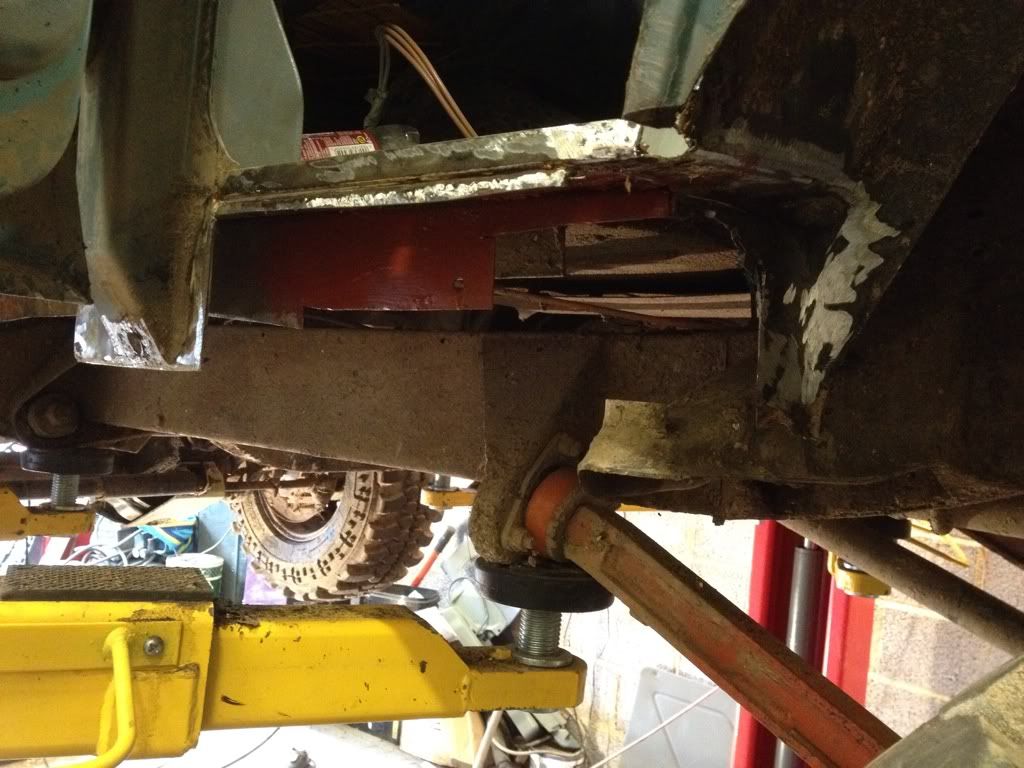

fuel tank between chassis rails

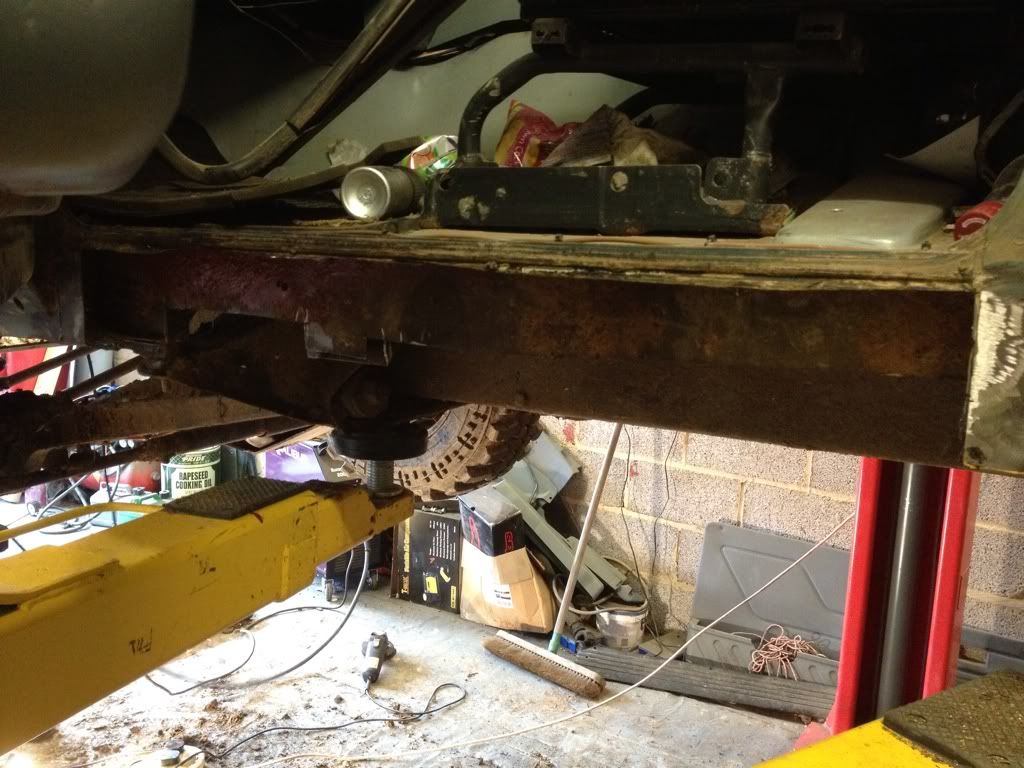

sills cut out to be replaced by 60x120 steel box

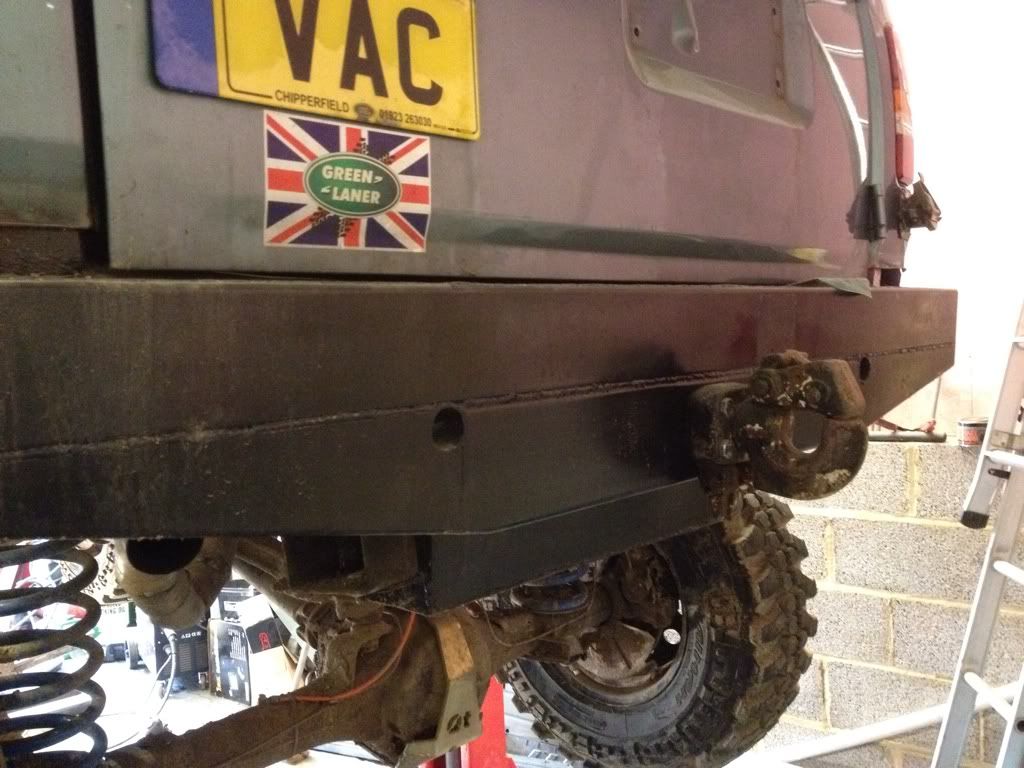

the pretty much finished custommade rear bumper.you can just see the tank which will have a guard fitted soon
matt hard at it prparing the front chassis rails to take the custom made front bumper and winch tray

Cheers to pete for the Towing the trailer back for me and giving matts disco a rest lol

Matt Baxter · Jul 12, 2012

This is the body mount for the nsr
LANDROVER DISCOVERY/RANGE ROVER NEW BODY MOUNTS | eBay

this is the diff guard/ pan I was on about also

Land Rover Weld on Diff Pan DIY Heavy Duty gwynlewis4x4 | eBay

THE BUDDAH · Jul 13, 2012

I wish i used a deeper box section, but then i only paid £25 for the two sections to make up the sills.

Great thread by the way.

gummy bear · Jul 13, 2012

Cheers : )

Matt Baxter · Jul 14, 2012

You ordered any metal yet so I can crack on with the mammoth welding job!!
When are we doing the front bumper then?

Matt Baxter · Jul 28, 2012

well after removing all the rot from the sills etc

we cracked on buy replacing them with 60x100 3mm thick box was a ****e job but at least its done now

bit stronger than the paper thin metal we removed

repair to the b pillar

repair in arches +body mount

n/s sill al done

the start of the new front winch bumper

oh and quick pic of me new wheels

Matt Baxter · Jul 29, 2012

Well the front bumpers all done and ready for the mountings to be done tomorrow.

looks pretty good imo

gummy bear · Jul 30, 2012

lr-90 · Jul 30, 2012

It is looking good mate

Sent from my i phone using Tapatalk
