disco 4 none starter

gstuart · Mar 17, 2018

also here is a wiring diagram showing connector locations and loom routes which may be of use to u

if u get stuck just shout and can indeed see what i can find for u

gstuart · Mar 17, 2018

@melox2 if u get really stuck ref wiring this is another source

just register and introduce urself and then ask ref the module etc

https://www.disco3.co.uk/forum/

lynall · Mar 17, 2018

melox2 said:
Thought i would give a update on progress, not sorted the issue yet mainly due to not enough time to look at in depth ,but i have purchased the Gap IIdtool bt and done a fault search then contacted gap tech team ,they got me to email the fault codes direct to them from the device which is cool and patrick from gap replied very quickly with what he thought the problem was and with a electrical diagram to help fault find .
Its good when you get a company that gives this kind of service so hopefully will get to the bottom of the issue ,see below the reply from gap

P0607-00 Control Module Performance - No sub type information
Corrupt engine control module software
Engine control module power supply fault
Engine control module failure
Using the manufacturer approved diagnostic system, re-configure the engine control module with the latest level software
Refer to the electrical circuit diagrams and check the engine control module power supply for open circuit. Repair wiring harness as required.

Since this car has been in an accident, a wire or fuse issue is more plausible. Wiring attached.

Same goes for the Ambient air temperature sensor fault.

This may be of no help at all, but as the disco underbonnet fuse box has quite a few slots unused if theres any fuses been put in them it may casue issues.
We have had the exact same issues where drivers think they are doing good by placing fuses in the empty slots bringing up engine/ecu faults.

melox2 · Mar 17, 2018

will take your advice and look at the items mentioned thanks , no probs with taking photos when i have a mo but of which areas ?

melox2 · Mar 17, 2018

just seen your other replies gstuart really appreciate your input and wiring diagram and thanks to all the other members who have given advice, with reference to it might be a fuse issue which ones should be checked ?

gstuart · Mar 17, 2018

melox2 said:
will take your advice and look at the items mentioned thanks , no probs with taking photos when i have a mo but of which areas ?

was out of curiosity plse ref damaged area etc,

hope the info can be of use and u get it resolved , unfortunately mines a D3 so don’t know what kind of different systems the D4 has , apart from more wiring , lol

plse let us know how u get on

lynall · Mar 17, 2018

melox2 said:
just seen your other replies gstuart really appreciate your input and wiring diagram and thanks to all the other members who have given advice, with reference to it might be a fuse issue which ones should be checked ?

Check them all as like many modern vehicles lots of the system are tied into each other.

melox2 · Aug 19, 2018

Right I know people will think as he still not sorted that car but it’s been put to one side till a few weeks ago due to just being to busy to sort,

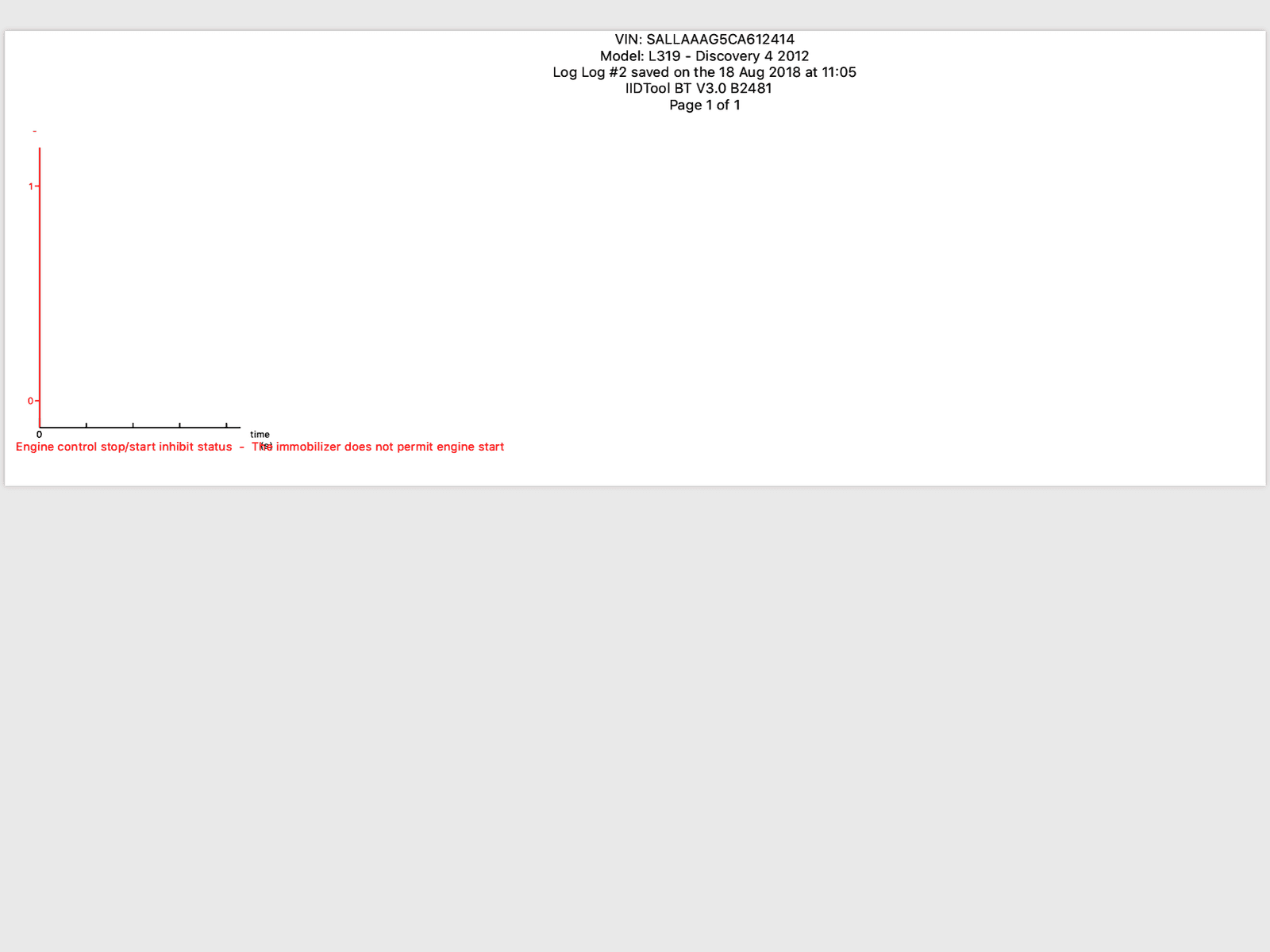

Still not sorted the start issue but with the gap tool I got this info attached after a plug in but not sure what it means or how to solve it

Nodge68 · Aug 25, 2018

melox2 said:
Still not sorted the start issue but with the gap tool I got this info attached after a plug in but not sure what it means or how to solve it View attachment 156034

It's showing the immobilizer is active. Are you sure the transponder ring is working? I'd do a resistance check to make sure.
