Disco 1 speakers

discool · Jun 6, 2010

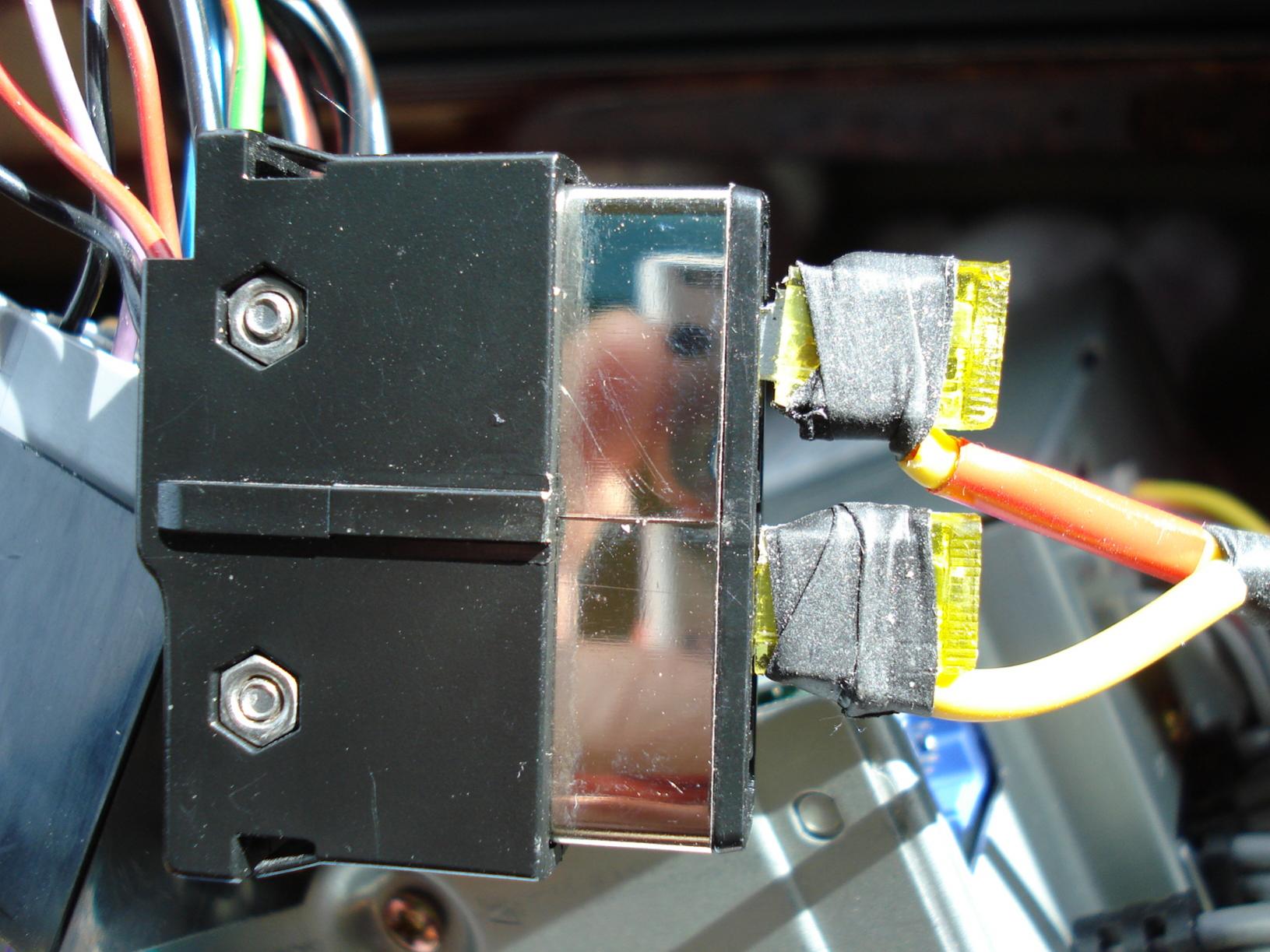

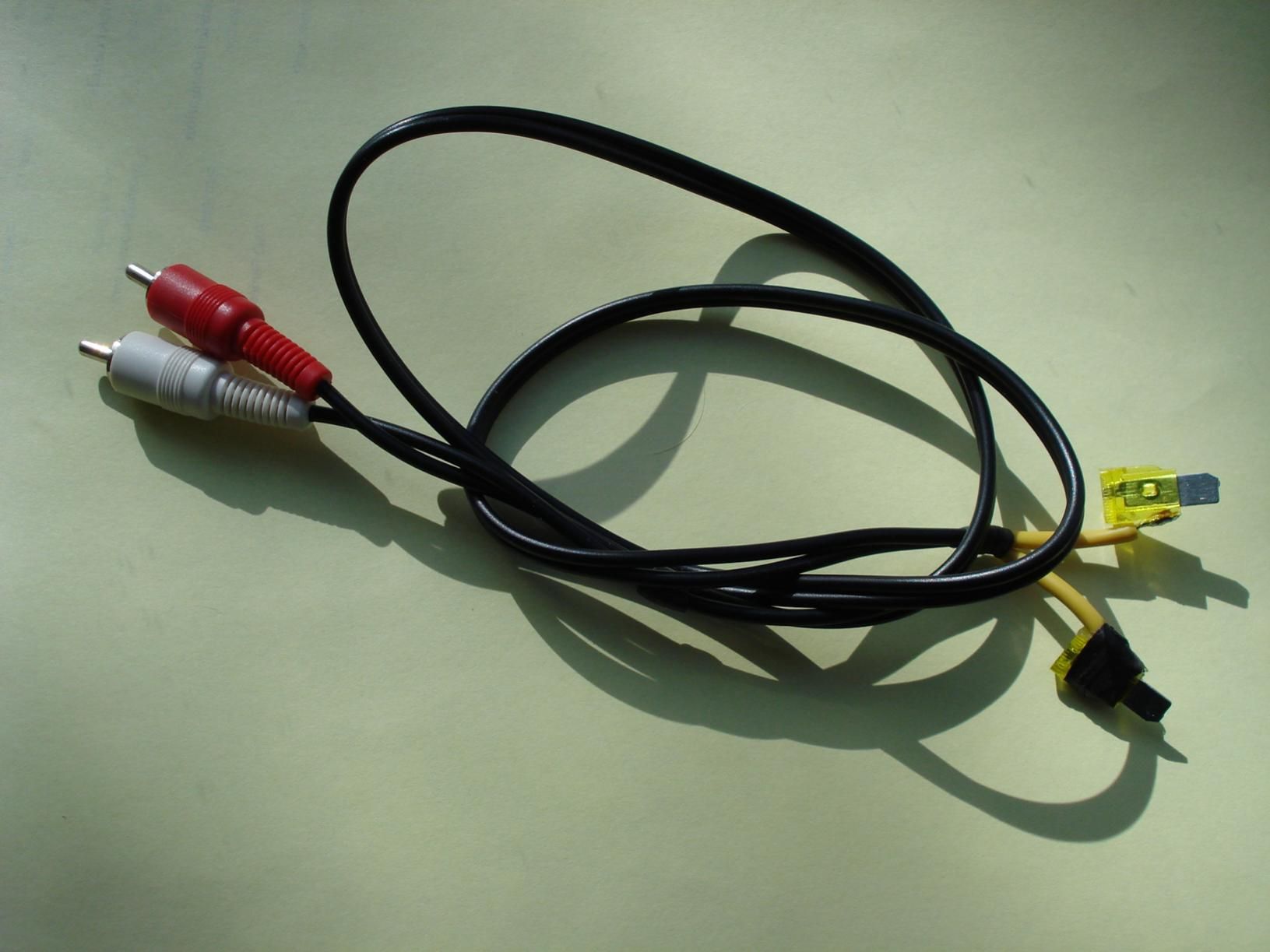

Make up a patch lead to connect from your pink plug to the pre-amp output at the rear of the head unit to get the audio signal to the sub amp in the back door, the amp also requires two 12v supplies permanant and switched which should be found in the other plug.

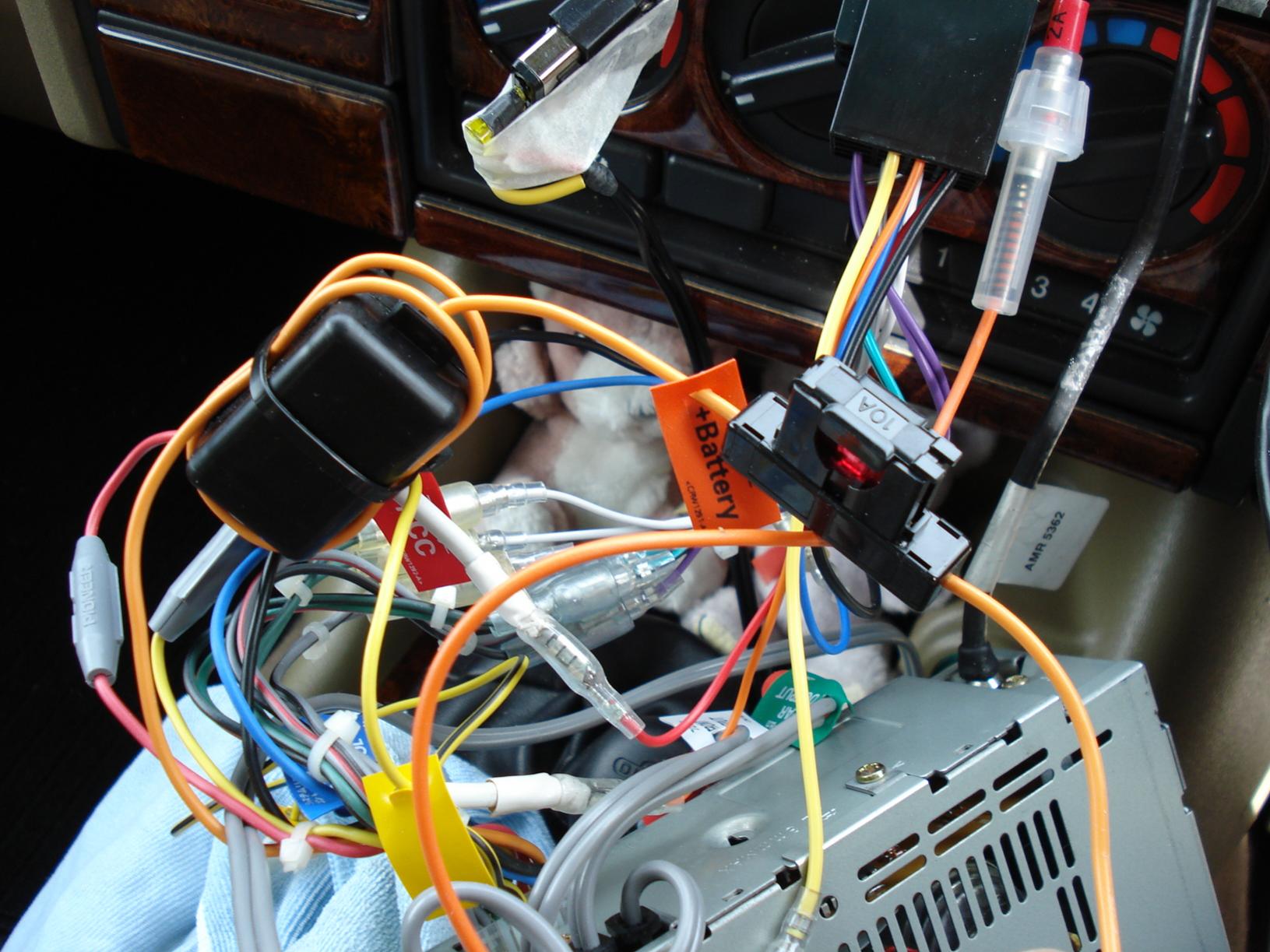

I had a few wires to connect to my Pioneer unit and put away.

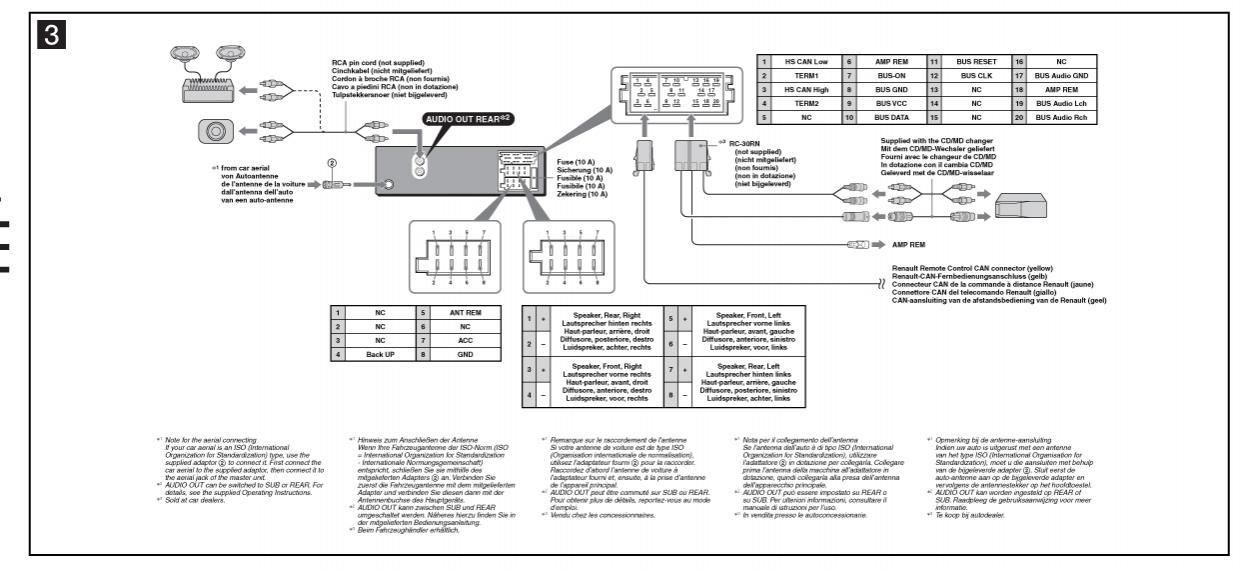

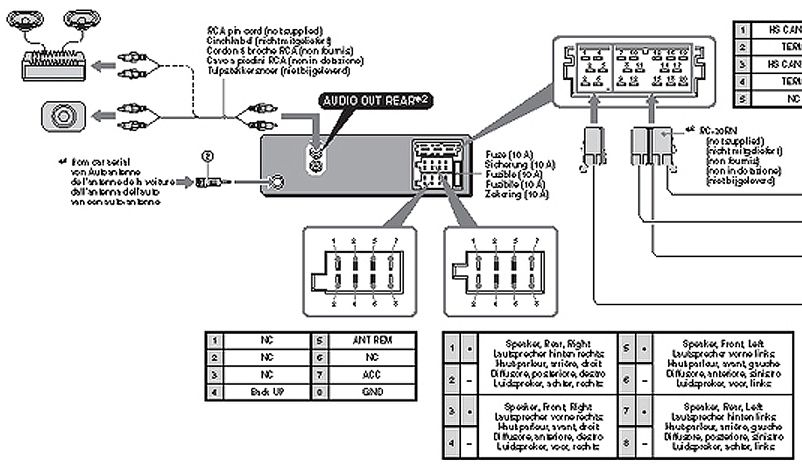

My audio plug is a bit different as shown.

numptey_head · Jun 6, 2010

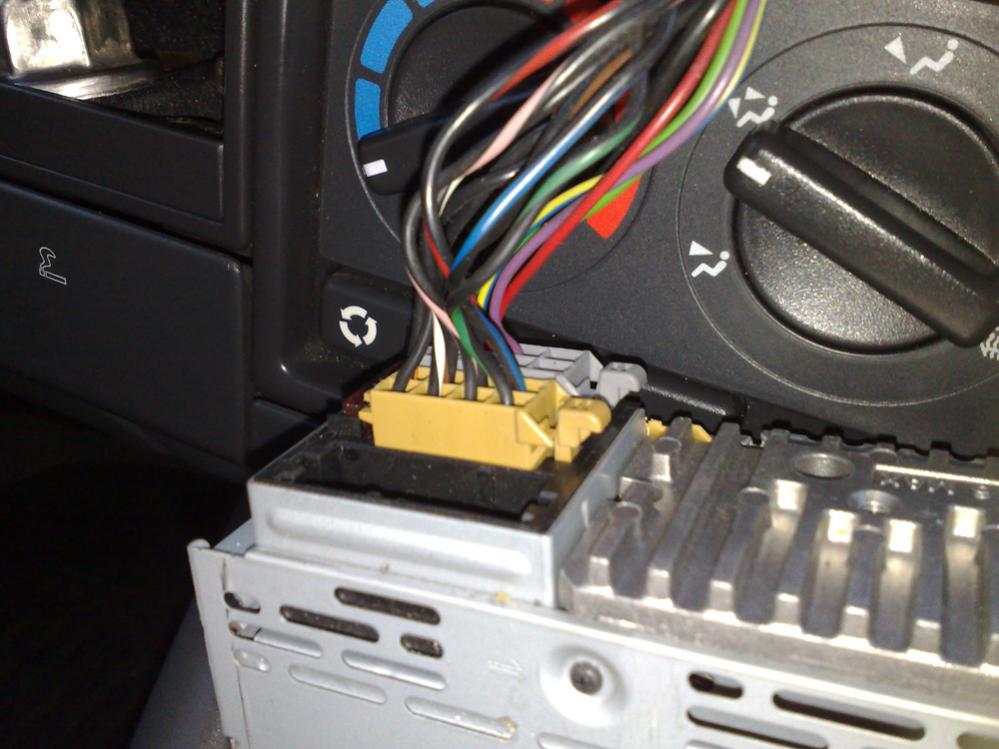

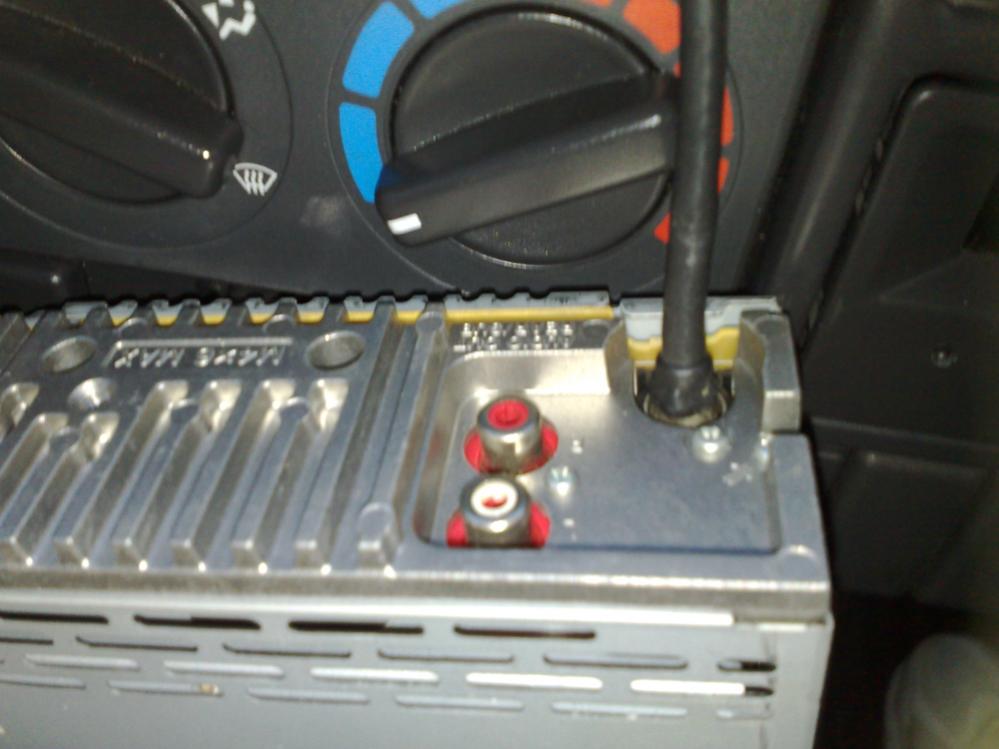

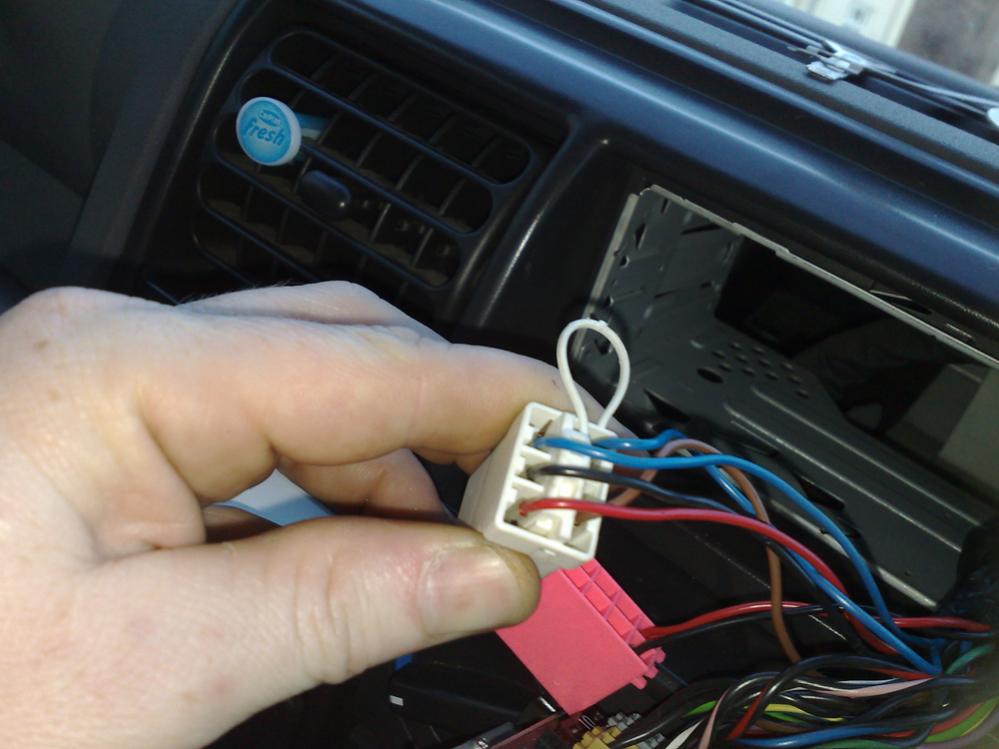

So, do I need to attch the red and black wires from the pink block to an RCA connector them plug into the pre amp output. The wires for the 12v supply, are they in the white block in picture 1 or are they in the grey block in picture 2? Where do I connect these wires? Lastly, do I need to connect to both outputs or is one for sub and one for amp? I get a bit lost if it goes further than plugging in the multiplug at the back,lol.

Thanks for your patience, John

Pikey · Jun 6, 2010

Do a search FFS!!

numptey_head · Jun 6, 2010

Thanks for the help Red ........................... NOT!

John

Pikey · Jun 6, 2010

numptey_head said:
Thanks for the help Red ........................... NOT!

John

Oh I'm sorry I didn't realise that You were A: the first discovery 1 owner to have this problem. Or B: exempt from having to do a quick search thru the forum to see if anyone else had asked or answered your questions already!!

Mind yu been Irish. you probably think the world owes you a favour and you shouldn't have to put any effort into finding the answers your looking for..

Tosser

numptey_head · Jun 6, 2010

I do not wish to get into a slanging match red, I know dick all about car electrics and I am trying to solve what to you may seem like a simple problem. Maybe if you gave me advice instead of attitude I would have this solved by now.

Thanks for all your good advice mate, and by the way, I'M BRITISH, and an ex BRITISH soldier, but I wouldn't expect you to understand the complexities of the situation here.

John

Pikey · Jun 6, 2010

numptey_head said:
I do not wish to get into a slanging match red, I know dick all about car electrics and I am trying solve solve what to you may seem like a simple problem. Maybe if you gave me advice instead of attitude I would have this solved by now.

Thanks for all your good advice mate, and by the way, I'M BRITISH, and an ex BRITISH soldier, but I wouldn't expect you to understand the complexities of the situation here.

John

I did give you advice. obviously not the advice you wanted though. Do a search it's been covered loads of times. I've even posted a link to an ebay seller that sells the rca connector you need.

And as for understanding the situation in Ulster I probably understand a lot more than you realise. My father been born and raised on the Shankhill. Although his view was a little one sided..

numptey_head · Jun 6, 2010

Sorry Red, just this is doing my head in, It is most likely an easy fix but as I said, I'm no wiring expert. The missus is also giving me earache for spending so long on the forums, lol. The disco is hers as I ride bikes so she won't let me feck about with it unless I know what I'm doing (bloody women). I have searched this forum and other ones too and get a lot of conflicting info. Please accept my apologies.

John

sp33der · Jun 6, 2010

Sometimes it's hard to find specific threads - titles vary so much and wording is different so certainly in my case, after a fruitless search, I often find it easier to start a new thread. Then, often, a helpful member will post a link to a previous thread or two. Doesn't do any harm and keeps the forum active.

numptey_head · Jun 8, 2010

Thanks for putting it in context sp33der. You must have read my mind. Newbies take a while to find their feet on these forums.

Thank you.

numptey_head · Jun 8, 2010

Thanks to everyone that has offered help and advice. One last thing, I need to find out how to connect the sub up to be switched by the 12v switching wire. The sub works great from the radio but not at all when in cd mode. I believe this is because the head unit turns off the power to the antenna when playing cds.

Thanks again everyone, John

dollydisco · Jun 13, 2010

this is correct, if you have an aftermarket head unit, there should be another feed wire for this, its normally blue/blue and white.failing this, just run a wire from any ignition live , as its only a small 12v 2 amp draw.

Phil_P · Jun 13, 2010

on an aftermarket head unit the blue/white cable is for a powered antennea and the solid blue wire is to send power to the amp (if applicable) to turn it on!

Pyper28 · Jun 13, 2010

Just run a amp + sub in the boot not to big mind coz you wont be able to get the seats out, when i bought my landy a young lad had and put some silver/blue speakers in place of standard ones they sound dreadful very tinny, went down to scrappy and got 4 standard ones much better!

stretchie_ · Oct 21, 2010

dollydisco said:
No he won't have tweeters as standard in a disco 1. You need to get tweeters from maplins and you need one crossover per side, I have 4 speakers, 4 tweeters, 4 crossovers in mine, one of each at each corner mate

Got any pics?
