Freelander 1 Disaster

Andy Warren · Sep 20, 2022

andyfreelandy said:
How is this going @Andy Warren ???

More similar problems are appearing.

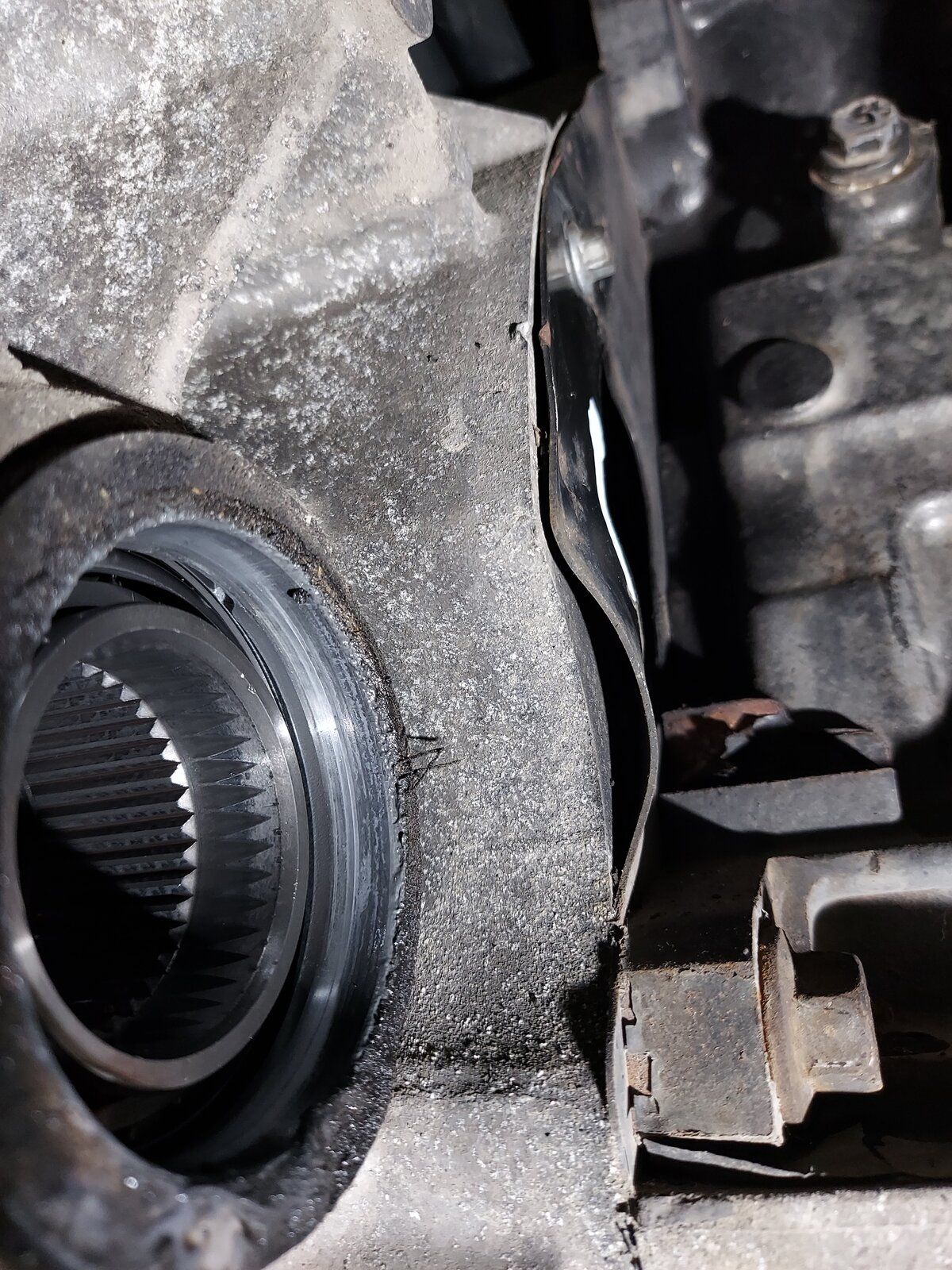

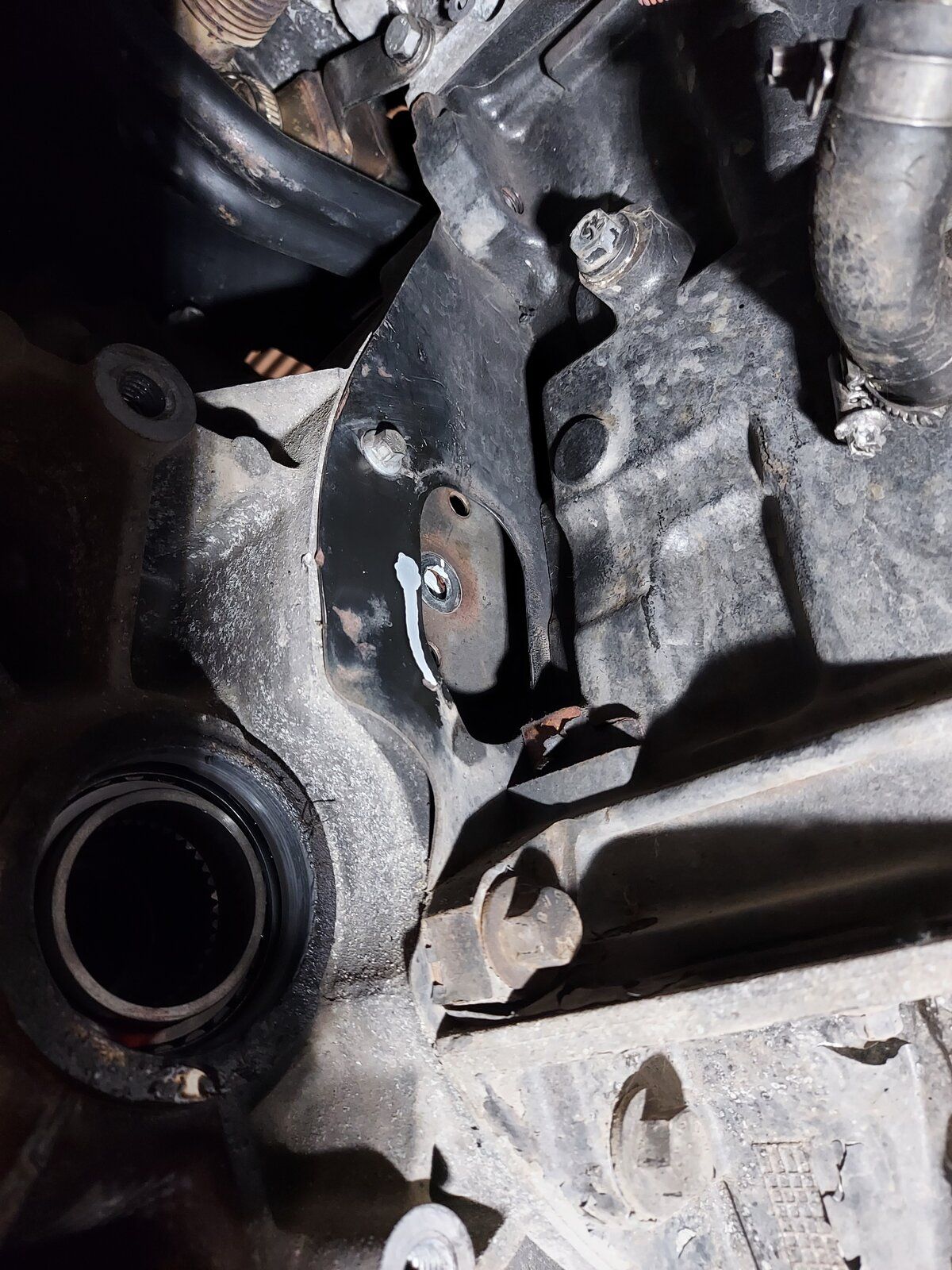

Hi, I'm glad you asked rather slowly due to one thing & another. I've got the IRD out & just today I've removed torque converter bolts & slackened the remaining bell housing bolts so I'm nearly ready to get the g/box out. The engine or g/box must have been out before as the closure plate is kinked (see pic).
A question if I may, will the torque converter come out with the g/box or does it try & drop out if you're not careful? I have no doubt I'll have more questions when the box is out

.All the best.

pwood999 · Sep 20, 2022

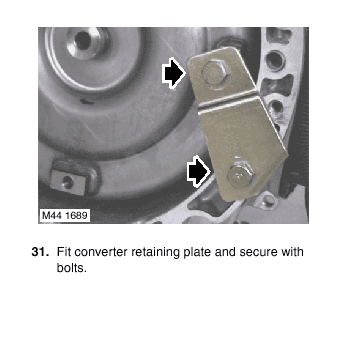

Ideally it should come out with the gearbox. I made a simple bracket to hold the TC into the gearbox, similar to the LR tool.

andyfreelandy · Sep 20, 2022

As long as you don't up end the box and shake it, it will stay in place!!

Andy Warren · Sep 20, 2022

pwood999 said:
Ideally it should come out with the gearbox. I made a simple bracket to hold the TC into the gearbox, similar to the LR tool.

View attachment 274360

Hi, thanks I had seen it mentioned in the video that @andyfreelandy posted & I'll have to knock something up for reassembly but was hoping I didn't need one for disassembly. I'll see how it goes, hopefully at the weekend when I can get some help.

Andy Warren · Sep 20, 2022

andyfreelandy said:
As long as you don't up end the box and shake it, it will stay in place!!

I'll try not to. I've still got a couple of avenues to explore for an engine crane which by the looks of it will make life a lot easier

.
