L322 Diagnostic error codes

backinblack said:

Don't think they were fitted to cars with HID's so you may not find one
The height sensors will have 6 wires if the car has one. If there are only 3 wires it won't have one.

Click to expand...

backinblack said:

You'll soon find out when you look at the bulbs

Click to expand...

biketeacherdave said:

It's fitted all right I had the exact same issue had me going around in circles for a while. My module sufferd water damage from a tiny leak top of the windscreen .
They all have them fitted.

Click to expand...

biketeacherdave said:

It's fitted all right I had the exact same issue had me going around in circles for a while. My module sufferd water damage from a tiny leak top of the windscreen .
They all have them fitted.

Click to expand...

backinblack said:

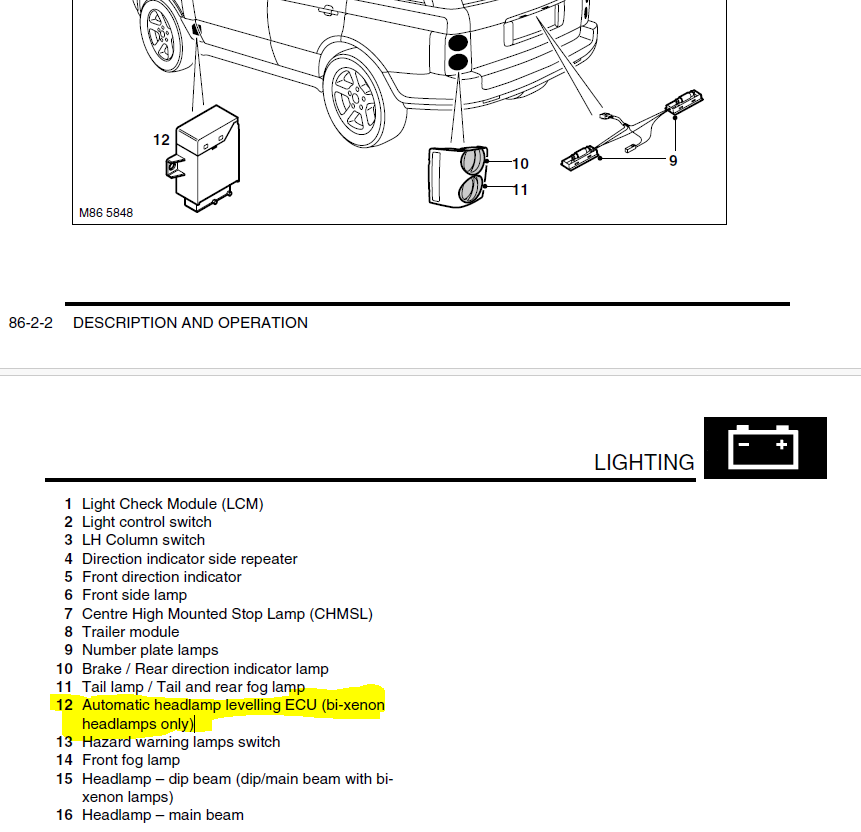

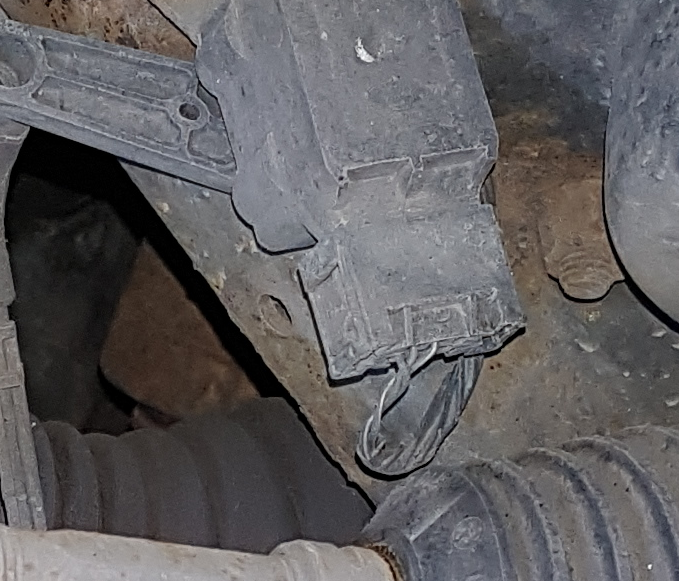

Not according to Rave. That's why some sensors have 3 wires and some have 6. Mine only has 3.

View attachment 333868

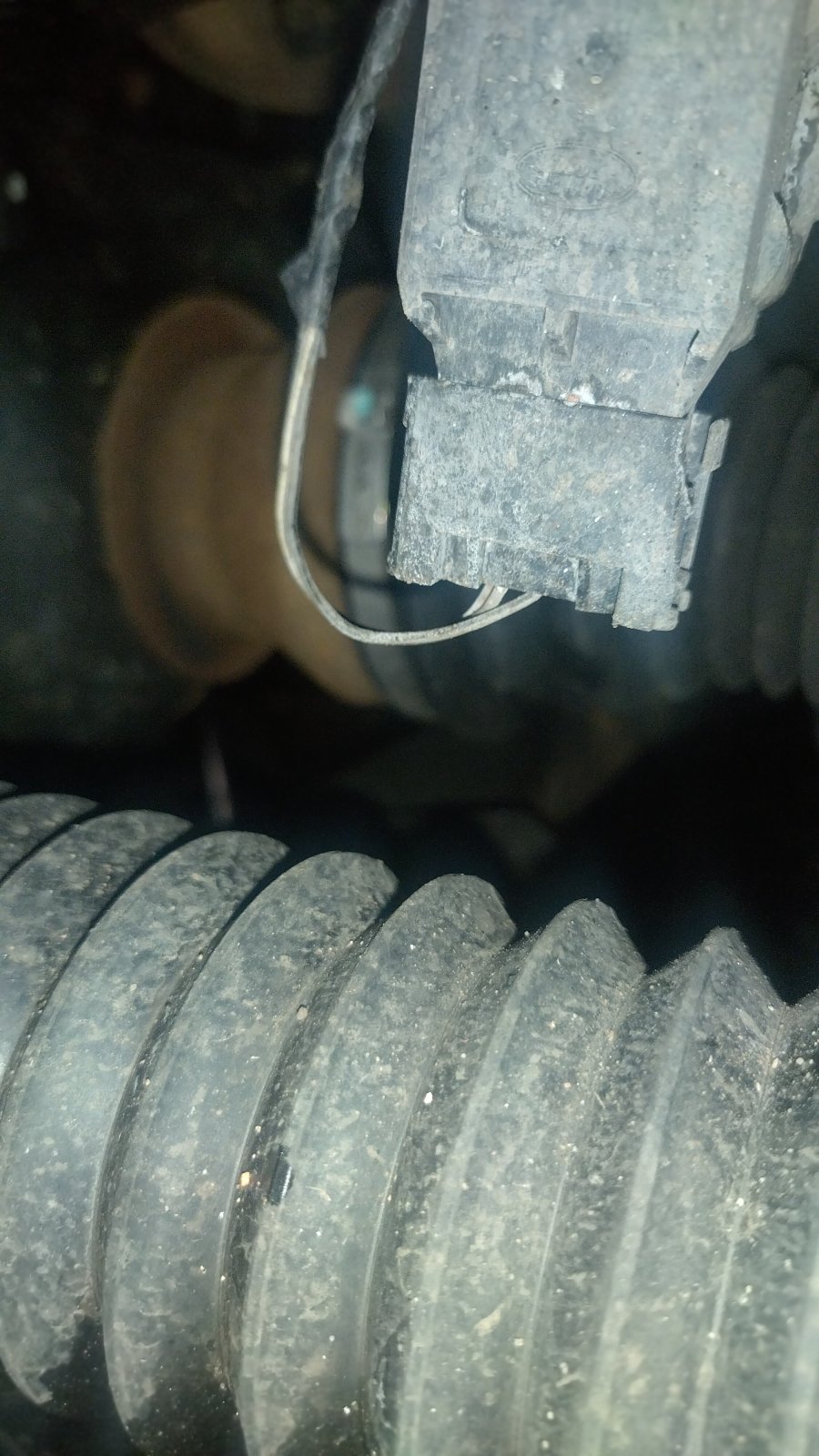

Just checked mine , it seems to have only 3 wires



View attachment 333867

Click to expand...

biketeacherdave said:

Mine does not self level the headlights so to speak, it is however a check of the headlights height in relation to the cars height.....air suspension, self levelling blah blah .

It takes 5 mins to pull the unit and check it.

Click to expand...

kermit_rr said:

Bi zenon.. that's code for HID? Pretty sure mine doesn't level the headlights

Click to expand...

marjon said:

On ignition on lamp test do you have this on the dash, Left hand side lower for me but being LHD yours may be a right hand side.

Click to expand...

kermit_rr said:

i dont have the adaptive/cornering headlights

Click to expand...

LR-hobbs said:

Where is the unit located? Judging by that picture is it behind the wheel arch or in the foot well?

Click to expand...

marjon said:

You sure (pic of headlight somewhere else so as not change the fred here).

J

Click to expand...

kermit_rr said:

i'm sure, i dont have 'cornering lights' either - the respective fog lamp doesnt come on when i turn the wheel

Click to expand...

marjon said:

Have a read of this its a 2007-2010 manual so not sure it will be good for a 2005.
But yes behind the trim A pillar area (from inside)
I've just removed the kick panel , trying to guess based on that picture and there's nothing there.

However if you see the blue wiring It looks like something has been cut out and tapped up in black electric tape

J

Click to expand...

biketeacherdave said:

I don't have adaptive counting headlights either but I do have the headlight self leveling headlight module.
It's located passenger footwear, pull the kick panel off and it's up on the left just a little bit.

Click to expand...

biketeacherdave said:

I don't have adaptive counting headlights either but I do have the headlight self leveling headlight module.
It's located passenger footwear, pull the kick panel off and it's up on the left just a little bit.

Click to expand...
