Day Time Running Lights (DRL's) made easy... Part 2

Okay, please bare with me while I do the following.
I'm about to troll my photo's to give an indication of what I have done and what I'm doing.
Here goes...





Now, here's the irony. While putting all the photo's onto LandyZone, my house has suffered two consecutive power-cuts. It's almost as if I'm forbidden to tell all how to fit DLR's onto a Freelander.
Maybe GOD is not a follower of Land Rover? If not... he/it should be!

It's a simple enough process to do what i have suggested, and I'm always available to answer any queries.

As if life isn't difficult enough then family members disrupt everything.

Oh, it seems my nephew was also downloading some program called, STEAM, then downloading another called Wolfenstein, or something similar.
I'm told its a game. It sounds like a metallic-mineral, if you want my opinion.
If up to me, he would need Iron breaches to withstand the whacking he deserves.
Yeah, I know, I'm being very Victorian. But what the heck, he messed around with my PC/Kindle.

And once again, if any have a question to ask, please do?

My apologies, once again.

Zener.

Zenerdiode said:

what else may have been tampered with?

Click to expand...

I guess you'll find out when all sorts of random products arrive, that you didn't order.

Okay everyone.
The job has been completed and it works really well.
The Master Switch & Slave relay are brilliant, as are the lights.
If you look at the circuit diagram and photo's I'm sure you can manage.
I'm off out shopping tomorrow so the big test will commence then.
So, it's a cheap and easy-to-do project.

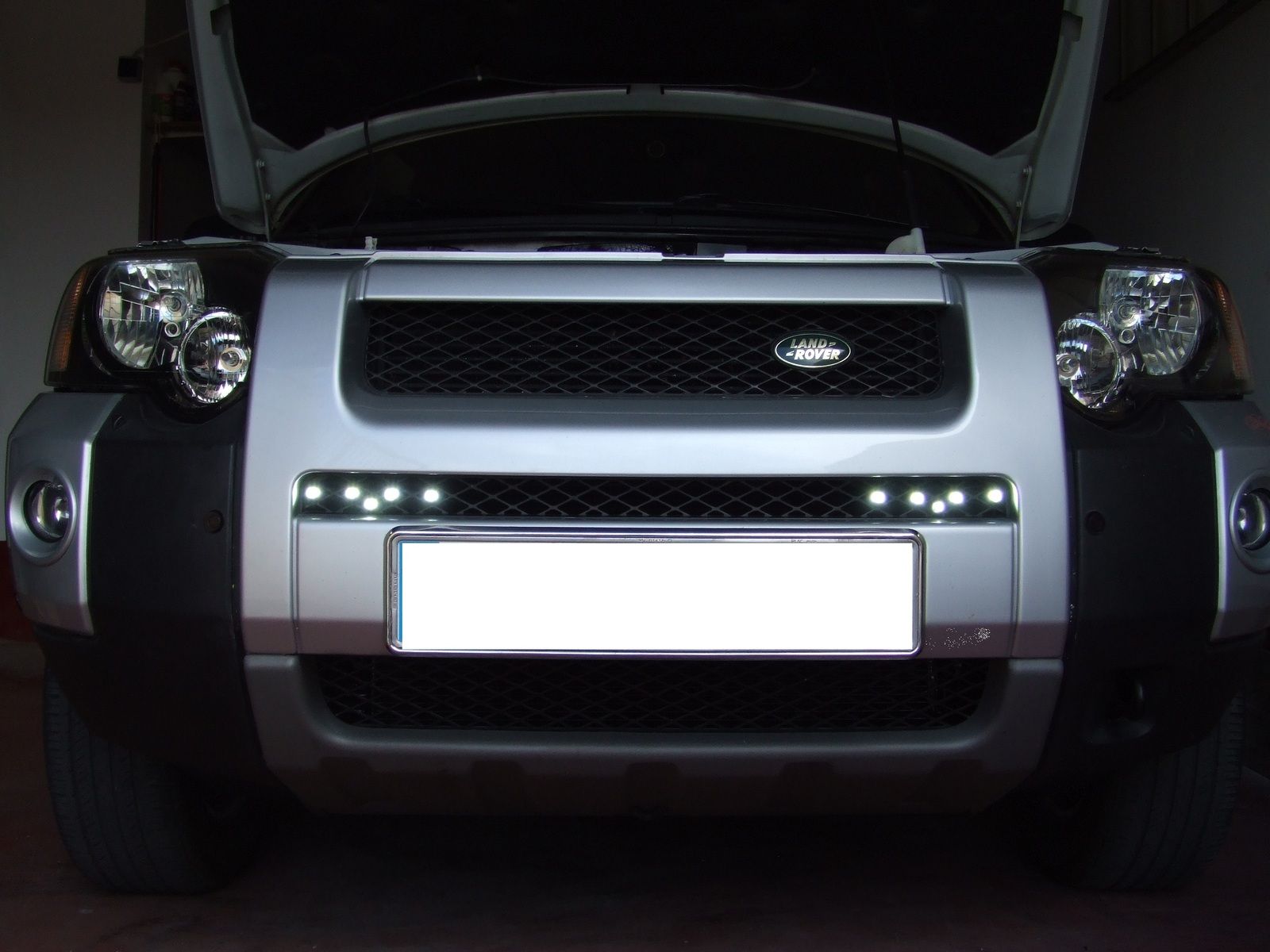

I fitted the remaining two Eyes as well so now have 5 on each side.


I should mention the following. The Left-side Dip headlight power-supply wire is coloured Blue/Pink. Just splice the + Relay power-supply from this and it all works splendidly.
If anyone has questions please feel free to ask.
And now I must change my Password for LandZone. Just in case.
