davidsmith1307
Well-Known Member
- Posts
- 1,333
- Location
- Hull
Makes sense.
I have ordered a 'Plug - LYB100510L - Genuine LYB100510L' which is listed as the oil filter mount plug but doesn't say which of the holes it plugs.
Dave Smith's Freelander
- Thread starter davidsmith1307
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
I have ordered a 'Plug - LYB100510L - Genuine LYB100510L' which is listed as the oil filter mount plug but doesn't say which of the holes it plugs.
davidsmith1307
Well-Known Member
- Posts
- 1,333
- Location
- Hull
At last!

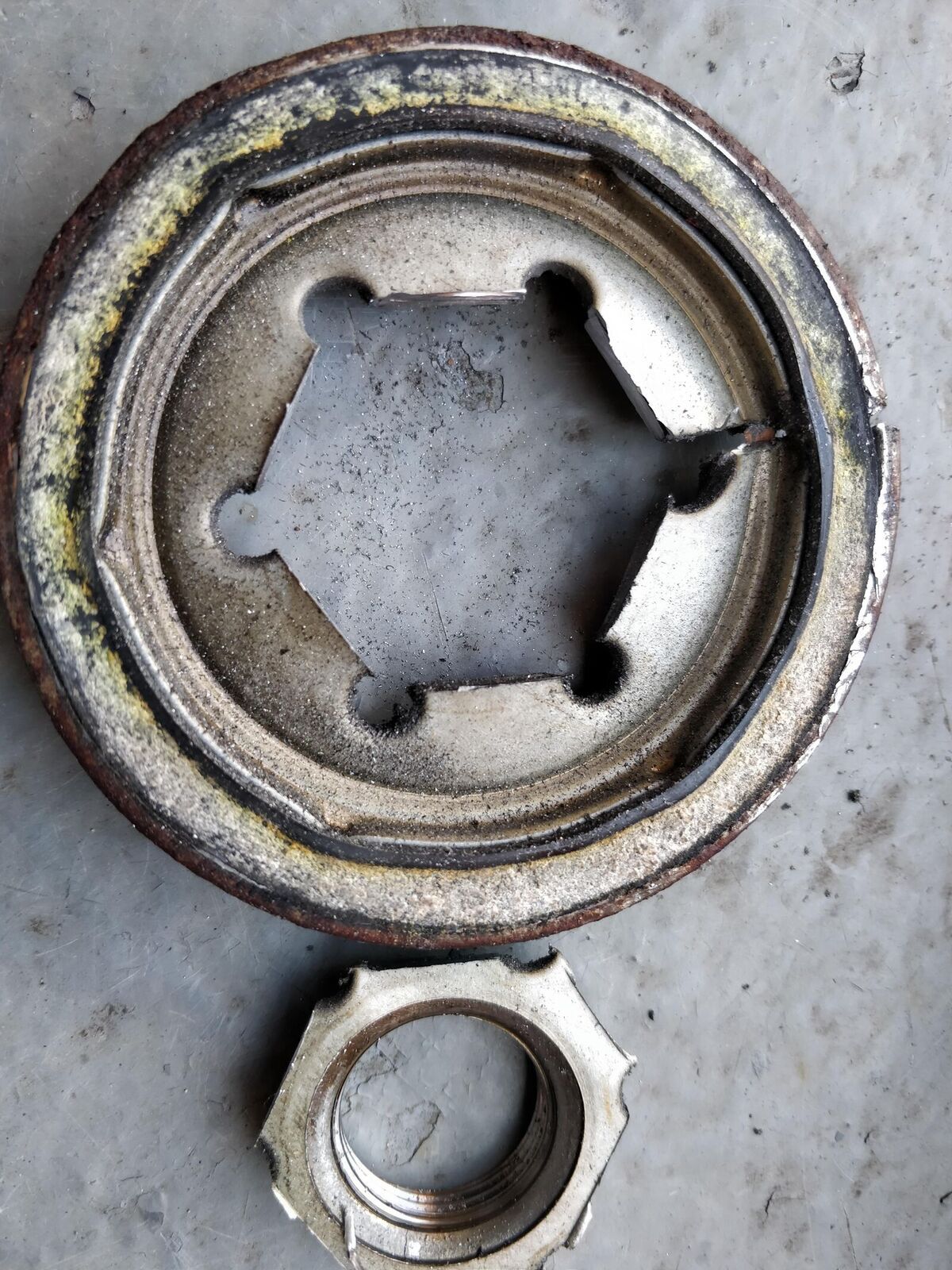

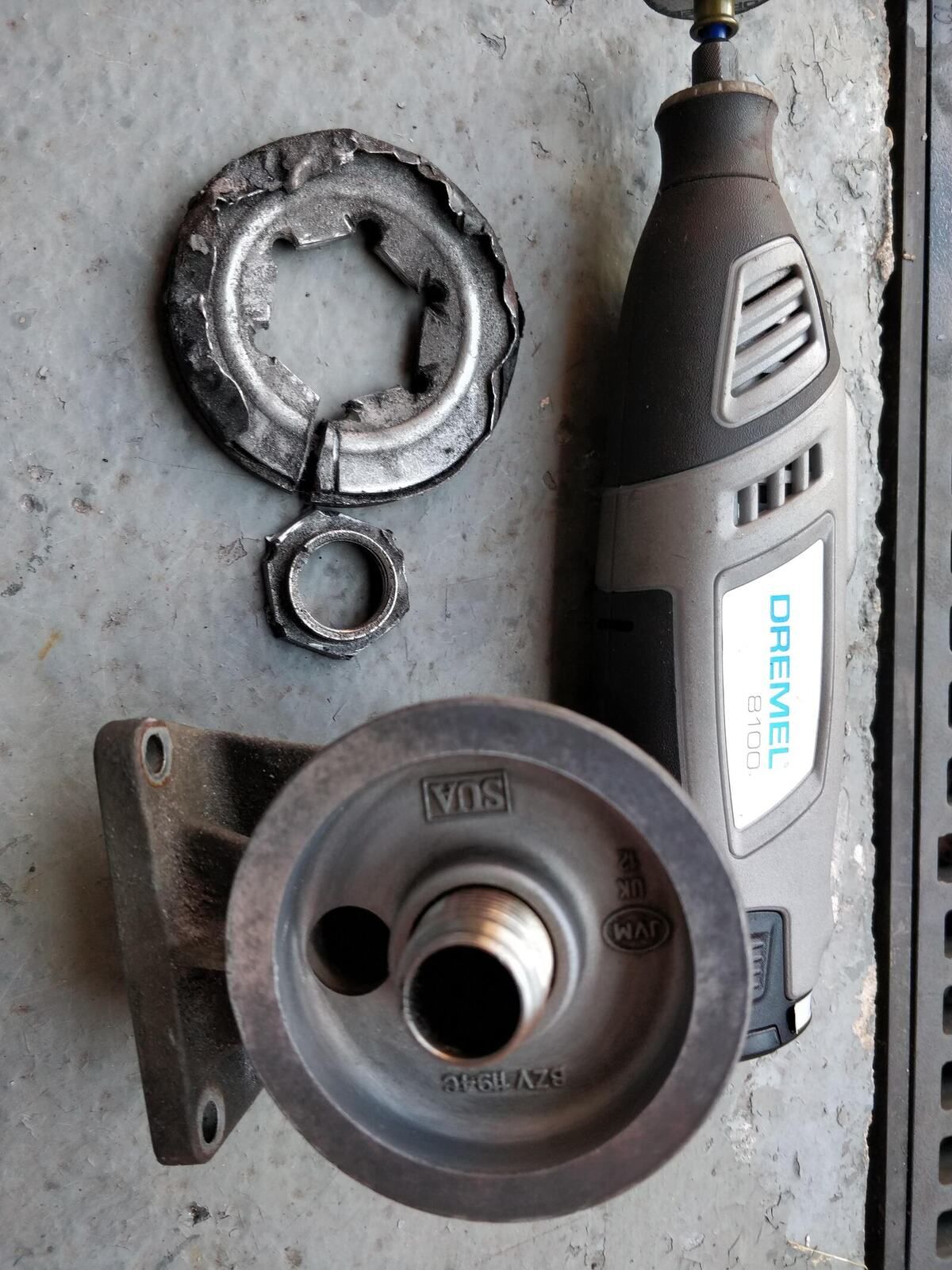

Mr Dremel and I got busy and managed to get the old filter off.
Once I cut the center away from edge I was expecting either the edge to be welded to the mount or the center to be welded to the thread.
In fact the edge lifted off easily and the thread span off like it was new. There is some yellow cack around where the rubber seal sits that is either broken down rubber or, possibly, sealant.
I will wait and see whether part number LYB100510L is the correct plug to fill the hole in the new mount (hopefully tomorrow) or I'll swap the old mount back on. Fixing the new mount would be better as it is already in place and the hole to be plugged is easily accessed.
Mr Dremel and I got busy and managed to get the old filter off.
Once I cut the center away from edge I was expecting either the edge to be welded to the mount or the center to be welded to the thread.
In fact the edge lifted off easily and the thread span off like it was new. There is some yellow cack around where the rubber seal sits that is either broken down rubber or, possibly, sealant.
I will wait and see whether part number LYB100510L is the correct plug to fill the hole in the new mount (hopefully tomorrow) or I'll swap the old mount back on. Fixing the new mount would be better as it is already in place and the hole to be plugged is easily accessed.
LUKBENPHI
Well-Known Member
- Posts
- 2,150
- Location
- Peak District
looks like sealant too me I used to use the yellow stuff to seal up rocker covers on citroen vans where they don't have a rubber gasket, complete and utter plum if they did

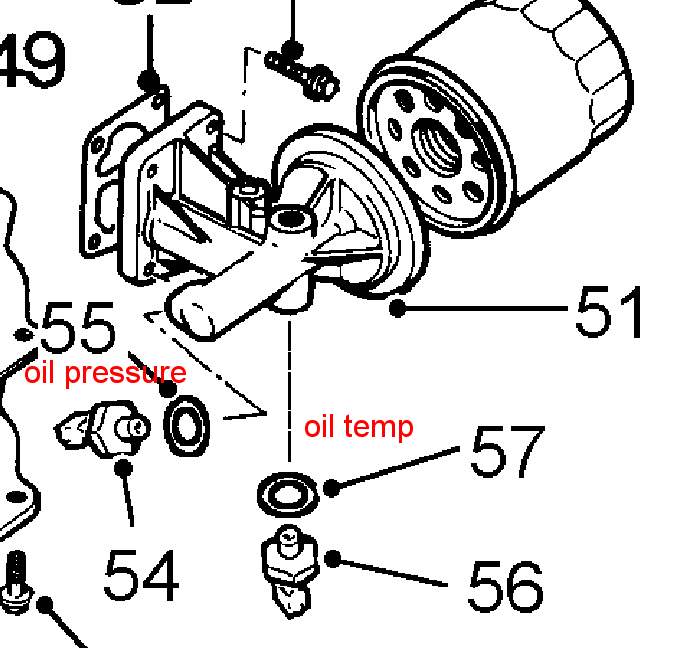

I am guessing you're using an oil filter mounting from a different incarnation of K-series with tappings for additional sensors? MGF uses additional tappings for the oil temperature and the oil pressure switch. TF160 has extra tappings to take the flexible oil hoses for the engine oil cooler.
Depending on the installation, the tappings are either BST (I think - I'll need to double check) or metric. You can probably guess how I found that out...
Depending on the installation, the tappings are either BST (I think - I'll need to double check) or metric. You can probably guess how I found that out...
davidsmith1307
Well-Known Member
- Posts
- 1,333
- Location
- Hull
I am guessing you're using an oil filter mounting from a different incarnation of K-series with tappings for additional sensors? MGF uses additional tappings for the oil temperature and the oil pressure switch. TF160 has extra tappings to take the flexible oil hoses for the engine oil cooler.
Depending on the installation, the tappings are either BST (I think - I'll need to double check) or metric. You can probably guess how I found that out...
Just went by part number.... Brand new in box - what can go wrong?
davidsmith1307
Well-Known Member
- Posts
- 1,333
- Location
- Hull
For future reference that plug part number is for the first, smaller, hole.
I shan't dick around any more - I'll swap the parts back when I return from a week in the sun.
I shan't dick around any more - I'll swap the parts back when I return from a week in the sun.
You'd think wouldn't you? I can only assume they sent the wrong one? I'll have to have a look at the one on mine, but from recollection,there was no taps on the casting...Just went by part number.... Brand new in box - what can go wrong?
GrumpyGel
Well-Known Member
- Posts
- 26,388
- Location
- Christchurch, New Zealand
When I was googling around, I think I saw that the Oil Temp Sensor is the same as the Coolant Temp Sensor.
You could try taking the ECT off and see if it fits!
If it does they are cheap and readily available. It doesn't even need to work so one from a scrappy would do.
davidsmith1307
Well-Known Member
- Posts
- 1,333
- Location
- Hull

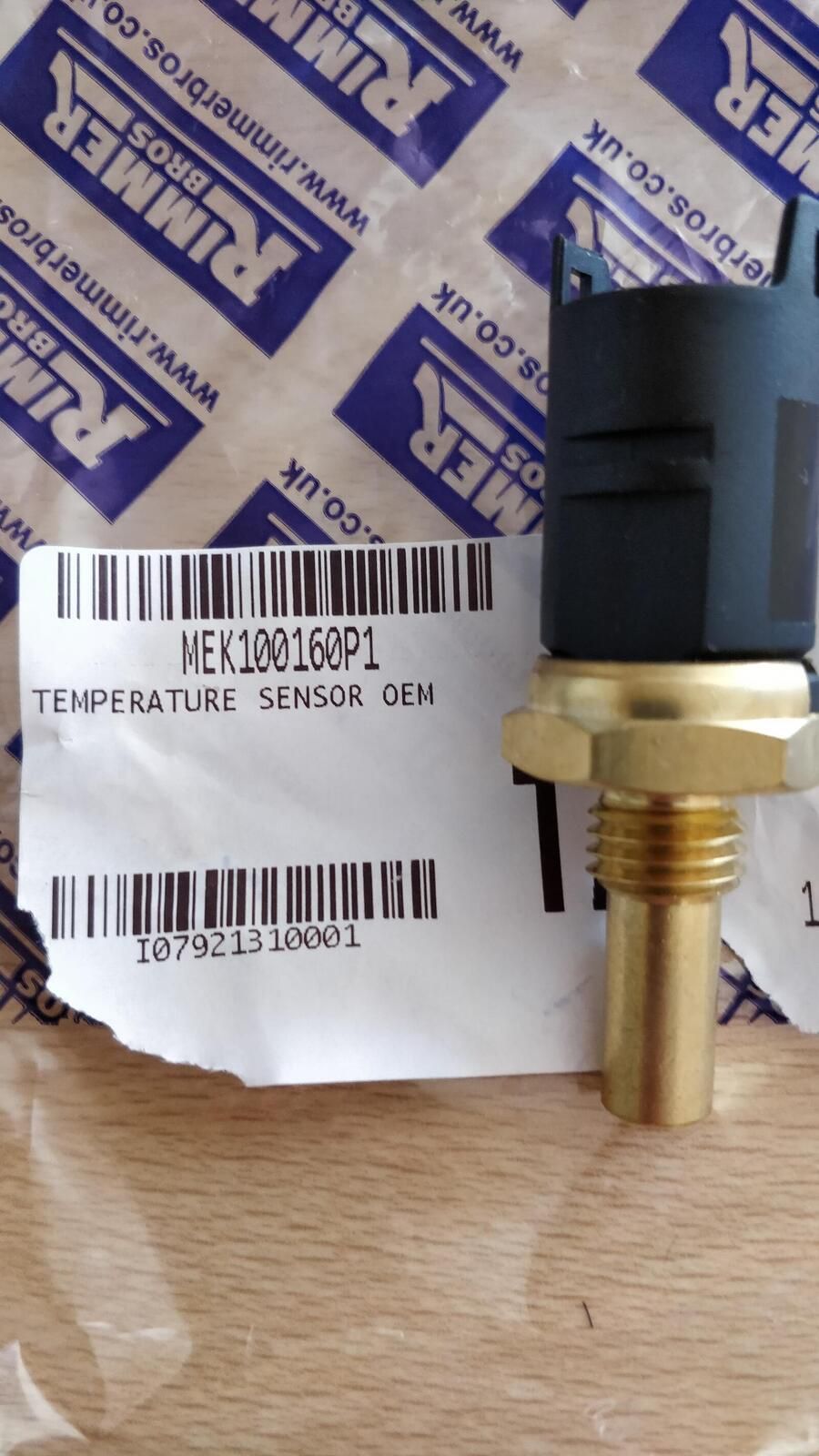

I have ordered a cheapo aftermarket oil temperature sensor for a TF. Makes no sense money-wise but I'm curious now.
Alibro
Well-Known Member
- Posts
- 7,181
- Location
- Northern Ireland
The oil temp sensor never worked in my MGF and after two or three attempts to buy a replacement I gave up.
davidsmith1307
Well-Known Member
- Posts
- 1,333
- Location
- Hull
Not yet; spent the weekend darn sarf with my old mum as it was her birthday.Any update David?
This coming weekend looks promising though.
davidsmith1307
Well-Known Member
- Posts
- 1,333
- Location
- Hull

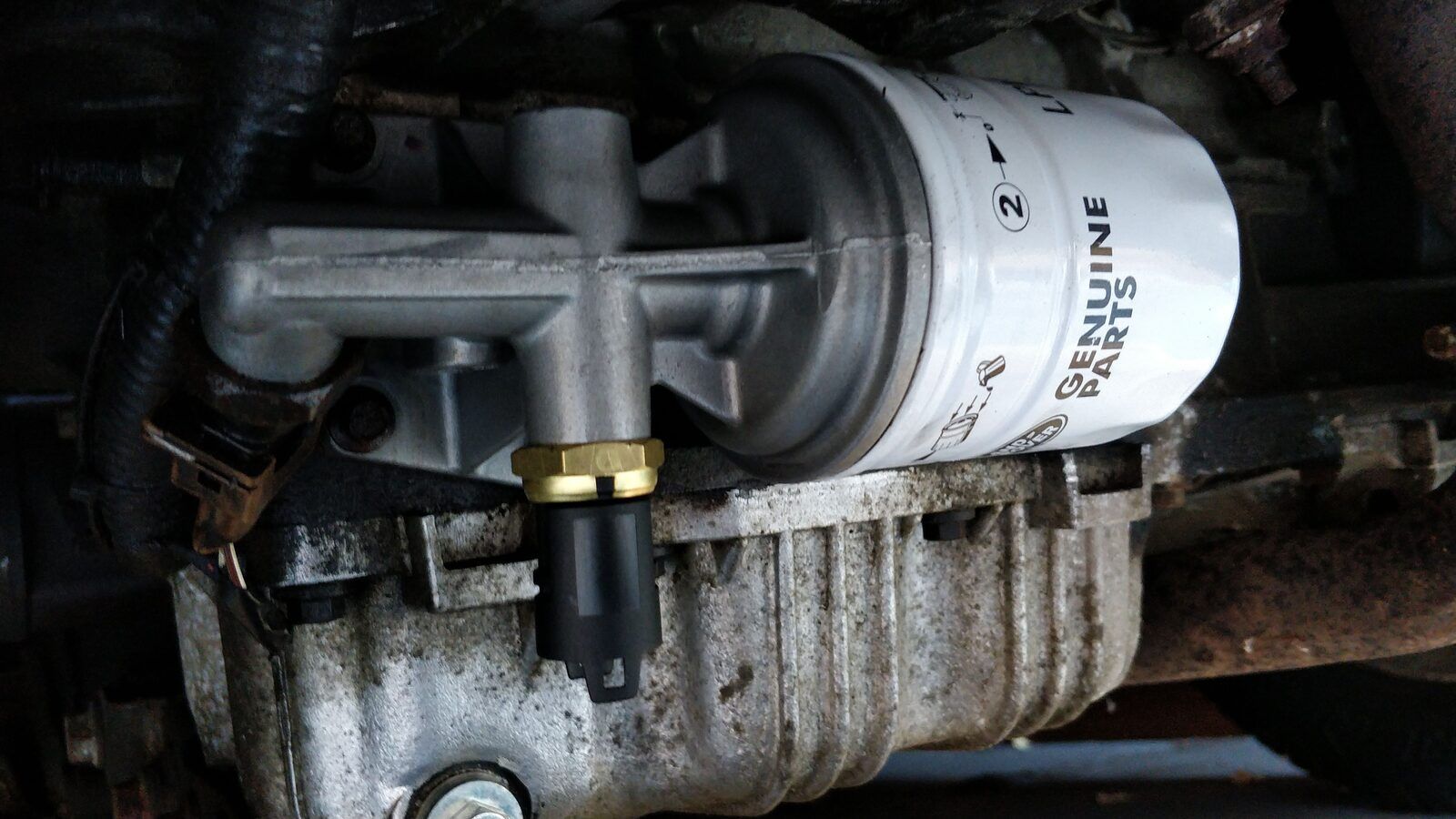

I am now oil-tight. I will swap the mount back next time I drop the oil though as it looks stupid.
LUKBENPHI
Well-Known Member
- Posts
- 2,150
- Location
- Peak District
Almost sorted then wont see it under a undershield though so be out of the way!
davidsmith1307
Well-Known Member
- Posts
- 1,333
- Location
- Hull
From what I can tell there hasn't been an undershield on there since I was a boy
Probably explains how the filter got so welded on in the first place.
davidsmith1307
Well-Known Member
- Posts
- 1,333
- Location
- Hull
BUt then I'll get used to it and regret buying the world's cheapest temperature sensor!Now you have the oil sensor, I'd be tempted to fit an oil temperature gauge! Cheap from broken MGFs, or if you want a black gauge, these are available from the original manufacturer, VDO.
LUKBENPHI
Well-Known Member
- Posts
- 2,150
- Location
- Peak District
now now gents..
MOT first... Tat later
MOT first... Tat later
davidsmith1307
Well-Known Member
- Posts
- 1,333
- Location
- Hull
But tat is ssshiiinnnneeeeyyyyyyyyy!now now gents..
MOT first... Tat later
