Sorry have made a mistake it's a allard inter cooler.
d1 v8 to mazda sl35
- Thread starter mruffle
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Retroanaconda
Well-Known Member
- Posts
- 677
- Location
- SW Scotland
The alternator on mine has three wires.
One big one to the B terminal is obviously the main charge supply. Then there are two smaller terminals (which take a special plug but standard 1/4" spades fit them fine): one is 'L' which is the connection to the charge warning light, and the other is 'S' which is the sense wire. This should be run to the battery positive post, though you can get away with just linking it onto the big B terminal - the only problem is that the alternator then won't compensate for any voltage losses in the main charge link.
Every photo of these engines I have seen has had a different alternator unit on so the above may not be the case for yours, but the majority of these Japanese type alternators seem to be of this style.
In answer to your actual query I am not sure where one would attach the rev counter wire to, there doesn't seem to be a 'W' terminal on my alternator - or not a marked one anyway.
One big one to the B terminal is obviously the main charge supply. Then there are two smaller terminals (which take a special plug but standard 1/4" spades fit them fine): one is 'L' which is the connection to the charge warning light, and the other is 'S' which is the sense wire. This should be run to the battery positive post, though you can get away with just linking it onto the big B terminal - the only problem is that the alternator then won't compensate for any voltage losses in the main charge link.
Every photo of these engines I have seen has had a different alternator unit on so the above may not be the case for yours, but the majority of these Japanese type alternators seem to be of this style.
In answer to your actual query I am not sure where one would attach the rev counter wire to, there doesn't seem to be a 'W' terminal on my alternator - or not a marked one anyway.
Neildisco300
Active Member
- Posts
- 189
- Location
- Renfrewshire
What vehicle used the sl35t? Looking at maybe doing something similar with my new project.
Retroanaconda
Well-Known Member
- Posts
- 677
- Location
- SW Scotland
The Mazda T-3500 light truck, also sold as the Ford Trader in some markets. And used in a number of other commercial vehicle applications such as the Mazda Parkway bus and I think some fire engines in Aus? Nothing that was ever sold in the UK anyway. The engines in this country generally originated from import companies such as Motor and Diesel/Watson and Turner who started to import these lumps in the eighties when petrol was dearer than diesel and people with V8 Range Rovers etc. we're looking to convert to a diesel engine without losing the performance. They derived the conversion parts to fit to Land Rover transmissions and chassis.
They turn up on eBay fairly often, generally in a rotten Range Rover though sometimes standalone as well.
Neildisco300
Active Member
- Posts
- 189
- Location
- Renfrewshire
Will keep my eye out but think I will go down the merc om606 as there much easier to get ahold of.
mruffle
New Member
- Posts
- 23
- Location
- Fleet HANTS

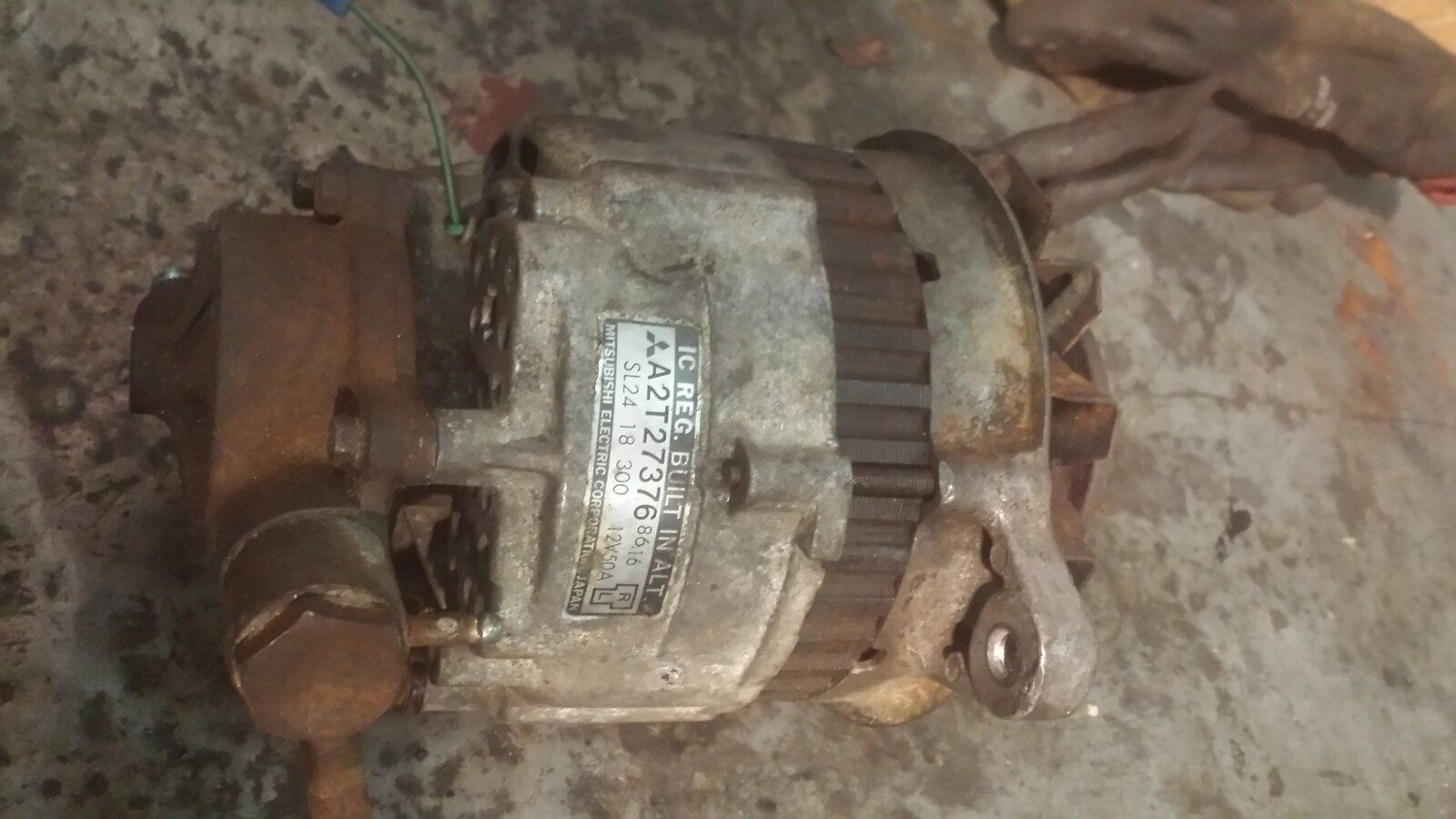

Thanks retroanaconda ive had a look at my alternator and you are correct with the terminals on the back.
Whilst I was away, I sent the alternator away to a specialist, just give it the once over and see why I cant pick up a tacho reading.
It turns out it never had a tacho feed from the alternator, so they nicely worked there magic and now it has one.
Whilst I was away, I sent the alternator away to a specialist, just give it the once over and see why I cant pick up a tacho reading.
It turns out it never had a tacho feed from the alternator, so they nicely worked there magic and now it has one.
mruffle
New Member
- Posts
- 23
- Location
- Fleet HANTS

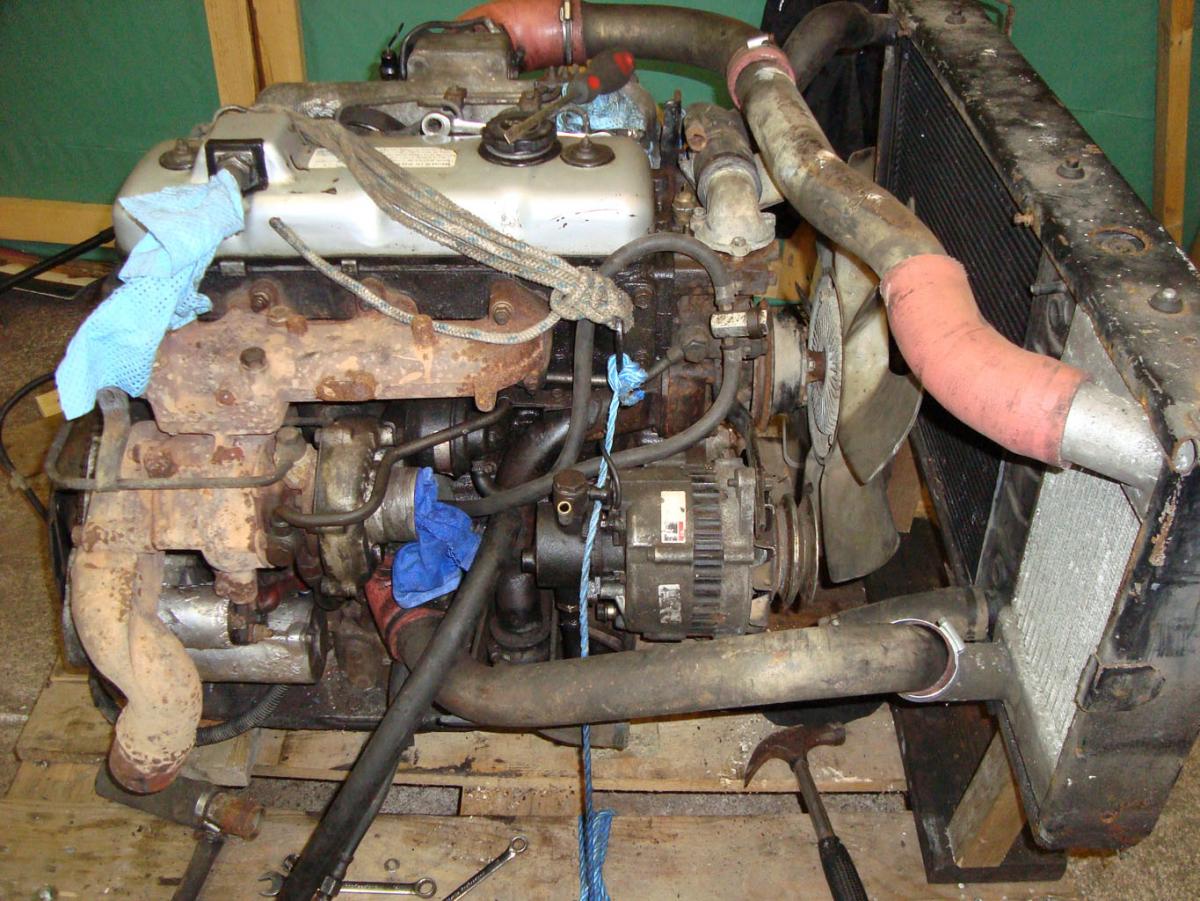

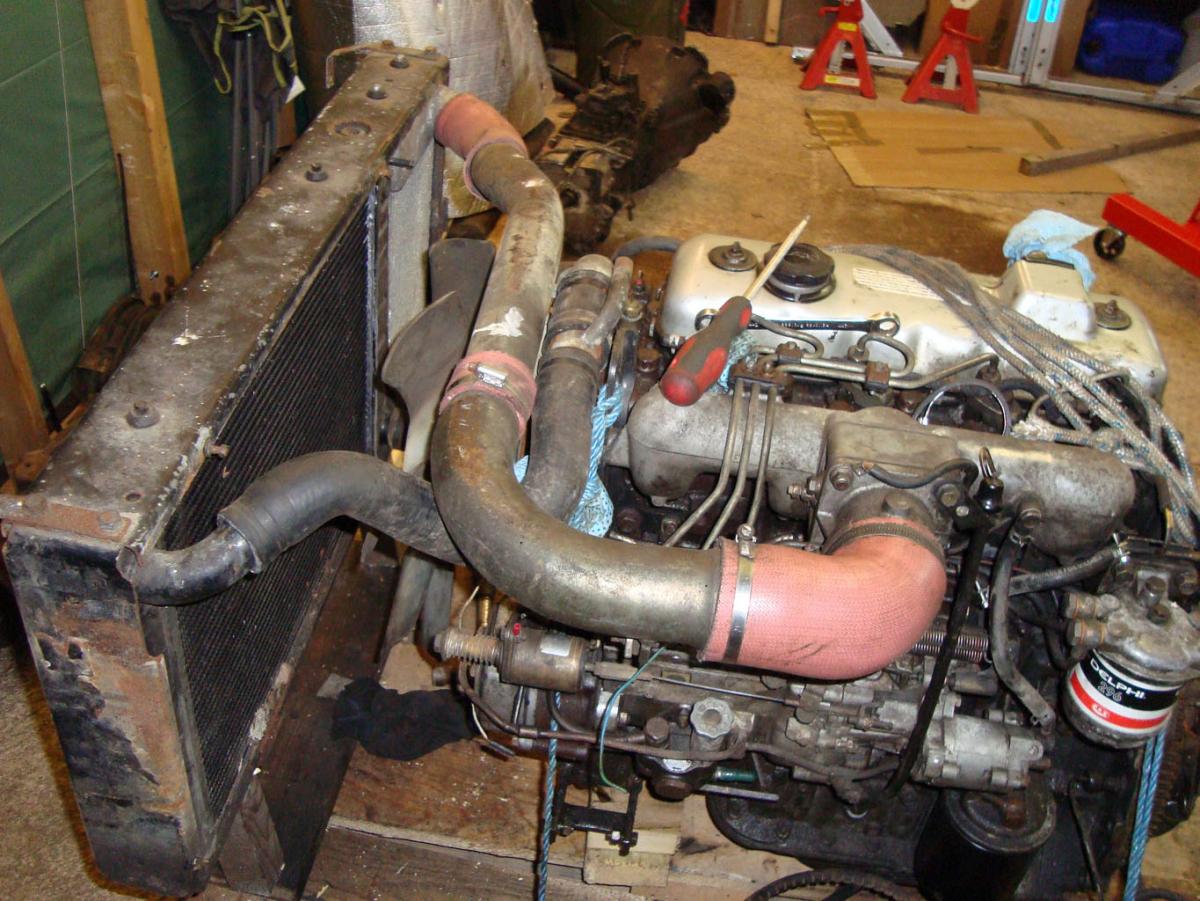

Oh yes and were fully piped up now , well atleast until I buy some new silicone pipes. I made all this up from old spare pipe
Jam1
Well-Known Member
- Posts
- 1,315
- Location
- Staffordshire
Really want to read this looks like a really interesting project, but just can't
Any of the admin able to sort the pic sizes on the first page out please?
Any of the admin able to sort the pic sizes on the first page out please?
mruffle
New Member
- Posts
- 23
- Location
- Fleet HANTS
And its starts aswell watch this. Mazda sl35 whistle: http://www.youtube.com/watch?v=TmfvecOOqZI
Retroanaconda
Well-Known Member
- Posts
- 677
- Location
- SW Scotland
Sounds great!
On the 'factory' installs of these engines in RRCs they swapped the intercooler and radiator around in the frame so the intercooler is on the drivers side. Then there is a set of steel pipes and silicone bends which match the air system up nicely.
But at the end of the day the layout doesn't really matter so long as the right bits connect together
On the 'factory' installs of these engines in RRCs they swapped the intercooler and radiator around in the frame so the intercooler is on the drivers side. Then there is a set of steel pipes and silicone bends which match the air system up nicely.
But at the end of the day the layout doesn't really matter so long as the right bits connect together
mruffle
New Member
- Posts
- 23
- Location
- Fleet HANTS
Fully road worthy now
mruffle
New Member
- Posts
- 23
- Location
- Fleet HANTS
The first run out https://www.youtube.com/watch?v=ztym7nr-1Uk
- Posts
- 5,516
- Location
- Surrey / Hants border
I recognise that road - A287, just going past turning to Crondall.....
mruffle
New Member
- Posts
- 23
- Location
- Fleet HANTS
Indeed it is it will hold 55mph all the way up that hill
