Central Locking bracket

M

Mond2k

Member

Posts

26

• Aug 22, 2013

• #1

Hello everyone

I have just bought a 300tdi for a work horse so that i can do some green laneing and pull the Mr's horse box.

Very impressed with the amount of car i paid so little for, Pulls the horse box fine but could do with a little more umph if you know what i mean...

One problem when i got it was the locks didn't work. Tonight i stripped it down and replaced the springs in the lock mechanism.

I accidentally broke my plastic L shape bracket that connects the central locking relay to the lock mechanism.

Does anybody know what its called or have a part number?

Thank you in advanced



discool

Well-Known Member

Posts

13,609

Location

Sector 12 in Kent, The Garden of England

• Aug 23, 2013

• #2

Relay? the central locking is looked after by ECU the green box at the side of the glove box.
As they say :nopics:



M

Mond2k

Member

Posts

26

• Aug 23, 2013

• #3

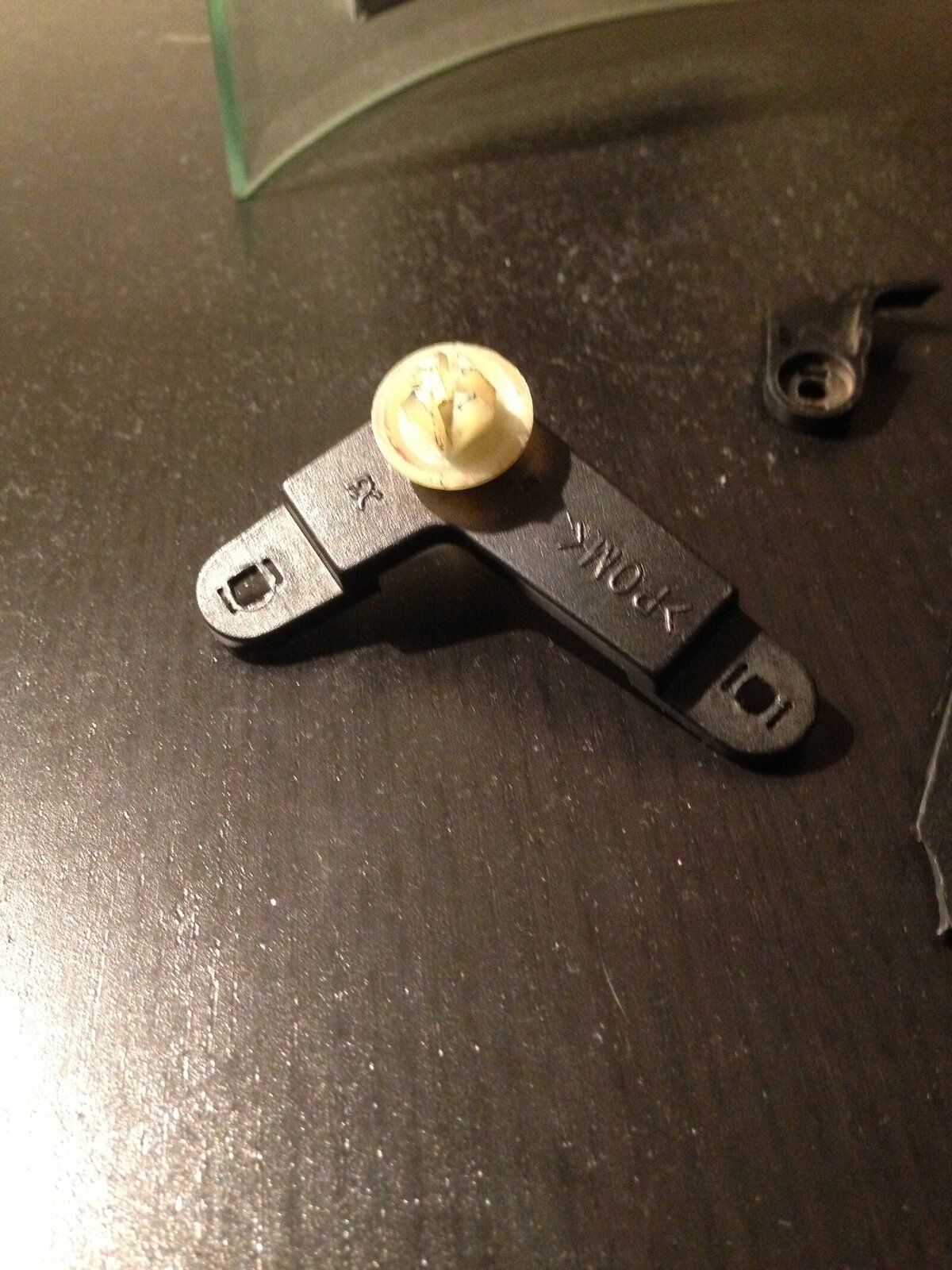

Hope that helps

thats the left side but i need the right side.



Attachments

•

  298.9 KB · Views: 162

discool

Well-Known Member

Posts

13,609

Location

Sector 12 in Kent, The Garden of England

• Aug 23, 2013

• #4

A good photo but I've never seen one, so if it's a joint between two rods from the diagram in my parts book it looks like Link Adjusting MTC9289 but then the diagrams are very small.



M

Mond2k

Member

Posts

26

• Aug 23, 2013

• #5

Thanks you for your reply. Its not an adjuster. The block central locking box that goes left to right it attaches to that then connects another rod that goes to the lock.



discool

Well-Known Member

Posts

13,609

Location

Sector 12 in Kent, The Garden of England

• Aug 24, 2013

• #6

There is an item called Bellcrank, for the rear door the item number is DZA1435L, two required per door.
