Carpet

jamesmartin · Mar 31, 2013

MoorlandBOB said:
you dick thats not the way....

yes bluehaze that looks ok.does it keep the heat in too??

says mr thicky ,funnily enough stopping water in the air condensating out on bare ali works

MoorlandBOB · Mar 31, 2013

bankz5152 said:
I just did the same in the back of my 90.

Used 3mm closed cell foam, then carpet, wish i used somthing thicker but it does the trick. More sound insulation and yes it does keep heat in better!

Also using some 10mm inside the doors, a pillars and sides.

Got mine off ebay, self adhesive.

im doing a truck cab this summer,so that is gunna have to be well insulated...doesw the self adeshive stuff mould curves ok as im gunna try fit it round the back as well as the roof of the cab,,,,

bankz5152 · Mar 31, 2013

Yeah moulds very nicely the 3mm that is, very easy to work with. Though I found the 3mm to be too little, might want to try 6mm

bluehaze · Mar 31, 2013

Bob, I used the 4mm stuff from the earlier link; it is very easy to mould.

The shelf material is less easy to manipulate. Check out the pics of the plastic bits in the 2nd row seat area using the stretchy stuff.

I would only put carpet onto insulation to reduce the risk of condensation.

Pikey · Mar 31, 2013

there's a vehicle restorer in The same industrial estate as BB's unit. they recommend this

Web Store -.

and probably goes further than spray just a bit messier.

I need to do mine again as the Evo spray ****e has all come undo. So probably best that you binned it for something else.

Pikey · Mar 31, 2013

I'm liking that carpet will have to invest in some I think. and do roof and side down to rear tub. then use rubber mating or similar for tub sides and floor.

mark-d · Mar 31, 2013

looks like a tidy job

bankz5152 · Mar 31, 2013

Im planning on doing the floor too soon.

Using 3mm/6mm foam with the exmoor trim rubber ontop (already in the car)

MoorlandBOB · Mar 31, 2013

yeah thanks,
the truck cab is gunna be my winter refuge next winter so i want it to be warm and dry,i got a sunroof but i think as its truck cab ill skip it and fit a vent.
i lined out a series cab with carpet and underlay last time round which was ok but it got damp,some insulation and decent bathroom carpet is the way i think,if i had the time to make panels and quilt it i would lol...

MoorlandBOB · Mar 31, 2013

bankz5152 said:
Im planning on doing the floor too soon.

Using 3mm/6mm foam with the exmoor trim rubber ontop (already in the car)

im gunna use stable rubber floor mat for the floor.i can allways put a rug in if i want.

bluehaze · Mar 31, 2013

For the floors in the front and 2nd row area I use ex-moor matting with loose carpets on top. The rear has some surplus lino from the bathroom although I do have a large piece of rubber matting which I use when camping.

In Summer I intend to insulate and carpet the door cards.

bluehaze · Mar 31, 2013

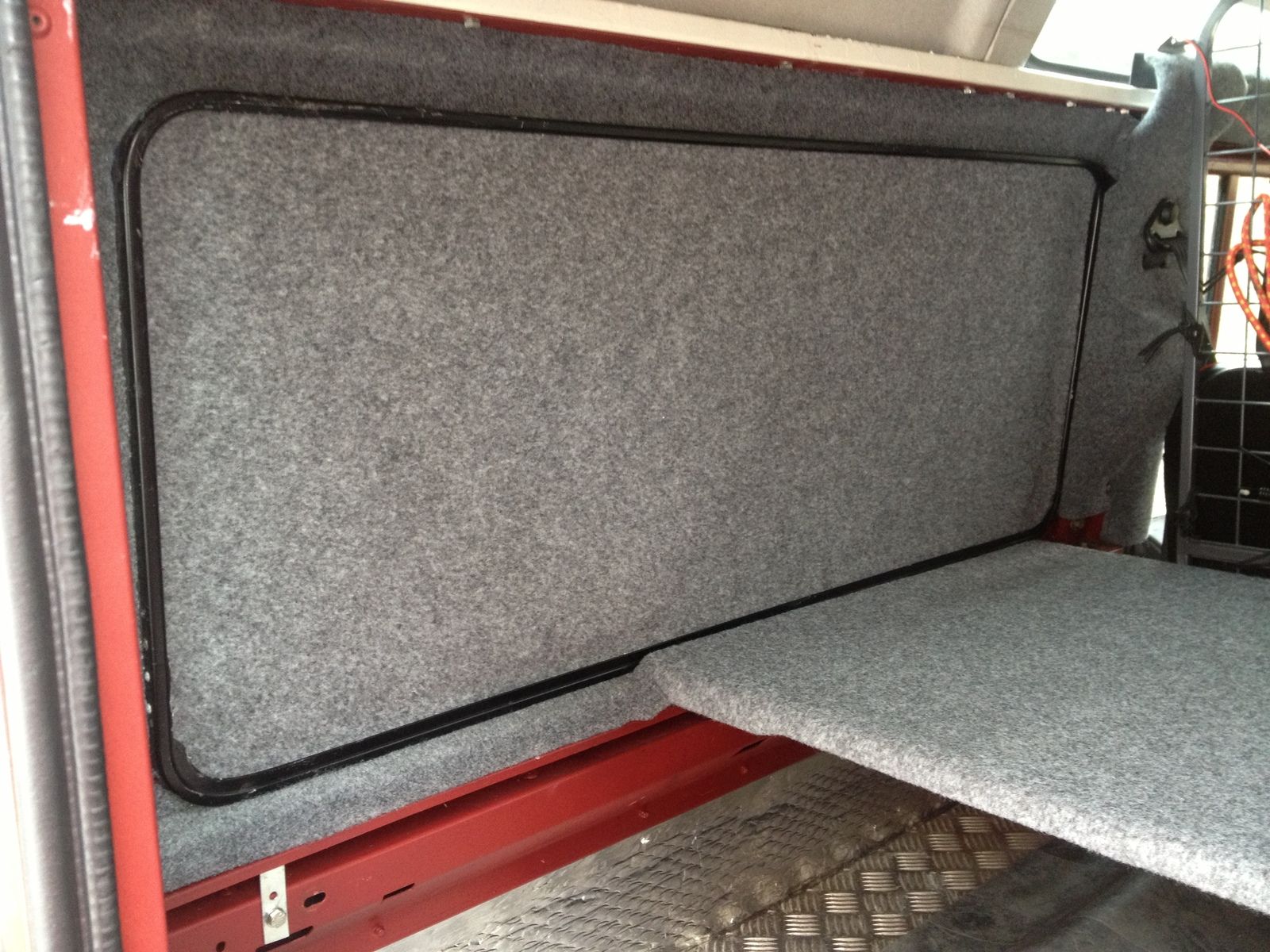

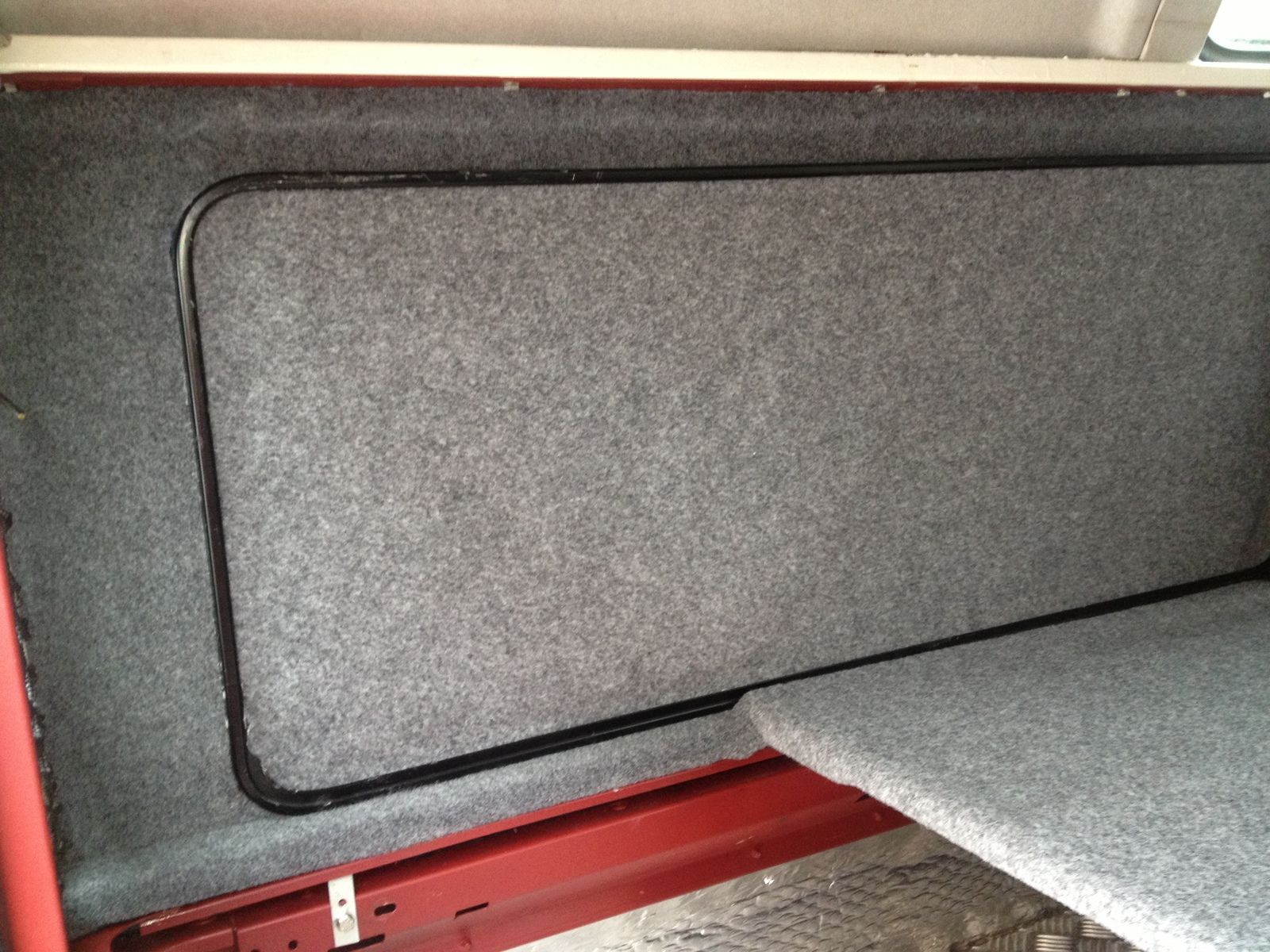

Done a bit more

D90mitch · Mar 31, 2013

I have recently sound proofed the footwells, under the seats, the gearbox tunnel and in the space between the center bulkhead and the front seats, certainly makes a big difference! However, I was unsure as to weather I should also sound proof the roof. Does that make a big difference? Just asking as it's a pretty large surface and didn't want to go buying sound proofing if it doesn't help. Thanks.

bluehaze · Mar 31, 2013

Certainly helped mine and the B&Q stuff is only a tenner.

bluehaze · Apr 1, 2013

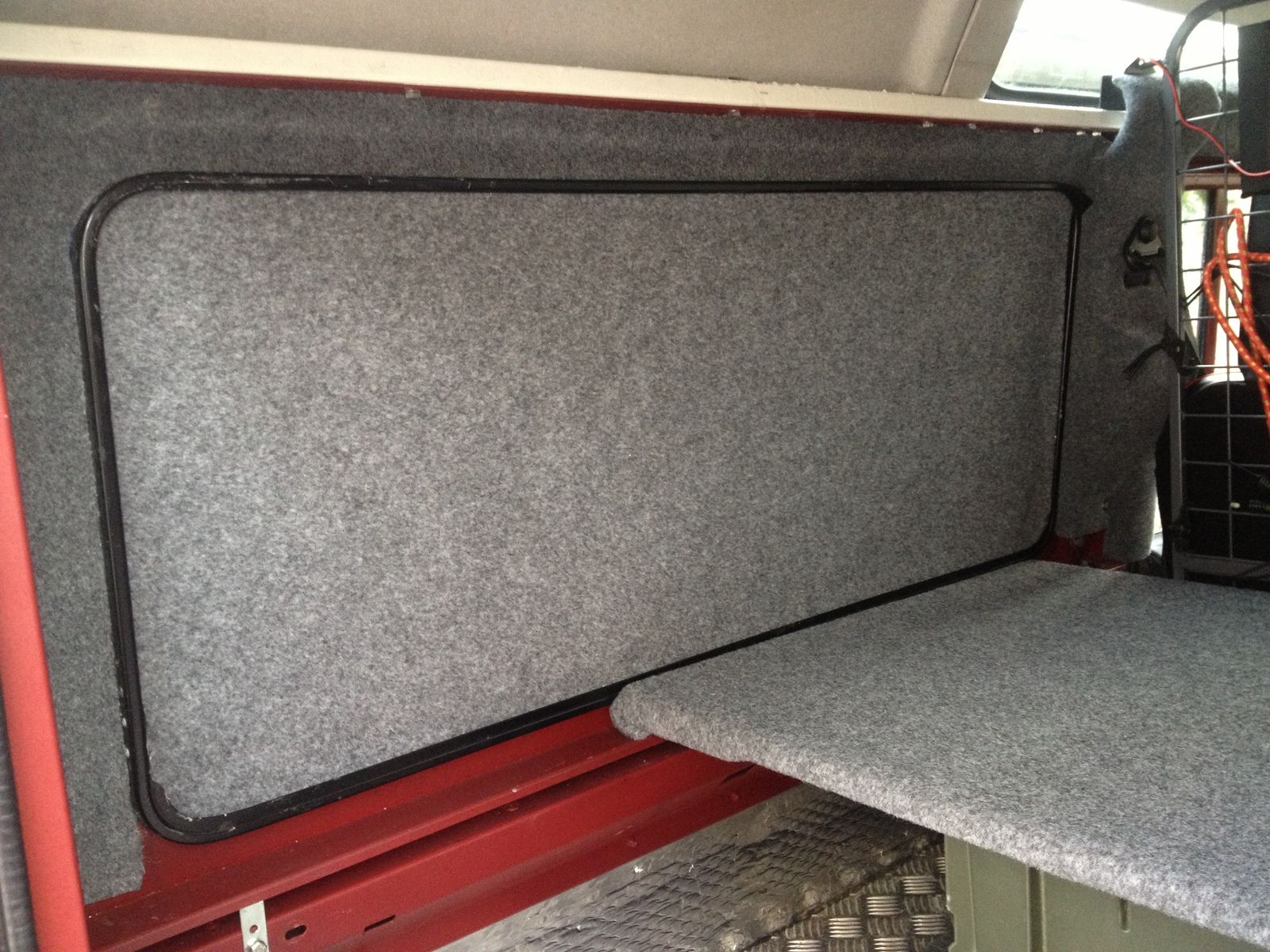

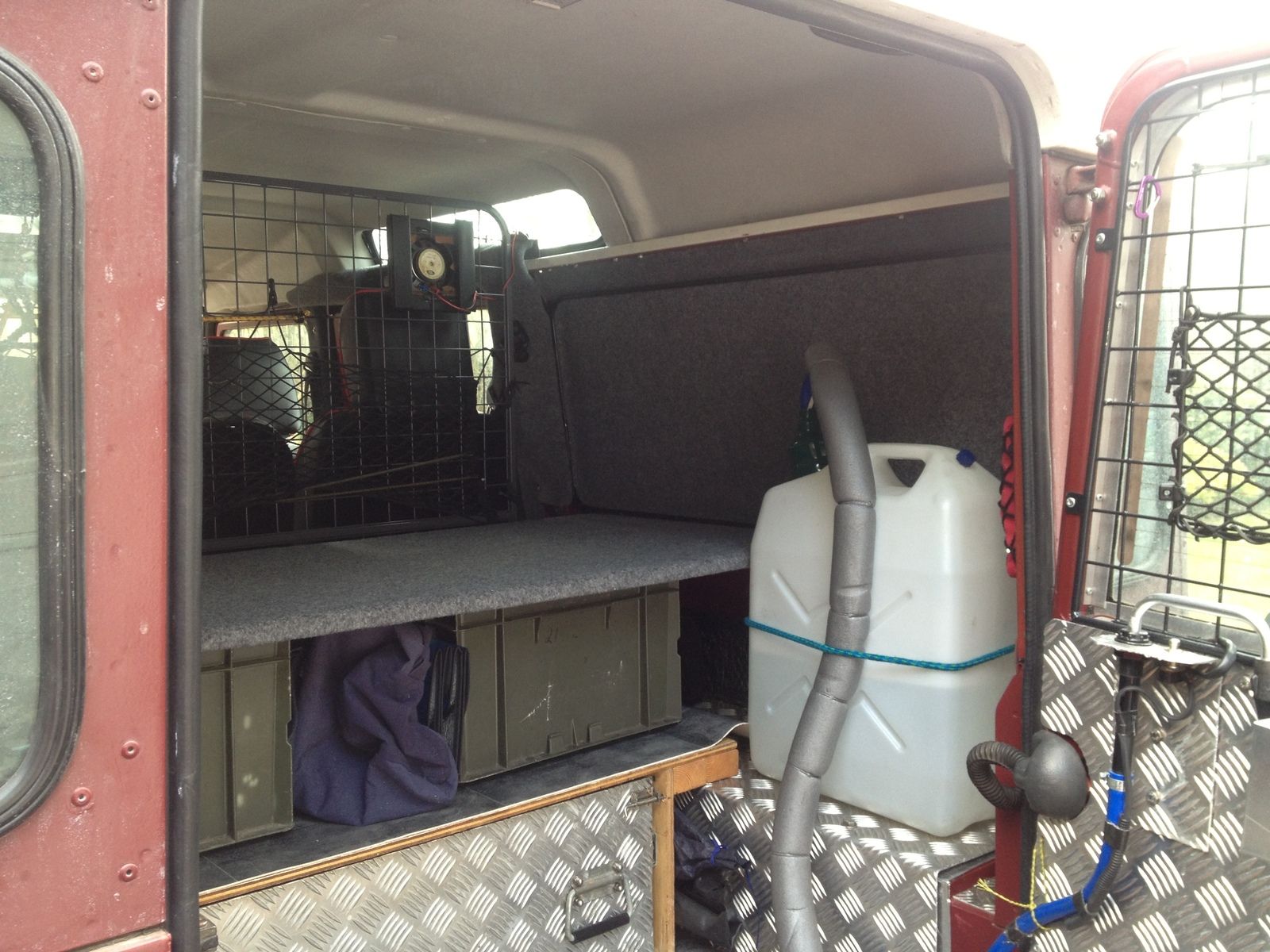

Finished (well for now). The edge of the 2nd pic is a small cargo net that is secured to the window guard - I'll post a better pic later.

Stag1962 · Apr 2, 2013

D90mitch said:
I have recently sound proofed the footwells, under the seats, the gearbox tunnel and in the space between the center bulkhead and the front seats, certainly makes a big difference! However, I was unsure as to weather I should also sound proof the roof. Does that make a big difference? Just asking as it's a pretty large surface and didn't want to go buying sound proofing if it doesn't help. Thanks.

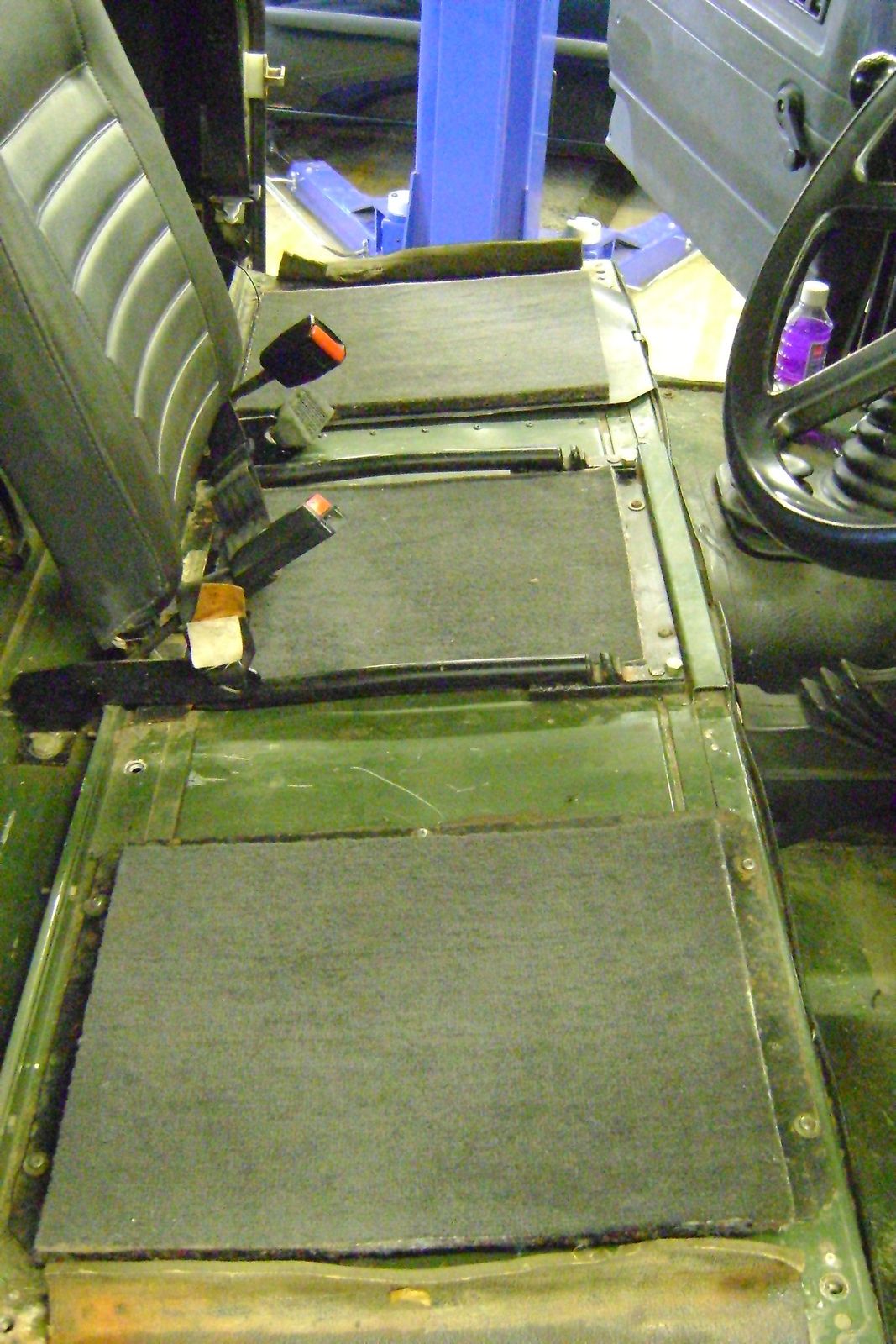

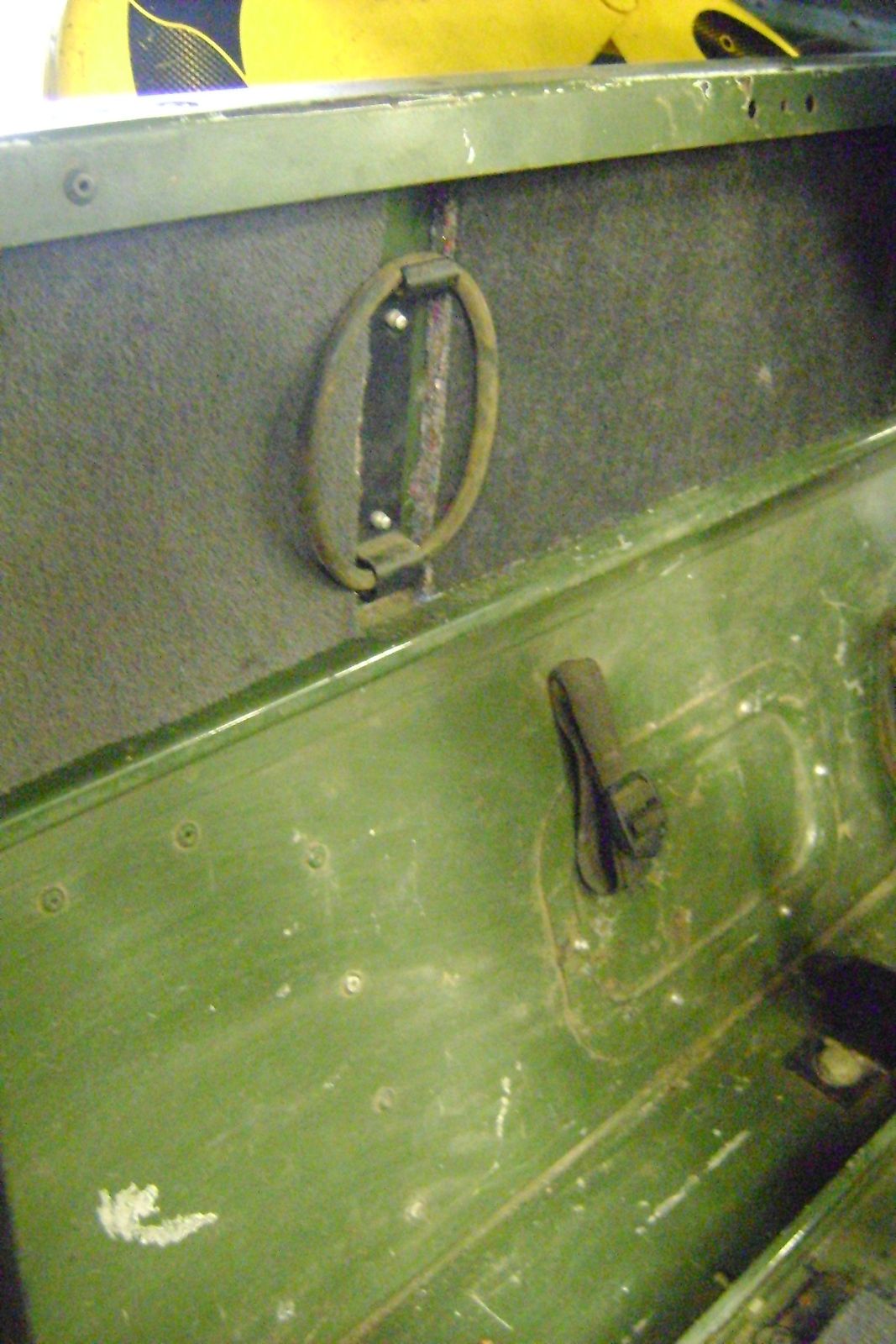

Did mine today and was please. Just an out of sight practice and I'm pleased with the results.

The carpet is about 3/4 inch with the underlay backing. Proper motor stuff but at the right price.

I am gunner follow Blue and insulate with the B&Q foil for the roof and sides in the back.

bankz5152 · Apr 2, 2013

Nice job! Just dont get it wet!

timtheenchanteruk · Apr 2, 2013

bluehaze said:
Pics:

that trim looks familier

looks good, landrover... the only place where you would carpet everything EXCEPT the floor

Stag1962 · Apr 3, 2013

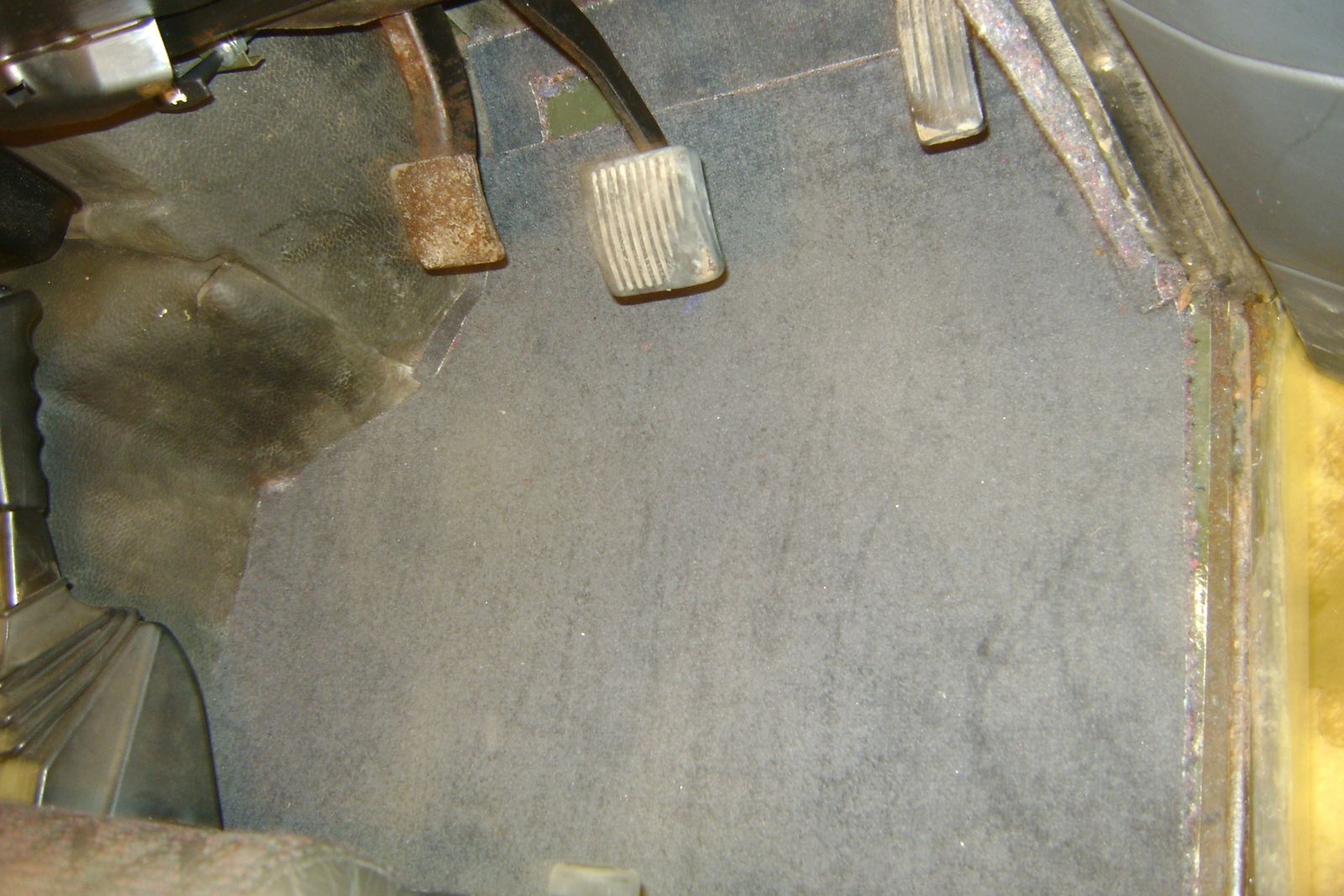

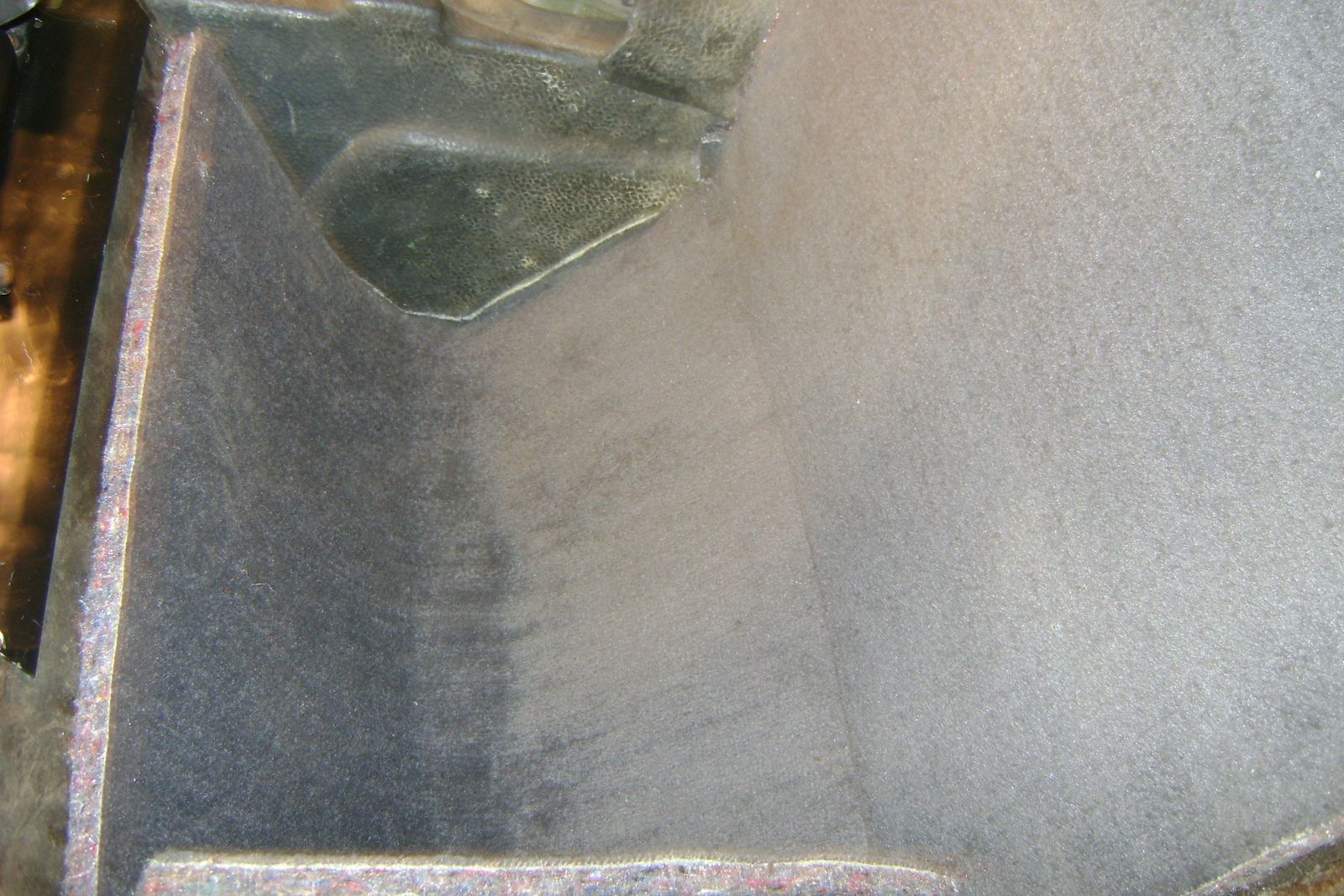

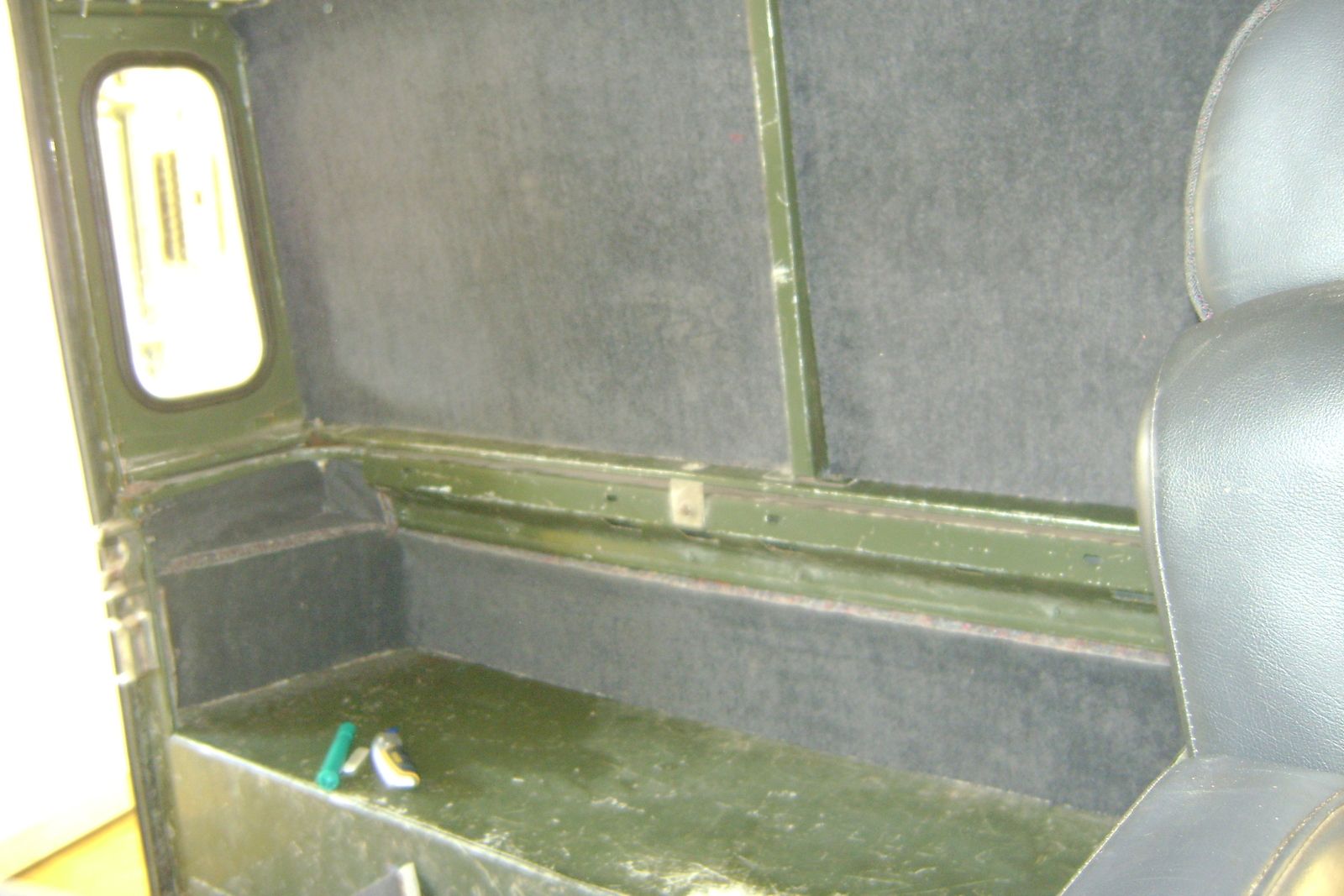

Been at it again. Done the footwells and started in the back.
Massive difference to the noise both in the cab and from the back.

I know what your saying Bankz but it does look good and feels great.

bankz5152 · Apr 3, 2013

Looks exellent buddy! Really does make a big difference.

As ive been doing it all so gradually its hard to tell how effective the soundproofing is.

Though one of me mates jumped in the other day (who had been in it many times just when I got it) I was pleased to hear 'Feck how did you get it so much quiter!'

That pleases me and im not even done yet! Still got the doors to do, rear arches/loadspace, closed cell foam under the rubber in the footwells. Should reduce sound massivley!
