Can anyone identify this?

Lionhound · Nov 10, 2016

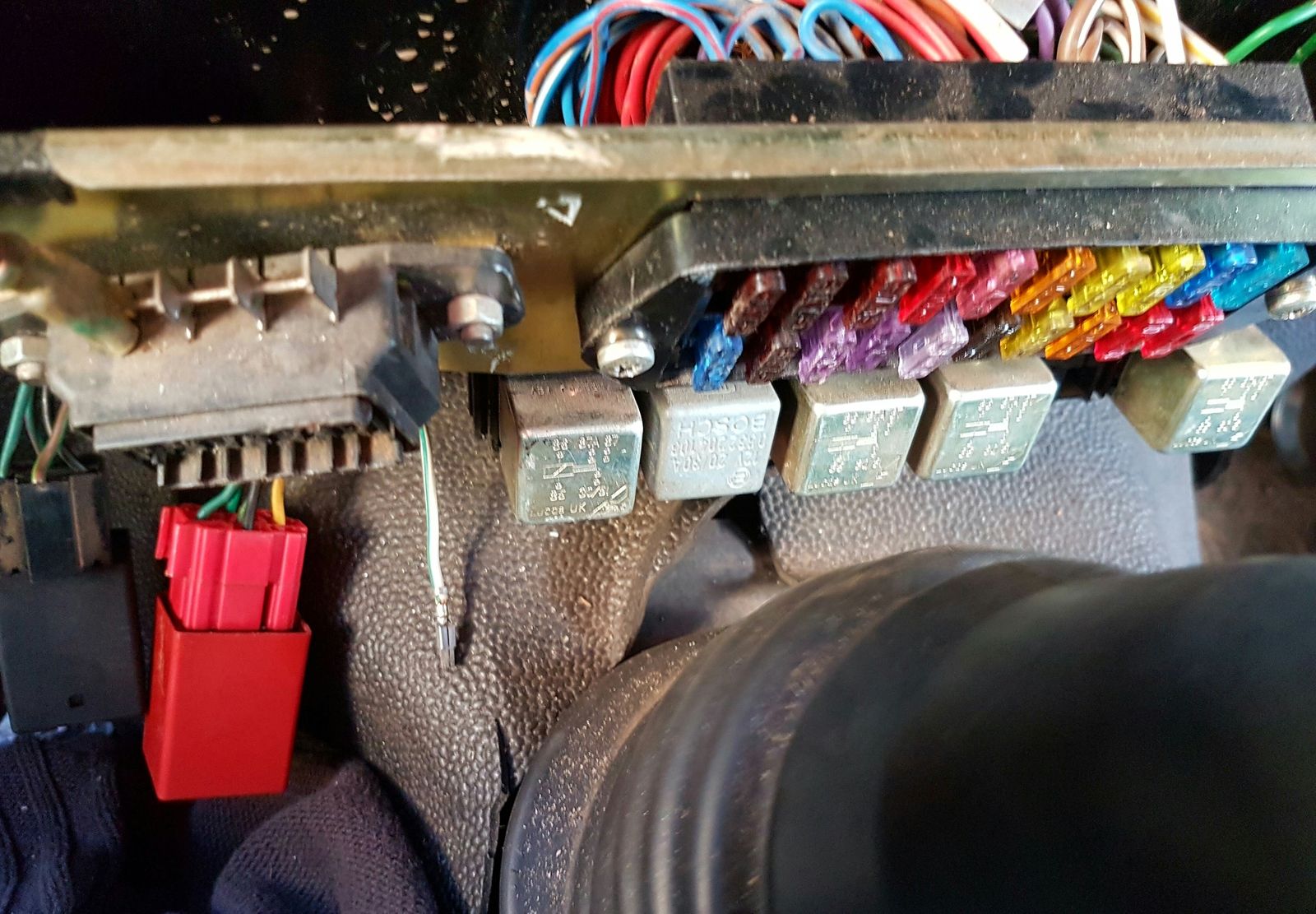

Trying to find out a couple of things here please.

Anyone tell me what relay is what, what missing relay is (or is it just a wee space for another one)?
And finally what trailing wire is and where should it be? (its white with green trace and is live with ignition on)
Thanks people.

mick the builder · Nov 10, 2016

not sure what the loose wire is for but looking at the terminal, it looks like it has pulled out of the back of a relay housing. Could be the live supply to a relay that you havent got, if that makes sense.

Kwakerman · Nov 11, 2016

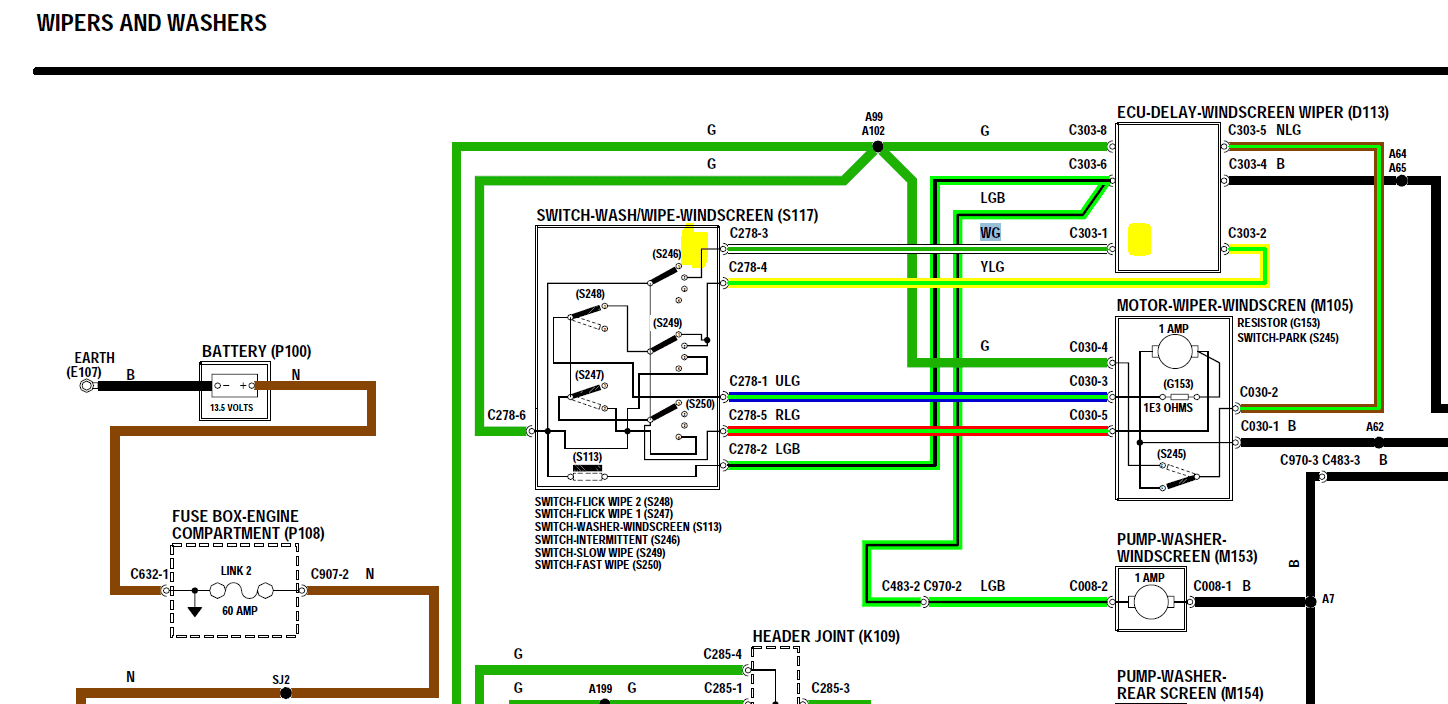

Could be

Or

Unfortunately there are quiet a few white/greens kicking around but these seen to be the most obvious relay ones
