Brake conundrum

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
mike, i have had this problem, first off brakes would stick on when handbrake applied over night, usually associated with wet weather or going through deep puddles, i did the same as you , stripped down, lubed and made sure all was free to move, and this seemed to work for a while, then just as yours, they really stuck on and overheated drum, so i replaced the hand brake cables, it cured the problem

hope this helps

SPOT THE DIFFERENCE!
:scratching_chin:

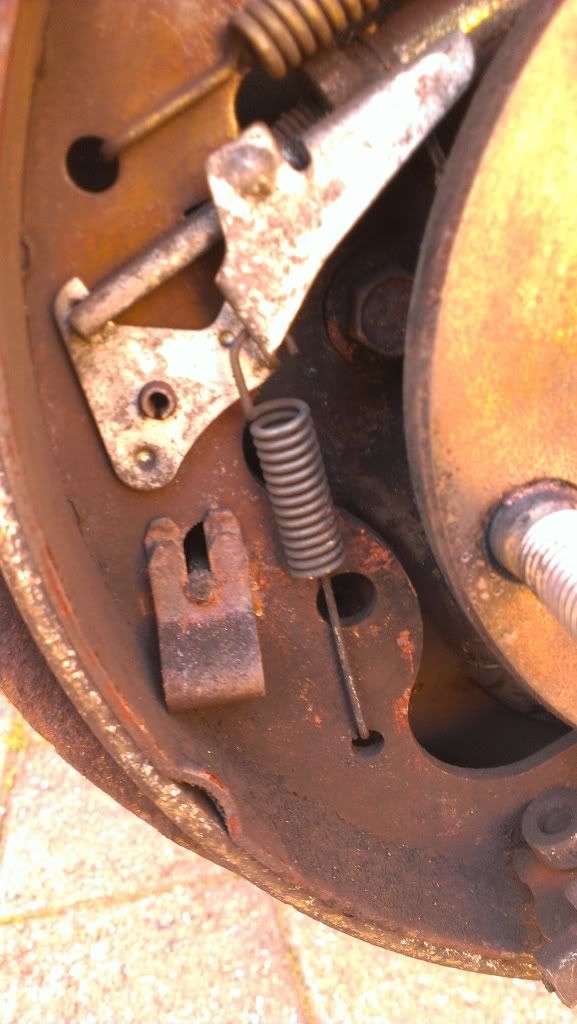

Correct way for self adjuster spring to be, notice it is under tension and around the back of the ratchet.

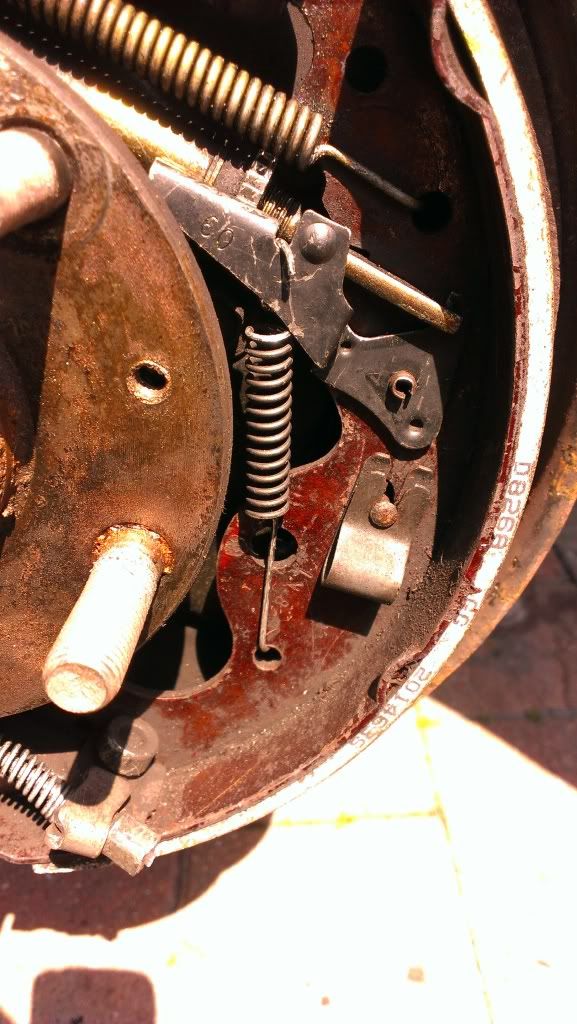

Completely incorrect way!!!:doh: Notice spring on side of ratchet.

Took a while to realise this, as when i took the brakes (offside) off the for the first time I just rebuilt them and didn't give it a second thought.
Then today whilst checking the nearside, the better half said that the spring was in a different place.:mad:

This will have happened when I had both wheel rear bearings replaced earlier this year. The blokes a good chap and i can trust him with most stuff, but he must have got the monkey to rebuild the brakes. Will be having a word in his ear soon:boxing:

Thankyou all again for your help and suggestions, hope we all learn't something from this.....Don't trust any bugger else with your car:rolleyes:


Cheers
Mike

Hope that the spring is the cause of you issues, but which ever position the spring is fastened to it still just gives downwards pressure.
The main issues are normal the arm, the hand brake cable fastens to. They don't pivot freely due age last one I did took a good hour to totally free. If the problem persists then would look at them.

booboodag said:
Hope that the spring is the cause of you issues, but which ever position the spring is fastened to it still just gives downwards pressure.
The main issues are normal the arm, the hand brake cable fastens to. They don't pivot freely due age last one I did took a good hour to totally free. If the problem persists then would look at them.
Click to expand...

Fortunately the handbrake arm is fine.
If you look at the bottom picture you will notice the spring isn't under load and wasn't exerting any downwards pressure. That led to the ratchet not holding the self adjuster. So each time the handbrake was used it wound out a little bit more. Eventually causing one side to stick.
If it wasn't caused by that I'm going to sit and gibber in a corner :p
Mike

was it the side from the lower picture that has caused the problems? as that's the one with the spring correctly located.

mike the top pic is incorrect, . go with the bottom pic, there is a hole where the spring locates, not as in the top pic

go sit in the corner :D

i think its irrelevant which way the spring is fitted, it can only adjust once there is sufficient movement (ie lining wear ) and it then can move the ratchet.

you will most probably not have the same problem again for a few months,
