Bolt ID - Retaining plate intermediate shaft lt230

Seph98

New Member

Posts

9

• Sunday at 09:09

• #1

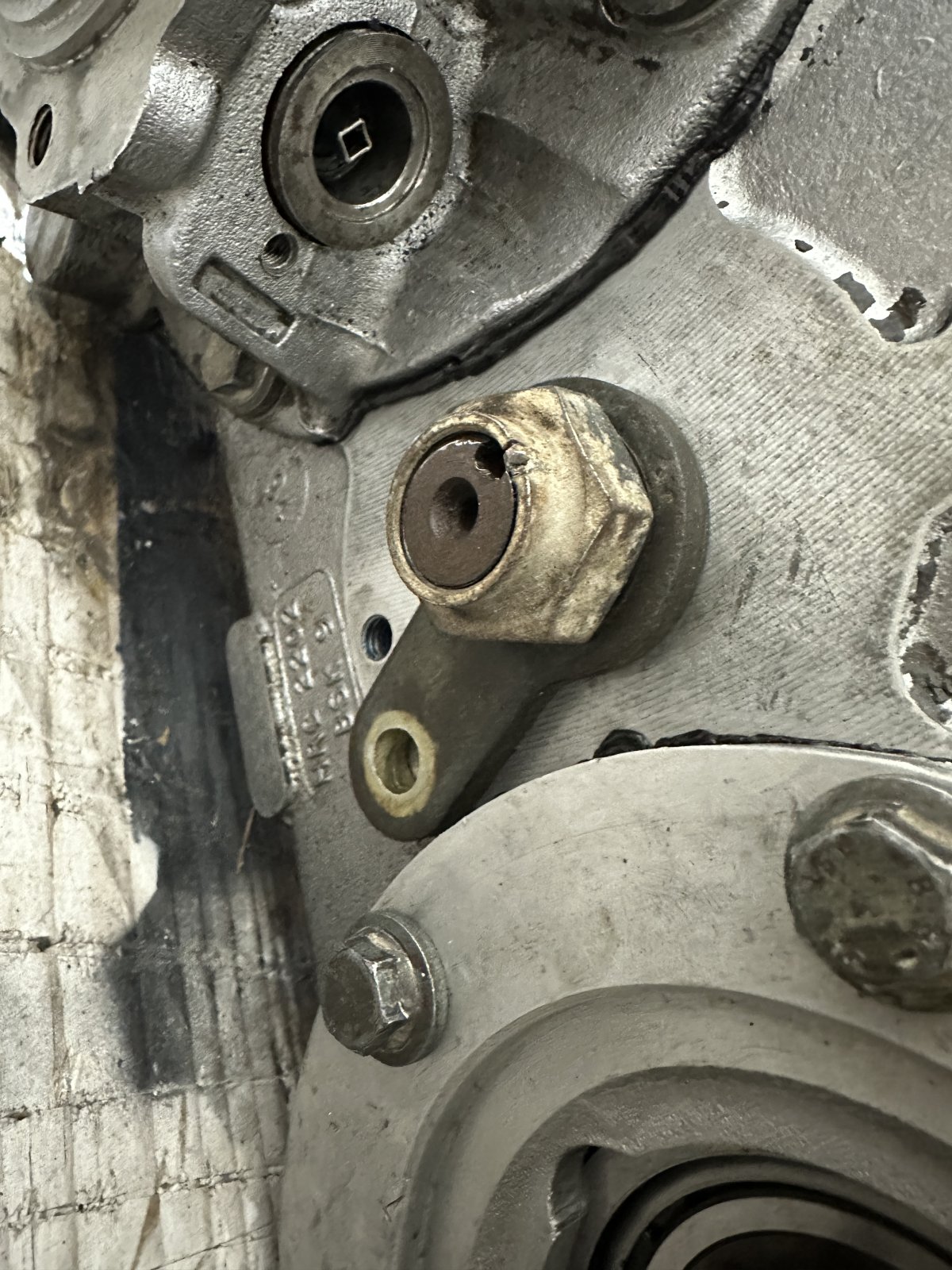

Can you kindly help with the above, please?

Bolt ID - Retaining plate intermediate shaft lt230

Thanks in advance.



Attachments

•

  379.8 KB · Views: 21

tottot

Well-Known Member

Posts

8,023

Location

west wales coast

• Sunday at 11:16

• #2

It is a type of nut known as a "stake nut" It is done up to a set torque and then the edge of the nut is "staked" bent into the groove on the shaft to prevent it undoing. FRC 7453
Why do you ask?



Seph98

New Member

Posts

9

• Sunday at 11:19

• #3

Not the nut :/ the bolt underneath it …



Seph98

New Member

Posts

9

• Sunday at 11:23

• #4

The bolt underneath should be around 6mm width. But length and head dont know how they are



miktdish

Guns n Chainsaws

Full Member

Posts

4,536

Location

Near Lanark, South of Glasgow. Scotland

• Sunday at 11:44

• #5

Seph98 said:

The bolt underneath should be around 6mm width. But length and head dont know how they are

Click to expand...

It's an M8x20 flanged, hex head, set screw/bolt.
It doesn't have to be HT but don't fit a stainless bolt ...

Flange Hex Head Screw M8x20 | Aston Martin

Flange Hex Head Screw M8x20 For Aston Martin Vehicles and Part Number: 703121. Is one of 60,000 Aston Martin Parts listed in our store.

www.astonstore.co.uk

Hex Head Flange Bolt M8 x 20mm 10.9 high tensile steel

Hex head flange bolt M8 x 20mm, 10.9 high tensile steel. Thread pitch: 1,25 mm Spanner Size: 13 mm

www.aecar.co.uk
