Done that , engine cold and it made no noticeable difference . Done another video that I can't upload on here and even tried sending it to you Keith via email but it says it's too big.
I guess the next step is to get a card for the nano? And have a go at getting a graph up.?

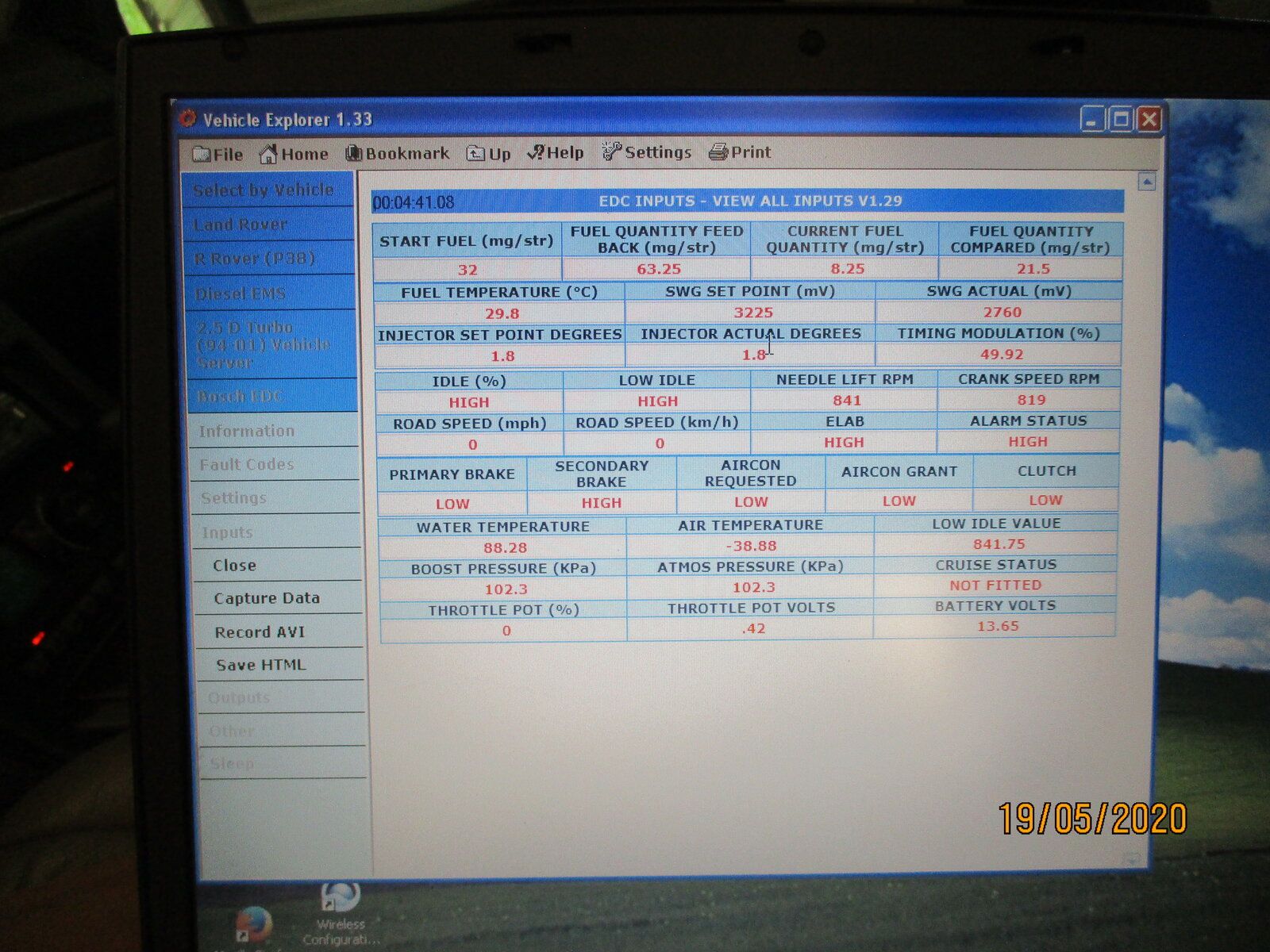

Yes, AC off. That's useful being able to see all the results on one screen. On the nano you have to close down menus and open new ones with frustrating laggyness.
Interesting that your air temp is the same as mine, so that's normal then.

Yes, AC off. That's useful being able to see all the results on one screen. On the nano you have to close down menus and open new ones with frustrating laggyness.
Interesting that your air temp is the same as mine, so that's normal then.
The air temp figure relates the the earlier car with no MAF and an IAT sensor so it's just a default figure that has no meaning on your car
I have a Faultmate, Nanocom was not available when I bought it. Not as portable as the Nanocom as it really need a PC to display the info but it gives much easier to read displays, cost an arm and a leg though.

I'm trying to eliminate everything and anything that can get it running better without reconning the pump/injectors/doing the chains until it's certain that it's one or all of them.
Engine isn't ratterly though to my ear but I've not heard another to compare.
The blast with the redex is tomorrow.

6deg cold start, 35deg at 95deg coolent temperature.

That sounds about right. That seems to affect the set point of injection on mine. Unplugging the MAF made no difference?

I'd be tempted to set the FIP as per RAVE to eliminate any potential issues there.

Anyone know how long the glow plugs stay on after the dash light goes out? Are the glow plugs switching off too early?

That sounds about right. That seems to affect the set point of injection on mine. Unplugging the MAF made no difference?

I'd be tempted to set the FIP as per RAVE to eliminate any potential issues there.

Anyone know how long the glow plugs stay on after the dash light goes out? Are the glow plugs switching off too early?
Well....I unplugged the MAF before the cold start and it ran the same as if I hadn't. Plugged it back in and there was no change in engine note although it's constantly changing with the lumpy idle. The glows de- energised a couple of secs after the dash light went out iirc.
Instant cold start and I think, instant hot start, I say I think because I've done that much fiddling and noting stuff that I've forgotten if hot start is good. If cold and hotstart ARE good then does that mean it's unlikely to be chain stretch, worn FIP and more likely to be a dribbly injector or 2?
Putting the fan back on and checking tyre pressures in a bit then running it up the road to see if the auto box works/abs light goes out. It's a bit of a trek to the MOT station tomorrow, all the local ones are either booked up or didn't want to do it.

That sounds about right. That seems to affect the set point of injection on mine. Unplugging the MAF made no difference?

I'd be tempted to set the FIP as per RAVE to eliminate any potential issues there.

Anyone know how long the glow plugs stay on after the dash light goes out? Are the glow plugs switching off too early?
Power is removed from the glow plugs when the glow light goes out, however the effects of combustion means they don't go cold.

Well....I unplugged the MAF before the cold start and it ran the same as if I hadn't. Plugged it back in and there was no change in engine note although it's constantly changing with the lumpy idle. The glows de- energised a couple of secs after the dash light went out iirc.
Instant cold start and I think, instant hot start, I say I think because I've done that much fiddling and noting stuff that I've forgotten if hot start is good. If cold and hotstart ARE good then does that mean it's unlikely to be chain stretch, worn FIP and more likely to be a dribbly injector or 2?
Putting the fan back on and checking tyre pressures in a bit then running it up the road to see if the auto box works/abs light goes out. It's a bit of a trek to the MOT station tomorrow, all the local ones are either booked up or didn't want to do it.
I still think worn chain tensioners could be behind the lumpy idle causing back lash at low revs.
