Bad shuddering and rattles.

Webley1991 · Nov 4, 2014

Do you mean the pin which is attached to the bracket on the chassis.

The holes on the bracket should be shaped to take the flat edges on the pin body to stop it from turning.

Photo shows what I am talking about better than I can explain it. The pin has two machined faces which should lock into the slot.


1997 Discovery · Nov 4, 2014

It's not that bit, it's the hand break linkage, looks like there is a bush or a part that acts as a bush that had siezed

1997 Discovery · Nov 5, 2014

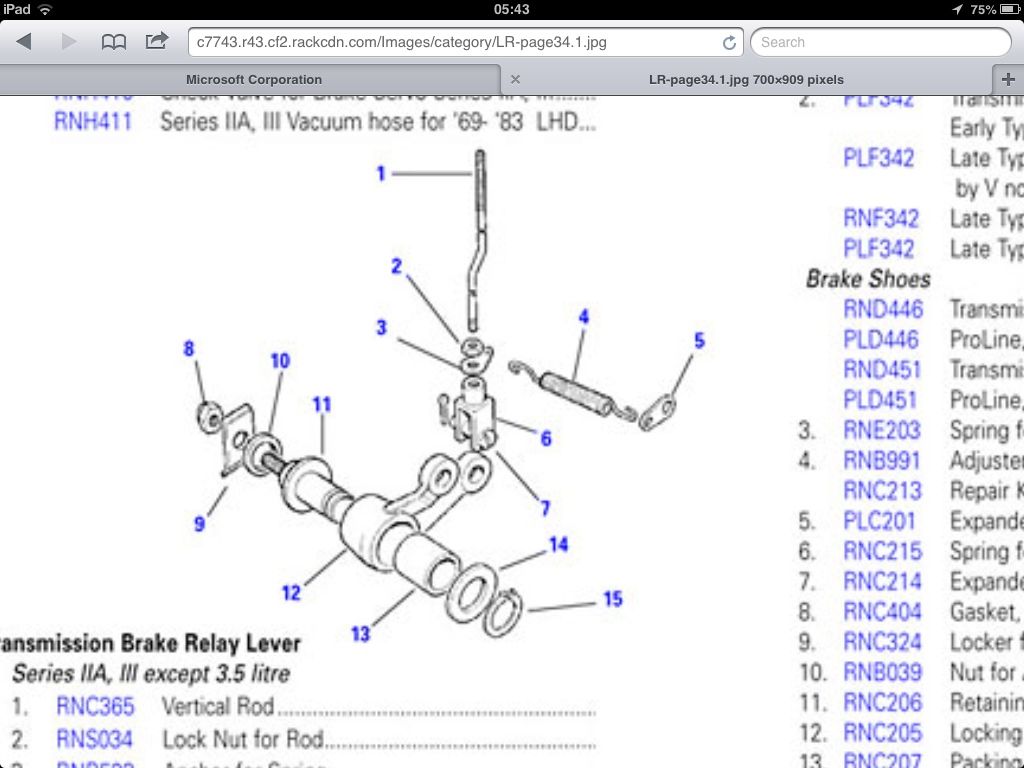

This was the bit that have seized

Webley1991 · Nov 5, 2014

Part number 11 on that diagram fits into the bracket in my photo.

1997 Discovery · Nov 5, 2014

It was the nut part 8 had that was a pain to tighten once dad had freed up parts 11 & 13 from 12
