Hi, not sure, they look like they were fitted before the chassis was galved!
Cheers Paul
Arb links inverted
- Thread starter Dingleberry
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Cheers Paul
I was thinking something hefty like 1/2 plate, bugger to work with but man enough.

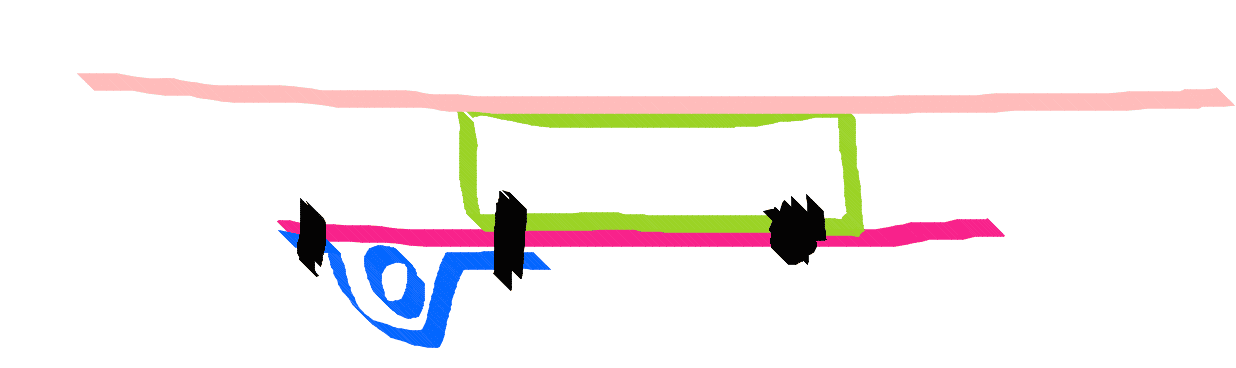

Utter crap drawing, but hope it shows you what I was thinking?
Pink original chassis
Green your ext piece
Red 1/2 plate, was thinking both orignal holes could be reused, and one could clamp all three parts
Blue d bracket
Black fixing bolts
Last edited:
Dingleberry
Member
- Posts
- 55
- Location
- Doncaster
Your design is what I'd had in mind!
You've got me thinking again now
Not sure if I can source any 1/2 inch plate though!
Cheers Paul
Ebay or local scrappy might have what you need.
Edit 10.50 delivered, not sure if 400mm will do both sides?
If not maybe enough to experiment with
https://www.ebay.co.uk/itm/50x12mm-...139676?hash=item36621a871c:g:DqsAAOSwJ5dcZy2T
Last edited:
Dingleberry
Member
- Posts
- 55
- Location
- Doncaster
400mm would be enough to do both sides but it needs to be 70mm wide! All I can find on eBay that's 70mm wide is 10mm thick. I reckon that should be enough! What's your thoughts?
Cheers Paul
P.s Thought I should mention the flat bar will over hang the original bracket by about 60mm.
Dingleberry
Member
- Posts
- 55
- Location
- Doncaster
Is there an optimal position for the links when the truck ìs unloaded?
Should they be straight up and down or maybe at a 90 degree angle to the arb??
Cheers Paul
Should they be straight up and down or maybe at a 90 degree angle to the arb??
Cheers Paul
Hicap phill
Well-Known Member
- Posts
- 16,192
- Location
- Wiltshire
Would 2 pieces of angle work?1 on each side & weld in the middle. This would also help to keep things from bending
I think a look at a std 90/110 would give you the answer
Phils idea sounds good, and as the angle can be thinner, cheaper as well.
Dingleberry
Member
- Posts
- 55
- Location
- Doncaster
Thanks for the replies, I'll get it done sometime this week.
How I do it will probably be determined by what I can get hold of quickest. I'll sticks dome pics up when it's done.
Thanks again!
How I do it will probably be determined by what I can get hold of quickest. I'll sticks dome pics up when it's done.
Thanks again!
Hicap phill
Well-Known Member
- Posts
- 16,192
- Location
- Wiltshire

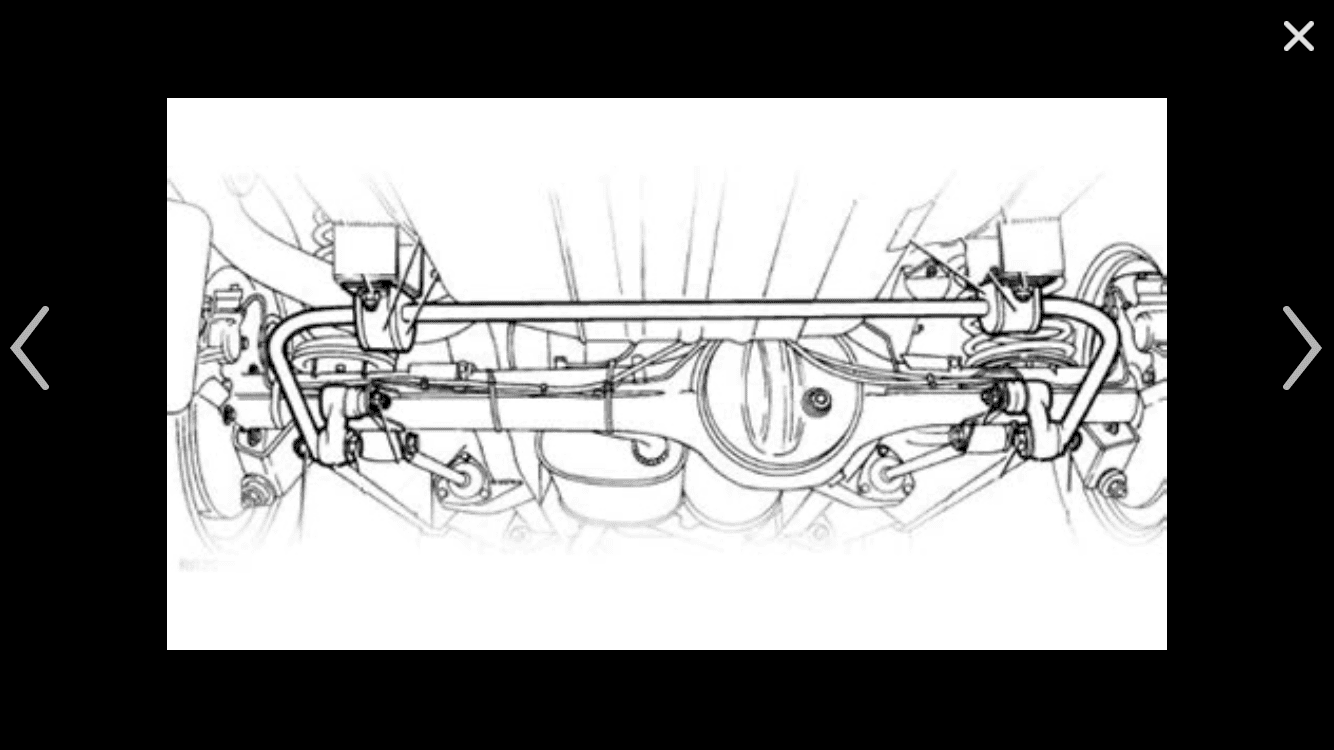

Can’t find any measurements but would this photo help?
You need the correct measurement (Bar to chassis)to to get the angle of the arb links
Can’t measure mine as I took them off
You need the correct measurement (Bar to chassis)to to get the angle of the arb links
Can’t measure mine as I took them off
Dingleberry
Member
- Posts
- 55
- Location
- Doncaster
Thanks Phill, I've unbolted the arb brackets and held them forward to correspond with the measurement given by JamesMartin and the links look to be in the same place as your diagram.Can’t find any measurements but would this photo help?
View attachment 209355
You need the correct measurement (Bar to chassis)to to get the angle of the arb links
Can’t measure mine as I took them off
That will do for me!
Cheers Paul
