Another build thread!

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

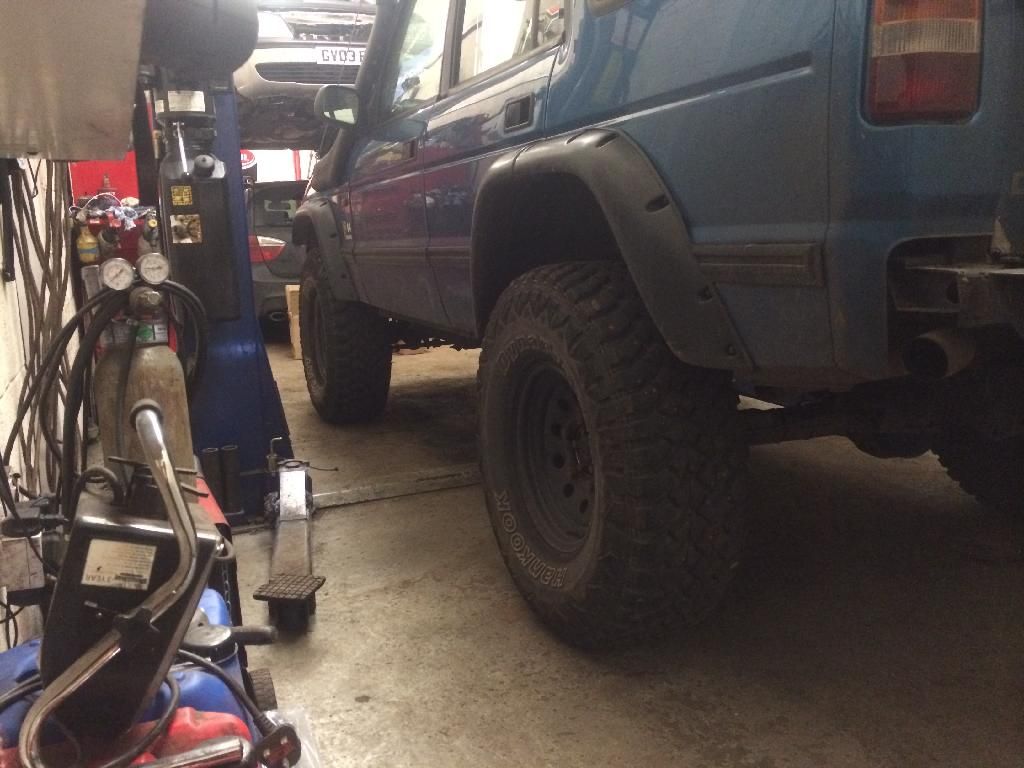

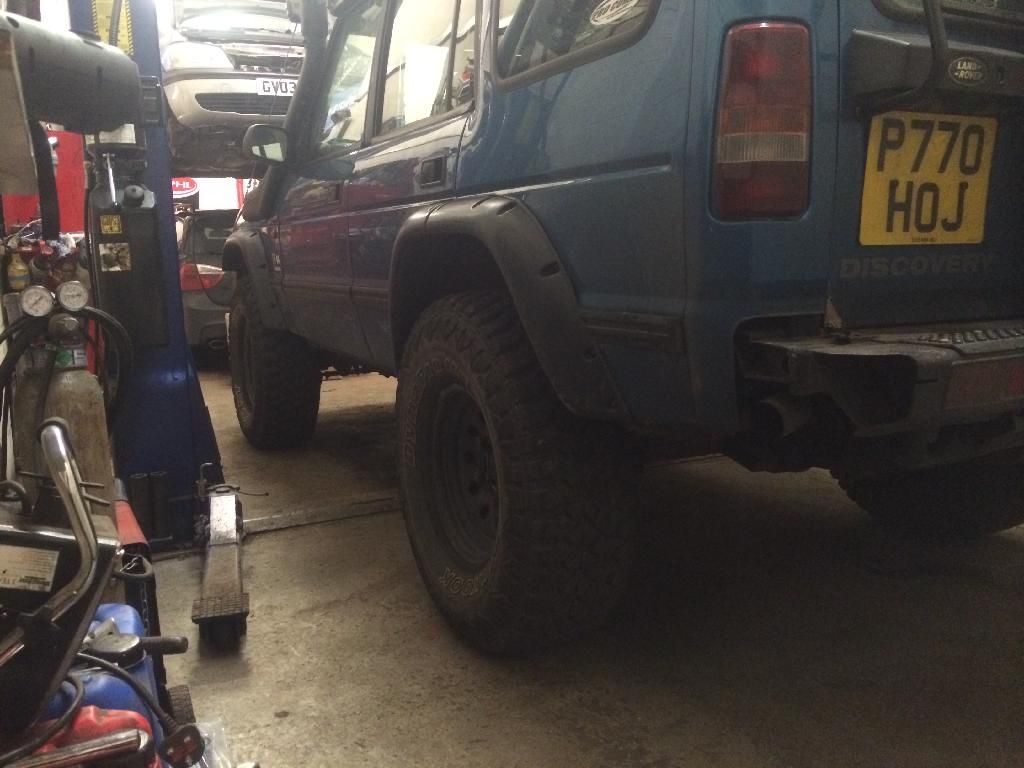

Just done some measuring. The axel hits stop 1" before shock is bottomed. And the wheel hits body a long time before the axel hits the stop lol....

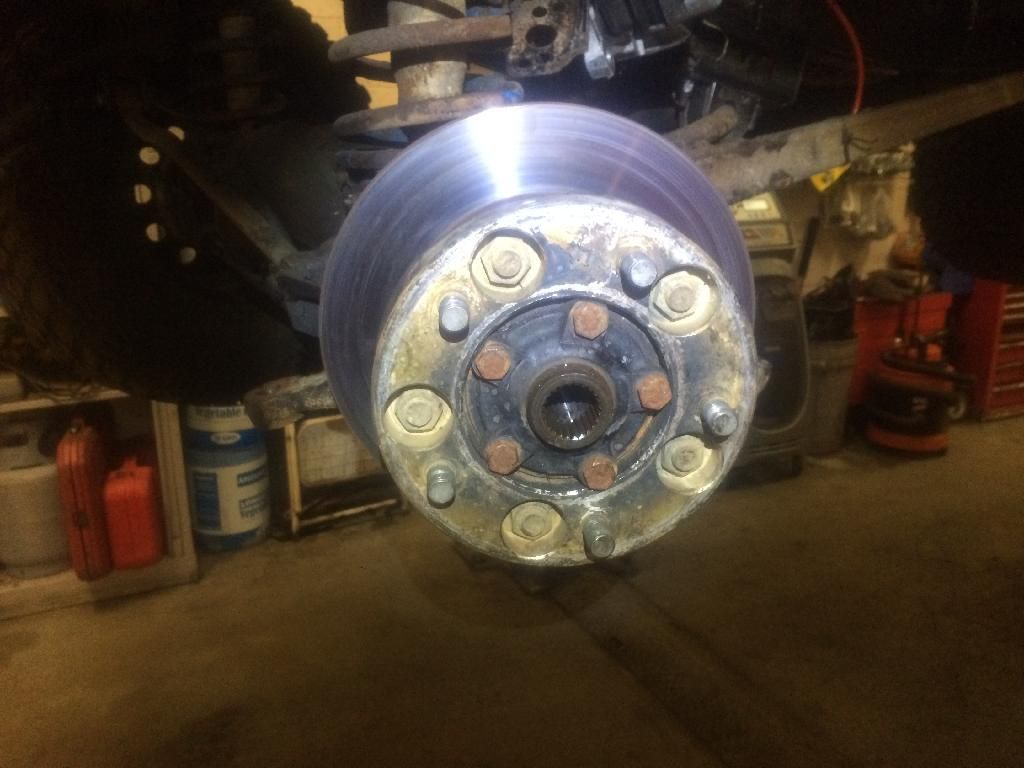

No I was checking the preload and wonderd why I could turn it so easy. Was only the seal On back and 2 top hat bolts to remedy lol

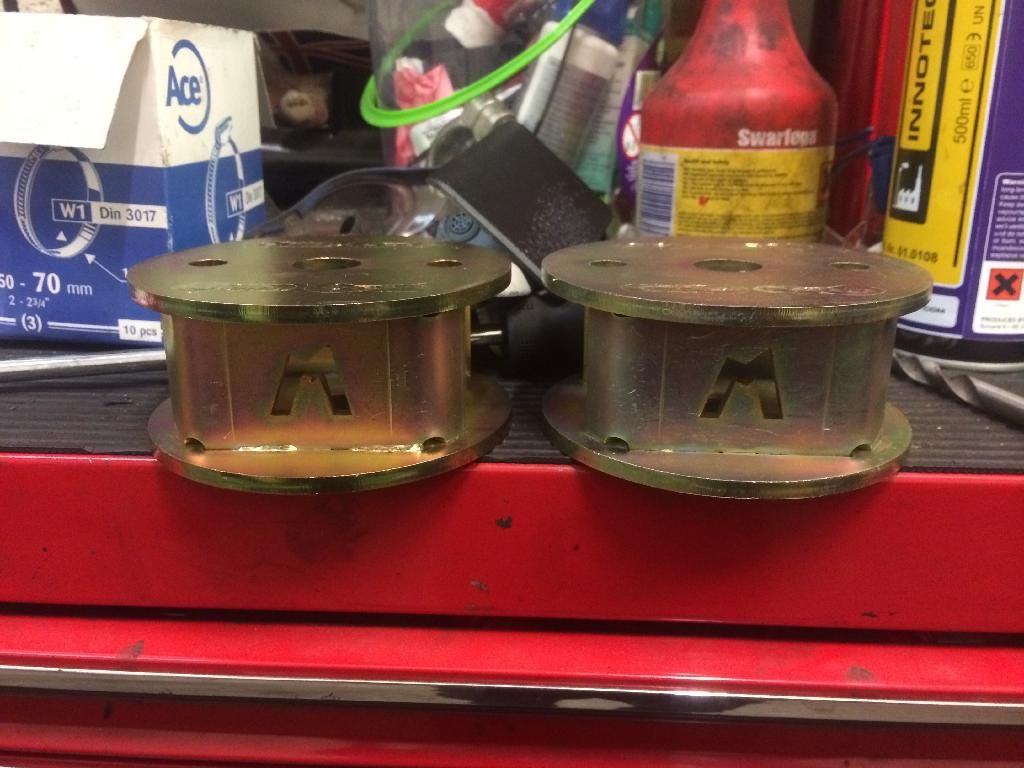

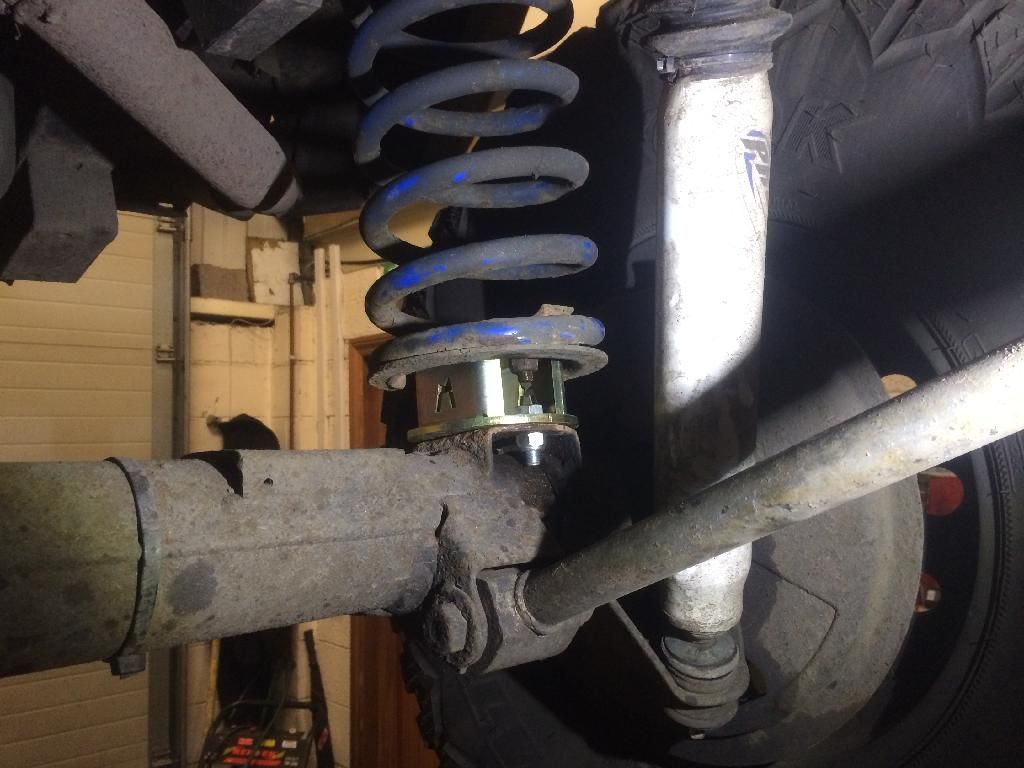

Been buying some more bits. Got full wading/breather kits on all axels gearbox and tfr box. Also timing case. Got the plugs for the bottom. Brought new caps for alllll the bleed/grease nipples as I'm fed up of poking the mud out before I can do anything :D. 2" lift blocks on the rear as it's sitting abit low with all the weight it has init. Now is much more level and drives abit smoother. Also changed my sunroof model roof map holder thing for a non sunroof model one painted black to remount the cb onto and a bunch of switches. Re working the roof lamps with relays etc because I was a lazy #### last time I did it and it's nagging me.... Annd I think that's about it at the moment. Some pics will follow..

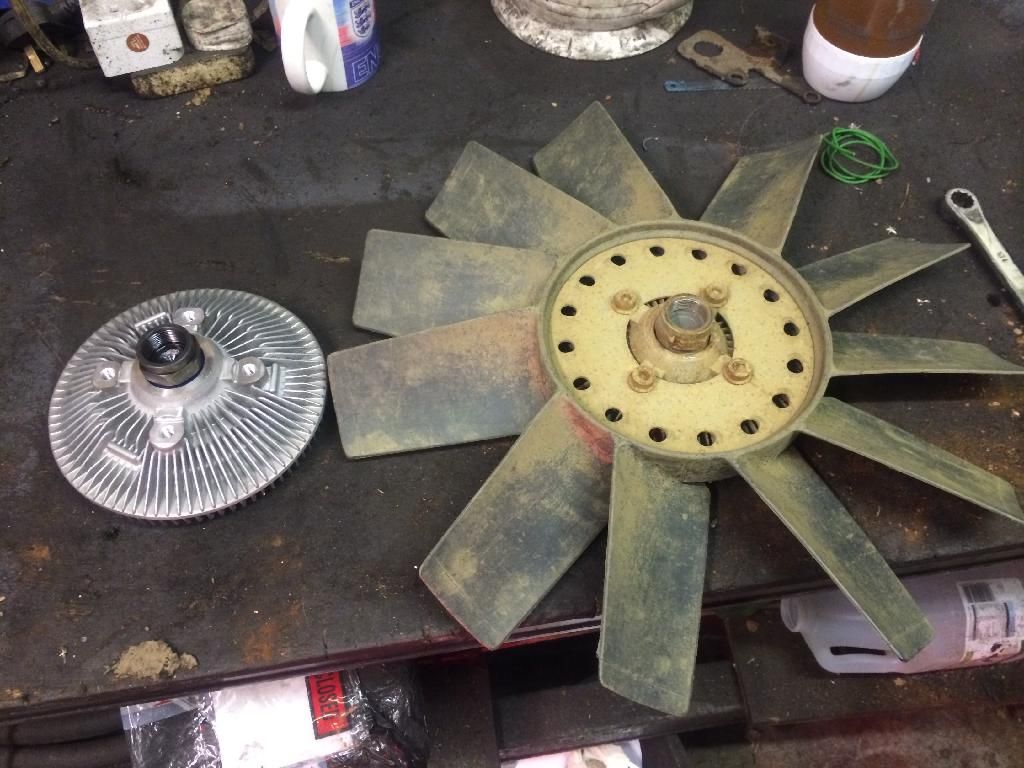

Ohh and almost forgot. New tensioner bearing belt and viscous coupling. Not because it's chirping. But because the viscous has play. And why the hell not do the bearing at same time. :). Pics will be tomorrow or Monday.

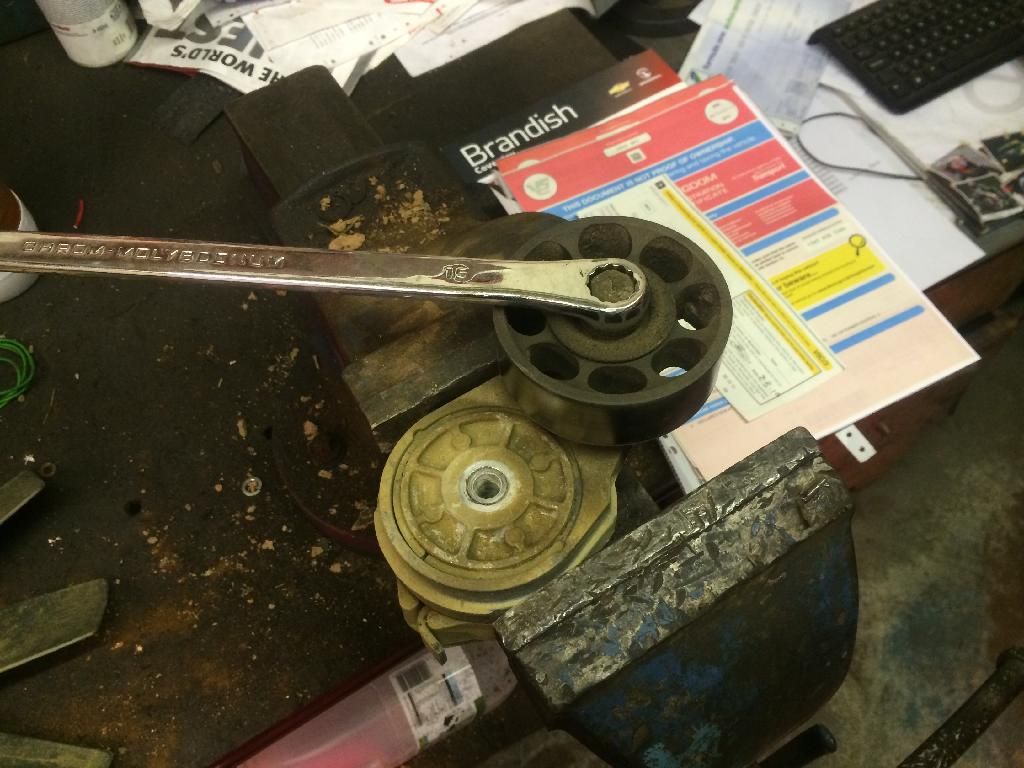

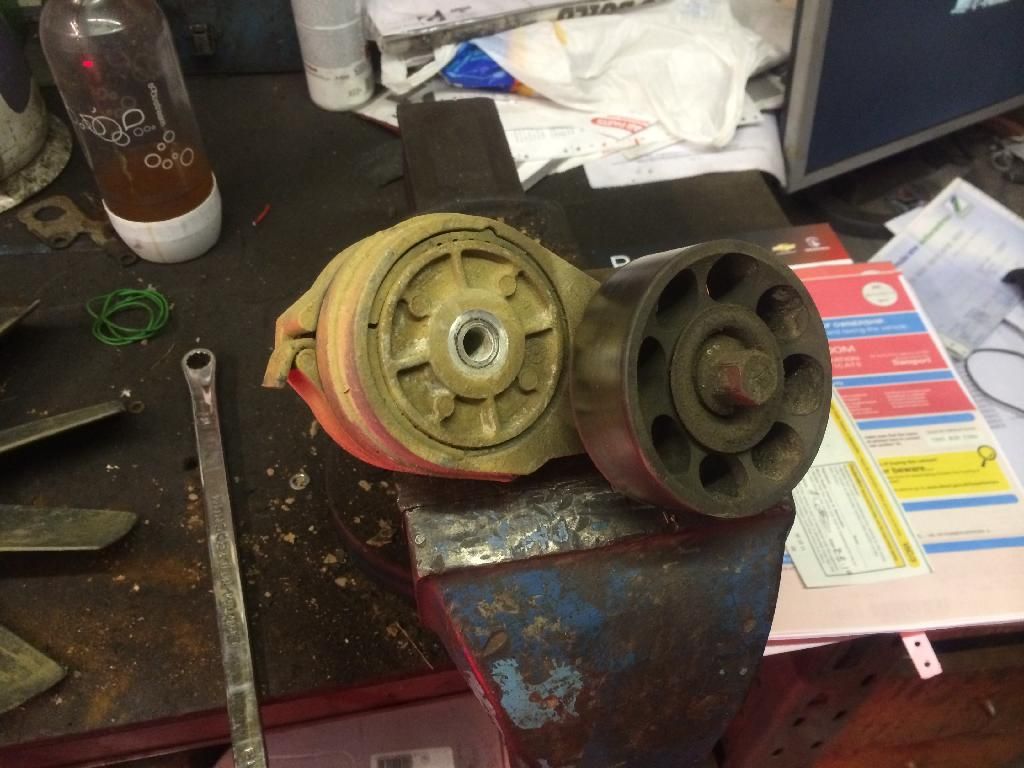

I'll be changing just the bearing in this. Remove the bolt on the pulley. Left hand thread! So opposite to normal

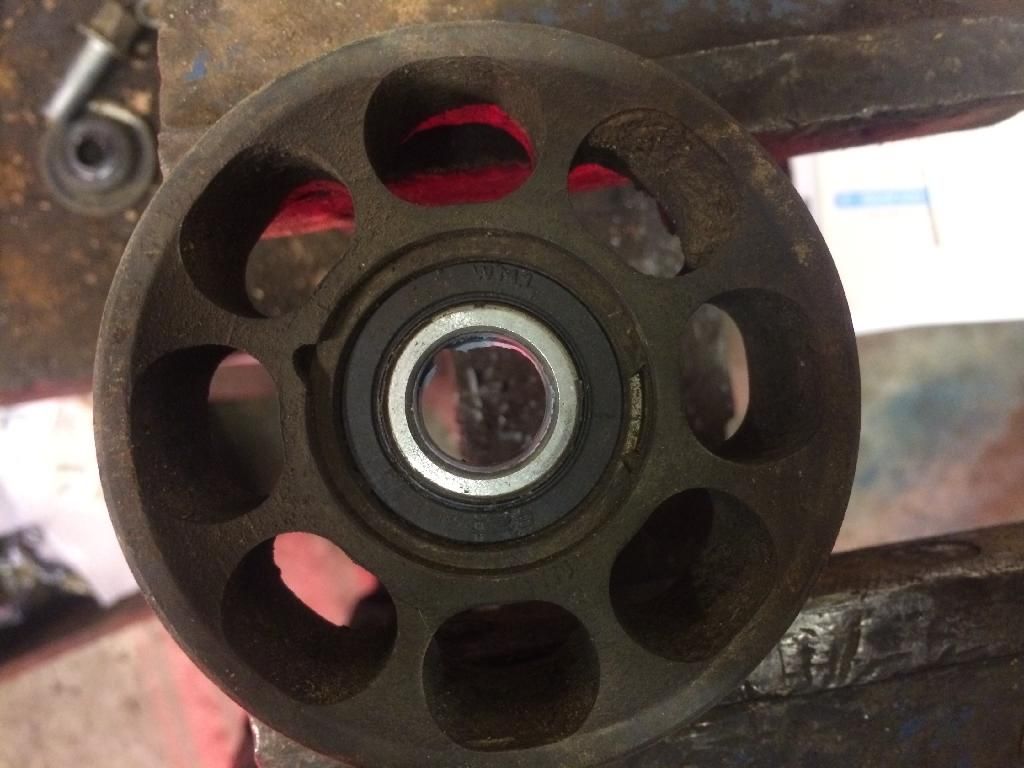

Then remove pulley and circlip. Press out old bearing. Press in new one. Refit circlip. Pulley. Job done.

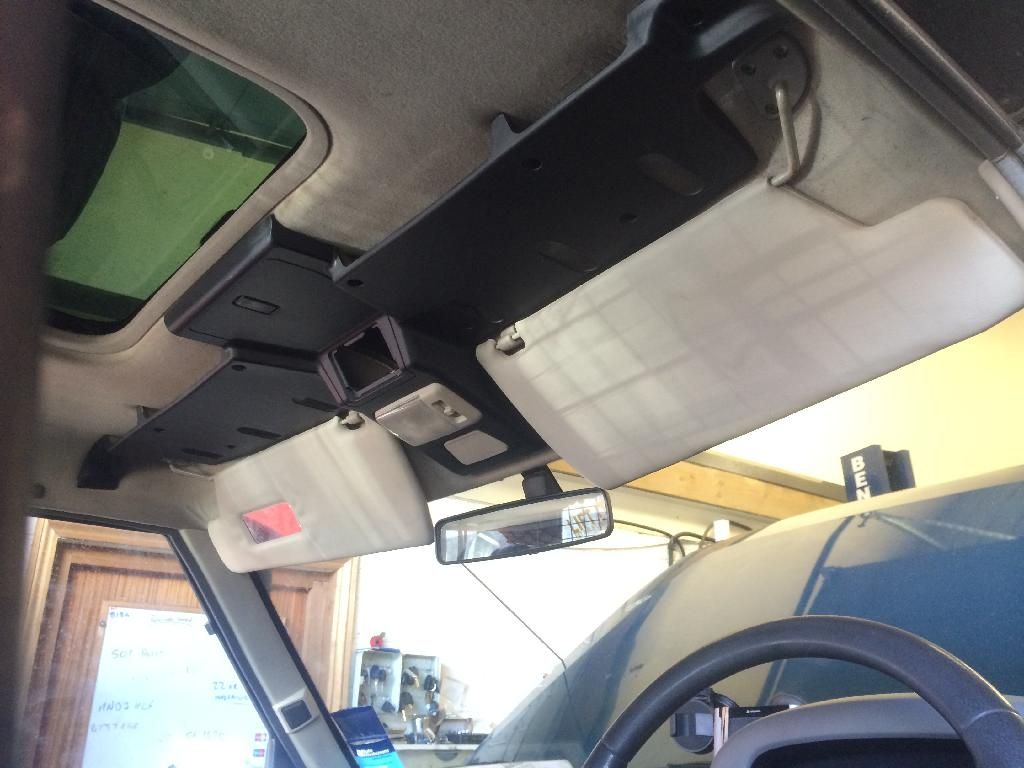

Pic of roof console. Still needs switches etc.



And breather hoses.


a small update i havent been around for a while been very busy at work :)



been building a better storage system, its not finished yet i want to use it a few times and make adjustments before i get it carpeted

so from this



to this











ive left the big space on the passanger side for the dog




the space on the lower left fits 2 wolf boxes as does the space on left top, altho i can fit more there aswell,
on the lower right fits either 3 more wolf boxes or currently 3 chairs and wind breaks etc

ive also added as you can see the load lugger (up top) and the rear window guard both from mantec/flatdog

im not sure if ive mentioned it but i also fitted a roof rack from flatdog at the same time





also got the arb chairs from them to.... bella aproves




this weekend i went to eastnor landy show and got an ipad mount from raptor enjineering ill post up some more about that when its fitted properly

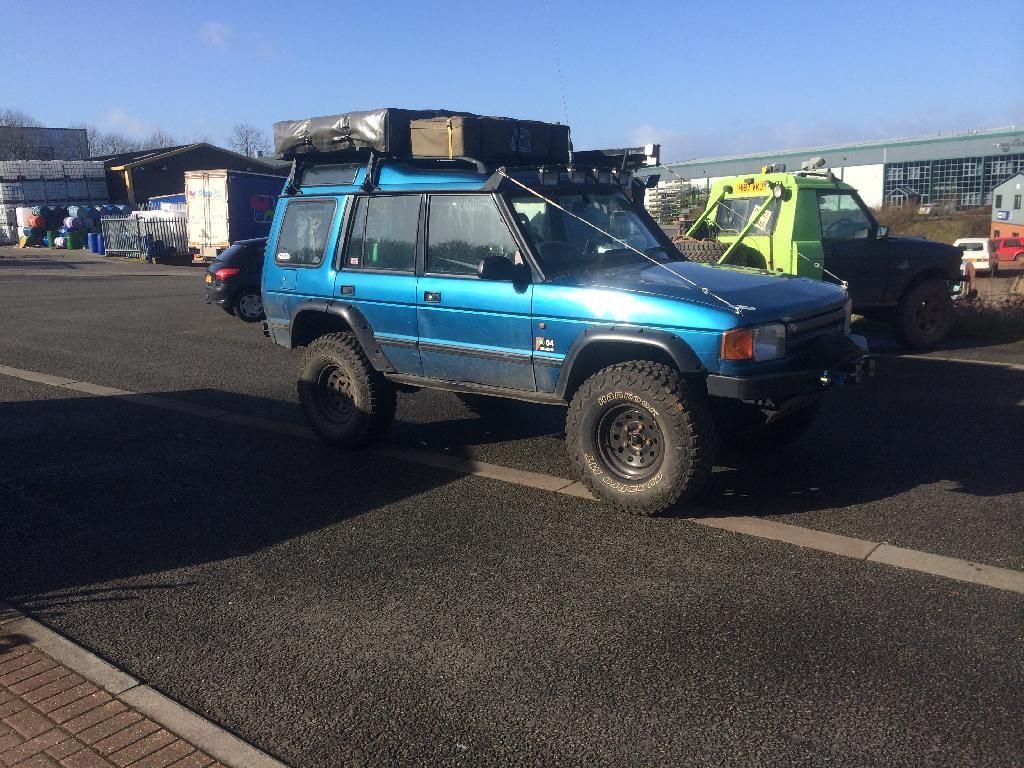

and just because a few pics from the weekend
