Sounds to me like he is relying on only front alt mounts not 1 at the back, recipe for something breaking.
J
Alternator
- Thread starter scottonthefen
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Sounds to me like he is relying on only front alt mounts not 1 at the back, recipe for something breaking.
J
scottonthefen
Well-Known Member
- Posts
- 532
- Location
- England
I couldn't find a way to shim it 100% straight with the other pulleys. If I moved it behind the front brackets and packed the top one back out to bring the alternator toward the fan.. then the bottom bracket had to be packed out too which caused the notched timing indicator to fowl the drive pulley.
I've got the right tension and it appears to charge at 13.8V at a fast idle. I'll fit a more suitable alternator when I get to it.
I've got the right tension and it appears to charge at 13.8V at a fast idle. I'll fit a more suitable alternator when I get to it.
mystery
Well-Known Member
- Posts
- 1,510
- Location
- BULKINGTON

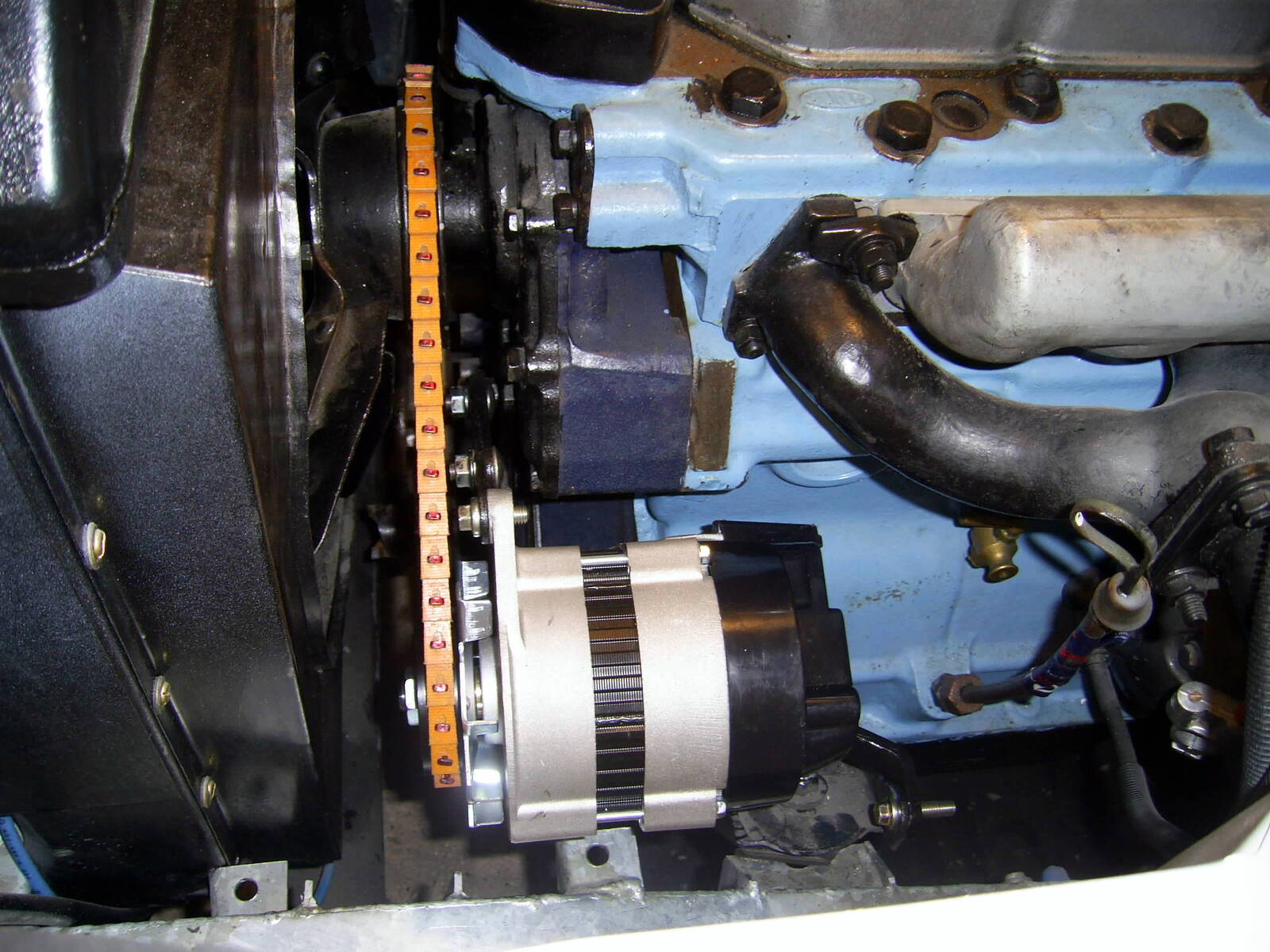

the alternator I have fitted to my series 1 I made a bracket to suit with a stagger so the 16acr alt would align .the pulley I was referring to is the one fitted to the alternator you said was labelled ford too small and you would have to rev the arse of it to around 14.volts
Attachments
Bobsticle
De Villes Advocaat
- Posts
- 27,632
- Location
- Manchester
I’m not reading this stuff anymore.
My charge light came on last night on the way home and this afternoon it started but none of the electrics worked
I had to stuff my hand up his frock and twiddle with his ignition spades on the back of the barrel. Looks like one of the original problems I had is re surfacing.
Bleedin Lucas
My charge light came on last night on the way home and this afternoon it started but none of the electrics worked
I had to stuff my hand up his frock and twiddle with his ignition spades on the back of the barrel. Looks like one of the original problems I had is re surfacing.
Bleedin Lucas
scottonthefen
Well-Known Member
- Posts
- 532
- Location
- England

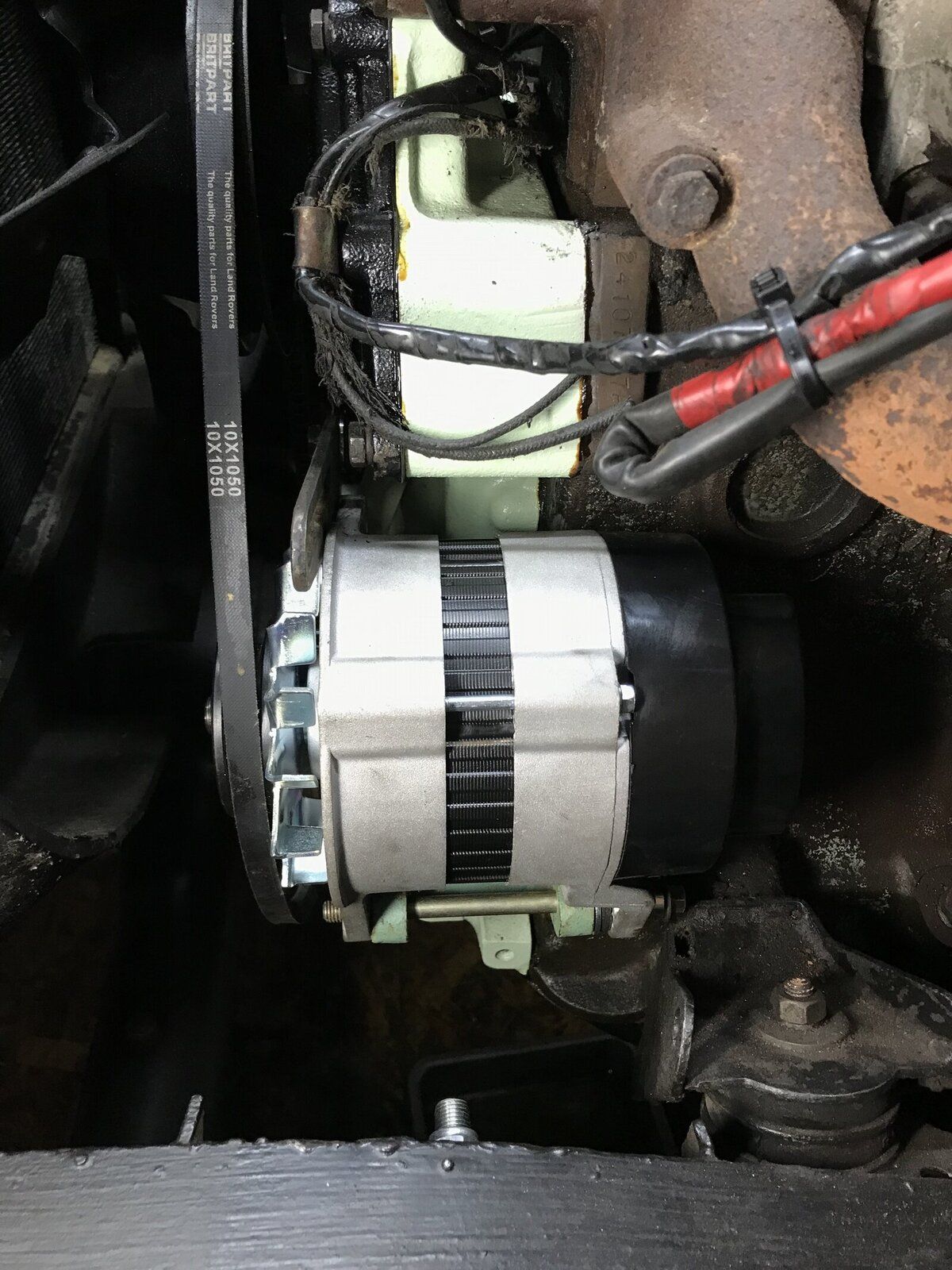

I've bought a S3 alternator to replace the "incorrect" Ford one on my 2A: https://bearmach.com/alternator-sui...-range-rover-classic-v8-carb-vehicles-br-3551
My engine is a suffix A 2.25 petrol, and this alternator is described as for suffix B engine onwards.. well.. I thought I'd try it.

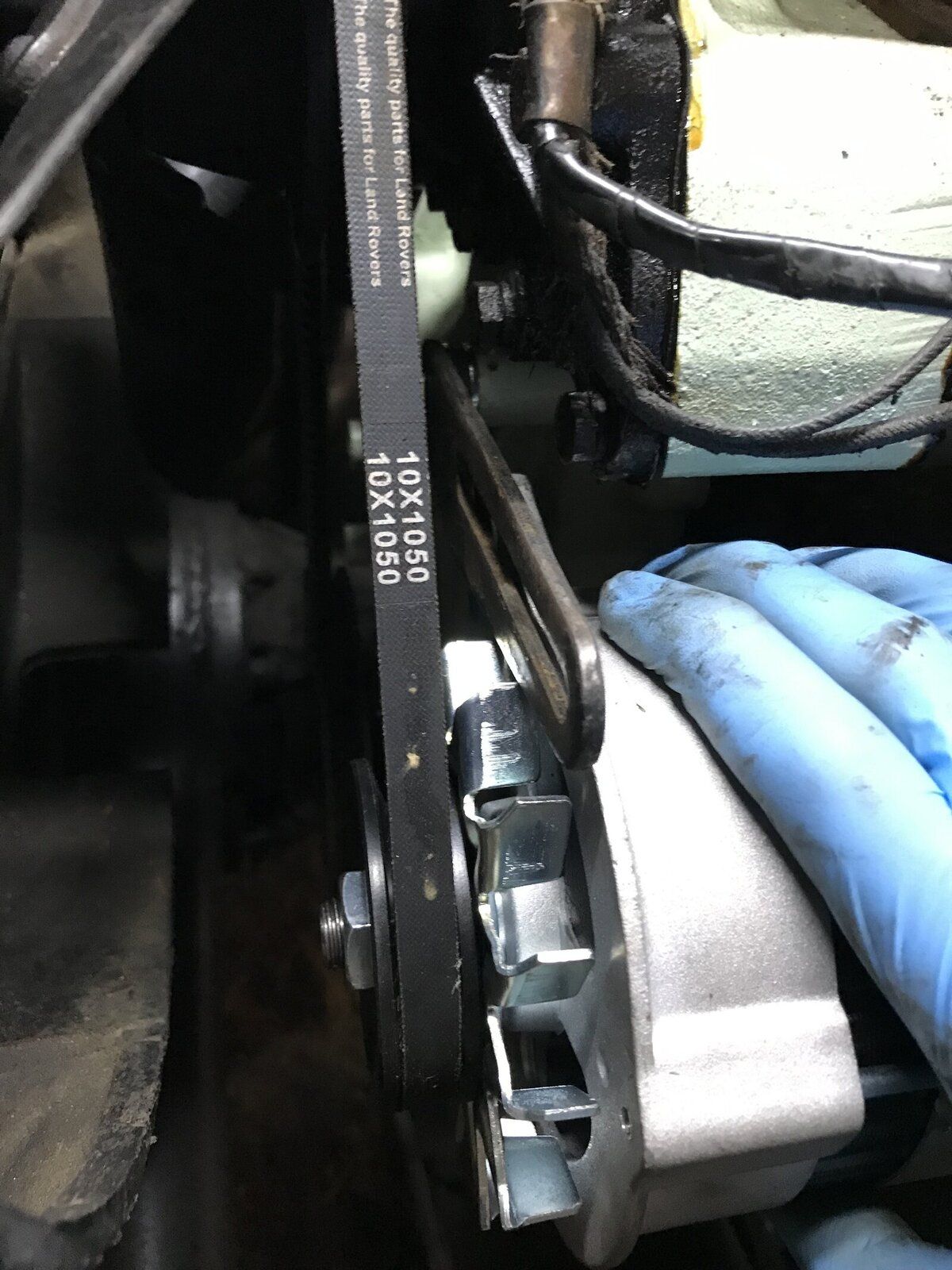

It seems too big. I can get the front pulley to align properly, which is an improvement on the Ford one, and the pulley is 1cm smaller than the Ford one that didn't seem to be charging quite as much as some people thought it should be, but there's no room to attach the tensioner without fouling the alternator blades. Over time, without the tensioner, I'm sure I'll lose tension on the fan belt if it's just attached by the through bolt in the alternator bracket.
Can anyone recommend an alternator they know will fit a late 2A or earlier?
My engine is a suffix A 2.25 petrol, and this alternator is described as for suffix B engine onwards.. well.. I thought I'd try it.
It seems too big. I can get the front pulley to align properly, which is an improvement on the Ford one, and the pulley is 1cm smaller than the Ford one that didn't seem to be charging quite as much as some people thought it should be, but there's no room to attach the tensioner without fouling the alternator blades. Over time, without the tensioner, I'm sure I'll lose tension on the fan belt if it's just attached by the through bolt in the alternator bracket.
Can anyone recommend an alternator they know will fit a late 2A or earlier?
Attachments
scottonthefen
Well-Known Member
- Posts
- 532
- Location
- England
- Posts
- 33,600
- Location
- North Shropshire
the 2a engine uses the alternator/dynamo to keep tension by default. the ford one was used because it lines up correctly. i dont think the s3 one does
mystery
Well-Known Member
- Posts
- 1,510
- Location
- BULKINGTON
used two of the old dynamo bracket
scottonthefen
Well-Known Member
- Posts
- 532
- Location
- England
Thanks.
@mystery: Those brackets look much smaller than the one on my 2A you can see in my picture.. I wonder if mine's off something else now and if I could get a smaller one that would fit.
@kermit: The Ford one on mine never quite aligned and the pulley was 1cm bigger at 7.5cm so spun slower.
This one is 45A and has a 6.5cm pulley and looks a bit smaller: https://bearmach.com/alternator-sui...MI4YLN1Y6k6AIVk4jVCh1V3AatEAQYBCABEgKrzvD_BwE What do we think?
@mystery: Those brackets look much smaller than the one on my 2A you can see in my picture.. I wonder if mine's off something else now and if I could get a smaller one that would fit.
@kermit: The Ford one on mine never quite aligned and the pulley was 1cm bigger at 7.5cm so spun slower.
This one is 45A and has a 6.5cm pulley and looks a bit smaller: https://bearmach.com/alternator-sui...MI4YLN1Y6k6AIVk4jVCh1V3AatEAQYBCABEgKrzvD_BwE What do we think?
scottonthefen
Well-Known Member
- Posts
- 532
- Location
- England
What's involved in going back to a dynamo?
I've still got the brackets. I'd have to undo the wiring changes..
I've still got the brackets. I'd have to undo the wiring changes..
tottot
Well-Known Member
- Posts
- 8,029
- Location
- west wales coast
You will need the bulkhead mounted regulator.
mystery
Well-Known Member
- Posts
- 1,510
- Location
- BULKINGTON
try http://www.fossewayperformance.co.uk/dynators-dynamos/ expensive ,

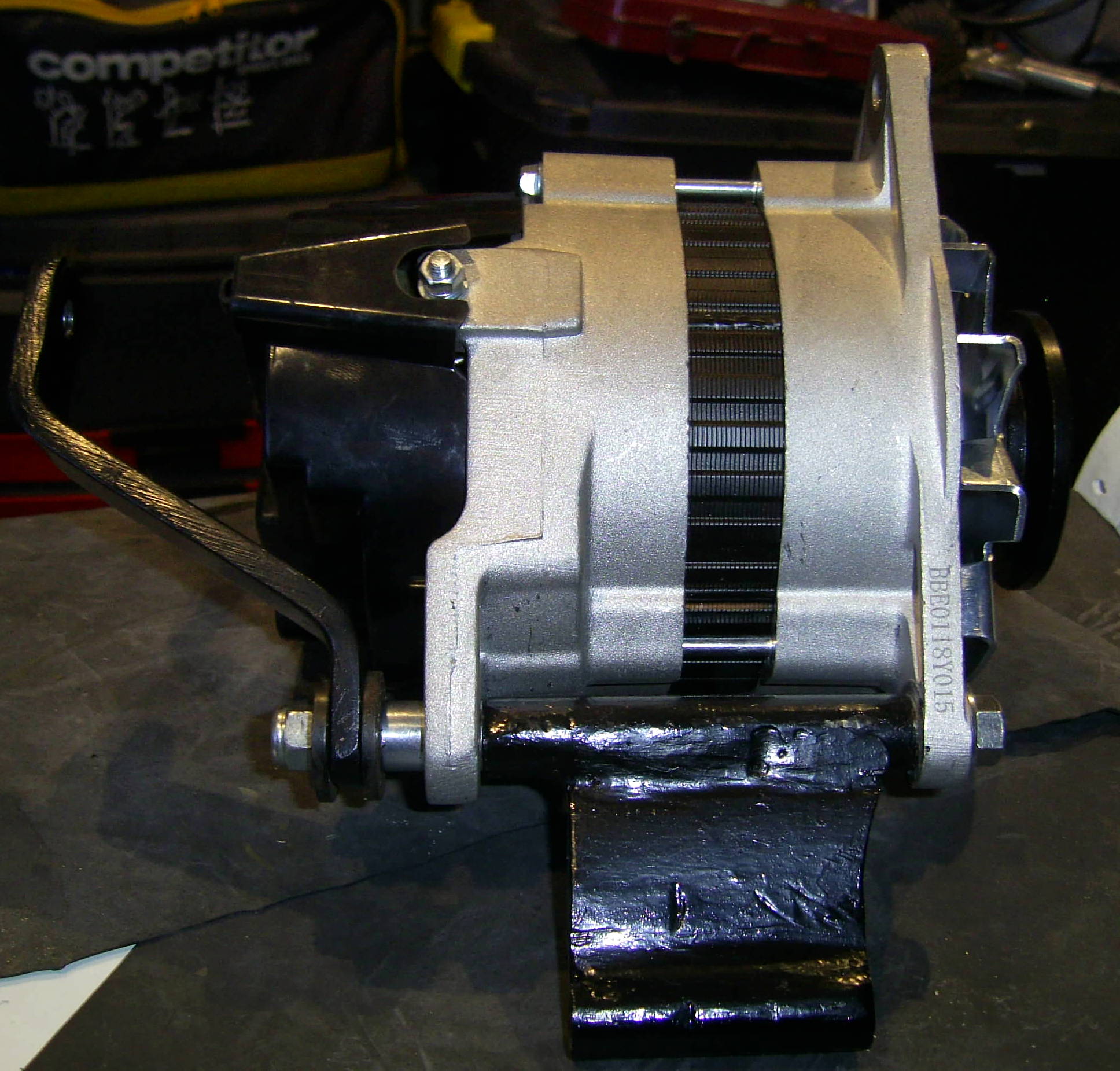

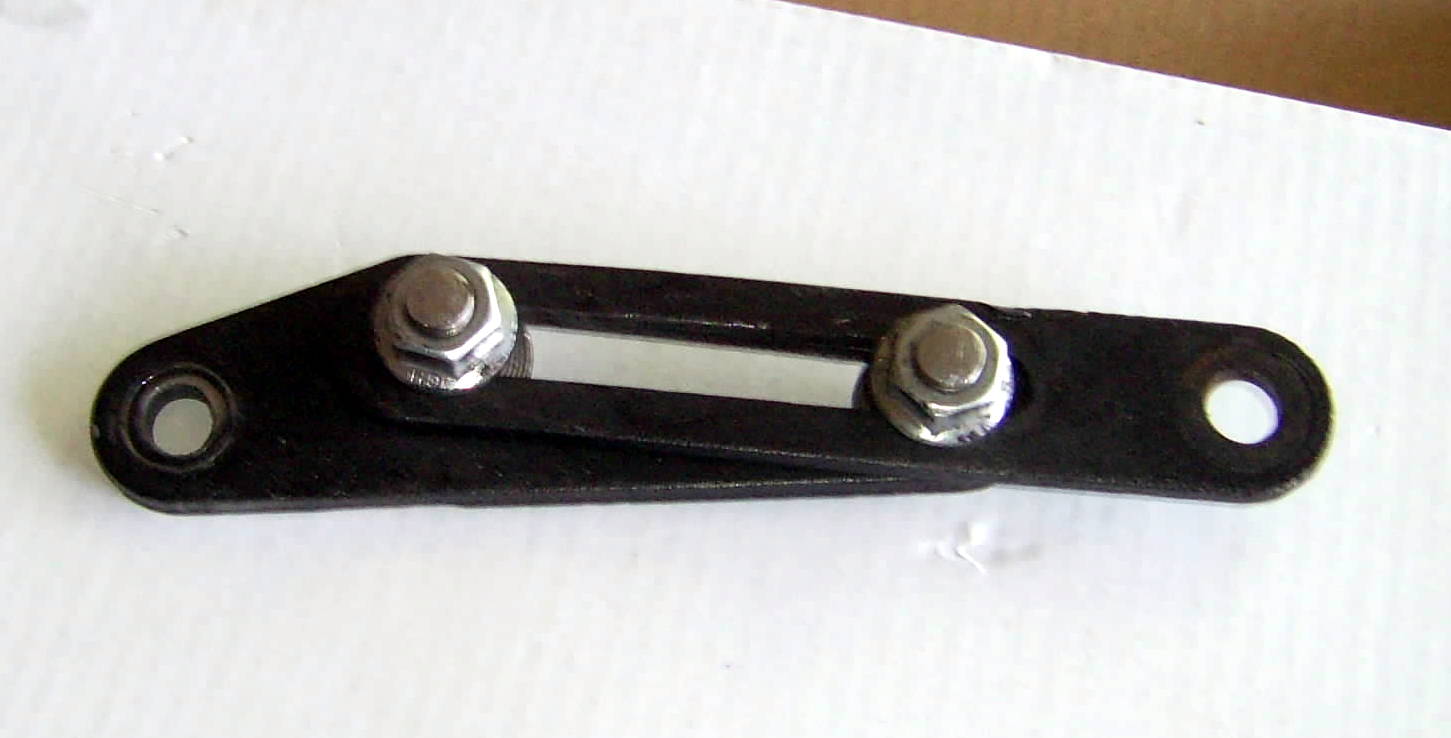

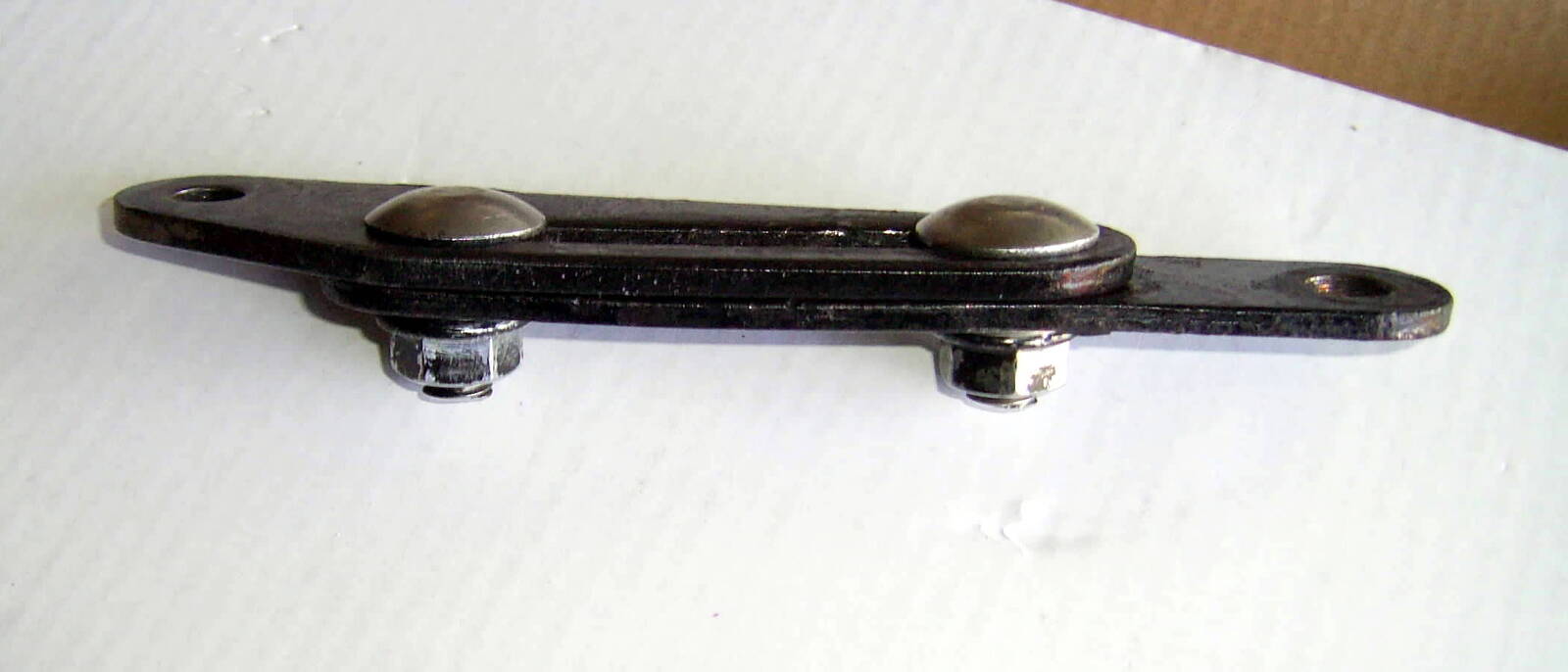

to fit my alternator I fabricated a engine mounting bracket and used parts of old mounting brackets
to fit my alternator I fabricated a engine mounting bracket and used parts of old mounting brackets
scottonthefen
Well-Known Member
- Posts
- 532
- Location
- England
Right, thanks to you all I've got some things to try.
The smaller 45A alternator is coming tomorrow, I'll see how that fits..
A longer drive belt is also a good suggestion, thanks for that blackburn.
I naturally thought the through-bolt that used to go through the block was intended to be used on the S3 alternator bracket too but two separate bolts might be better. And yes there is room for some lateral movement with the use of some spacers. I'll have a play about..
I've finally realised there is no "right" alternator for my 2A, I just have to find what works.
The aim here is to find something that delivers a better voltage to the battery than the Ford one was (it had a bigger pulley), and that attaches more securely.. the Ford one could only be fixed in two places at the front so it was wobbly. It could also not be aligned to the other pulleys no matter what I tried with spacers it was always about 5-10mm out.
The smaller 45A alternator is coming tomorrow, I'll see how that fits..
A longer drive belt is also a good suggestion, thanks for that blackburn.
I naturally thought the through-bolt that used to go through the block was intended to be used on the S3 alternator bracket too but two separate bolts might be better. And yes there is room for some lateral movement with the use of some spacers. I'll have a play about..
I've finally realised there is no "right" alternator for my 2A, I just have to find what works.
The aim here is to find something that delivers a better voltage to the battery than the Ford one was (it had a bigger pulley), and that attaches more securely.. the Ford one could only be fixed in two places at the front so it was wobbly. It could also not be aligned to the other pulleys no matter what I tried with spacers it was always about 5-10mm out.
- Posts
- 33,600
- Location
- North Shropshire
Maybe you just needed a different sized pulley for the ford one?
scottonthefen
Well-Known Member
- Posts
- 532
- Location
- England
It would have helped but it still would have been wobbly and not align laterally.
mystery
Well-Known Member
- Posts
- 1,510
- Location
- BULKINGTON

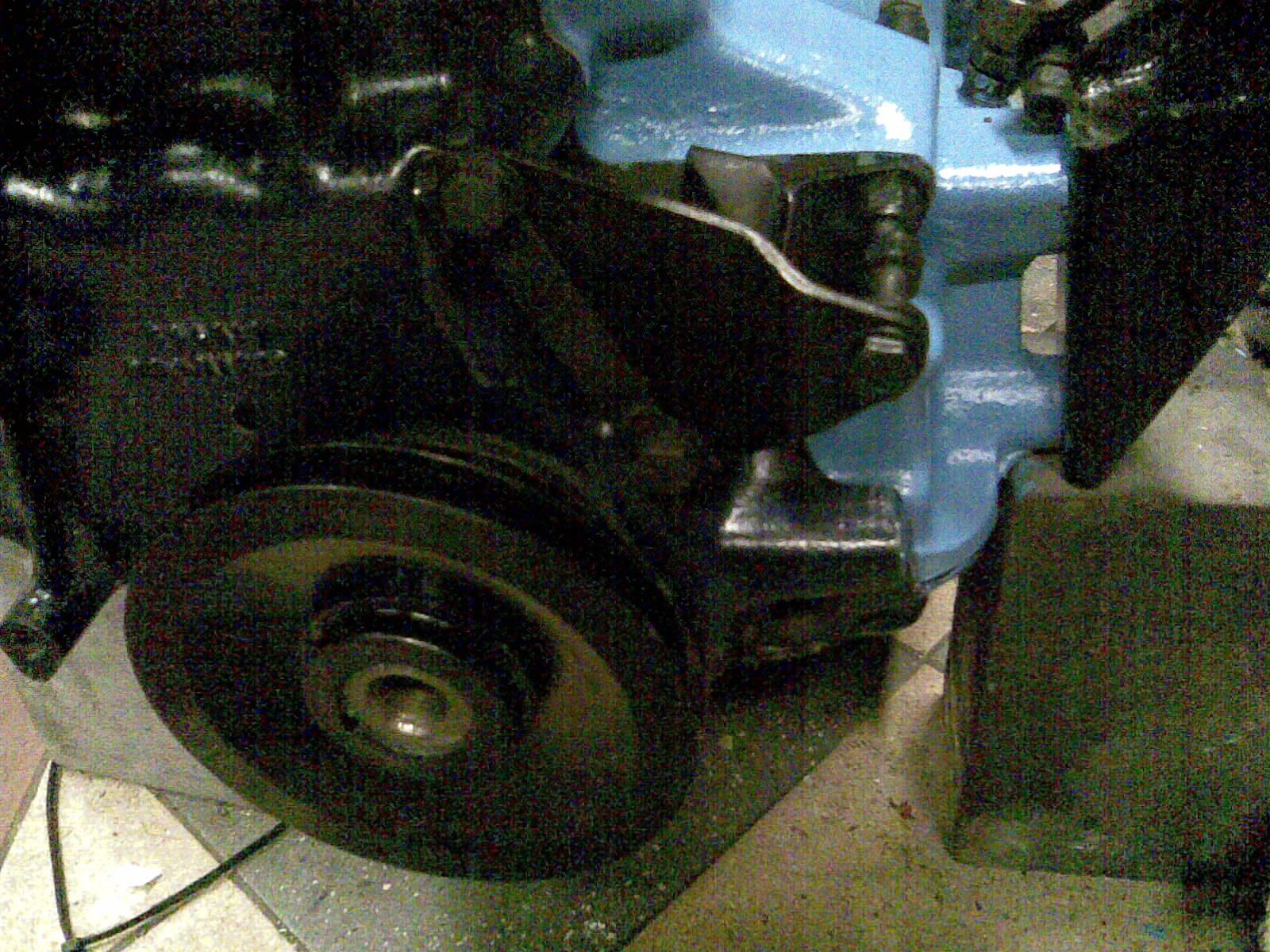

looking at your set this is mine before alternator fitted note extra bracket
scottonthefen
Well-Known Member
- Posts
- 532
- Location
- England
Cheers. I've been out at lunchtime for another go.
The other alternator (Defender) doesn't fit as well. It fouls the engine mount. I'll send that one back.
The S3 "suffix B+" alternator does in fact fit if I get a longer fan belt as blackburn suggested. But the S3 parts book says 563132 is the fan belt to use for the 2.25 petrol engine, which is the very 1050mm belt I've got. I think an 1100mm belt will allow me to position the alternator just right with the blades clear of the tensioner and the body clear of the engine mount.
I'm happy to fit a longer belt and have everything neat but it'll bother me wondering why S3s with the same alternator and engine can take a shorter belt. Mine's an 8:1 4-cylinder 2.25.. did the fan or crank pulley shrink at suffix B or something?
The other alternator (Defender) doesn't fit as well. It fouls the engine mount. I'll send that one back.
The S3 "suffix B+" alternator does in fact fit if I get a longer fan belt as blackburn suggested. But the S3 parts book says 563132 is the fan belt to use for the 2.25 petrol engine, which is the very 1050mm belt I've got. I think an 1100mm belt will allow me to position the alternator just right with the blades clear of the tensioner and the body clear of the engine mount.
I'm happy to fit a longer belt and have everything neat but it'll bother me wondering why S3s with the same alternator and engine can take a shorter belt. Mine's an 8:1 4-cylinder 2.25.. did the fan or crank pulley shrink at suffix B or something?
scottonthefen
Well-Known Member
- Posts
- 532
- Location
- England

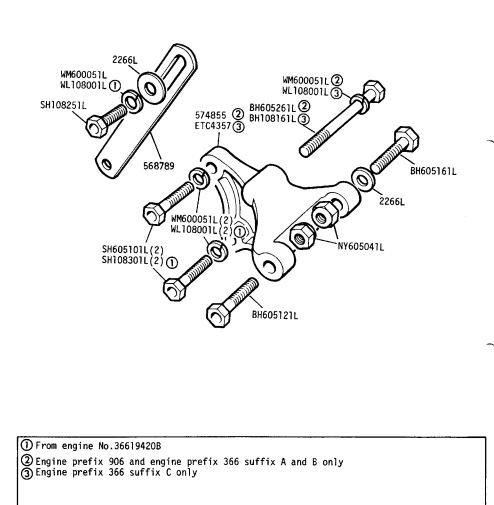

That S3 tensioner is actually different: https://www.johncraddockltd.co.uk/568789-adjuster-link-for-alternator.html
Mine is wider halfway along and sticks down - I'll photo it next time it's off. It might even be longer than the S3 one for all I know. Looks like they changed between them having dynamos and going to alternators? I'll order one as it's cheap and might suit better.
Mine is wider halfway along and sticks down - I'll photo it next time it's off. It might even be longer than the S3 one for all I know. Looks like they changed between them having dynamos and going to alternators? I'll order one as it's cheap and might suit better.
