90 Interior Trim (fornt and back)

huffhuff · Mar 10, 2015

Hi all,

Newbie here so be gentle.

The front headlining is ripped and tatty (mainly around the sun roof), the back has nothing whatsoever. What are the cheapest ways of getting some lining in and adding some sound deadening? I've looked at new interior trims and they are mega bucks. Obviously, I want it to look reasonably good too.

Ply lining with carpet on top?

Cheers in advance

james6546 · Mar 10, 2015

huffhuff said:
Hi all,

Newbie here so be gentle.

The front headlining is ripped and tatty, the back has nothing whatsoever. What are the cheapest ways of getting some lining in and adding some sound deadening? I've looked at new interior trims and they are mega bucks. Obviously, I want it to look reasonably good too.

Ply lining with carpet on top?

Cheers in advance

Hello.

I have recently done some lining on the sides of my 90. What I used was camping/yoga mat on the side panels (which are cheapest at outdoor stores), and then EVA Stable matting on the floor and anything which needs to be hard wearing

KwikWall EVA Stable / Trailer / Horsebox Wall Mats - 6ft x 4ft x 10mm Thick | eBay

Use high temperature spray adhesive

2 Tins Trimfix High Temperature Spray Adhesive 500ml Cans | eBay

I have more to do, but so far it has made a massive difference.

huffhuff · Mar 10, 2015

james6546 said:
Hello.

I have recently done some lining on the sides of my 90. What I used was camping/yoga mat on the side panels (which are cheapest at outdoor stores), and then EVA Stable matting on the floor and anything which needs to be hard wearing

KwikWall EVA Stable / Trailer / Horsebox Wall Mats - 6ft x 4ft x 10mm Thick | eBay

Use high temperature spray adhesive

2 Tins Trimfix High Temperature Spray Adhesive 500ml Cans | eBay

I have more to do, but so far it has made a massive difference.

Excellent, good idea on the yoga mats. I think I can get those fairly cheap...but they'd have to be black

The floor already had a nice thick rubber mat, so it's just the sides and roof. The glue will be ok going direct on to metal?

Ta in advance,

Ben

james6546 · Mar 10, 2015

huffhuff said:
Excellent, good idea on the yoga mats. I think I can get those fairly cheap...but they'd have to be black The floor already had a nice thick rubber mat, so it's just the sides and roof. The glue will be ok going direct on to metal?

Ta in advance,

Ben

Yeah, I used it straight on metal. It is essentially evostick, but will withstand baking in the sun.

I used double sided sound insulation pads on some stuff and the camping mat is just as good.

zeaphod · Mar 10, 2015

I used black carpet tiles and spray on evo stick from B&Q for the back. Easy peasy, and looks OK. Use plenty of glue. As a guide, I used just over a large tin to do the rear roof.

huffhuff · Mar 10, 2015

Another idea, cheers.

wickford90 · Mar 10, 2015

Just in process of doing mine, camping mates 4 x £5 at Halfords stuck direct to all panels, faux leather 4mtr x 1.5mtrs wide £10 per metre, poss cheaper off ebay good quality contact spray cover one panel at a time, do the sides in sections.

huffhuff · Mar 10, 2015

wickford90 said:
Just in process of doing mine, camping mates 4 x £5 at Halfords stuck direct to all panels, faux leather 4mtr x 1.5mtrs wide £10 per metre, poss cheaper off ebay good quality contact spray cover one panel at a time, do the sides in sections.

Any pics mid-install?!?

wickford90 · Mar 10, 2015

huffhuff said:
Any pics mid-install?!?

Will get some up tomorrow.

huffhuff · Mar 10, 2015

wickford90 said:
Will get some up tomorrow.

Ta

Does anybody know if a 110 roof lining can be cut down to fit a 90?

wickford90 · Mar 10, 2015

huffhuff said:
Ta

Does anybody know if a 110 roof lining can be cut down to fit a 90?

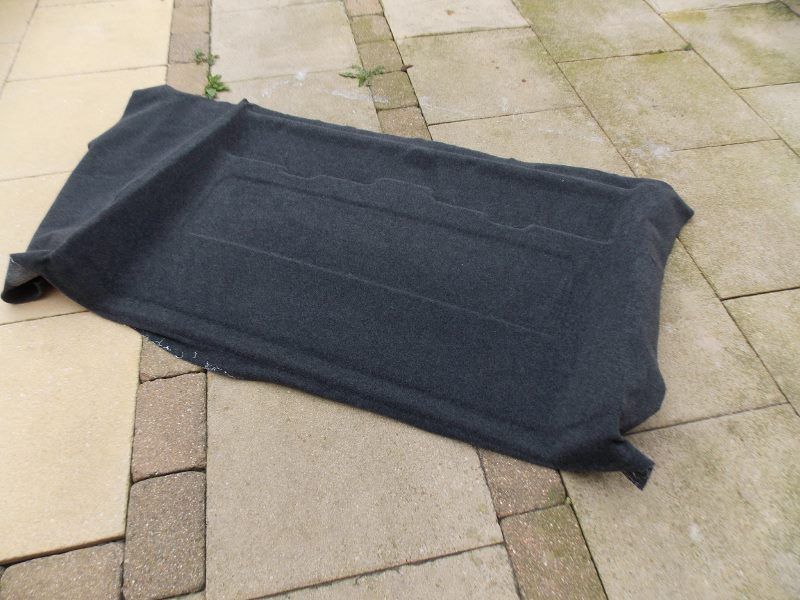

I have the one I took out of my 90, it's in good nick apart from the covering coming away. Could easily be re trimmed .

XRIZLAX · Mar 11, 2015

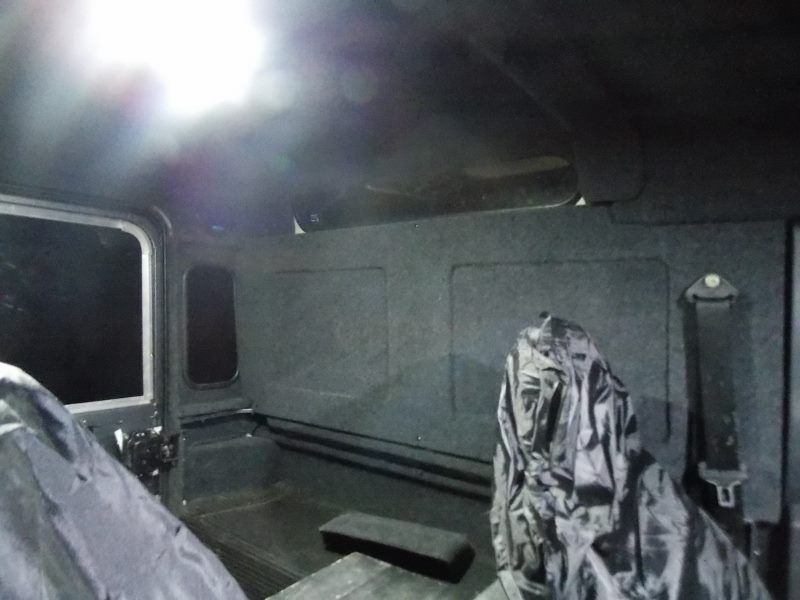

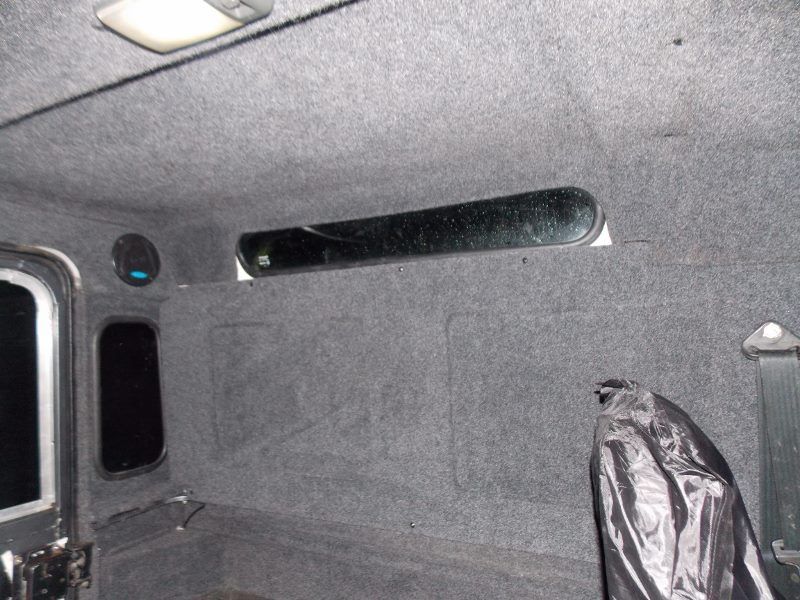

done mine in 5mm ply then mega streatch carpet, re covered headlinning too

Unclefester · Mar 11, 2015

Where did you get the stretchy carpet? And what glue did you use?

XRIZLAX · Mar 11, 2015

Unclefester said:
Where did you get the stretchy carpet? And what glue did you use?

megavan stretch carpet from ebay, spray on adhesive glue, the high temp sort.

Unclefester · Mar 11, 2015

Thanks for that it looks like you've made a nice job of yours &#55357;&#56397;

huffhuff · Mar 12, 2015

a nice job indeed and exactly what I'd like to do. However, I don't even have the headlining as a base. D'oh

wickford90 · Mar 12, 2015

huffhuff said:
a nice job indeed and exactly what I'd like to do. However, I don't even have the headlining as a base. D'oh

Did you get my PM regarding rear headlining.

huffhuff · Mar 12, 2015

wickford90 said:
Did you get my PM regarding rear headlining.

Nope. I did send you one too but that's not showing up in my PM sent box either. Weird. I'll try again now...

huffhuff · Mar 12, 2015

huffhuff said:
Nope. I did send you one too but that's not showing up in my PM sent box either. Weird. I'll try again now...

I just sent another to you and copied myself in, I received it so hopefully you did too.
