is your rear exhaust hanger not aligned, maybe undo the rest of the mounts and get this mounted, rubber bush between the 2
38KF96 Huddy’s Ex-Military 110
- Thread starter Huddy84
- Start date
This site contains affiliate links for which LandyZone may be compensated if you make a purchase.
Huddy84
Well-Known Member
- Posts
- 746
- Location
- East Anglia
I've got the other two to fit at some point just for the sake of renewing the lot. The rear most one is a central mount (just looks a little mangled), the middle one seems fine. Its not got a mount to the block at all. Maybe it'll line up if I slacken the mid silencer and the other mounts. Mid silencer was fitted not so long ago.
Huddy84
Well-Known Member
- Posts
- 746
- Location
- East Anglia
All sorted. Removed all the mounts, loosened both ends of the mid section. Got the new mounts in but loose, tightened up mid section then mounts. All seems a lot more solid.
Went to fire up the engine and nothing. It has been sat a few weeks and I'd been messing with the gearboxes so checked it over. Eventually realised the battery was at 9V so put it on the maintinence charger for tonight. Tomorrow I should be able to test it out.
Small list of jobs left including checking t-box for leaks, curing engine oil leak, timing engine properly and a service. It'll get a run to Kent next week so I want to make sure it's on form.
Went to fire up the engine and nothing. It has been sat a few weeks and I'd been messing with the gearboxes so checked it over. Eventually realised the battery was at 9V so put it on the maintinence charger for tonight. Tomorrow I should be able to test it out.
Small list of jobs left including checking t-box for leaks, curing engine oil leak, timing engine properly and a service. It'll get a run to Kent next week so I want to make sure it's on form.
flat
Well-Known Member
- Posts
- 9,075
- Location
- Far away from you!!
cool
Huddy84
Well-Known Member
- Posts
- 746
- Location
- East Anglia
Oops. Must have not put the fan on properly last time.
Very lucky. Was stuck in traffic and wondered why I was running hot, but not in red. Shortly after I drove back from Kent to Cambridge with no issues. 1 fan blade is a little chewed as it was sat against the alternator pulley, missed the belt.

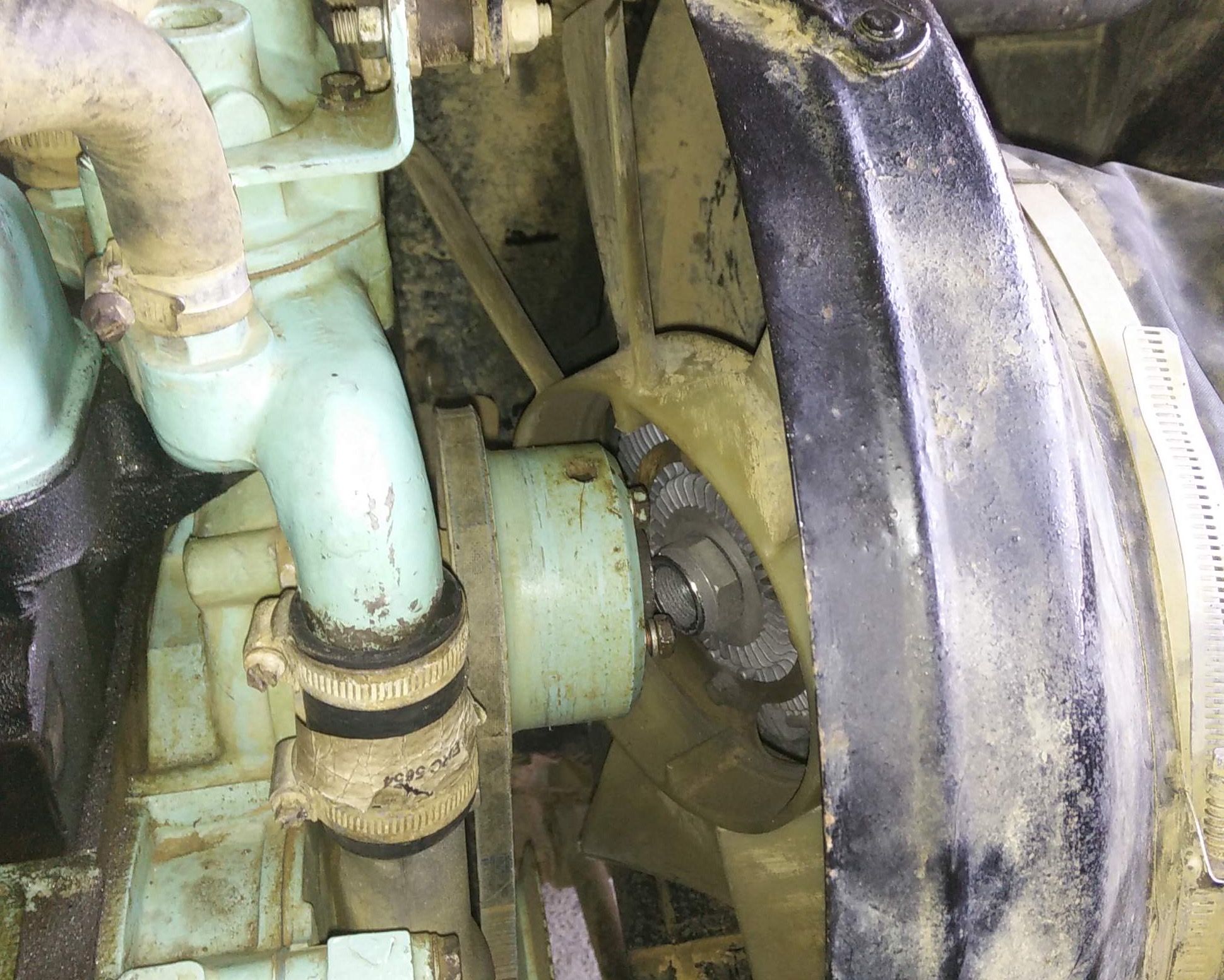

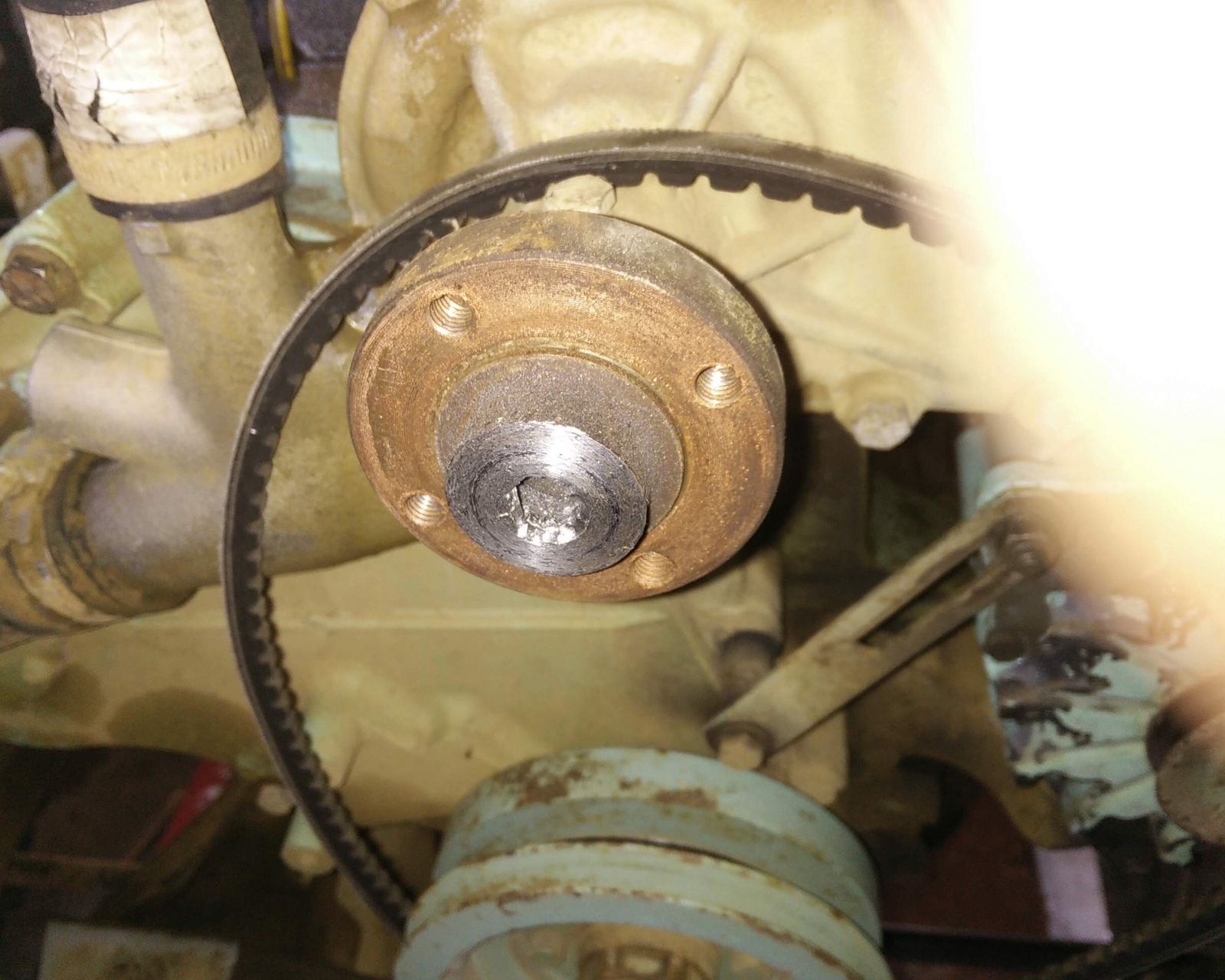

Only problem I have is the spigot the fan used to screw on to.
It is no more. Thread on viscous unit is ok but I presume I need a new pump.
Very lucky. Was stuck in traffic and wondered why I was running hot, but not in red. Shortly after I drove back from Kent to Cambridge with no issues. 1 fan blade is a little chewed as it was sat against the alternator pulley, missed the belt.
Only problem I have is the spigot the fan used to screw on to.
It is no more. Thread on viscous unit is ok but I presume I need a new pump.
zeaphod
Well-Known Member
- Posts
- 3,108
- Location
- Belfast, Norn Iron
Bugger, at least the fan didn't bugger up the radiator when it came off. And you know it can handle traffic without overheating.
Huddy84
Well-Known Member
- Posts
- 746
- Location
- East Anglia
Stubborn old engines, I love em. Considered going electric fan but I think I'm better off with the viscous for reliability. £30 for a new water pump which isn't bad. Need to order parts for swivel regasket anyway.
zeaphod
Well-Known Member
- Posts
- 3,108
- Location
- Belfast, Norn Iron
Get some releasing fluid on the water pump bolts asap, give yersel the best chance of removing it without shearing any.
Huddy84
Well-Known Member
- Posts
- 746
- Location
- East Anglia
Cheers, its not long been rebuilt and I copper greased them so they should come out nice and easy. I think it spent most its life in desert climates as all the fixings are pretty good, compared to the spare civvy spec engine I have where most the bolts sieze and shear...
Huddy84
Well-Known Member
- Posts
- 746
- Location
- East Anglia
So the new water pump went on no bother, thread on the viscous to pump was a little stiff but at least it won't come off. I've also managed to seal my sump now so that i have one less leak. Used RTV sealant with no gasket which has done the trick.
Unfortunately I have a new leak, from the fuel tank. It looks like it's coming from between the cradle and tank so I'll have to get that sorted pretty quick, I already have one soft spot now on my asphalt drive. Looking at a Bearmach tank (avoiding Britpart) and possibly cleaning and re-using the cradle and other parts with new seals. Any advise welcome.
I also have the swivels to fit new gaskets to as they are leaking, which will just leave the transfer box drips which won't go away but at least they are minor.
Despite all these leaks I rarely have to top anything up and the old girl is running lovely...
Unfortunately I have a new leak, from the fuel tank. It looks like it's coming from between the cradle and tank so I'll have to get that sorted pretty quick, I already have one soft spot now on my asphalt drive. Looking at a Bearmach tank (avoiding Britpart) and possibly cleaning and re-using the cradle and other parts with new seals. Any advise welcome.
I also have the swivels to fit new gaskets to as they are leaking, which will just leave the transfer box drips which won't go away but at least they are minor.
Despite all these leaks I rarely have to top anything up and the old girl is running lovely...
Huddy84
Well-Known Member
- Posts
- 746
- Location
- East Anglia

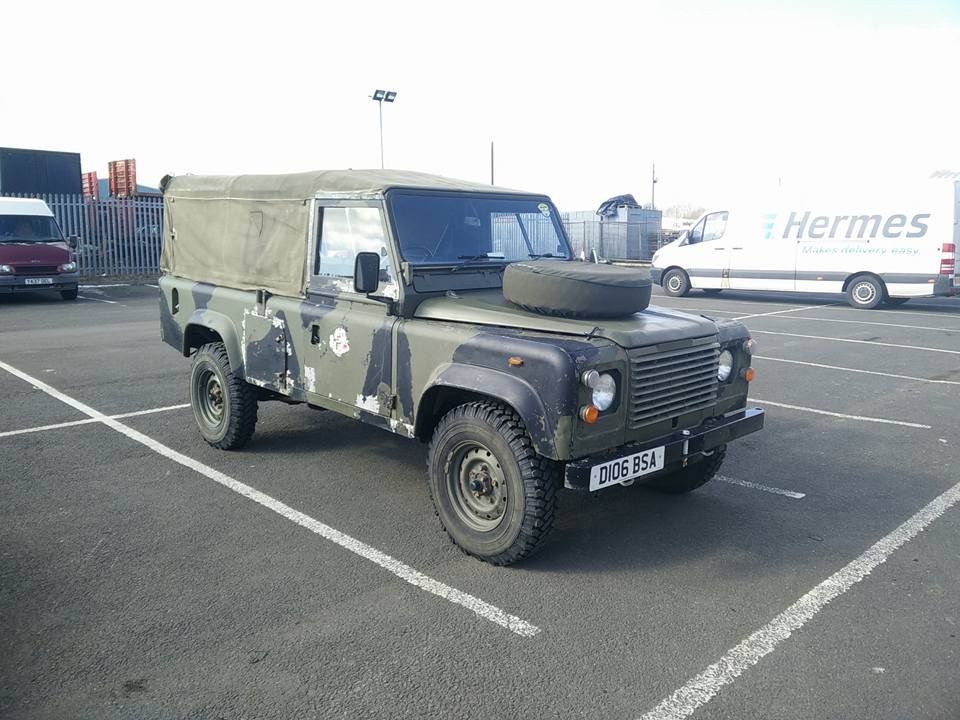

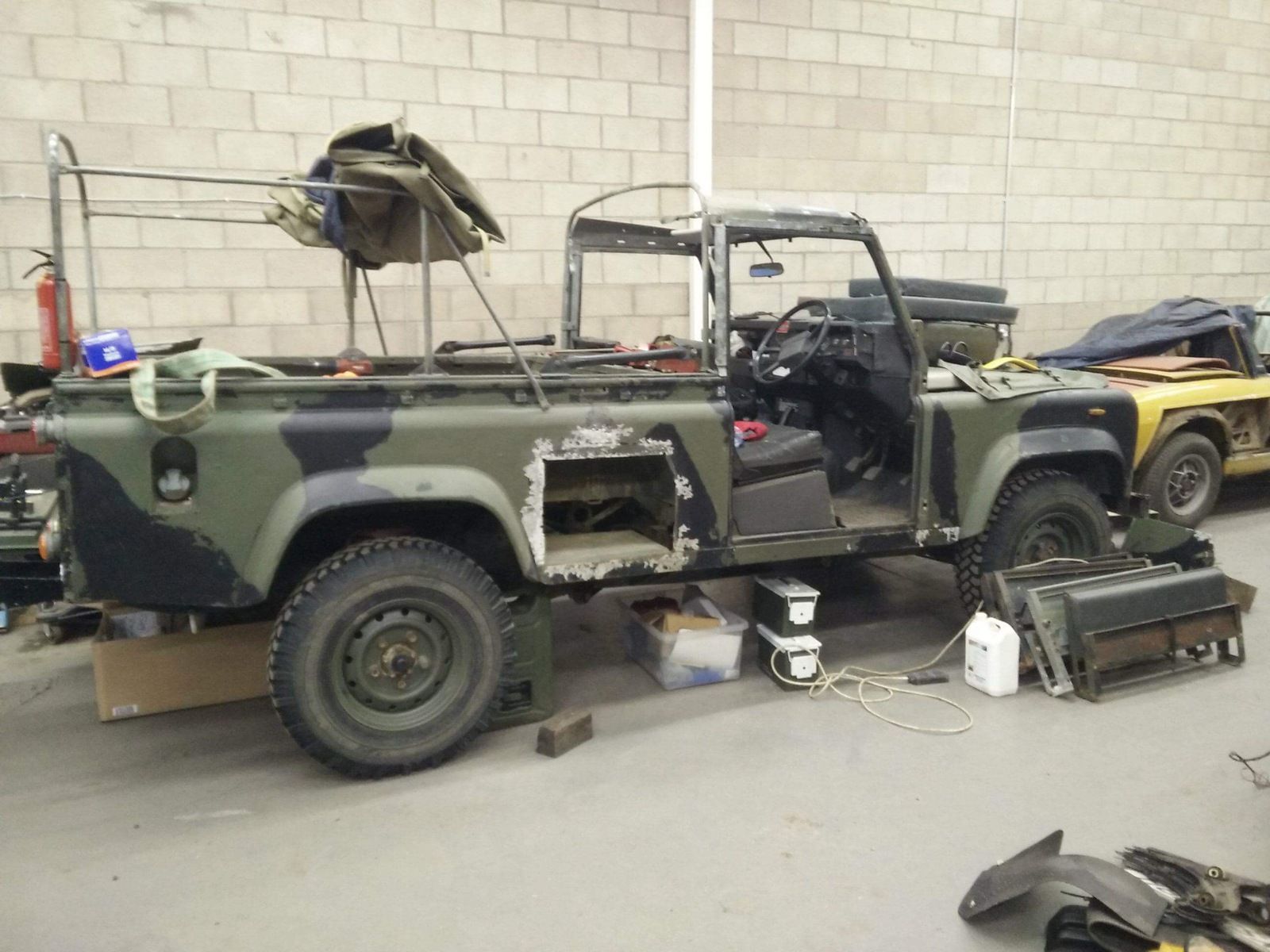

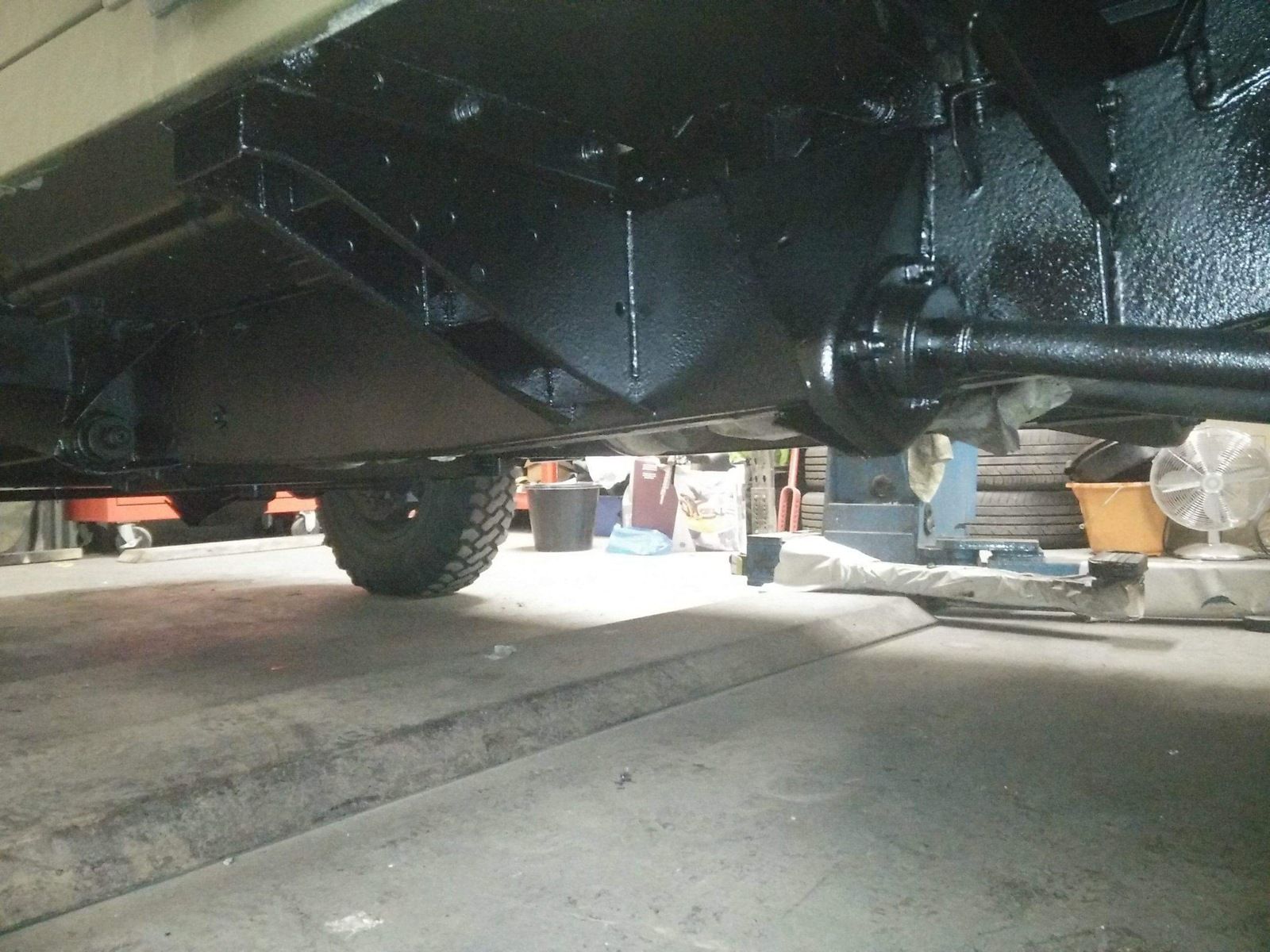

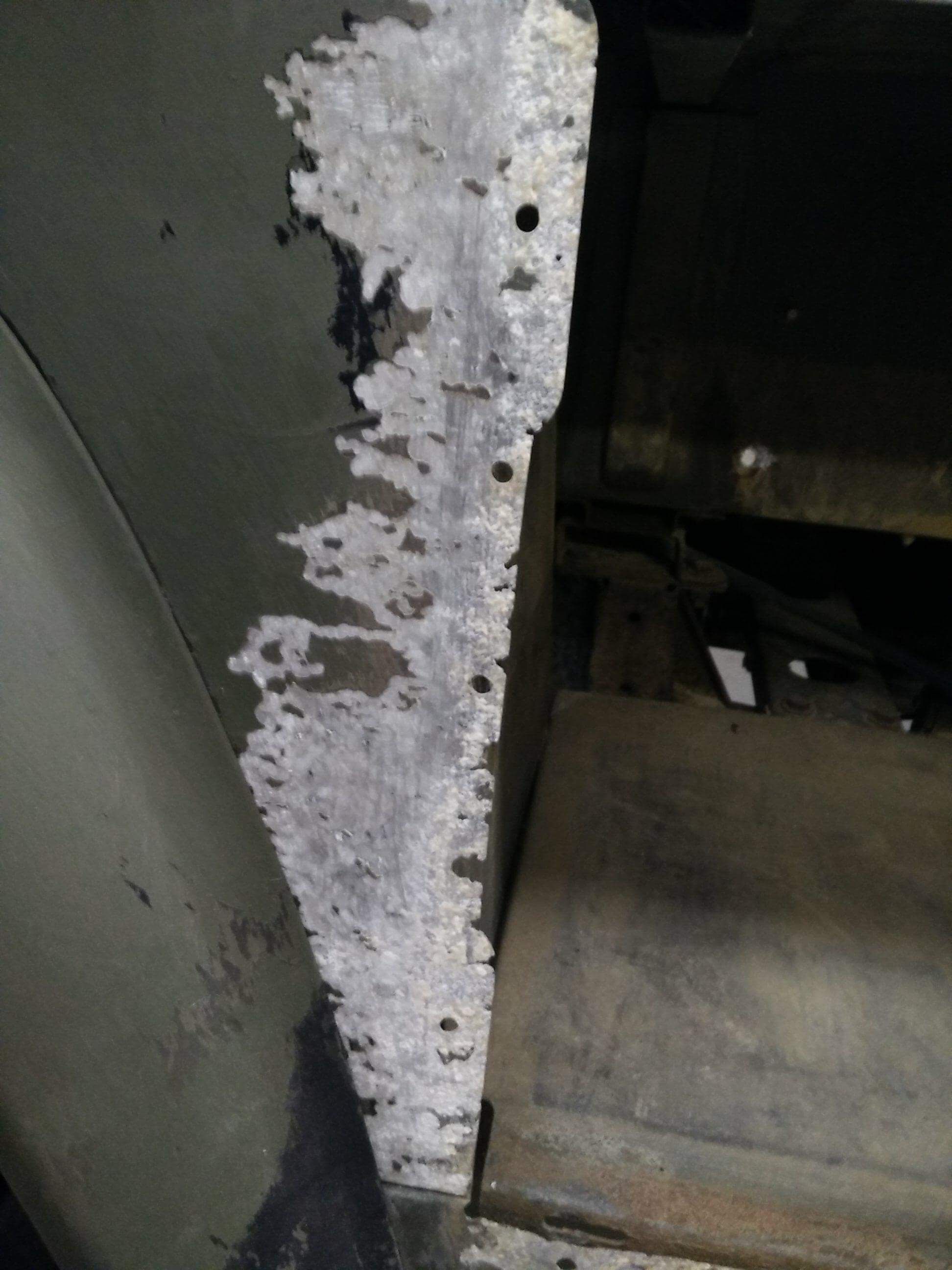

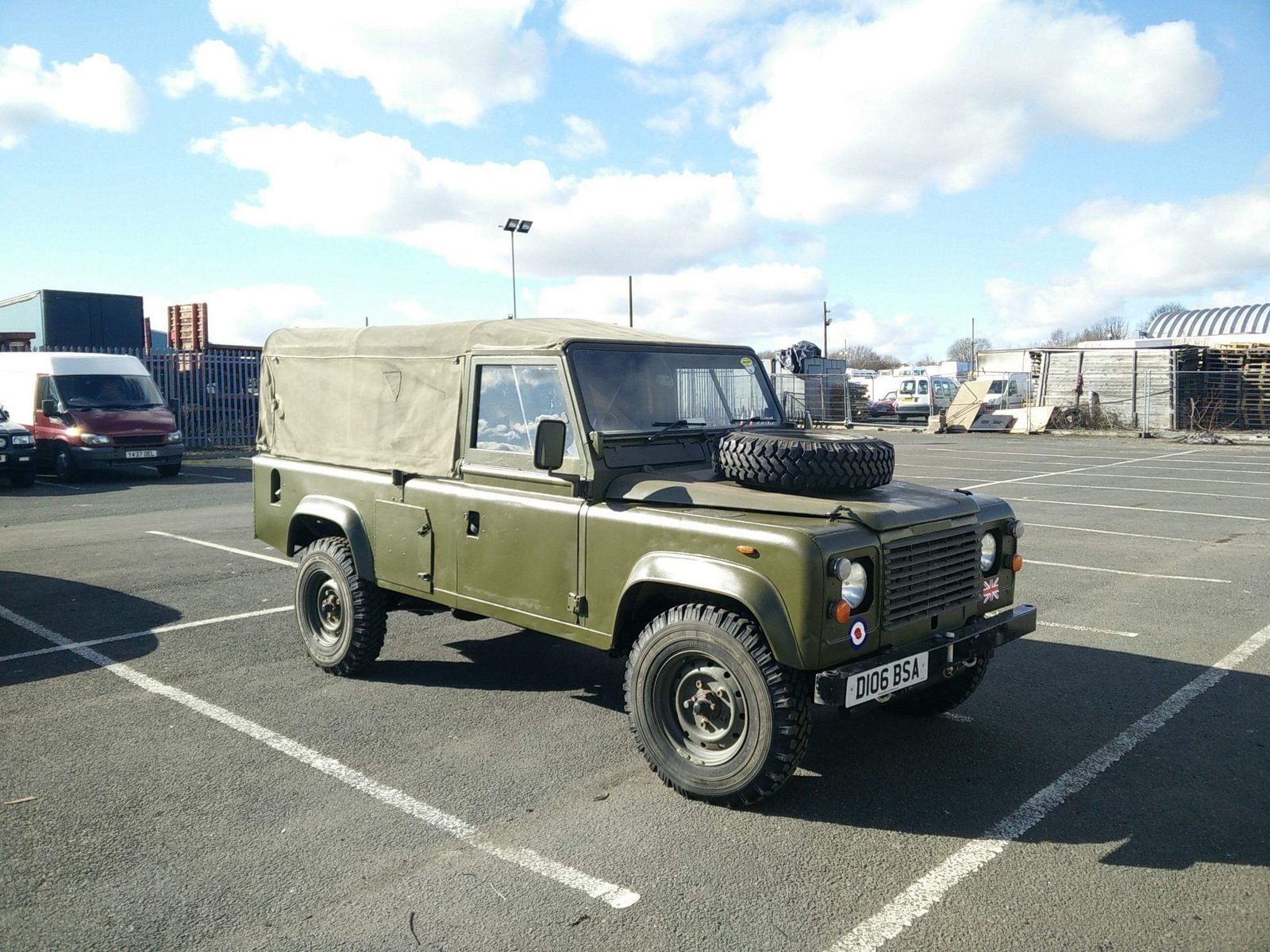

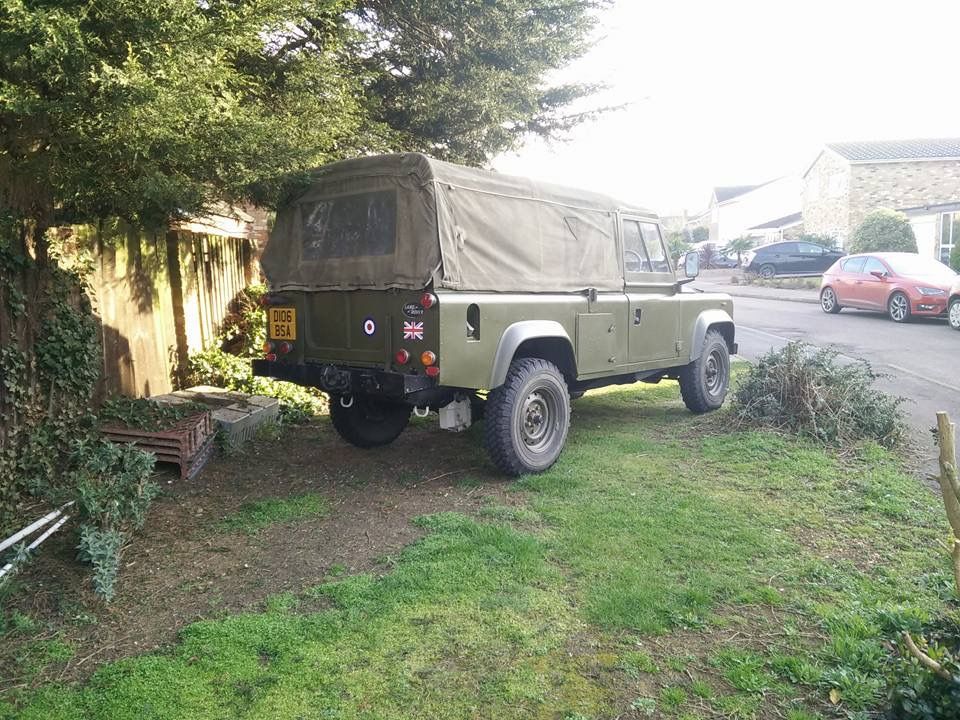

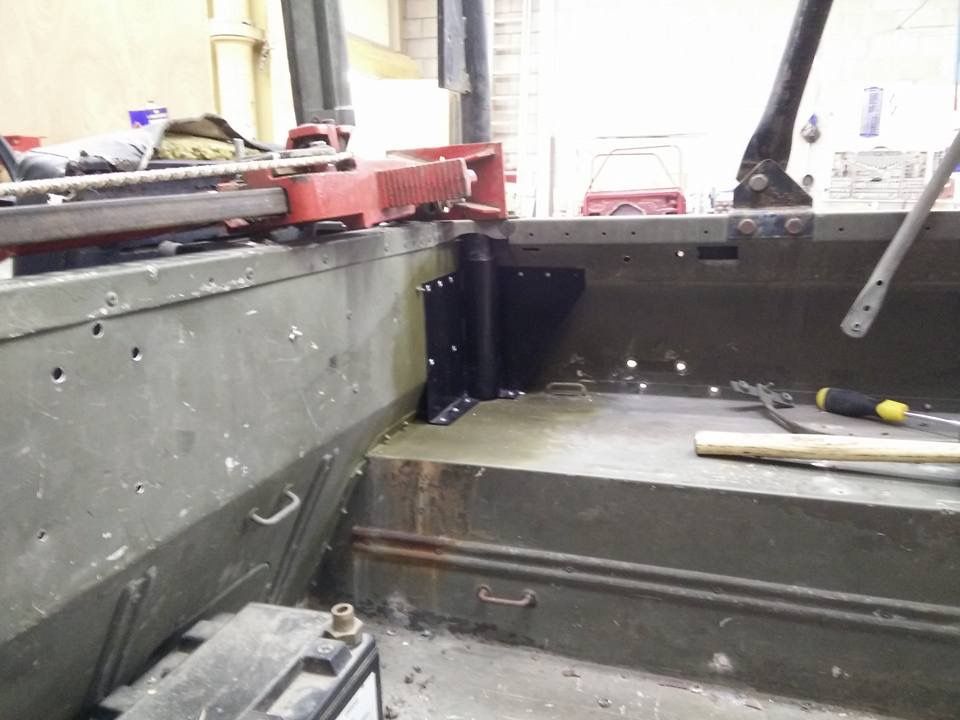

Been a while since posting on this thread but thought I’d drop some pics in of my latest efforts. Spent a week sorting Dinitrol treatment to chassis, minor welding to x-member, drivers door bottom and roll hoop foot, re-felt windows, remove side lockers to treat body ally corrosion, new coat of paint. Also since the last post I’ve refurbed swivels, original balls still perfect but new stub axles and bearings used, and I’ve replaced the fuel tank. The latter is still giving me jip as I run out of fuel before reaching the reserve despite a new pickup pipe/sender.
Huddy84
Well-Known Member
- Posts
- 746
- Location
- East Anglia

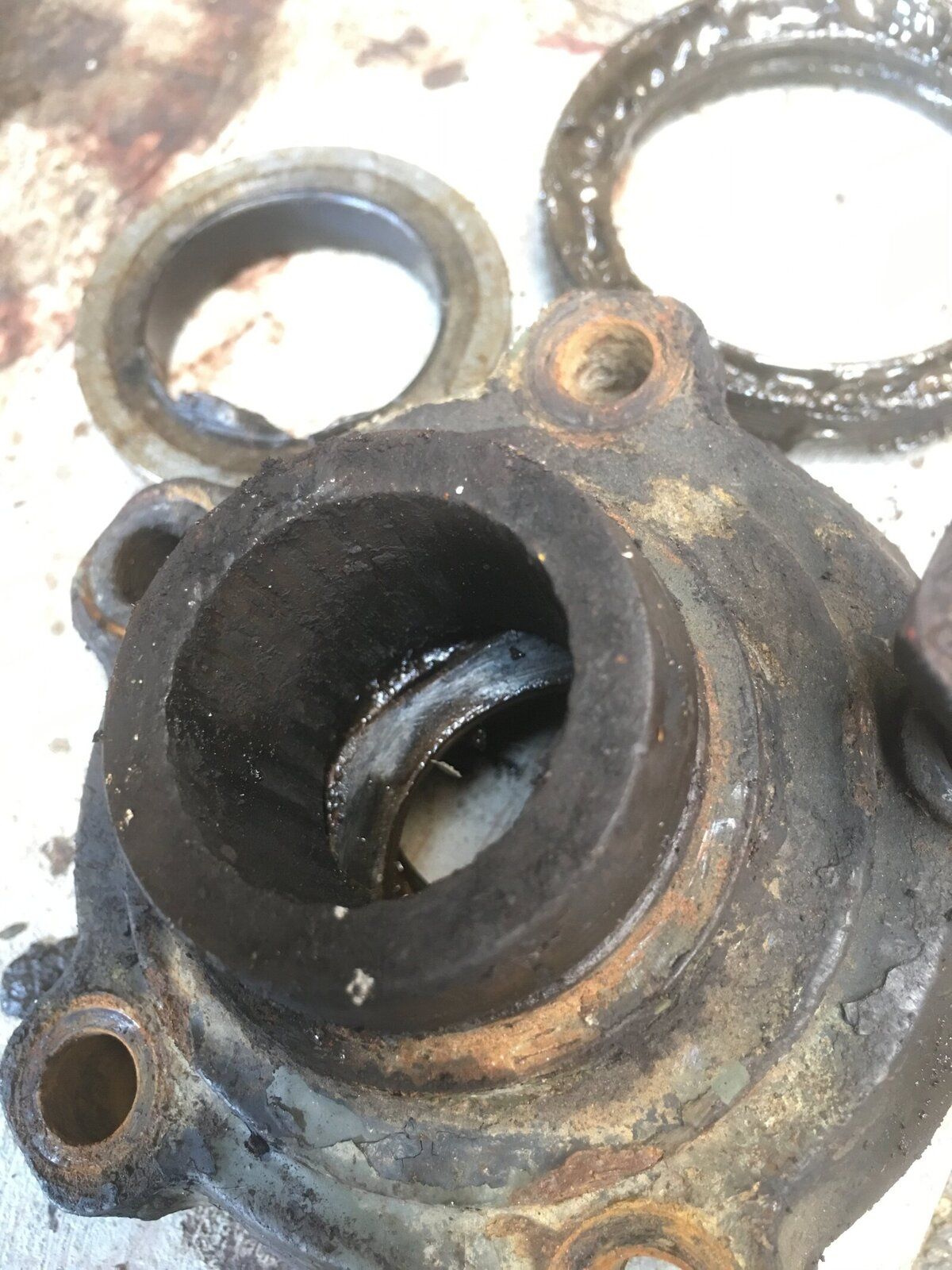

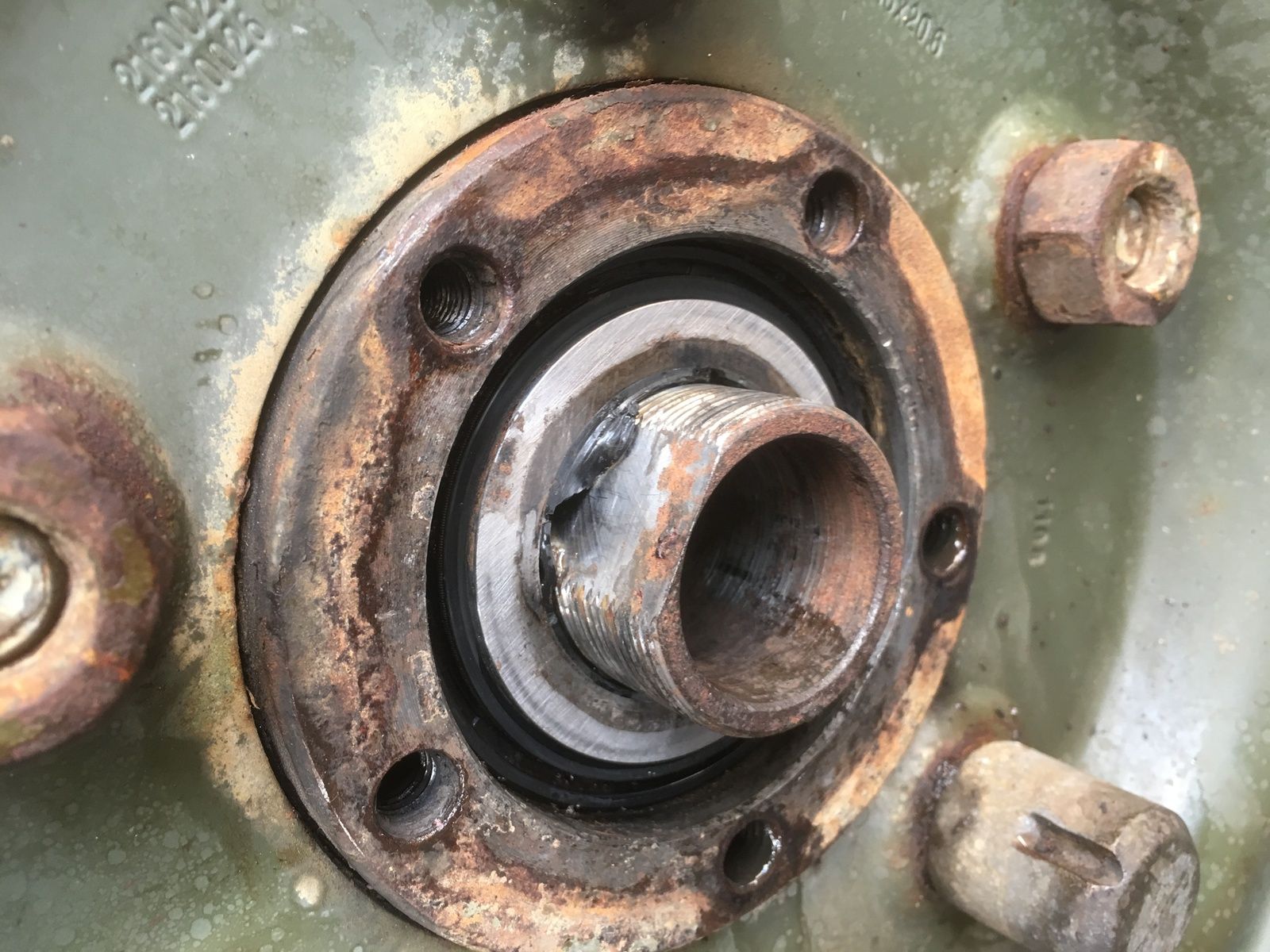

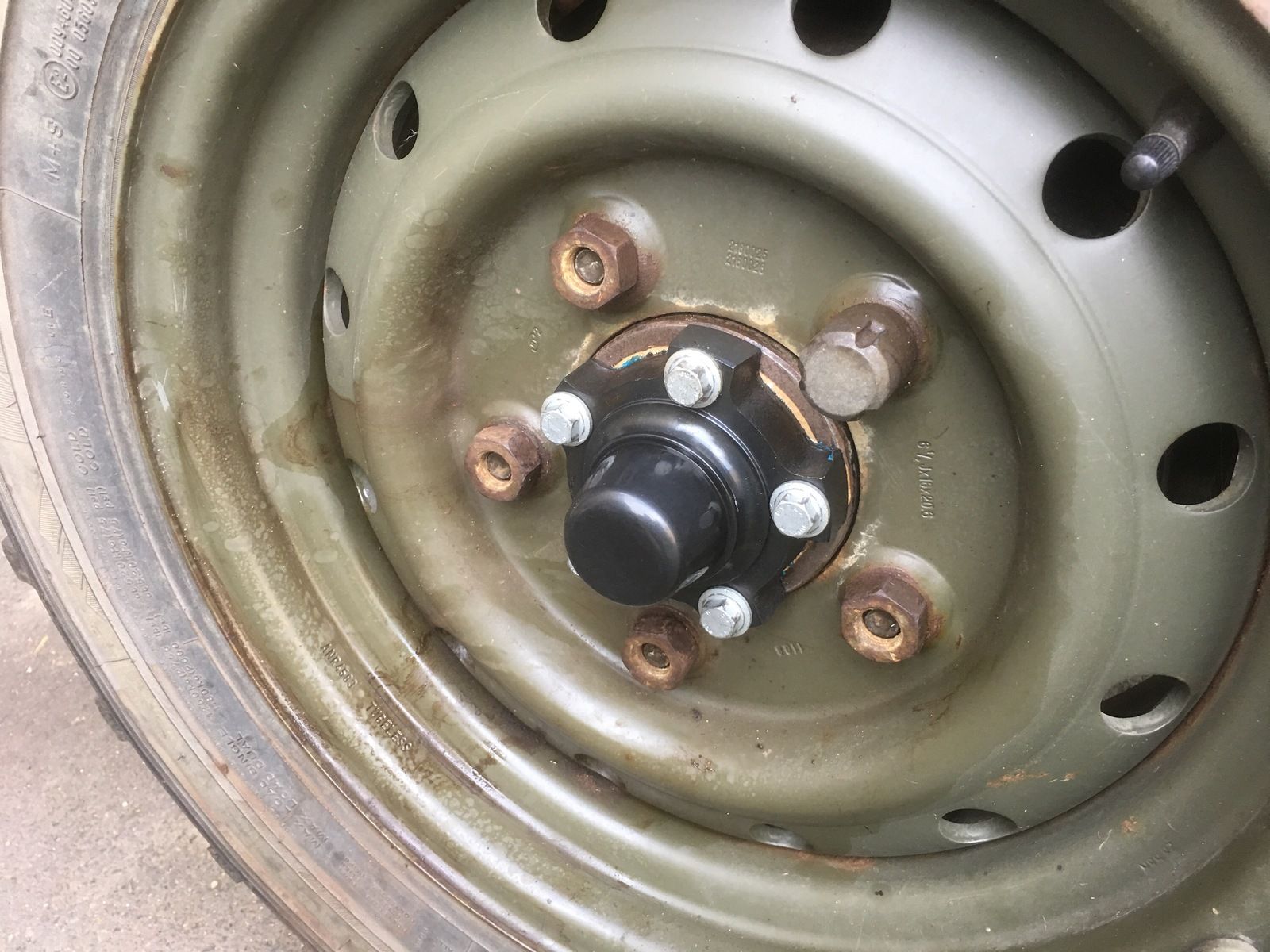

Thought I’d re-start feeding pics and things into this thread. Had a bang and loss of drive a week ago thanks to a failed drive flange on the rear axle, absolutely rotten
Huddy84
Well-Known Member
- Posts
- 746
- Location
- East Anglia

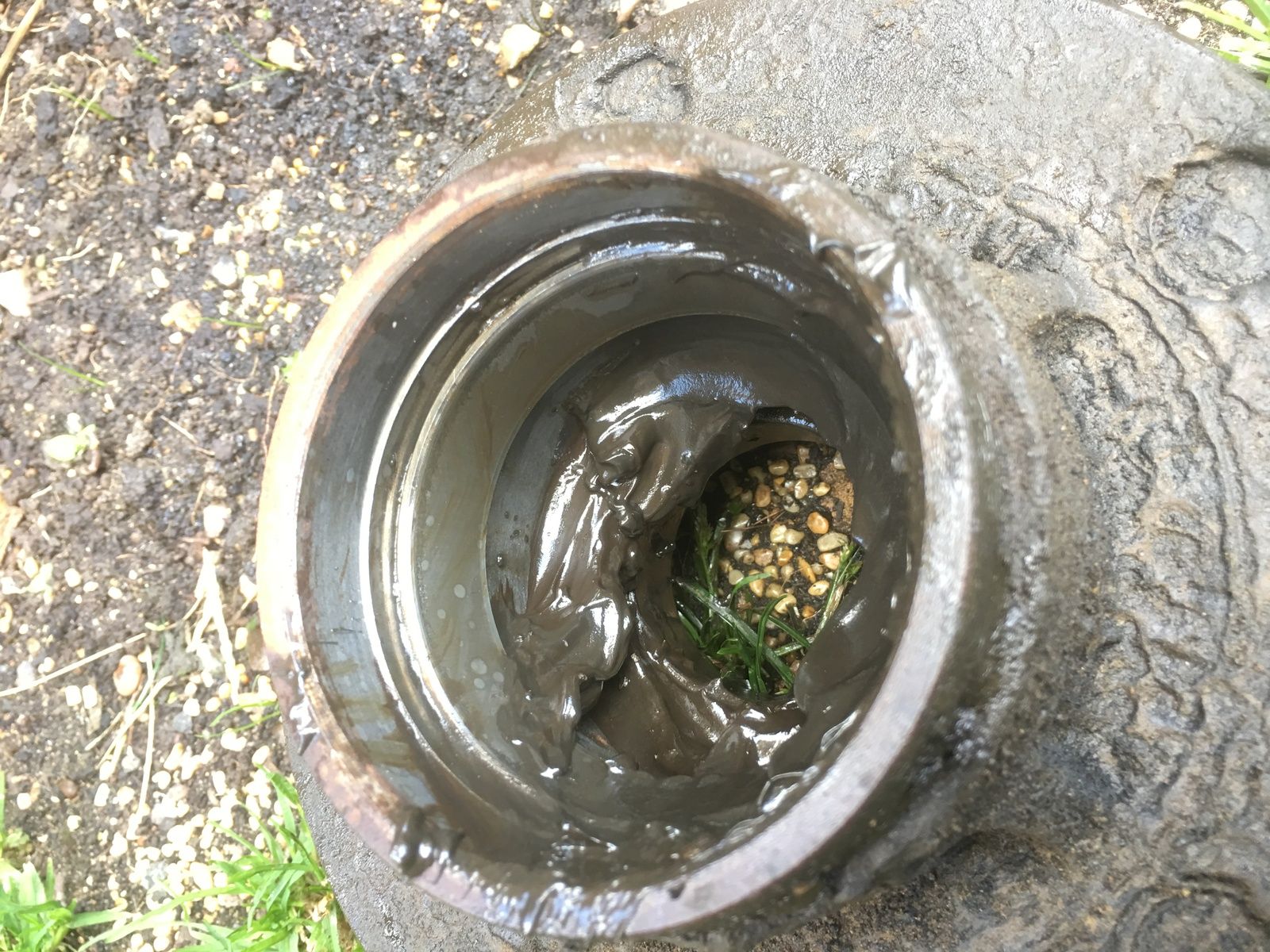

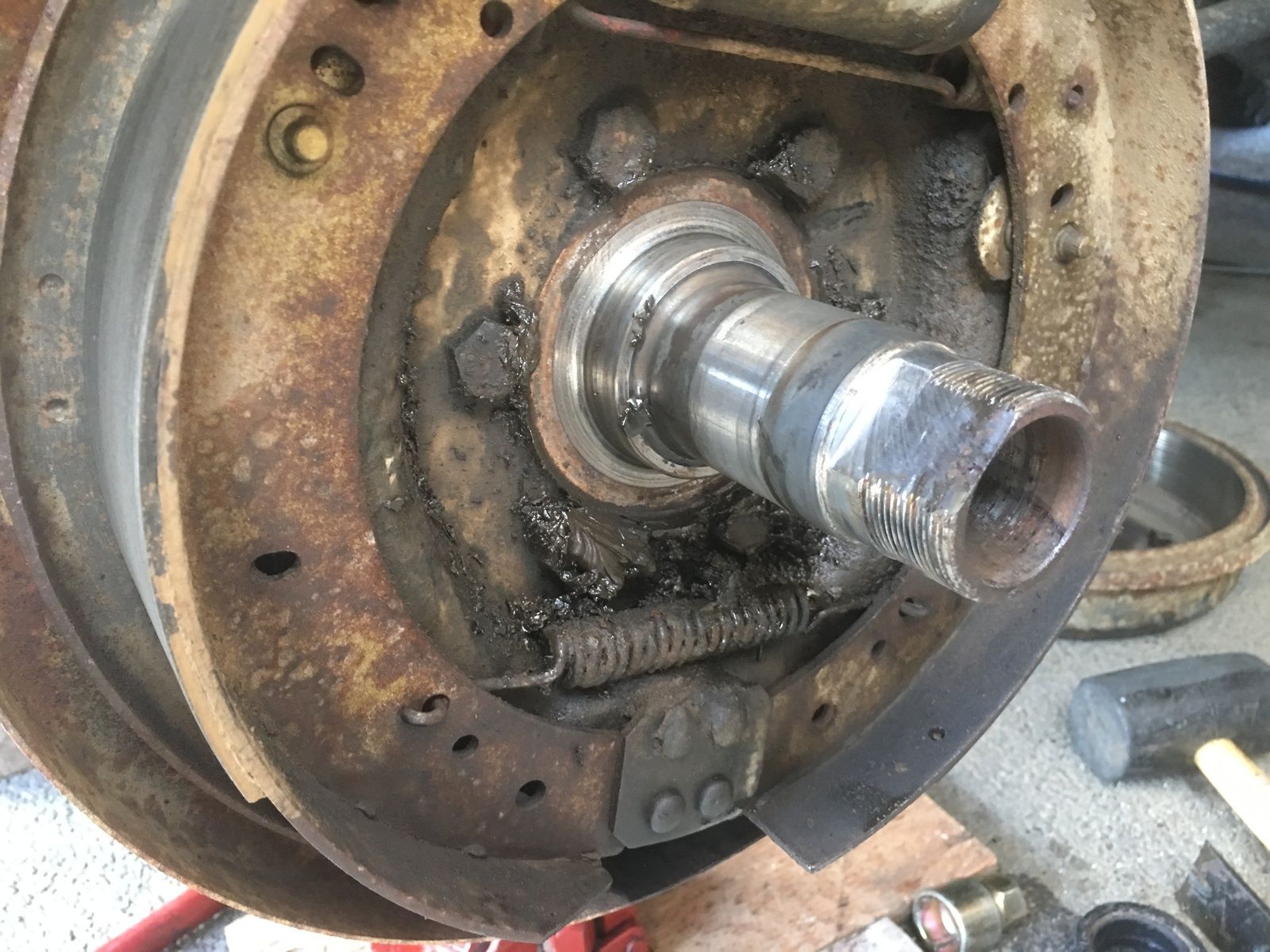

And further dismantling confirmed manky bearings, despite being in fairly good condition, and a worn stub axle. At this point I decided the whole lot needed replacing both sides.
Huddy84
Well-Known Member
- Posts
- 746
- Location
- East Anglia

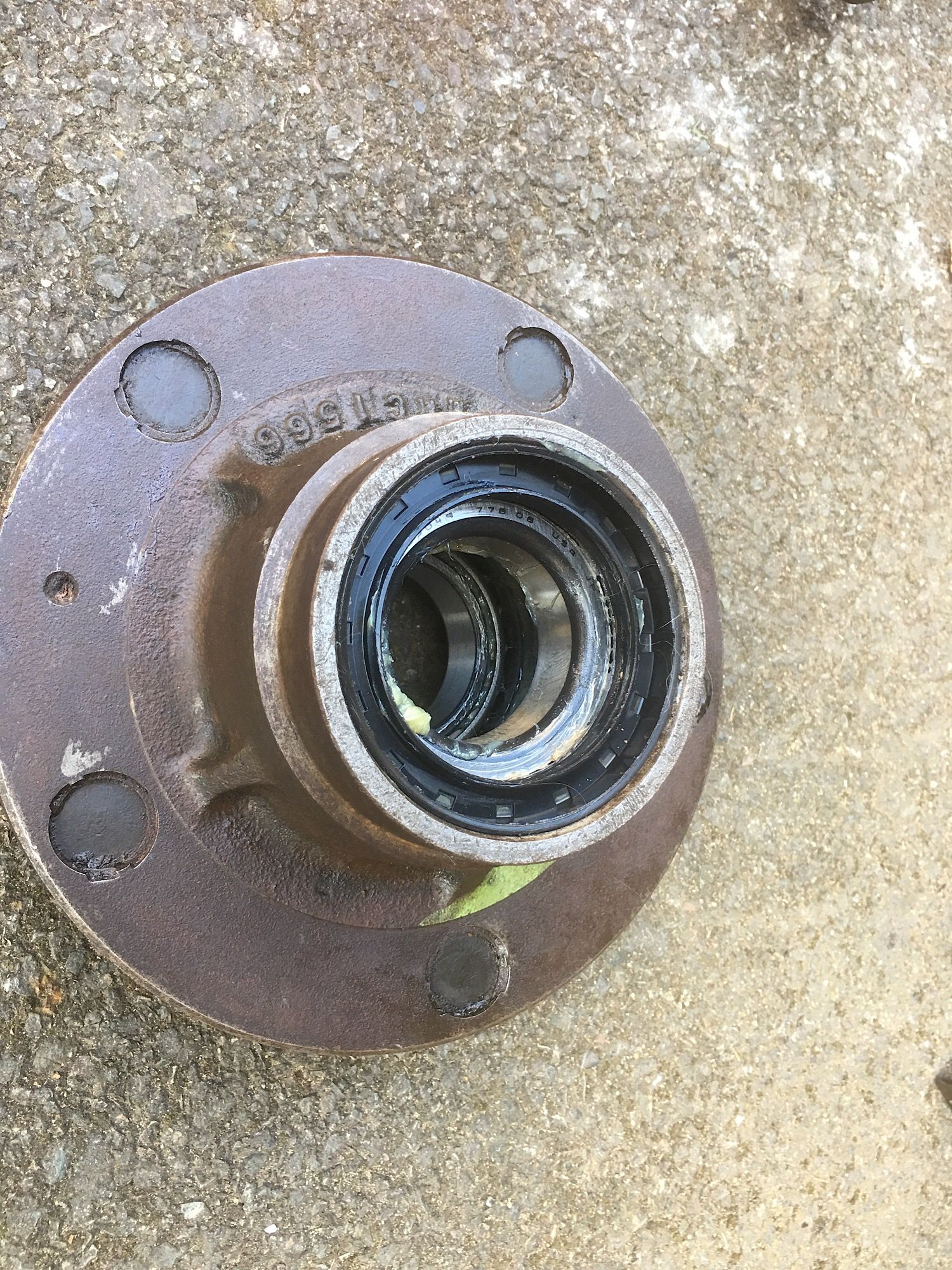

A possible cause of one hub being contaminated, the flat of the spacer ring was part squashed meaning water could get in when wading
Huddy84
Well-Known Member
- Posts
- 746
- Location
- East Anglia

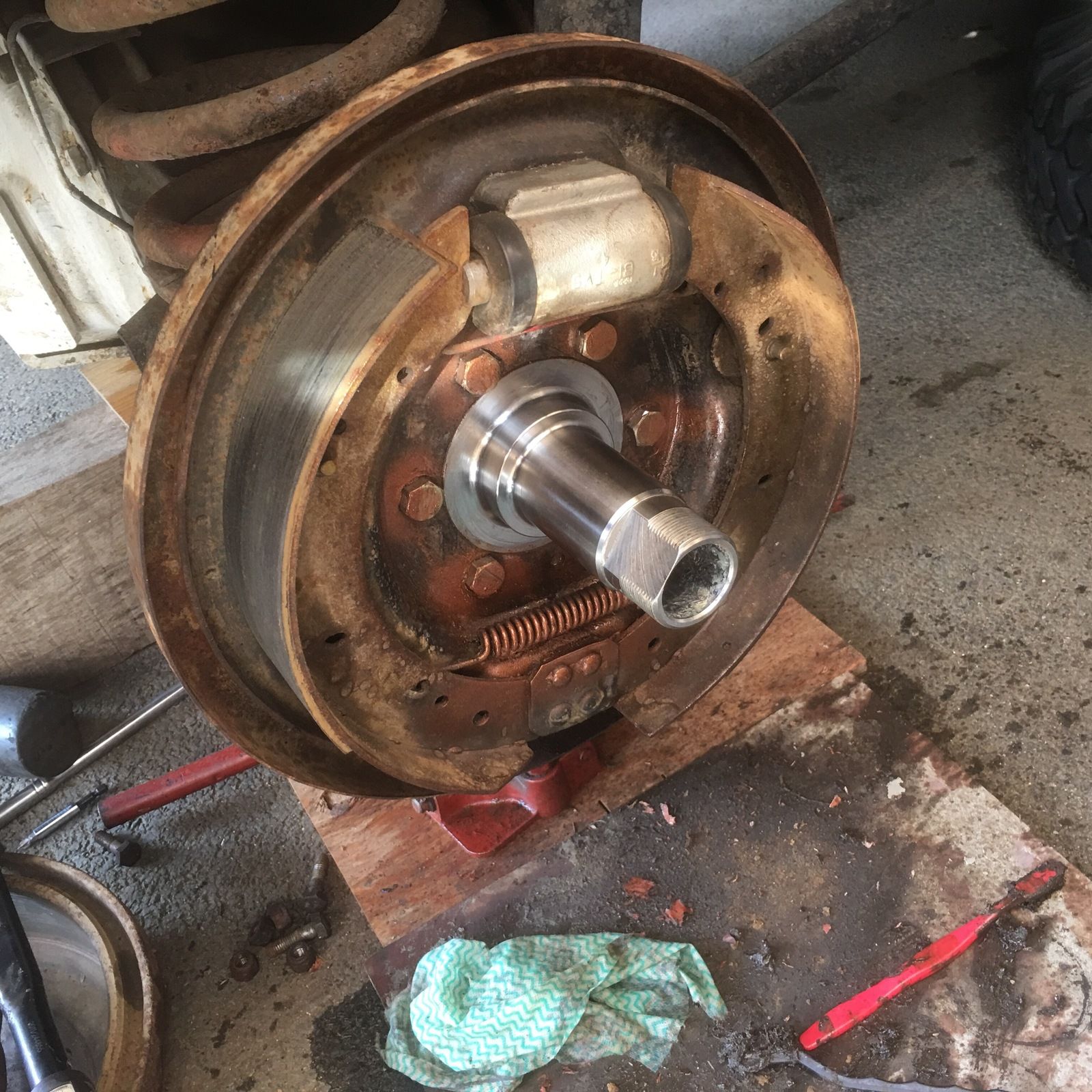

Drivers side completed with minimal fuss, except I found I’ve put the inner hub seal in the wrong way round. That can stay put for now though...
