steve2286w said:
Have a look at post 93 , I posted a pdf of the 200tdi overhaul manual got all,the torque figs and how to do what you doing

Sorry Mate I forgot you posted that I have downloaded the 200tdi one. Found the torque it is 130 to 136 nm, worried now that the bloody bolts may snap or stretch, as I will be doing it twice, once to plastigauge then again to finally fit.

steve2286w · May 28, 2025

I would do the torque in stages and if crank won’t turn at say 70Nm then got a problem, you can reuse the bolts if in good condition as they’re not designed to yield at that torque

border · 2025-06-05T12:54:42+0100

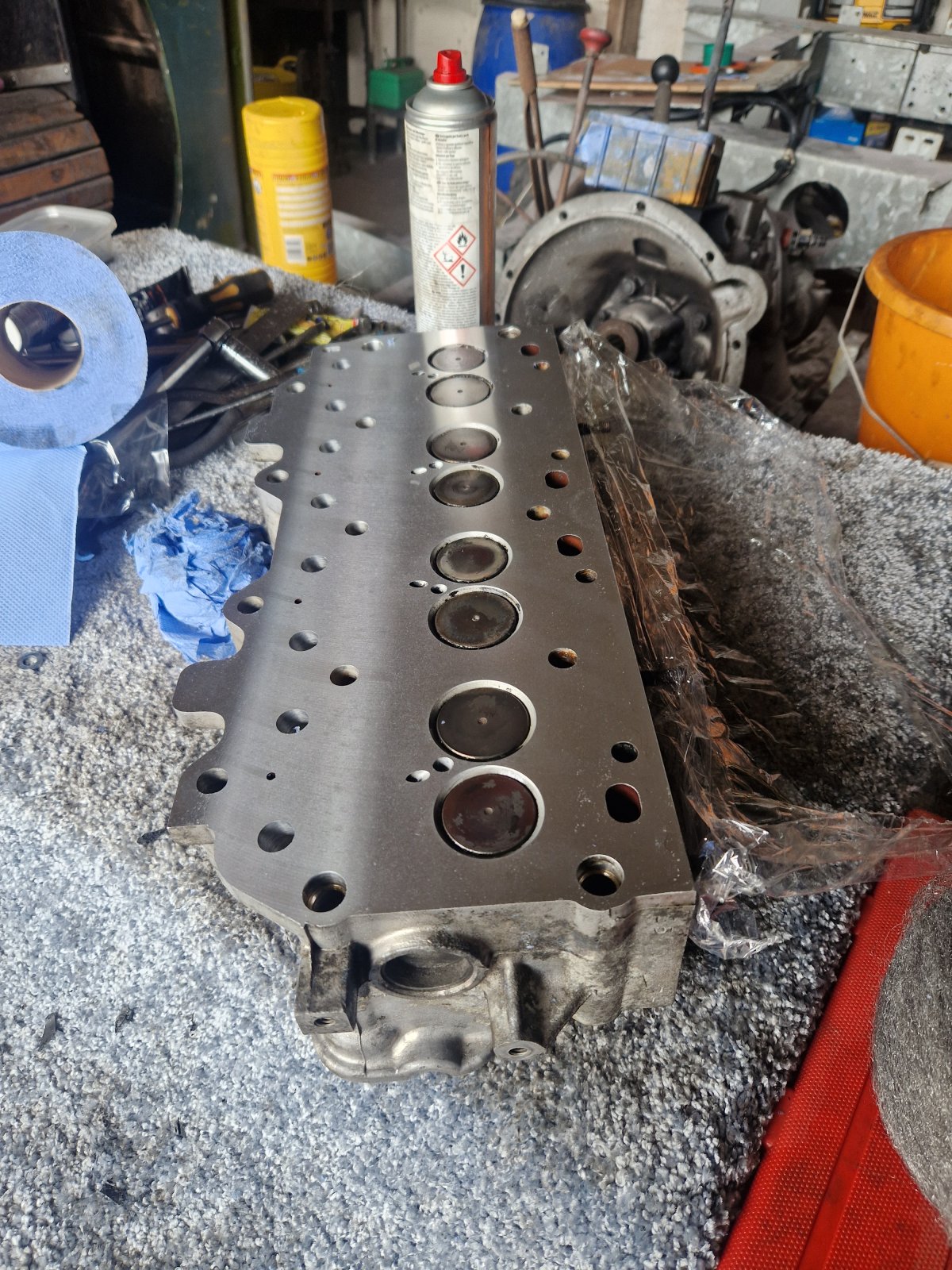

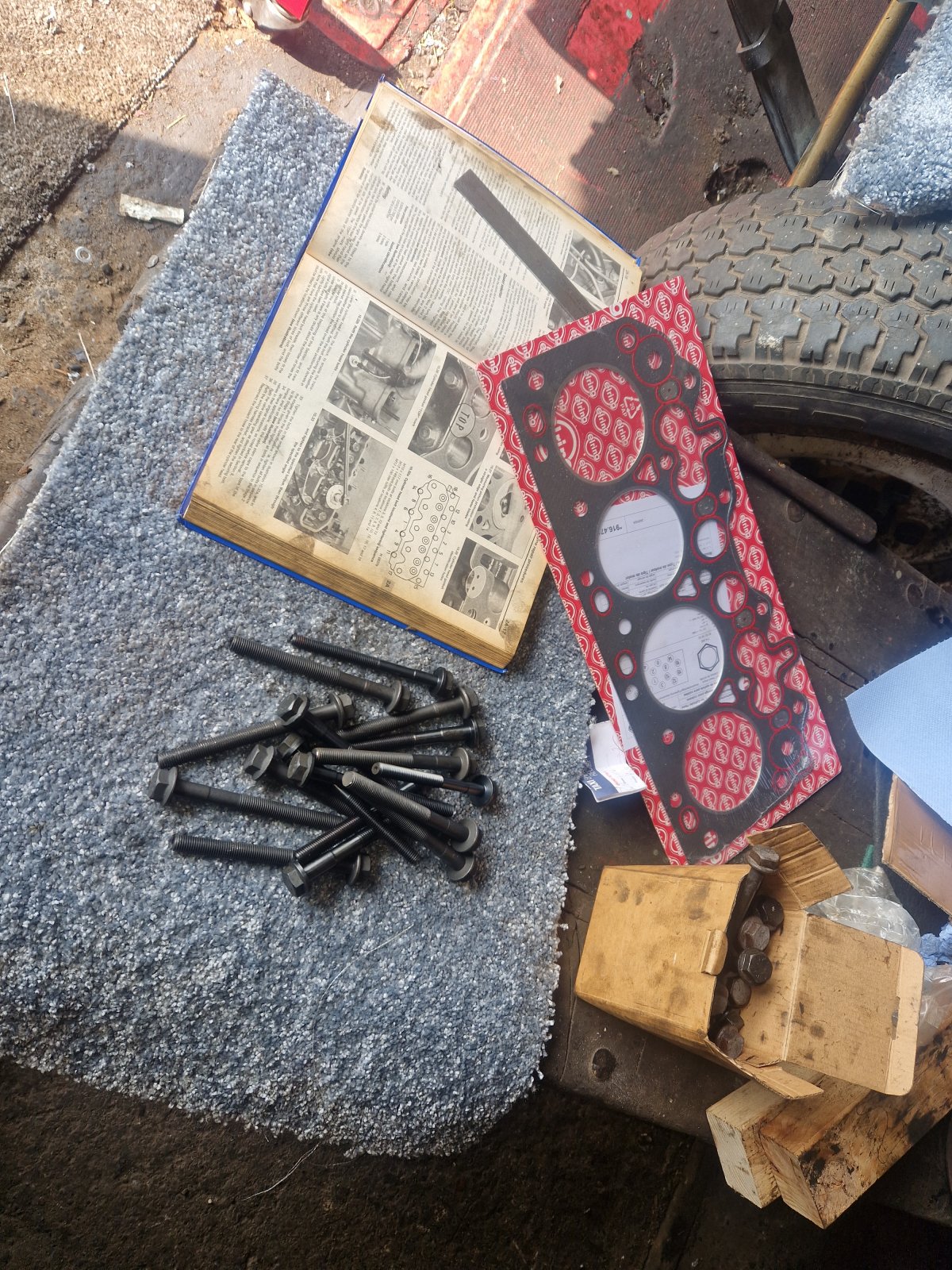

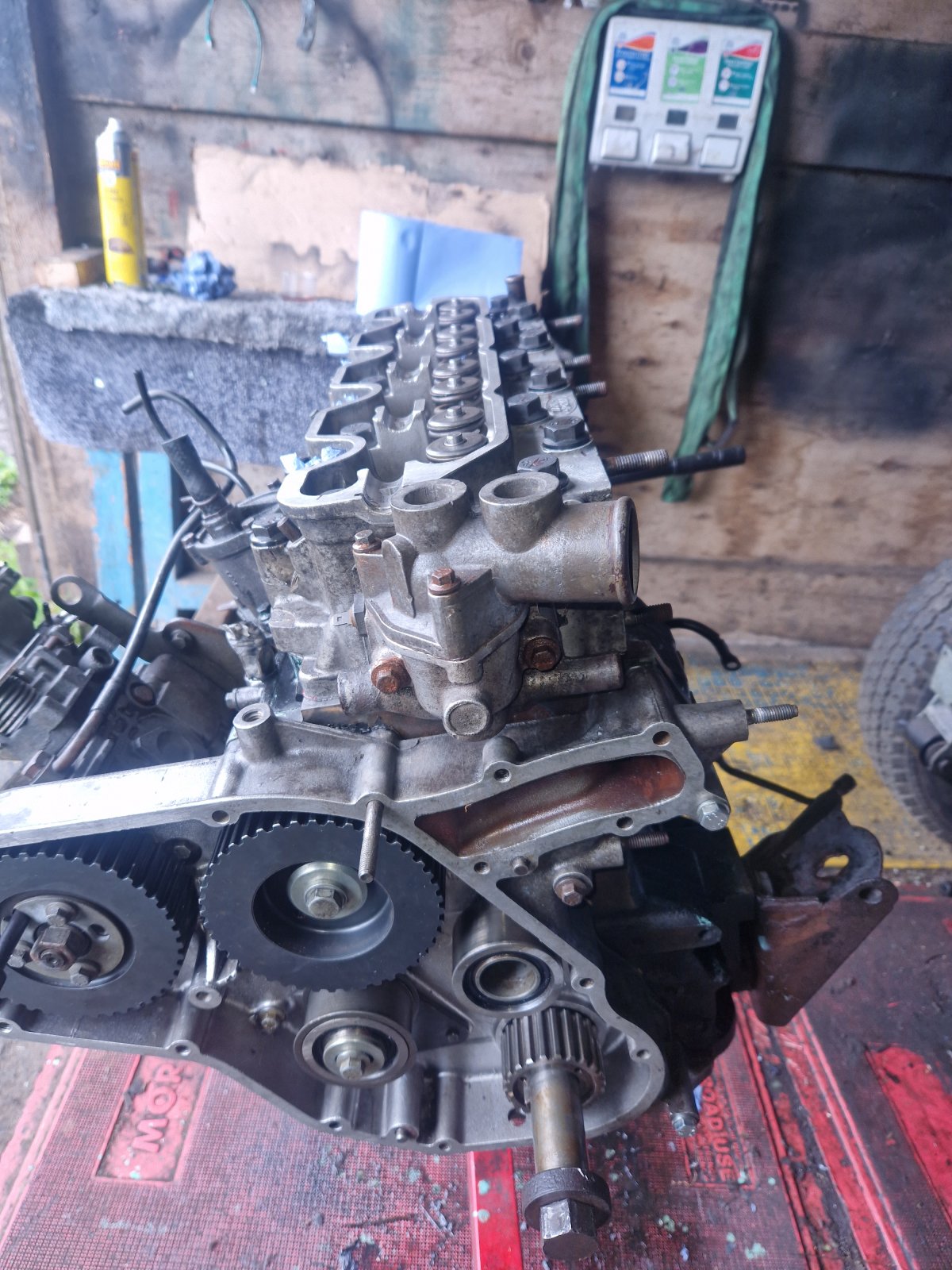

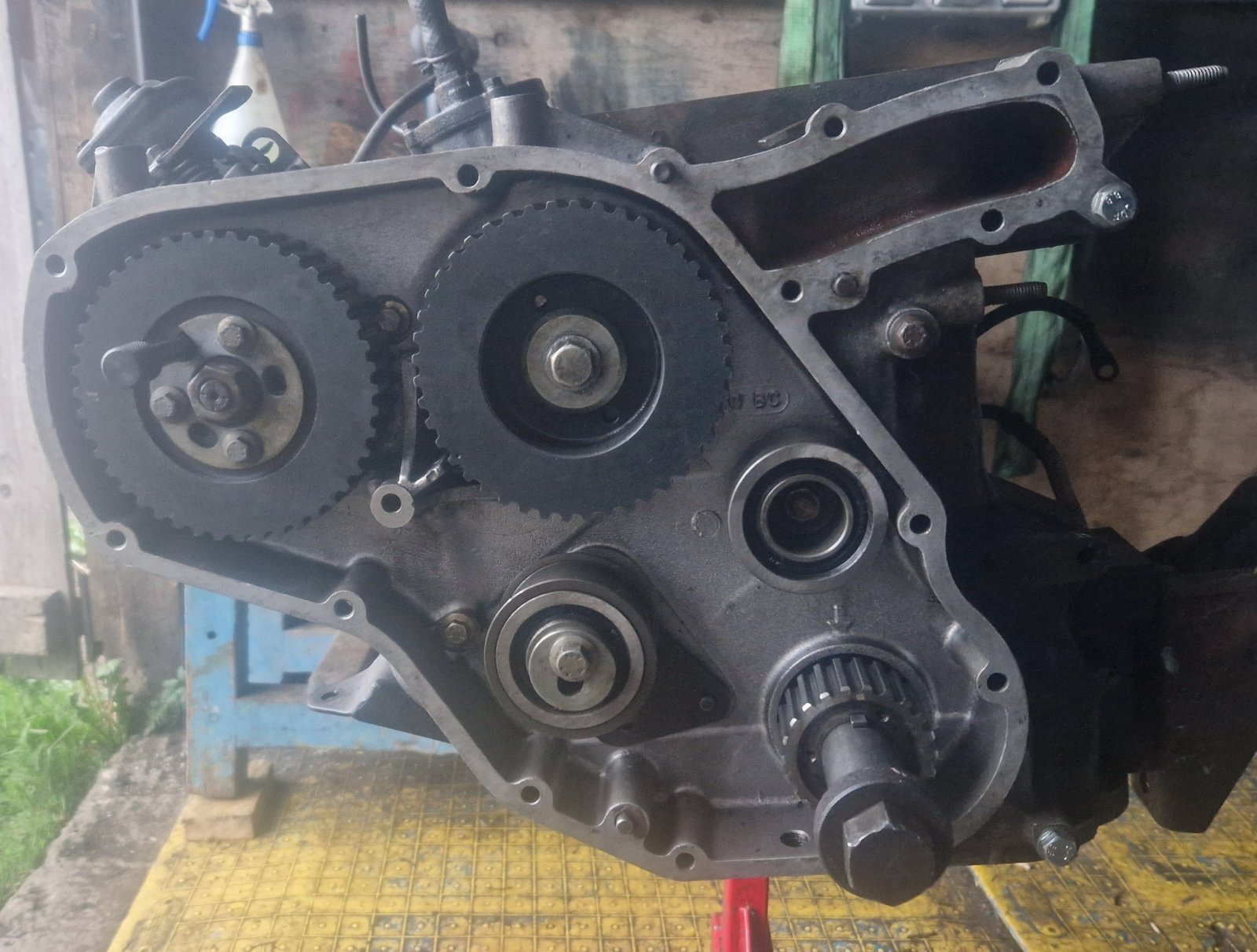

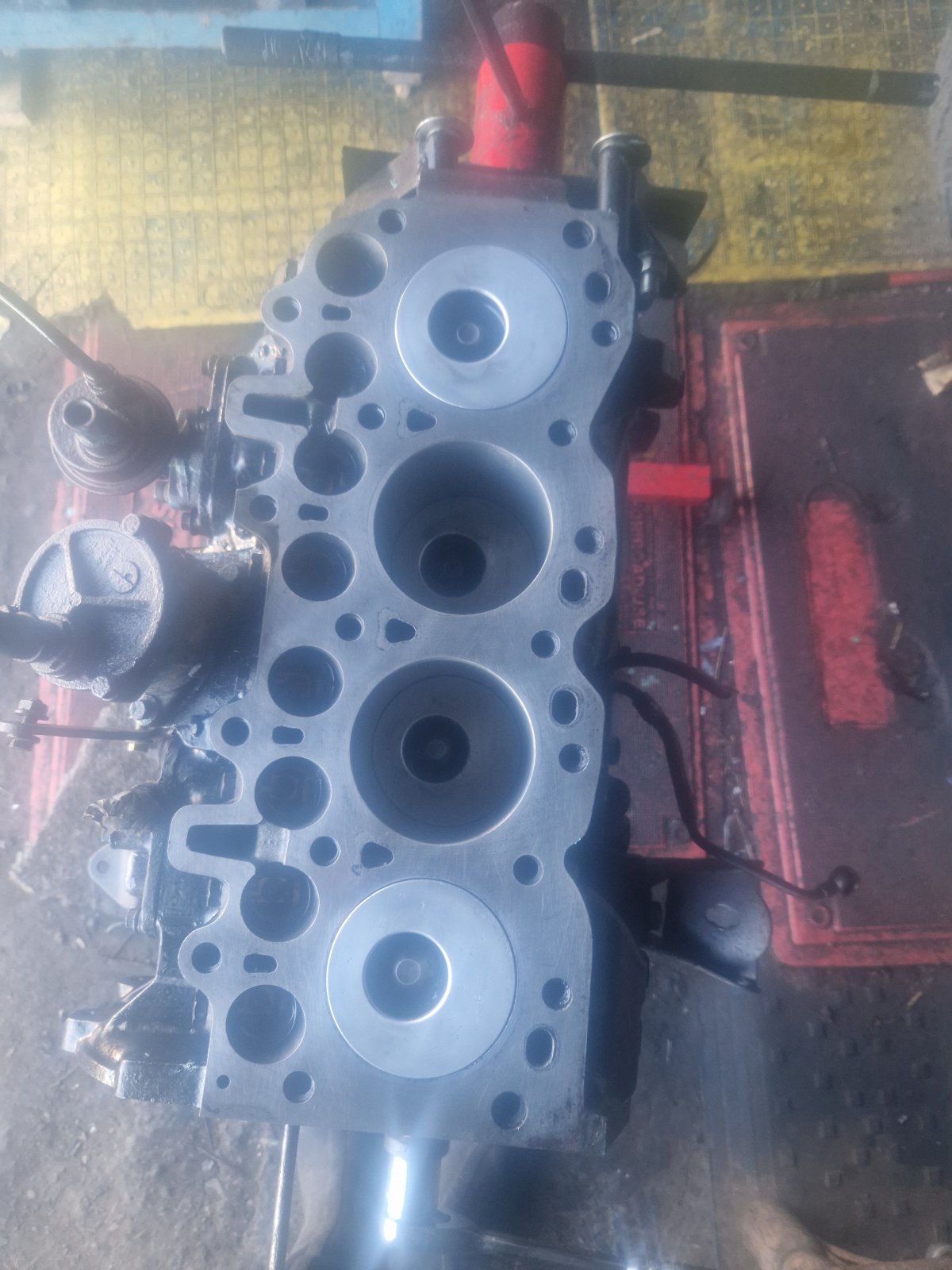

Bit farther forward, bearings and crank fitted, Head back from machine shop pressure tested and skimmed, bores honed with new rings, timing case and pump back on. Just waiting on sealer for ladder frame and sump also head gasket kit.
Not sure which to do first though.
