L322 2005 TD6 not starting

backinblack · May 2, 2020

RangeRoller dt said:
Desperate measures

Absolutely, good way to prove it's fuel related issue.

RangeRoller dt · May 2, 2020

I thought we knew that anyway

kds · May 2, 2020

Spray on deodorant works as well.

backinblack · May 3, 2020

RangeRoller dt said:
I thought we knew that anyway

For the less educated peeps, me included.

backinblack · May 3, 2020

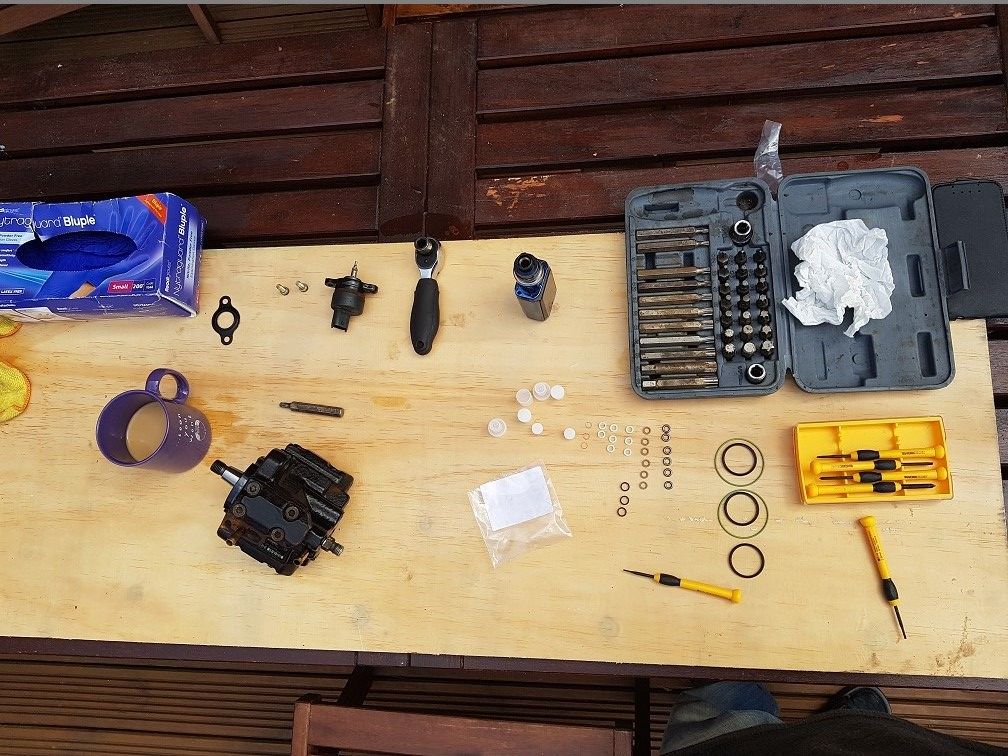

Finally got the pump out and set myself up in the garden for a fun afternoon

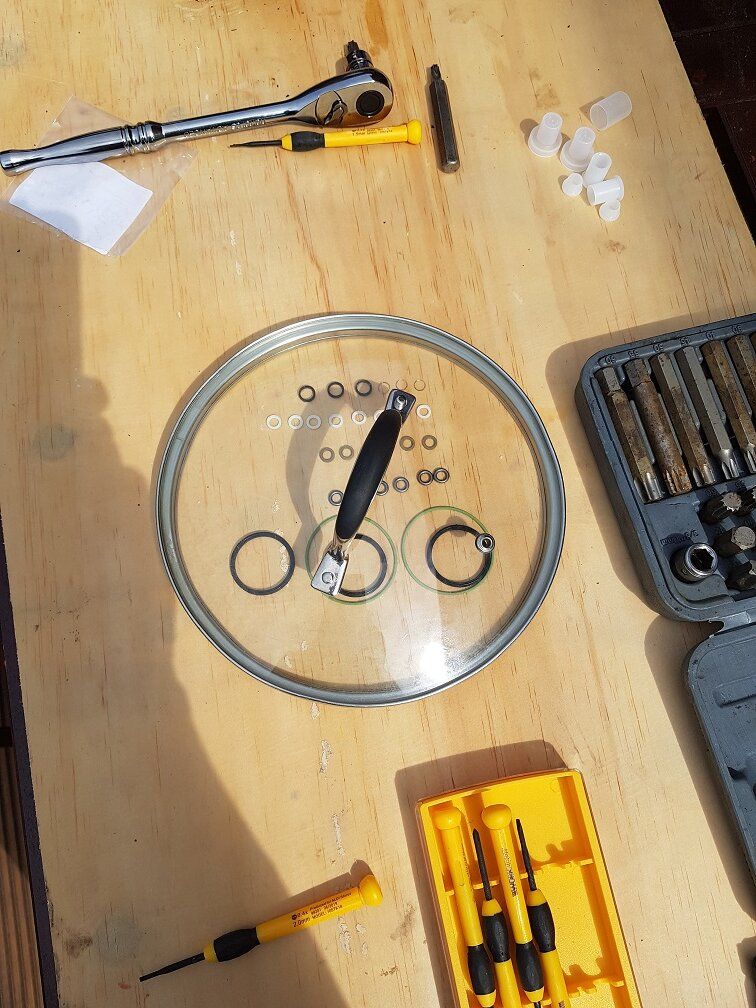

Didn't want to lose the O rings

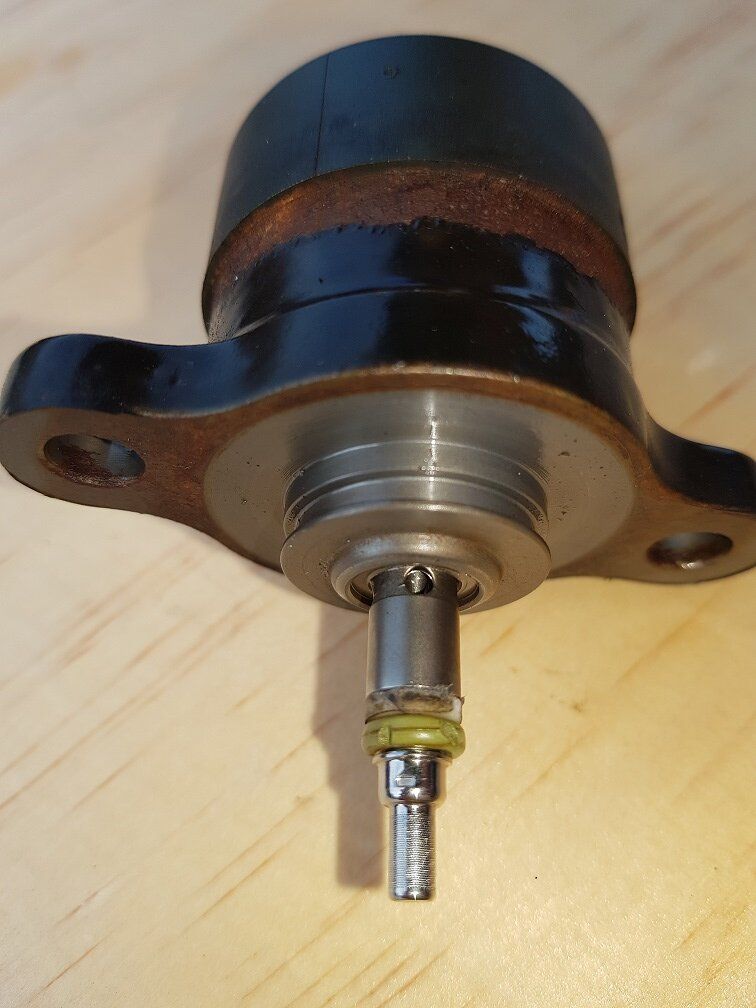

Think I found the problem, shame that's the O ring that ain't arrived yet

Thought I'd give this a clean as well

Done as much I can till the other O ring arrives.

backinblack · May 7, 2020

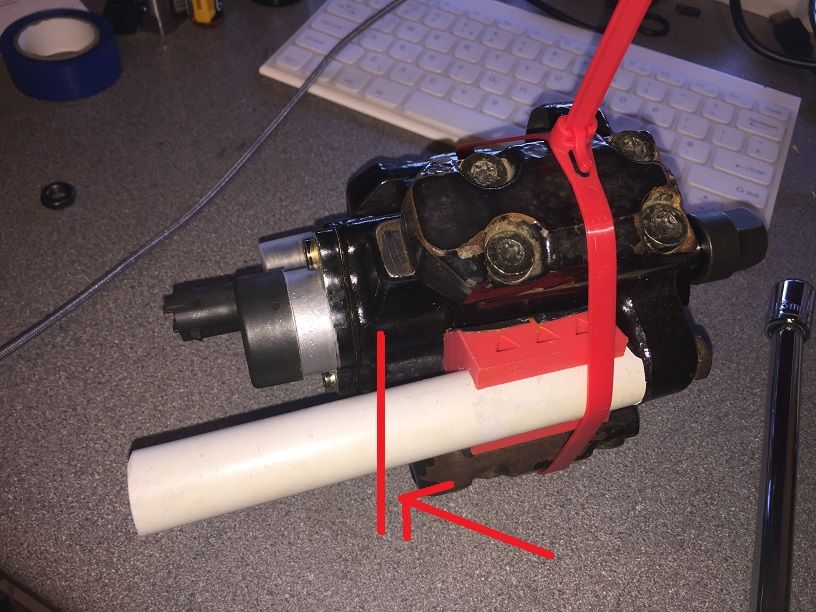

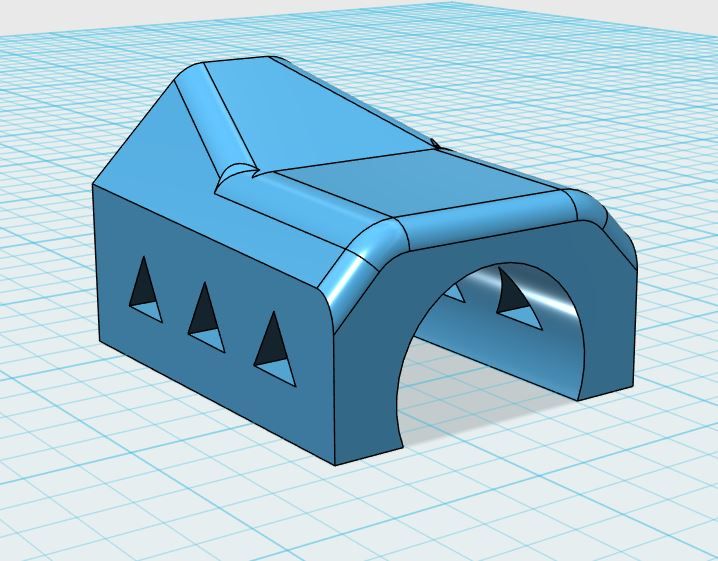

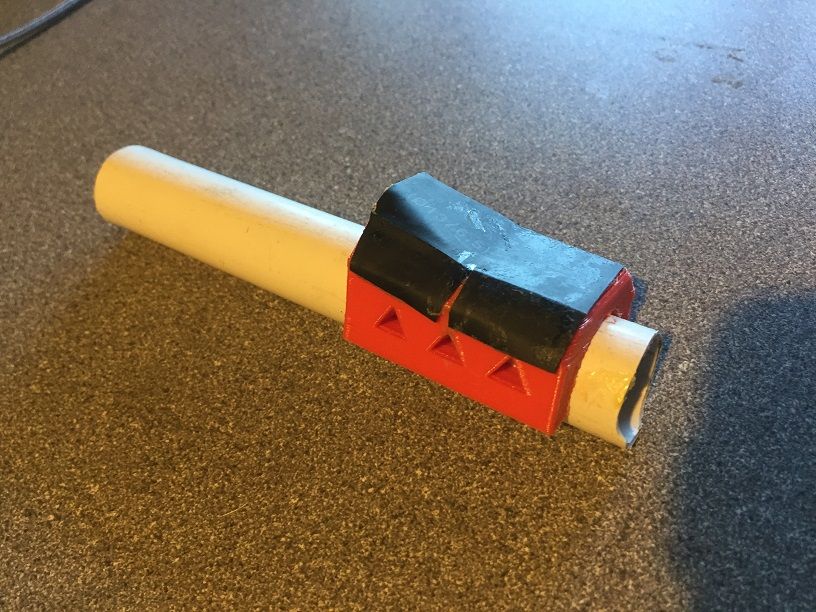

Knowing it would be a PITA to get the bottom nut on the HP fuel pump I thought I'd try and make it a bit easier so I 3D printed this

Had to cut a bit off the 22mm pipe cos a bit of the engine got in the way but I think it made it a lot easier.

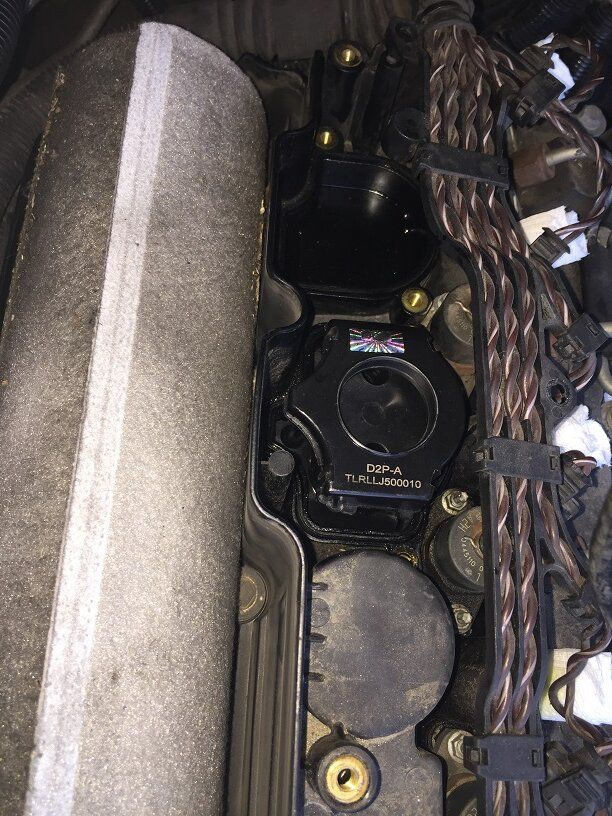

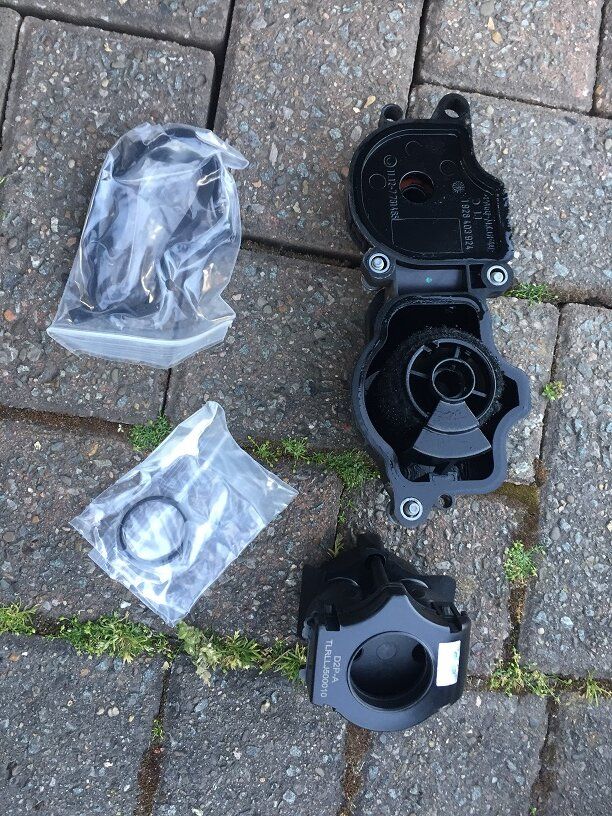

Also did the crank case breather upgrade

And changed the air filter (after I took the picture)

backinblack · May 12, 2020

O ring arrived at lunch time and 30 minutes later she's running again

Now all I have to do is put everything back together and fill her up with water and antifreeze.

backinblack · May 13, 2020

All done, test drive completed

brianp38dse · May 13, 2020

Happy times ahead then

backinblack · May 13, 2020

brianp38dse said:
Happy times ahead then

Till the next time
