2.5 petrol carbytooter info required

This site contains affiliate links for which LandyZone may be compensated if you make a purchase.

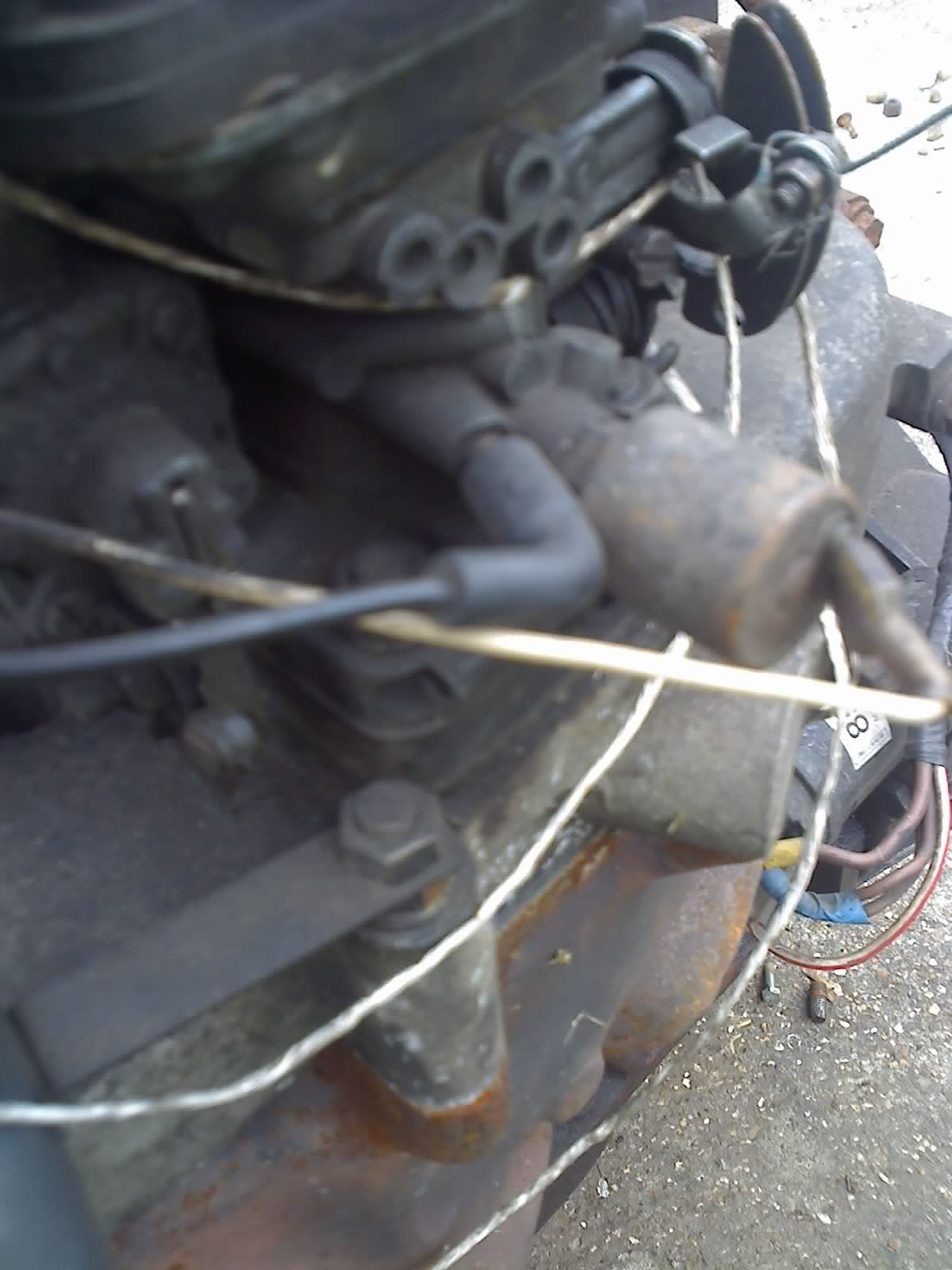

i think its for hot water , ive got a dmtl on my 2.3 out on the drive , il check tomozzer for ya.

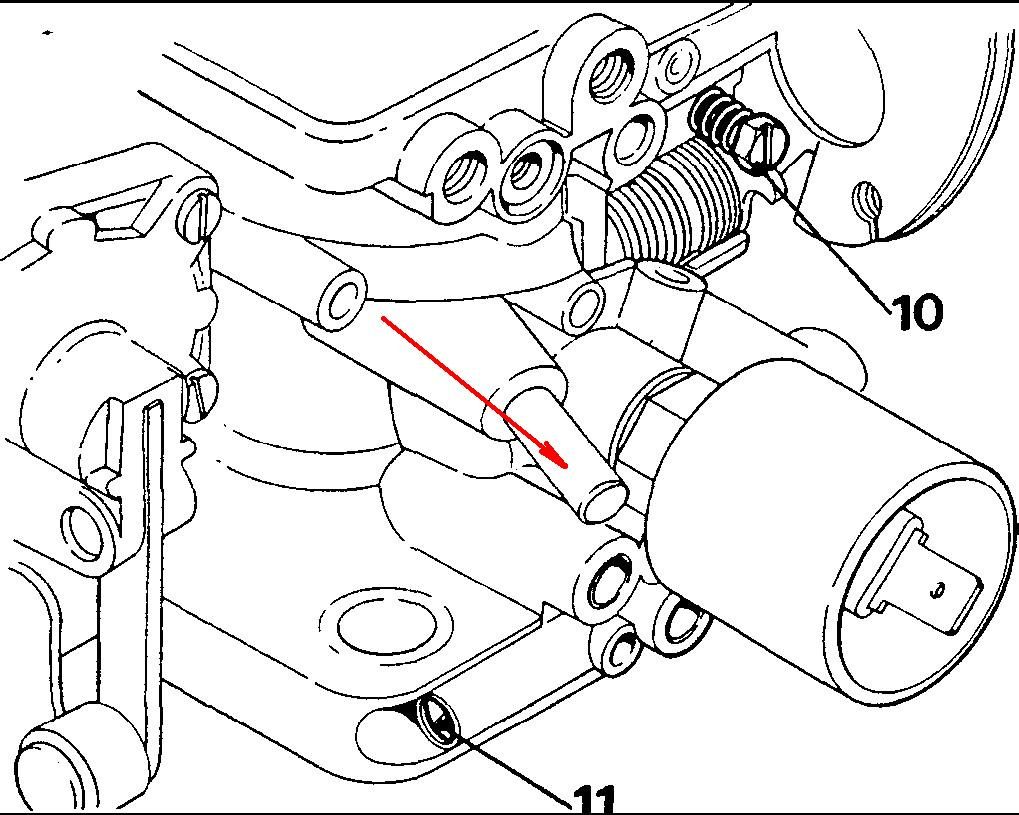

thanks Yella and Nobber - it cant be fur water coz its only about 4mm in diameter. - I will post diagram from "Rave".


Attachments

  • carbytooter.jpg
    149.8 KB · Views: 391
If I remember rightly (16 years ago), when I converted my mk1 Astra do a Weber DTML, it came with a fixing kit to allow it to fit a variety of engines. There were blanking plates and coolant water bypasses and all sorts for Auto Choke (Cortina mk IV and V, VW Scirocco).

I think this is summat t'do with autochoke and should be blanked off - my Astra had a nice red plug on the end of it - shame it back fired through the carb, set fire to the air filter and 5 minutes later was no more :eek:

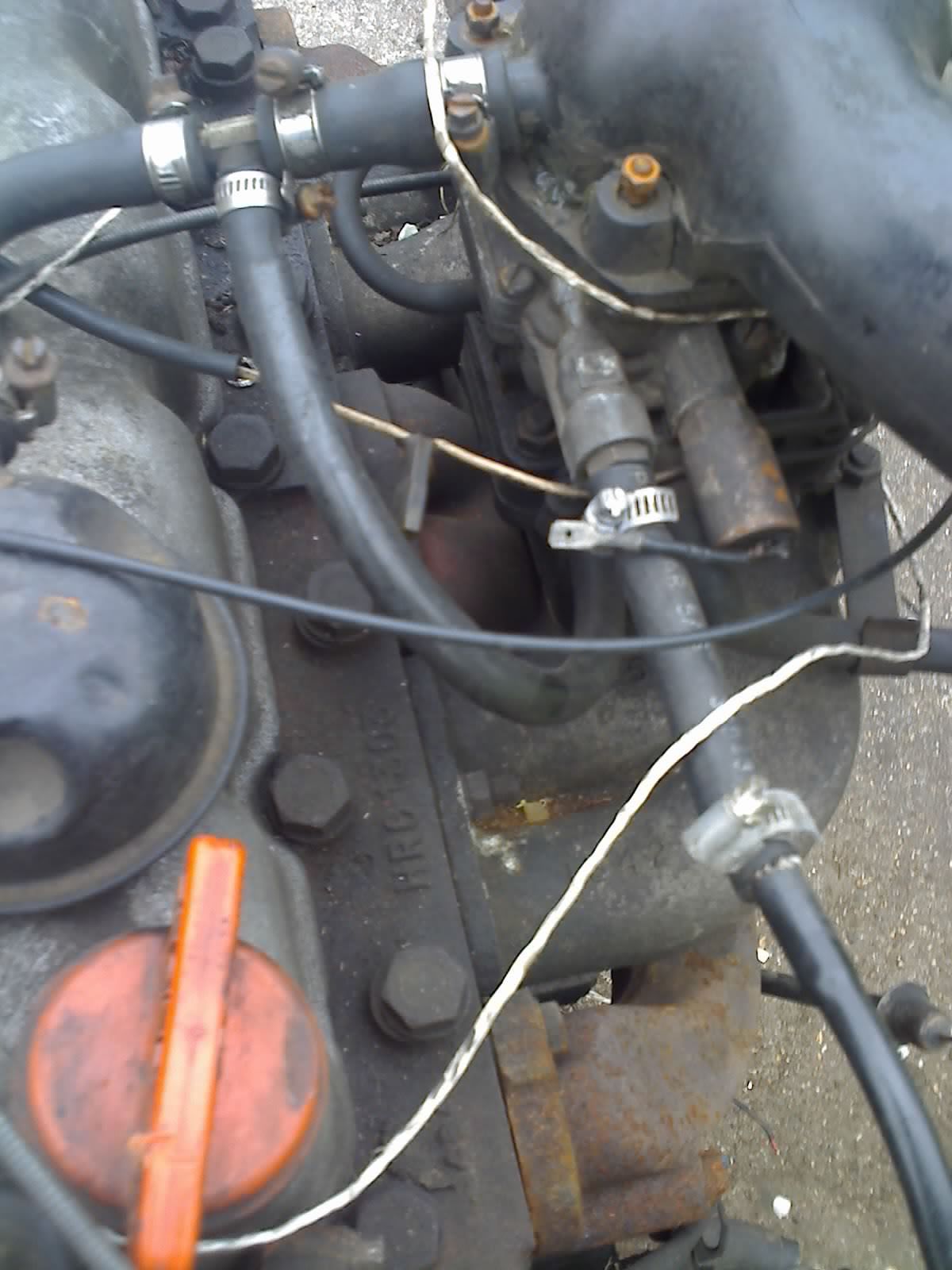

that goes into a 'T' piece coming from your elbow air inlet.


Attachments

  • 23-04-07_1807.jpg
    133.6 KB · Views: 291
Thanks Nobber.

Confused of B'stoke :eek:

i have setup as per your first pic, but underneathe the "T" piece connector is another small "vacuum" pipe which is connected to dizzy. Your "Dizzy" pipe is unconnected:eek:
will try and take piccies

are the connections on dmtl's generic?
i mean , does it rea\lly matter which pipe the dizzy's connected to so long as its a vacuum?
perhaps the other for a vacuum gauge on your dash or some other tuning or measuring equipment?

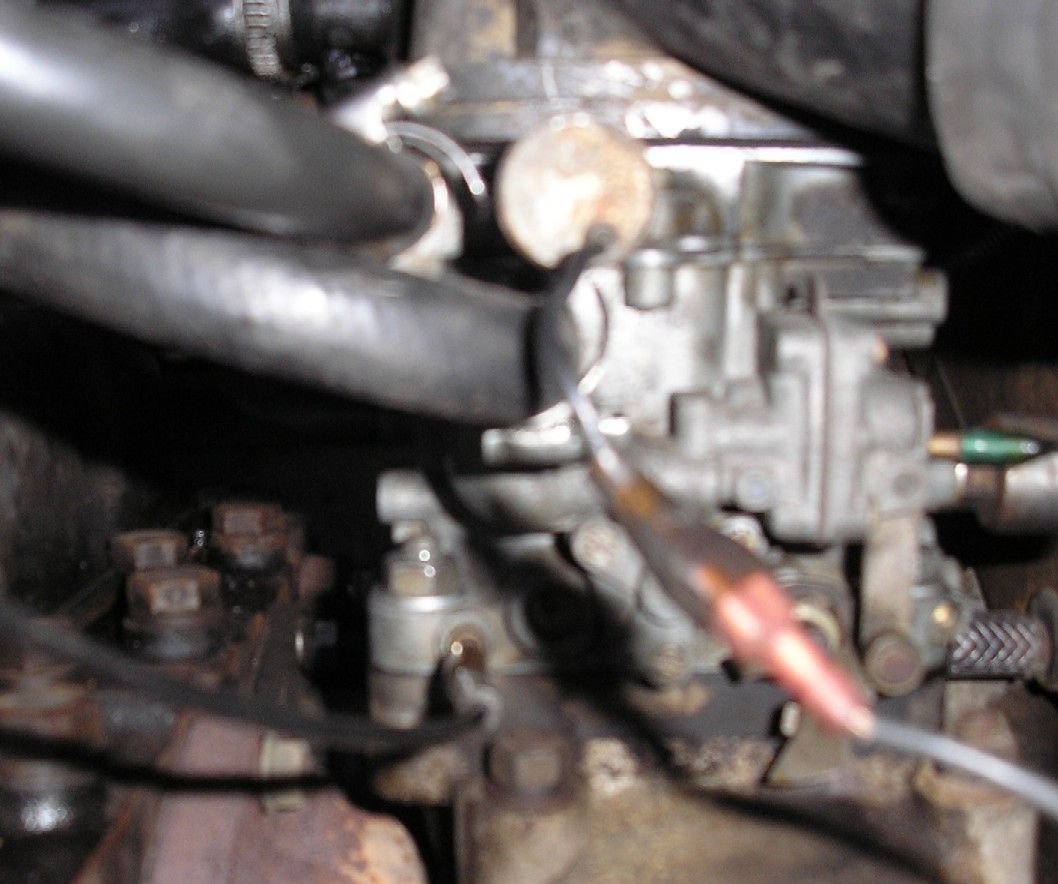

Here is a piccy fur yu.
Yu can see the fuel inlet pipe, the pipe that runs off to the "T" and below that the small pipe going off to the dizzy. On the right hand side of the piccy yu can see the green cap over the other vacuum take-orf that yu use for the dizzy. Yu mite be right in that it doesnt matter, but as i dont know nuffink about these engines, I want to check that it is ok as it is.


Attachments

  • Picture 009.jpg
    Picture 009.jpg
    108.9 KB · Views: 202
Dont understanad everything, but possibly this two images from my defeder 1990. 2,5 petrol could help. It comes from vacum to carburattor.


Attachments

  • Distr.jpg
    32.8 KB · Views: 224

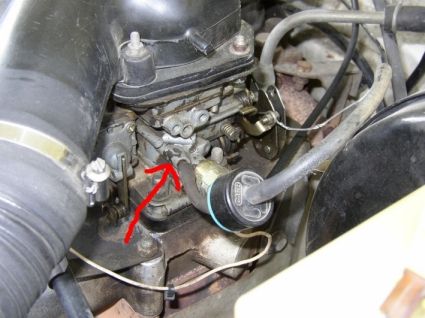

  • Carb.jpg
    28.5 KB · Views: 233
sorry to raise this thred agin - put i still got probs.

the first pic is of a carb from a 2.25 - the second from mine. where duz the cable from below the fuel cut-off go? - it goes towards the ns wing.

basically the 2.25 has 3 connections - mine only has two (in the wrong place) so wot shud i have?


Attachments

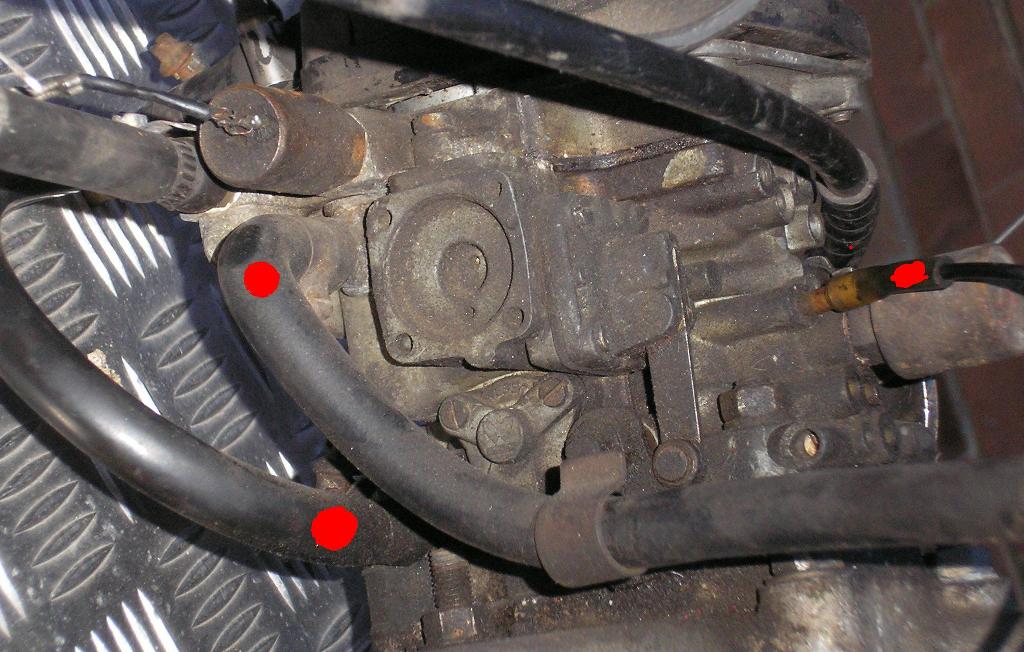

  • carb-225.jpg
    112 KB · Views: 245

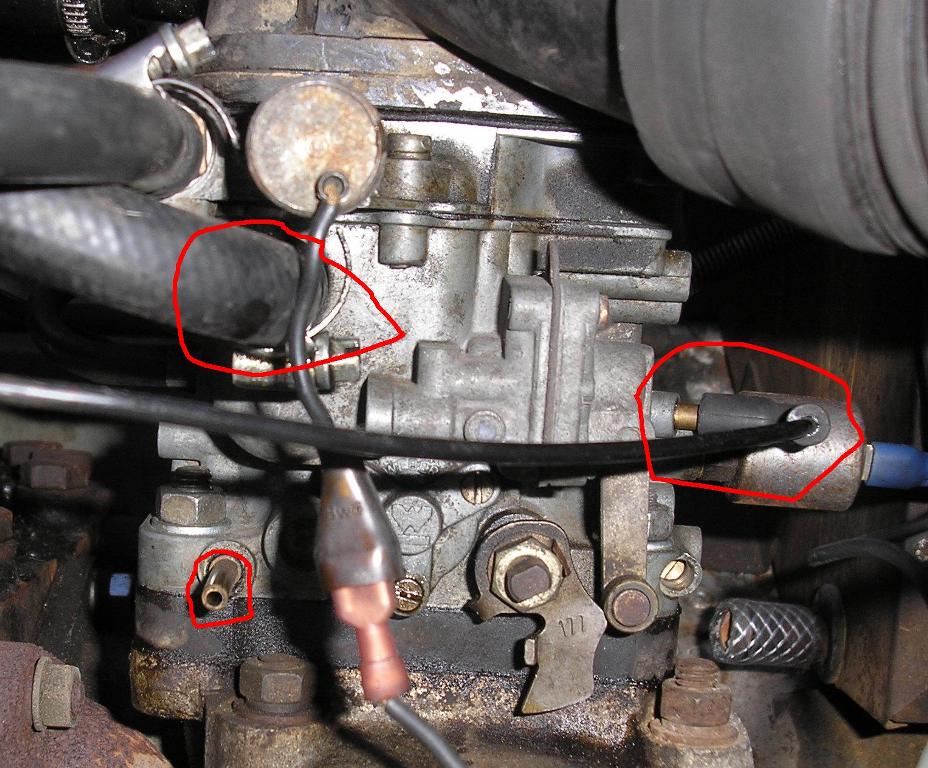

  • carb-25.jpg
    128.8 KB · Views: 303
the 2.3 and 2.5 are different carbs. i had a 2.5 carb on my 2.3 , you can tell the difference because the 2.5's weber dmtl has two solenoids , the 2.3 only has one.

nobber said:
the 2.3 and 2.5 are different carbs. i had a 2.5 carb on my 2.3 , you can tell the difference because the 2.5's weber dmtl has two solenoids , the 2.3 only has one.
Click to expand...

hmm that interesting coz the 2.25 carb is from the engine yu gave me - and its got two sillynoids!
