12s trailer socket

timberjock · Feb 9, 2008

done the search and got the wiring pics for the socket , does it mean I can plug the wires into the loom where my 12n plug is or do I have relays and fusess to worry about fitting ? This is into an ex mod defender 90.
cheers
mech skills limited and eletrics even worse so all help warmly welcomed , **** taking accepted cause this is LZ.

slob · Feb 9, 2008

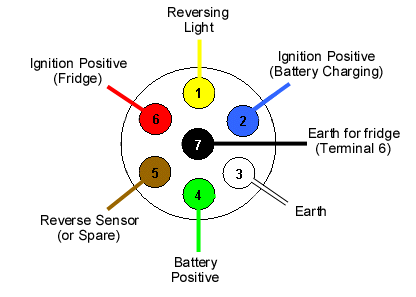

wint have thought so as you have ign feeds and battery feeds . you need a ign feed for terminals 2 and 6

a direct from battery for number 4

numbers 7 and 3 are earths
and i don't think yule be bothered about the others. or will you?

Pikey · Feb 9, 2008

Just splice straight in to the harness. I usually do it at the O/S rear where the Harness appears for the rear lights.

slob · Feb 9, 2008

redhand said:
Just splice straight in to the harness. I usually do it at the O/S rear where the Harness appears for the rear lights.

so where yer get yer ign and yer battery feeds from?

Pikey · Feb 9, 2008

whoops thought he meant ordinary trailer socket as in 12N. I shall go and purge meslf.

Pikey · Feb 9, 2008

Just looked at me wiring diagram and it shows a purple wire as been the auxillary connection for the 12S and a Green/Brown wire going to the Reverse light and a Black for the earth. All the other wires are wired to the 12N socket.

slob · Feb 9, 2008

so when the titill say 12s you think he meant 12n?
yer soft in the heed lad, soft in the heed or yer hung over

Pikey · Feb 9, 2008

Not had me Coffee yet. But too make amends fer me glaring error he can have this.

slob · Feb 9, 2008

aye but he's already sed he's gort the wiring pics, so yule have to offer summin else

Pikey · Feb 9, 2008

yeah but no but yeah but what you don't know right. eerm.!!

.

Got it I know the picture shows eggactly where to connect the noo wires and it din't show any relays or anything so no he dint need relays.

timberjock · Feb 9, 2008

cheers slob and red hand. never wired up a 12s socket need it for a caravan so,s can charge the battery on it as I go along and work all the rest of the stuff in it. first time with a bloody caravan too.

slob · Feb 9, 2008

redhand said:
the picture shows eggactly where to connect the noo wires .

no it dunt!! it shows where to connect yer reverse light up to but not the battery or fridge wires

GRUNT · Feb 9, 2008

Just splice straight in to the harness

Pah bloody cowboys. bring yer main cable up behind the bit of tin over the rear offside lights, get some solder on bullet connectors an do the job proply.

timberjock · Feb 10, 2008

cheers Grunt , done that for the 12n plug , still looking for help with the 12s plug them other two has got me confused , if I need a direct live feed from the battery this should have its own fuse? and need to know what wires go where into the 12n plug to seeminily

slob · Feb 10, 2008

timberjock said:
cheers Grunt , done that for the 12n plug , still looking for help with the 12s plug them other two has got me confused , if I need a direct live feed from the battery this should have its own fuse? and need to know what wires go where into the 12n plug to seeminily

you're confused? you wannna try reading yer last post.

anyway if you do a search i posted whats whats fer the 12n

if you can't take a live feed from the battery and stick a fuse in it yer really shouldn't be doing this

Pikey · Feb 10, 2008

slob said:
no it dunt!! it shows where to connect yer reverse light up to but not the battery or fridge wires

I thought the Purple wire Labelled Auxillary Connection was for the fridge?

slob · Feb 10, 2008

aye but naw. ah mean yer 12s terminal numbers dint match up most other folk's 12s terminal numbers. most others have them numbered 1-7 not the same as a 12n which your's is

slob · Feb 10, 2008

which a could add looks more like a 12n plug as its a mirror of yer 12n socket

slob · Feb 10, 2008

Pikey · Feb 10, 2008

slob said:
aye but naw. ah mean yer 12s terminal numbers dint match up most other folk's 12s terminal numbers. most others have them numbered 1-7 not the same as a 12n which your's is

That's the wiring diagram in the back of the 90/110 handbook. I just scanned it in to the pooter.
